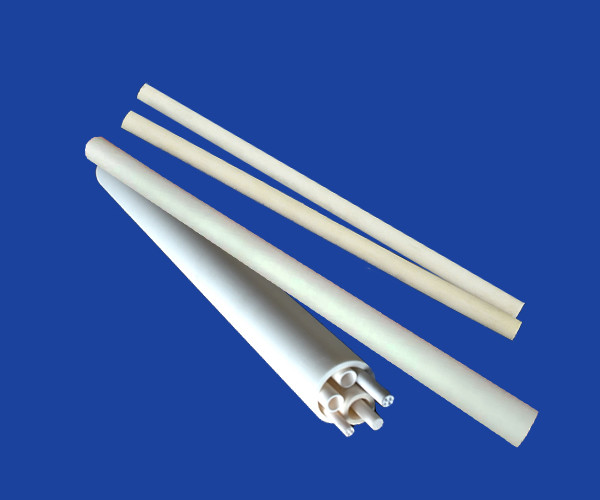

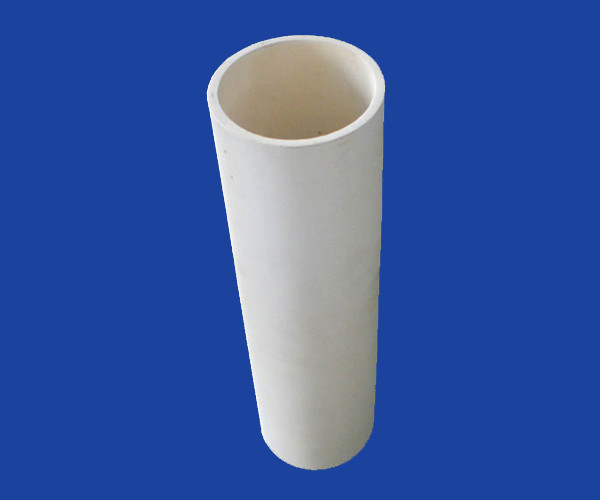

Industrial 1850mm Alumina Ceramic Corundum Tube
Industrial 1850mm Alumina Ceramic Corundum Tube
Industrial 1850mm Alumina Ceramic Corundum Tube
Industrial 1850mm Alumina Ceramic Corundum Tube
Industrial 1850mm Alumina Ceramic Corundum Tube
Industrial 1850mm Alumina Ceramic Corundum Tube
Industrial 1850mm Alumina Ceramic Corundum Tube
Industrial 1850mm Alumina Ceramic Corundum Tube
Specifications
Brand Name :
oem
Certification :
DIN43724/DIN43725/DIN40680
Place of Origin :
china
MOQ :
1 qty
Price :
dollar 2-6
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
3000 per/month
Delivery Time :
5-8 working day
Packaging Details :
wooden box
Material :
95%-99.99% Alumina(Al2O3)
Features :
Heat resistance / Wear resistance / High purity / Refractory / High Corrosion / Good Insulation...
Precision :
Ra 0.1um tolerance: 0.001mm... etc
Length :
Max 1850mm
Application :
Industrial Ceramic,Structure Ceramic,thermocouple protection tube,Wear resistant,Knitting Spare Part
Package :
Carton
Description

99% Alumina Tube Parts Multi Sizes And Shapes Industrial Alumina Ceramic Corundum Tube/Pipe

With good thermostability,insulation,air tightness etc properties,ceramic protection tubes are widely used in thermocouple,radiation temperature mearsurement etc fields

ALL PRODUCTS CAN PASS THE GERMAN STANDARD: DIN43724/DIN43725/DIN40680

FOLLOW THE DETAIL DRAWIN

zppd_Company_Profile-_Dongguan_Mingrui_Ceramic_1-a...

Industrial 1850mm Alumina Ceramic Corundum Tube

Do not find similar ceramic products on this page?

For more detail of ceramic products like price,shipping,samples...

Quick Free Quote . Our official E-mail: admin@cerampart.com(Mr admin).thanks

Composition table
NAME CONTENT(%)
Al2O3 99.3-99.5(99.7)
SiO2 0.3-0.5
CaO+MgO 0.2-0.3
K2O+Na2O 0.2-0.35
Fe2O3 <0.1
OTHER <0.05

Alumina ceramic performance index
NO. Property Unit Alumina
1 Al2O3 % >99.3
2 SiO2 % -
3 Density g/cm3 3.88
4 Water absorption % 0.01
5 Cold compressive strength MPa 350
6 20ºC leakage rates Torr/L.sec <10-11
7 Twisting in high temperature mm 0.2 allowed in 1600ºC
8 Bonding in high temperature not bonded in 1600ºC
9 20-1000ºC coefficient ofthermalexpansion mm.10-6/ºC.m 8.2
10 Thermal conductivity W/m.k 25
11 Electric insulation strength KV/mm 20
12

20ºCdirect current

insulation resistance

 Ohm/cm 1014
13

High-temperature

insulation resistance

 1000ºC MΩ ≥0.08
1300ºC MΩ ≥0.02
14 Thermal shock resistance 4 times not cracked in 1550ºC
15 Maximum working temperature ºC 1800

Typical properties

●Good strength and stiffness

●Good hardness and wear resistance

●Good corrosion resistance

●High thermal conductivity

●High temperature resistance

●Electrical insulation

●Low dielectric constant

Application examples

●Mechanical seal rings

●Plungers or pistons for valves

●Electronic substrates

●High temperature thermocouple tubes

●Textile eyelets or guides

●Electrical insulators

●Wear resistant nozzles

●Ceramic parts for high temperature furnace

Industrial 1850mm Alumina Ceramic Corundum TubeIndustrial 1850mm Alumina Ceramic Corundum TubeIndustrial 1850mm Alumina Ceramic Corundum Tube

Delivery:
Custom OEM will be shipped within 15 days after determining the parameters
The samples will be shipped within 3 days
Quick Delivery Via Fedex,DHL,UPS,TNT Etc.
Support customer to designate shipping company
For more informations (the price,delivery time,moq etc)about the ceramic plates, please contact us or email:admin@cerampart.com


CEO: Admin deng
Dongguan Mingrui Ceramic Tech. Co. Ltd.
Add: No.21 Chuangxing Rd., 2nd Industrial Zone of Shangsha,
Chang'an town, Dongguan city, Guangdong, China 523867
Email: admin@cerampart.com

FAQ
1. Monthly Capacity: 50,000-60,000 pcs;
2. Material: OEM or as per your suggestion;
3. Lead time: about 7-20 days, pls confirm the quantities required;
4. Incoterm: FOB, CFR, CIF;
5. Delivery Cost: It is determinated by the destination port;
6. Payment Term: PayPal; T/T; L/C.
7. Shipment: by sea, by air, by courier, by post, etc.
