Black Zirconia Ceramic E Smoking Nozzle Electronic Cigarette Holders Vape / Nozzles Accessories
Black Zirconia Ceramic E Smoking Nozzle Electronic Cigarette Holders Vape / Nozzles Accessories
Black Zirconia Ceramic E Smoking Nozzle Electronic Cigarette Holders Vape / Nozzles Accessories
Black Zirconia Ceramic E Smoking Nozzle Electronic Cigarette Holders Vape / Nozzles Accessories
Black Zirconia Ceramic E Smoking Nozzle Electronic Cigarette Holders Vape / Nozzles Accessories
Black Zirconia Ceramic E Smoking Nozzle Electronic Cigarette Holders Vape / Nozzles Accessories
Specifications
Brand Name :
Customized
Model Number :
Customer's requests
Certification :
, CE, TUV
Place of Origin :
Guangdong, China(mainland)
MOQ :
15 pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, Paypal, D/P, D/A, MoneyGram
Supply Ability :
5000 pcs per month
Delivery Time :
15 - 30 working days after receiving deposit
Packaging Details :
Packed in a bubble bag individually, then separated by a foam, finally put in standard export carton packing, or OEM packing.
Product name :
Zirconia Ceramic E Smoking Nozzle
Material :
Zirconia / Alumina ceramic / Si3N4
Surface :
Polishing
Size and Shape :
Customized
Color :
Black, or OEM
Tolerance :
ISO 2768
Max working temperature :
1750℃ (Alumina), 1050℃ ( Zirconia)
HV hardness :
1400-1650 Mpa (Alumina), 1300-1365 Mpa (Zirconia)
Application :
Electronic Cigarette Holders Vape / Nozzles Accessories
Description

Black Zirconia Ceramic E Smoking Nozzle Electronic Cigarette Holders Vape / Nozzles Accessories



Product Description

Manufacturing of zirconia ceramics using high-purity zirconia materials, insulation at room temperature, and high temperature has electrical conductivity and other excellent properties.High temperature resistance Melting point is 2715 ℃,1200mpa hardness.

Ceramic material composition:

· TTZ: Magnesia partially stabilized Zirconia (ZrO2) · YTZP: Yttria partially stabilized Zirconia (ZrO2) · ZDY: Yttria fully stabilized Zirconia (ZrO2)


Specification:
1. Refractory, High Temperature Resistance, Maximum Used Temperature: 1800 ºC (3272ºF)...
2. Hardness Strength Up To Mohs 9.0; HRA 80-90, Wear Resistance wear rate 0.68 mm3·m-2·h-1....

3. High Voltage, Good Insulation Performance ,Electrical Resistivity Up To 10∧14 Ohm.Cm...
4. High Polished Surface Up To Rz0.8(Ra0.1) ...
5. Superior Mechanical Strength, Max 10 MPa.m1/2 Fracture toughness,
6. Pressure Resistance, Max 2300MPa compressive strength...
7. Anti-High Corrosion Resistance, Such As Acid Alkali Resistance...
8. Long Service Life...
9. Other excellent property

Properties Sheet:

Properties Units 95 Alumina 99 Alumina Zirconia
Density ɡ / cm3 3.65 3.92 5.95 - 6.0
Water Absorption ％ 0 0 0
Coefficient of Thermal Expansion 10-6 / K 7.9 8.5 10.5
Modulus of Elasticity Young’s Mod Gpa 280 340 210
Poisson’s Ratio / 0.21 0.22 0.3
HV Hardness Mpa 1400 1650 1300 - 1365
Flexural Strength@Room Temperature Mpa 280 310 950
Flexural Strength@700℃ Mpa 220 230 210
Compressive Strength@Room Temperature Mpa 2000 2200 2000
Fracture Toughness Mpa * m½ 3.8 4.2 10
Heat Conductivity@Room Temperature W / m * k 18 - 25 26 - 30 2.0 - 2.2
Electrical Resistivity@Room Temperature Ω*mm2 / m ＞1015 ＞1016 ＞1015
Max Application Temperature ℃ 1500 1750 1050
Resistance to Acid Alkaline / High High High
Dielectric Constant / 9.5 9.8 26
Dielectric Strength KV / mm 16 22 /
Thermal Shock Resistance Δ T ( ℃ ) 220 180 - 200 282 - 350
Tensile Strength@25℃ Mpa 200 248 252

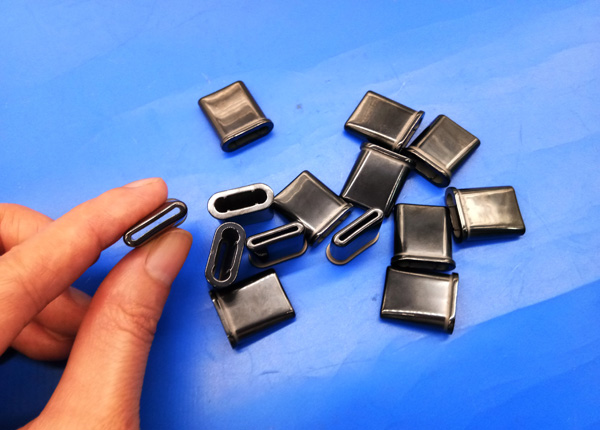

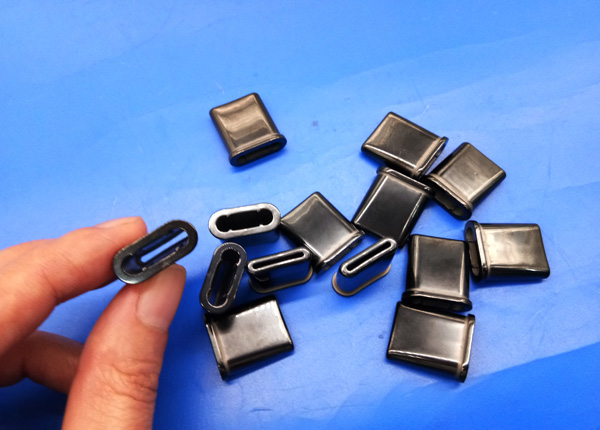

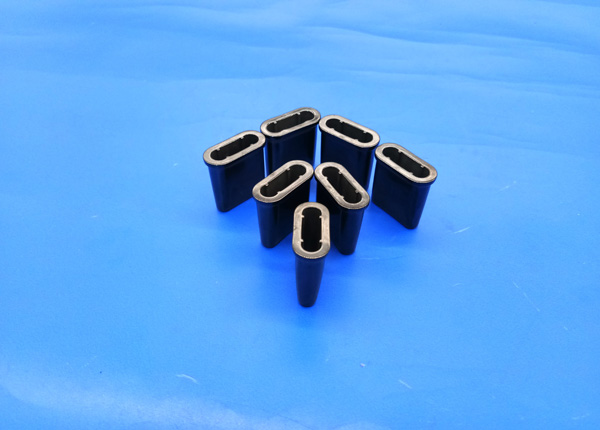

Detailed Images

Black Zirconia Ceramic E Smoking Nozzle Electronic Cigarette Holders Vape / Nozzles AccessoriesBlack Zirconia Ceramic E Smoking Nozzle Electronic Cigarette Holders Vape / Nozzles AccessoriesBlack Zirconia Ceramic E Smoking Nozzle Electronic Cigarette Holders Vape / Nozzles Accessories

Related Products

Machinable White Zirconia / Alumina Ceramic Rod , Custom Al2O3 Tube Porous Ceramic Rod

Black Zirconia Ceramic E Smoking Nozzle Electronic Cigarette Holders Vape / Nozzles Accessories

White Color Machinable Ceramic Block 95 - 99.7 % Alumina Circular Block / Disc

Black Zirconia Ceramic E Smoking Nozzle Electronic Cigarette Holders Vape / Nozzles Accessories

View More Products


Packaging and Shipping

E Cigarette Holders Vape / Nozzles Accessories will be packed in a bubble bag individually, then separated by a foam, finally put in standard export carton packing, or OEM packing.

Shipped by Express ( DHL, TNT, UPS, Fedex, EMS ), Air, or Sea transportation.

Black Zirconia Ceramic E Smoking Nozzle Electronic Cigarette Holders Vape / Nozzles Accessories
Black Zirconia Ceramic E Smoking Nozzle Electronic Cigarette Holders Vape / Nozzles Accessories

Delivery:
Custom OEM will be shipped within 15 days after determining the parameters
The samples will be shipped within 3 days
Quick Delivery Via Fedex,DHL,UPS,TNT Etc.
Support customer to designate shipping company
For more informations (the price,delivery time,moq etc)about the ceramic plates, please contact us or email:admin@cerampart.com

CEO: Admin deng

Dongguan Mingrui Ceramic Tech. Co. Ltd.

Add: No.21 Chuangxing Rd., 2nd Industrial Zone of Shangsha,

Chang'an town, Dongguan city, Guangdong, China 523867

Email: admin@cerampart.com

FAQ
1. Monthly Capacity: 50,000-60,000 pcs;
2. Material: OEM or as per your suggestion;
3. Lead time: about 7-20 days, pls confirm the quantities required;
4. Incoterm: FOB, CFR, CIF;
5. Delivery Cost: It is determinated by the destination port;
6. Payment Term: PayPal; T/T; L/C.
7. Shipment: by sea, by air, by courier, by post, etc.
