Precision Zirconia ZrO2 Ceramic Cylinde / Liner / Sleeve With High Heat Resistance
Precision Zirconia ZrO2 Ceramic Cylinde / Liner / Sleeve With High Heat Resistance
Precision Zirconia ZrO2 Ceramic Cylinde / Liner / Sleeve With High Heat Resistance
Precision Zirconia ZrO2 Ceramic Cylinde / Liner / Sleeve With High Heat Resistance
Precision Zirconia ZrO2 Ceramic Cylinde / Liner / Sleeve With High Heat Resistance
Precision Zirconia ZrO2 Ceramic Cylinde / Liner / Sleeve With High Heat Resistance
Specifications
Brand Name :
Mingrui
Model Number :
Customer's Requirements
Certification :
ISO9001:2015,,CE
Place of Origin :
China,Guangdong
MOQ :
1 pieces
Price :
Negotiable
Payment Terms :
Western Union, L/C, T/T, D/P, D/A
Supply Ability :
500 pieces week
Delivery Time :
15-20 working days after the order confirmed
Packaging Details :
will be packed in wooden box, carton, plastic box, standard export package or 100% as per your requirements.
Standard or Nonstandard :
Nonstandard
Electrical Insulation :
Excellent
Compressive Strength :
2000 - 2500 Mpa
Item :
Ceramic Plunger Piston
Stabilizer :
Yttria zirconia ceramic
Forming method :
Isostatic pressing
Compressive Strength@Room Temperature :
2000 - 2200 MPA
Density :
3.9g/cm3 / >6.0g/cm3
Size :
Customized
HV Hardness :
1300 - 1650 Mpa
Description

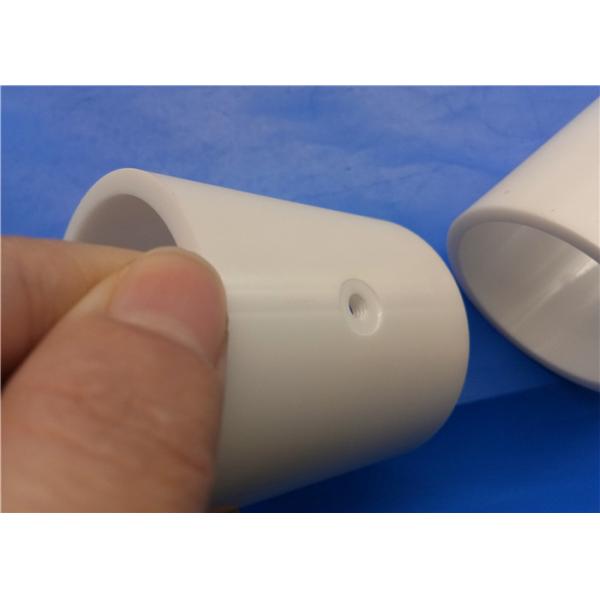

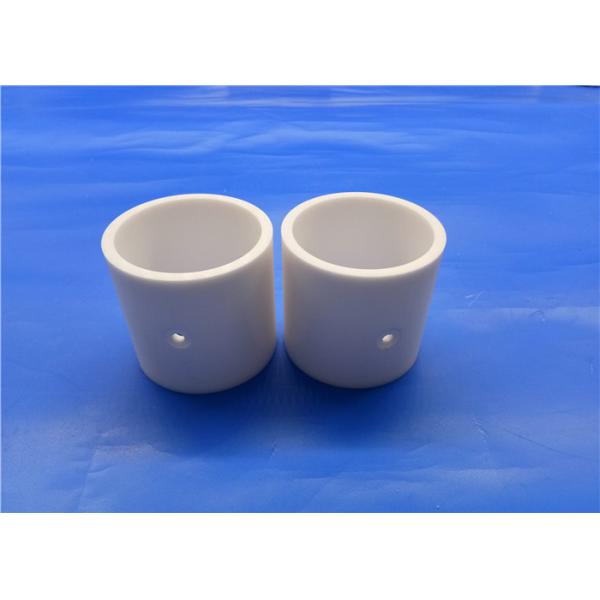

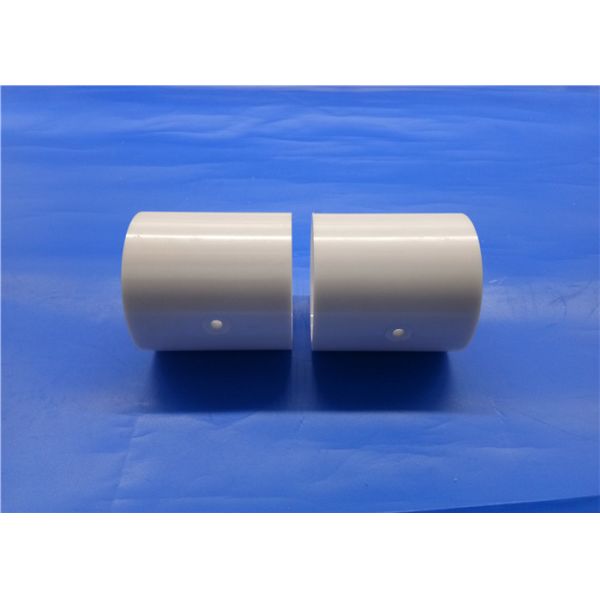

Precision Zirconia ZrO2 Ceramic Cylinde/ Liner/ Sleeve With High Heat Resistance

Product Description

1. Fire Resistance.

2. Long Working Life.

3. High Polishing Precision.

4. Superior Mechnical Strength.

5. High Corrosion and Wear Resistance.
6. Good Insulation Performance Precision.
7. High Temperature and Pressure Resistance.
8. High Purity Zirconia and Alumina Ceramic Material.

Properties of Alumina and Zirconia Ceramics :

Ceramic Components - Material Properties (Alumina, Zirconia, Quartz)
Property Unit 99.8% 99.5% Zirconia Quartz
Alumina Alumina
Mechanical Color - Ivory Ivory/White White/Ivory white/transparent
Density g/cm3 3.9 3.8-3.9 5.79-6.05 2.2
Water Absorption % 0 0 0 0
Flexural Strength MPa(R.T.) 400 310-379 900-980 80
Compressive Strength MPa(R.T.) 3180 2070 - 2620 - 650-1100
Hardness Gpa 14.0-15.0 13.8-17.6 11.0-12.7 11.5-13.5
Thermal Coefficient of Linear thermal Expansion 1E-6/ºC (>25ºC to £1000ºC) 8 9.0-9.4 9.2-10.3 0.55
Thermal Conductivity W/mºK(R.T.) 29.5 25.1-35.6 2.2-3.8 1.4
Specific Heat cal/gºC(R.T.) 0.21 0.19-0.21 0.12 0.16
Thermal Shock resistance DT( ºC ) 250 200 280-360 -
Maximum Use temperature ºC 1800 1600-1750 2400 1200
Electrical Volume Resistivity Wcm(R.T.) >1014 >1014 - 7 x 107
Dielectic Constant 1Mhz(R.T.) 9.8 9.6-10.2 - 3.75

More Detail Photo


Precision Zirconia ZrO2 Ceramic Cylinde / Liner / Sleeve With High Heat ResistancePrecision Zirconia ZrO2 Ceramic Cylinde / Liner / Sleeve With High Heat ResistancePrecision Zirconia ZrO2 Ceramic Cylinde / Liner / Sleeve With High Heat Resistance



Core Technologies

1. Sintering Technology.

2. Molding Technology.

3. Grinding Technology.

4. Laser Carving Technology.

5. Laser Drilling Technology.

6. Polishing Technology.

7. Laser Marking Technology.

We have a advanced technical team with more than 80 people and more than 100 equipment machines.

The component of ceramic pump:

Plunger shaft rod Diameter (D:3-35mm)
Length (L:20-650mm)
Can be machining thread,polishing,connecting metal part
Sleeve pump body Inside Diameter as small as 0.3 mm
Longth as long as 400mm, as short as 0.5mm
Inside Diameter tolerance we could make as fine as 0.002mm
Outside Diameter tolerance as fine as 0.001mm
Wall thickness:0.5-15mm
Pump head Can be customized
Sealing rings Can be customized
Metal parts Can be customized

Delivery:
Custom OEM will be shipped within 15 days after determining the parameters
The samples will be shipped within 3 days
Quick Delivery Via Fedex,DHL,UPS,TNT Etc.
Support customer to designate shipping company
For more informations (the price,delivery time,moq etc)about the ceramic plates, please contact us or email:admin@cerampart.com

CEO: Admin deng

Dongguan Mingrui Ceramic Tech. Co. Ltd.

Add: No.21 Chuangxing Rd., 2nd Industrial Zone of Shangsha,

Chang'an town, Dongguan city, Guangdong, China 523867

Email: admin@cerampart.com

FAQ
1. Monthly Capacity: 50,000-60,000 pcs;
2. Material: OEM or as per your suggestion;
3. Lead time: about 7-20 days, pls confirm the quantities required;
4. Incoterm: FOB, CFR, CIF;
5. Delivery Cost: It is determinated by the destination port;
6. Payment Term: PayPal; T/T; L/C.
7. Shipment: by sea, by air, by courier, by post, etc.
