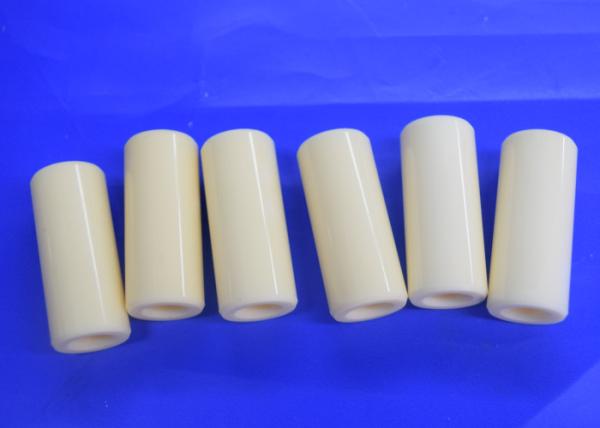

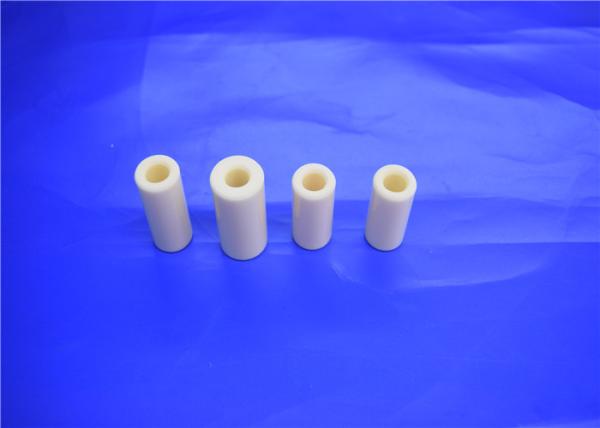

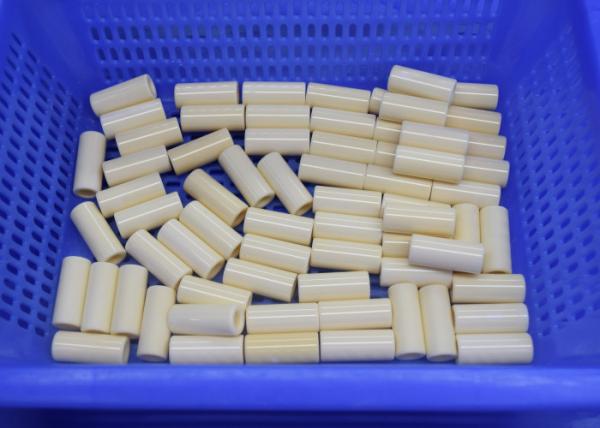

General Pump Repair Kits Ceramic Piston / Ceramic Plunger Pump 13mm 18mm
General Pump Repair Kits Ceramic Piston / Ceramic Plunger Pump 13mm 18mm
General Pump Repair Kits Ceramic Piston / Ceramic Plunger Pump 13mm 18mm
General Pump Repair Kits Ceramic Piston / Ceramic Plunger Pump 13mm 18mm
General Pump Repair Kits Ceramic Piston / Ceramic Plunger Pump 13mm 18mm
General Pump Repair Kits Ceramic Piston / Ceramic Plunger Pump 13mm 18mm
Specifications
Brand Name :
Mr
Model Number :
XF-502
Certification :
ISO9001, ,etc
Place of Origin :
China
MOQ :
10 pcs
Price :
$0.9 - $10.5 per piece
Payment Terms :
T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability :
5000 pcs per week
Delivery Time :
3-30 working days
Packaging Details :
1 piece /foam bag, tens of tubes packed in a carton box with sponge paper.
Name :
ceramic piston
Material :
99% alumina ceramic
Density :
3.9g/cm3
hardness :
HRA 89
Application :
For General pump repair kits
Size range :
13mm 18mm 20mm or custom
Forming way :
Isostatic press
Color :
White , ivory or custom
Sample :
Available
Description

General Pump Repair Kits Ceramic Piston / Ceramic Plunger 13mm 18mm

Tag key words : General Pump Ceramic Piston

Use this 8.703-191.0 18mm ceramic plunger on General Pump EZ and TX Series pump models shown below. A cracked or broken General Pump Ceramic Piston can allow water into the pump crankcase, reducing lubrication and possible pump damage. A broken ceramic plunger can also sometimes be seen by a slight water leak between the pump body and pump manifold. Failure to replace a broken ceramic piston can result in further damage to pump, pump seals, unloader valves, and other pressure washer parts.

General Pump Part 44040109

General Pumps: TX1810E179, TX1812E179, EZ2542E, EZ2542S, EZ3042S

REPLACES PART NUMBERS: 1-44040109, 104804, 87031910
  • Valveless Design The valveless feature of the Ceramic pump is its most significant feature. There are typically four check valves present in diaphragm, bellows, and traditional piston pumps. Even during normal operation, these will wear over time and not seal properly allowing backflow. As a result, accuracy drifts and minimally the pumps need recalibration. Eventually, the check valves need to be serviced.
  • Ceramic Internals The Ceramic pump uses sapphire-hard ceramics for both the piston and mated liner. These components are dimensionally stable in that they will not change shape or dimension over time. Therefore, the pumping chamber remains stable for millions of dispenses without downtime or recalibration. In addition to dimensionally stable they are chemically inert which allows our pump to work in a greater variety of chemicals.
  • Accuracy & Precision Throughout the pumping cycle the inlet and outlet ports of the Valveless Metering Pump are never interconnect ensuring accurate fluid flow in one direction preventing any backflow (without check valves). As a result pumps accuracy is held from microliters to the full flow range and output does not change more than ± 1% of set value. Inaccurate pumps can generate waste and incur extra costs.

General Pump Ceramic Piston Performance:

Alumina Content Unit 80-85% 90-96% > 99.5% 99%
General Application Lower Cost Electrical & Mechanical High Strength, Wear Resistant, Electronic, Insulating, Mechanical, Structural & Metalizing Extremely High Purity, Temperature & Strength; Excellent Corrosion & Wear Resistance Porous, Easily Degassed & Machinable
Porosity % 0-.05 0-.05 0-.05 Variable
Density gm/cm3 3.45-3.50 3.55-3.75 3.75-3.95 2.4
Flexural Strength kpsi 35.0-40.0 40.0-50.0 50.0-55.0 -
Comprehensive Strength kpsi 260.0 > 300.0 > 300.0 -
Tensile Strength kpsi 15.0-20.0 20.0-28.0 20.0-28.0 -
Linear Coefficient of Thermal Expansion (cm/cm/°C) 25-300°C 25-700°C 5.9X10-6 6.5X10-6 6.3X10-6 7.0X10-6 6.5X10-6 7.5X10-6 6.5X10-67.5X10-6
Dielecctric Constant at 25°C 1 MH 10 MH 8.5-8.9 8.4-8.8 9.2-9.8 9.0-9.6 9.5-9.9 9.3-9.7 -
Dielectric Strength Volt/mil 200 225 225 -
Te Value °F °C 1472 800 > 1832 > 1000 > 1832 > 1000 > 1832 > 1000
Thermal Conductivity at 25°C cal/sec/cm2/cm/°C .03-.04 .04-.06 .07-.08 -
Safe Use Temperature °F °C 2550 1400 3000-3100 1650-1700 3275 1800

3275 1800



ABOUT US

Ming Rui Ceramics Limited has been specializing in the manufacture of Zirconia ceramics part and Alumina ceramic parts used in medical instruments,textile machines, e-cigarattes, dispensing machines, lithium battery, auto mobile, petrochemical industry and other high temperature and corrosive conditions for over 10 years. Consistent quality, dependable support and delivery, and innovative solutions have enabled us to expand our business world wide.General Pump Repair Kits Ceramic Piston / Ceramic Plunger Pump 13mm 18mm

Our Worshop:

General Pump Repair Kits Ceramic Piston / Ceramic Plunger Pump 13mm 18mm

Other related products:

Except alumina ceramic piston pump, we also supply zirconia ceramic tube, rod for normal use, also have ceramic substrate, ceramic plate, ceramic bush, ceramic sleeve, valves, ceramic shafts, nozzles, etc.Welcome you to contact us for more information!

General Pump Repair Kits Ceramic Piston / Ceramic Plunger Pump 13mm 18mm
