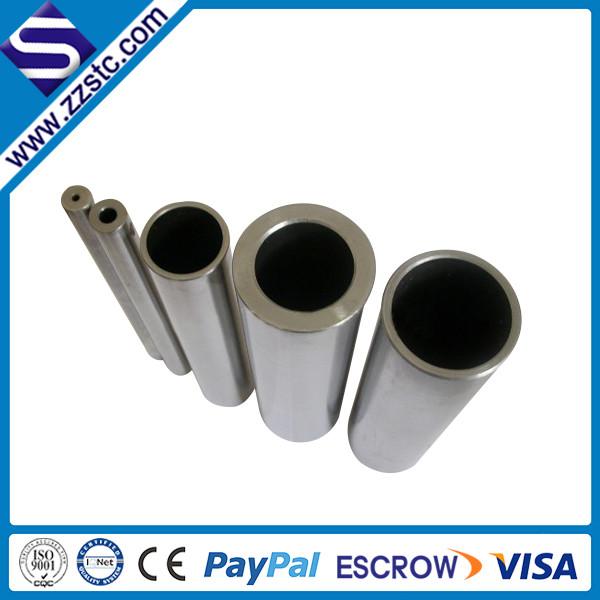

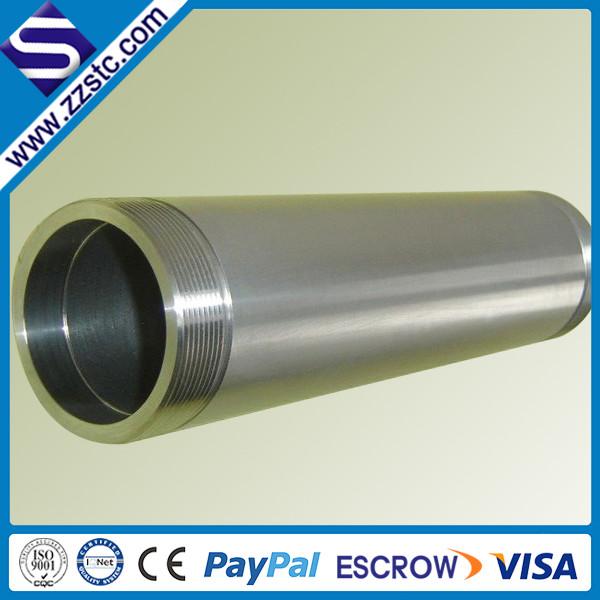

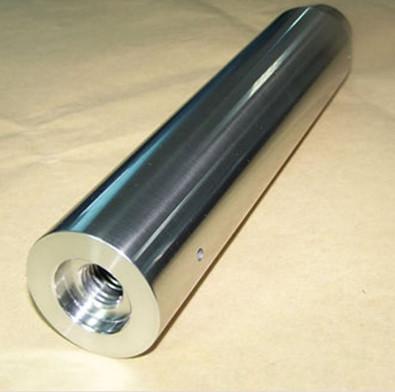

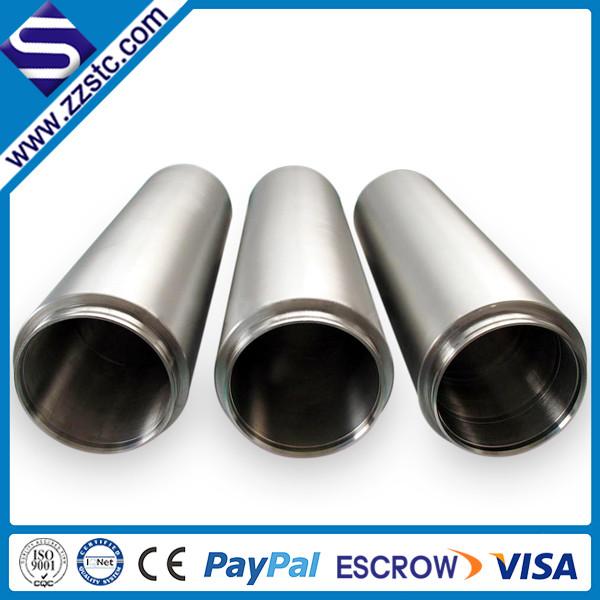

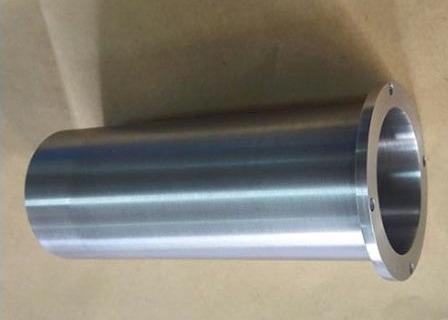

Corrosion Resistant Molybdenum Tungsten Alloy Pipe
Corrosion Resistant Molybdenum Tungsten Alloy Pipe
Corrosion Resistant Molybdenum Tungsten Alloy Pipe
Corrosion Resistant Molybdenum Tungsten Alloy Pipe
Corrosion Resistant Molybdenum Tungsten Alloy Pipe
Corrosion Resistant Molybdenum Tungsten Alloy Pipe
Corrosion Resistant Molybdenum Tungsten Alloy Pipe
Corrosion Resistant Molybdenum Tungsten Alloy Pipe
Corrosion Resistant Molybdenum Tungsten Alloy Pipe
Corrosion Resistant Molybdenum Tungsten Alloy Pipe
Specifications
Brand Name :
Sanhui
Model Number :
WMo alloy
Certification :
ISO 9001:2008
Place of Origin :
Henan, China
MOQ :
10 kgs
Price :
USD 100-200 per kg
Payment Terms :
D/A, D/P, T/T, Western Union
Supply Ability :
1000 kgs per month
Delivery Time :
15-20 days
Packaging Details :
plywood case
Application :
treater,pipeline,container liner in industry
Outer Diameter :
26～200 mm
Wall Thickness :
5～30 mm
Hight :
≤1300 mm
Description

Molybdenum Tungsten Alloy Tube Applied in Sapphire Furnace

Molybdenum tungsten alloy has the common characteristics of tungsten and molybdenum metal, and has good high temperature stability, resistivity and good processing performance under vacuum or inert gas protection. It is proved that the alloy with 30% molybdenum and 70% tungsten has unique corrosion resistance to liquid zinc.

Molybdenum Tungsten Alloy Applications

Molybdenum tungsten alloy can be applied to manufacture stirrers, piping and container liners and other components in the zinc smelting industry. Tungsten-molybdenum alloy can be used as high temperature components in rocket, missile, filament of electron tube and other high temperature materials because of its good high temperature strength, similar properties to tungsten and smaller specific gravity than tungsten. Because it is more economical than tungsten, tungsten-molybdenum alloy products are also used in sapphire long crystal furnace thermal field.

Molybdenum Tungsten Alloy Tube Sizes

Outer Diameter (mm) Wall Thickness (mm) Height (mm)
26-200 5-30 <=1300

Product Name Corrosion Resistant Molybdenum Tungsten Alloy Pipe
Grade WMo
Surface Treatment Polished, Forged, Straightening
Density >18.6g/cm3
Standard GB4188-84, GB/T4187-2006 or customer’s request
Application

Tungsten steel

Industry base carbide

Hot strong and durable alloys

Contactor material and high proportion alloy

Electric vacuum of tungsten lighting material

Tungsten compounds

Component

Mo 70%+ W30% or Mo 50% + W50% (wt%)

Corrosion Resistant Molybdenum Tungsten Alloy Pipe
