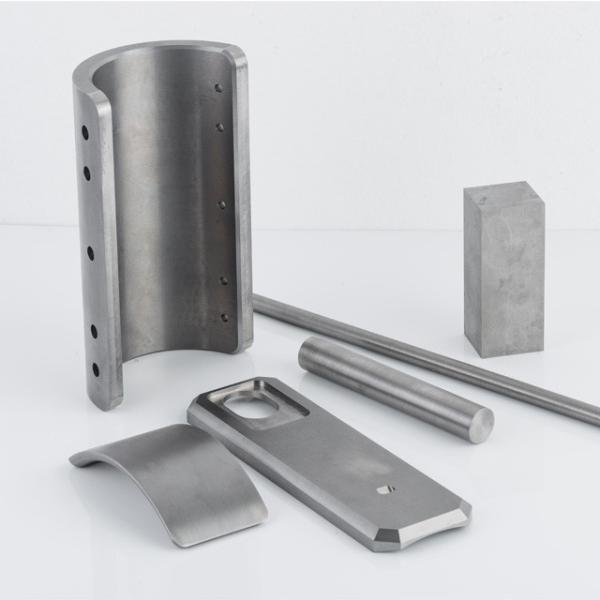

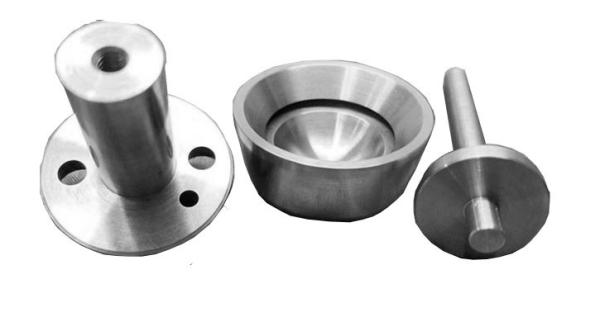

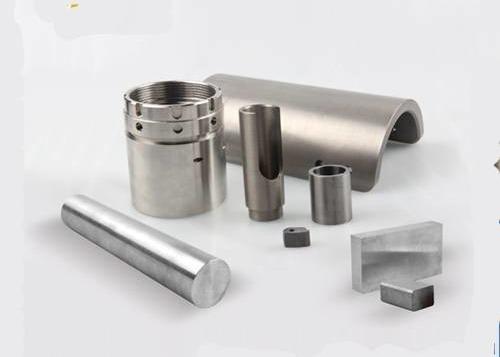

High Density Tungsten Alloy WNiFe Parts For Radiation Shielding
High Density Tungsten Alloy WNiFe Parts For Radiation Shielding
High Density Tungsten Alloy WNiFe Parts For Radiation Shielding
High Density Tungsten Alloy WNiFe Parts For Radiation Shielding
High Density Tungsten Alloy WNiFe Parts For Radiation Shielding
High Density Tungsten Alloy WNiFe Parts For Radiation Shielding
High Density Tungsten Alloy WNiFe Parts For Radiation Shielding
High Density Tungsten Alloy WNiFe Parts For Radiation Shielding
Specifications
Brand Name :
Sanhui
Model Number :
WNiFe/WNiCu
Certification :
ISO 9001:2008
Place of Origin :
Henan, China
MOQ :
10 kgs
Price :
USD 60-100 per kg
Payment Terms :
D/A, D/P, T/T, Western Union
Supply Ability :
500kgs per month
Delivery Time :
15-20 days
Packaging Details :
plywood case
Name :
Tungsten Heavy Alloy Plate
Dimensions :
1.0-10mm
Grain Size :
0.6-0.8 micro
Application :
balance weight, Military industry
Roughness :
Ra1.0
Conditions :
Vacuum annealed or un-annealed
Elongation :
5-22%
Tensile Strength :
780-980 Mpa
Density :
17.5-18.1 g/cm3
HRC :
28-32
Description

High Density Tungsten Alloy WNiFe Parts for Radiation Shielding

Compared with the traditional lead radiation protection material, the protective effect of high-density tungsten alloy material is 2-3 times that of lead, and it is harmless to the environment and body, so it is widely used in medical CT and linear accelerator, customs containers and airport security devices.
Our company is an important supplier of high density tungsten alloy parts for radiation shielding. Our core customers include medical CT and linear accelerator manufacturers, China's Tongfang Weishi, a famous manufacturer of customs containers and airport security devices.

Composition 90%W 93%W 95%W 97%W
State Sinter Vacuum Forge Sinter Vacuum Forge Sinter Vacuum Sinter/Vacuum
Density(g/cc) 16.85~17.25 17.15~17.85 17.75~18.35 18.25~18.25
Hardness(HRC) 32Max 30Max 40Min 33Max 31Max 40Min 34Max 32Max 700Min/850Min
Tensile Strength (Mpa) 770Min 900Min 1400Max 770Min 910Min 1440Max 735Min 920Min 35Max/33Max
Yield Strength 620Min 620Min 1280Max 650Min 650Min 1340Max 650Min 650Min ~
Elongation(%) 5Min 15Min 5Min 12Min 3Min 3Min 3Min 12Min

2Min / 6 Min

High Density Tungsten Alloy WNiFe Parts For Radiation Shielding

High Density Tungsten Alloy WNiFe Parts For Radiation Shielding
