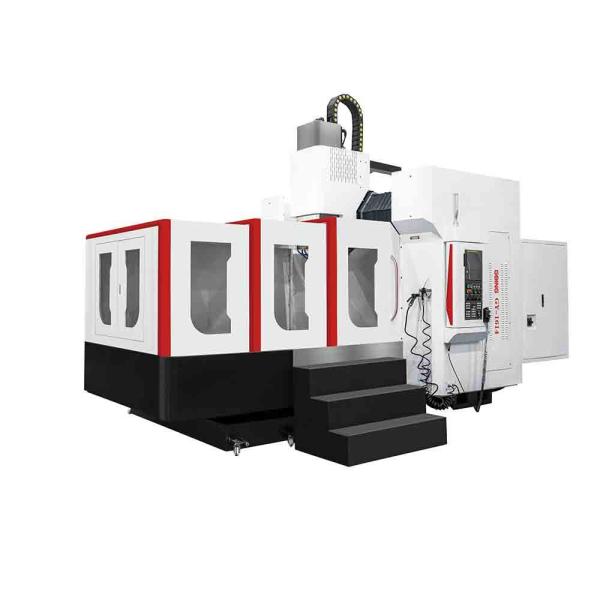

GY1614 1500mm Gantry Machining Machine 6000mm Table 16T
GY1614 1500mm Gantry Machining Machine 6000mm Table 16T
GY1614 1500mm Gantry Machining Machine 6000mm Table 16T
GY1614 1500mm Gantry Machining Machine 6000mm Table 16T
Specifications
Description

GY1614 GANTRY MACHINING MACHINE

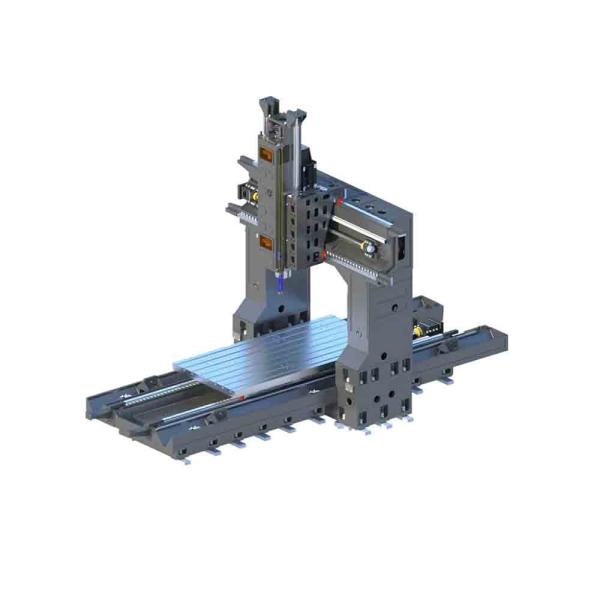

●Unique and powerful mechanical structure
●Well-designed mechanical structure with high rigidity and long-term stability
●The mechanical structure is cast by advanced mina process

TECHNICAL PARAMETER

Specifications/Models Unit GY-1614

Processing range		 X-axis travel mm 1600
Y-axis travel mm 1400
Z-axis travel mm 750
Distance from spindle nose to work surface mm 200-950
Gantry width mm 1500
Table specification Table size (X-axis direction) mm 1700*1200
Table T-slot dimensions mm 7*22*160
Maximum bearing capacity of table kg 6000
Spindle specification Speed of mainshaft T 6000/8000/10000/12000
Spindle motor power rpm 18/22
Spindle nose code kw BT40/HSK A63/ BT50/ HSK A100
Kind of drive / Belt Type /Direct-coupled/Gear type
Feed X, Y, Z axis fast feed m/min 24/24/24
Cutting feed m/min 6
X, Y, Z axis motor specifications Nm 30/30/30
Precision Positional accuracy mm ±0.005/300
Repeated positioning accuracy mm ±0.003/300
Machine Specification Machine size mm 5000*3200*4200
Machine weight T 16
Because technology is constantly updated, the above parameters is only for your reference
