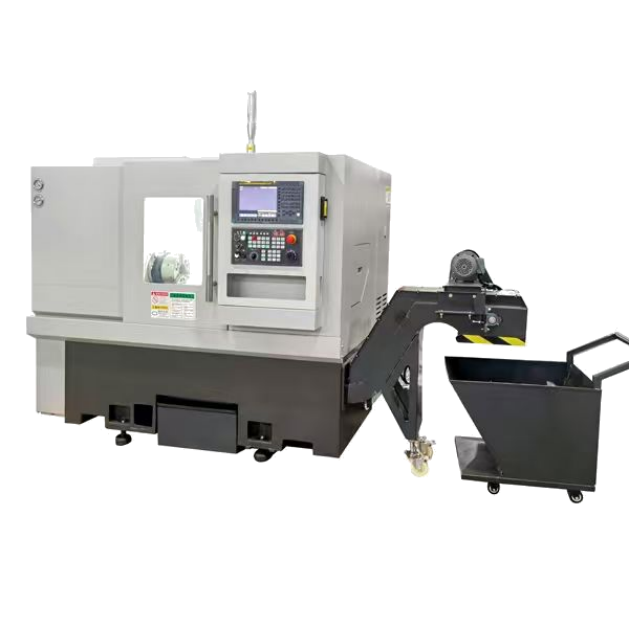

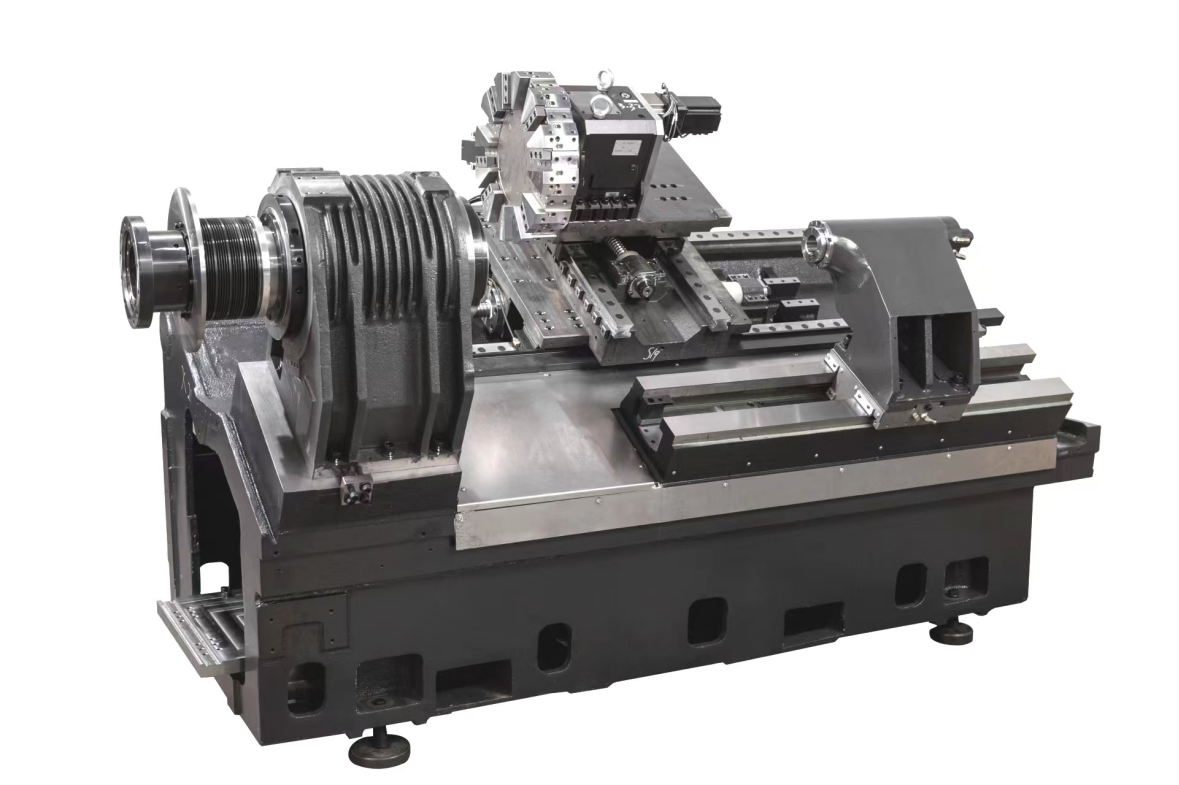

GL-150 Horizontal CNC Lathe/Turning-Milling Compounding
GL-150 Horizontal CNC Lathe/Turning-Milling Compounding
GL-150 Horizontal CNC Lathe/Turning-Milling Compounding
GL-150 Horizontal CNC Lathe/Turning-Milling Compounding
Specifications
Application :
Precision Component Machining
Place of Origin :
CHINA
Spindle Speed :
4000-4500 rpm
X Axis Travel :
200-400 mm
Z Axis Travel :
330-400 mm
MOQ :
1pc
Spindle Motor Power :
5.5/7.5 kW
Chuck Size :
6 inch
Brand Name :
GOING
Model :
GL-150
Description

GL-150 Horizontal CNC/Turning Milling Compounding

  1. GL-150 is a compact horizontal CNC turning and milling compound machine integrating turning and milling functions for precision machining of small and medium-sized components.
  2. With a space-saving structural design, this machine provides flexible machining capability within a compact footprint. It supports multiple machining processes including turning, end-face machining, drilling, and milling, reducing repeated workpiece clamping and improving production efficiency.
  3. The GL-150 can be integrated into automated production lines with automatic loading and unloading systems according to production requirements, enabling continuous machining operations.
  4. The machine adopts a fully enclosed protection structure to effectively control chips and coolant generated during machining, helping protect internal components and maintain reliable operation.
  5. Applications:
  • Precision mechanical parts machining
  • Automotive components machining
  • Electronic component machining
  • Small shaft and disc parts machining
  • Small-batch and mass production applications

Technical Parameter

Item Description Unit GL150 Gang GL150 Turret GL150 Milling
Spindle
Drive System		 Spindle nose end form - A2-5 A2-5 A2-5
Main spindle through-hole diameter mm Φ56 Φ56 Φ56
Maximum spindle speed rpm 4000 4500 4500
Three jaw chuck clamping capacity mm 6"/Φ150 6"/Φ150 6"/Φ150
Rod action form - Hydraulic Hydraulic Hydraulic
Spindle motor power kW 5.5/7.5 5.5/7.5 5.5/7.5
X-axis servo motor power kW 1.5 1.5 1.5
Z-axis servo motor power kW 1.5 1.5 1.5
Processing Scope Maximum bed rotation diameter mm Φ400 Φ430 Φ430
Maximum length of processed workpiece mm 380 380 380
Maximum machining workpiece diameter mm Φ120 Φ200 Φ200
Maximum pull rod through-hole diameter mm Φ40 Φ46 Φ46
X/Z Axis X-axis travel mm 400 200 200
Z-axis travel mm 400 400 330
X/Z/Y axis fast shift rate m/min 18/30 30/30 30/30
X/Z axis slide rail model - 25/25 30/30 30/30
X/Z screw model mm 2510/2510 3210/3210 3210/3210
Accuracy Positioning accuracy mm ±0.005 ±0.005 ±0.005
Repeated positioning accuracy mm ±0.003 ±0.003 ±0.003
Power Knife Tower Center height mm 63 80 80
Knife tower drive form - Servo 63 turret Servo turret Power turret
Knife number pcs 8 8/12 12
Specification of square knife holder mm 20 25 25
Boring tool holder specifications mm Φ20 Φ32 Φ32
Power knife holder specifications - - - BMT40
The highest number of rotations of the power knife holder rpm - - 4000
Time to change the knife (T-T) sec - 0.3 0.3
Water Tank Cutting water tank capacity L 80 80 80
Cutting water pressure MPa 0.8 2 2
Power Demand Voltage V 380 ±10% 380 ±10% 380 ±10%
Power kW 15 15 15
Phase number - 3 3 3
Frequency Hz 50 50 50
Machine Tool Size L×W×H mm 1900×1450×1650 1900×1450×1600 1900×1450×1600
Weight kg 2000 2300 2300
