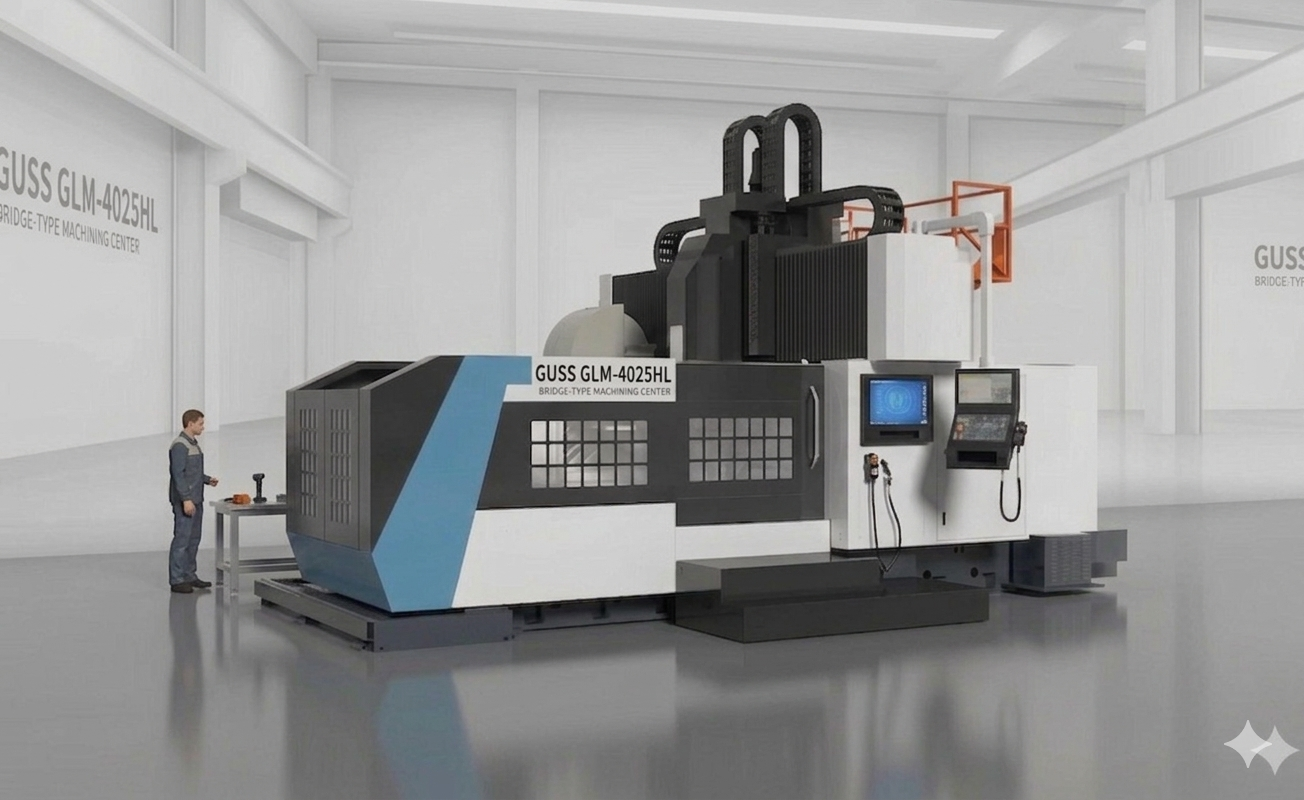

GLM4025HL Gantry Machining Center with 4200mm Stroke and FANUC Control System for High Precision Milling
GLM4025HL Gantry Machining Center with 4200mm Stroke and FANUC Control System for High Precision Milling
Specifications
Brand Name :
Guss
Model Number :
GLM-4025HL
Place of Origin :
China
MOQ :
1
Price :
negotiable
Payment Terms :
Western Union,MoneyGram,T/T
Packaging Details :
Different packaging methods are adopted according to different modes of transport.
Rapid Traverse Speed :
12000/12000/12000mm/min
Description
GLM4025HL Gantry Machining Center

Suitable for precision milling, drilling, and tapping applications in industrial settings. Providing high precision and reliability in milling, drilling, and tapping operations.

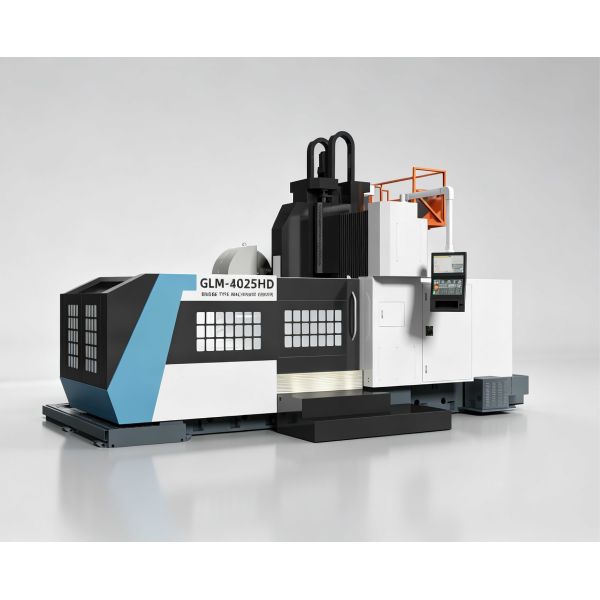

GLM4025HL Gantry Machining Center with 4200mm Stroke and FANUC Control System for High Precision Milling
Product Features
  • Widened Base, Lowered Center of Gravity
  • Y-Axis Rail Top-Mounted, Stable Structure
  • Z-Axis Four-Guide-Rail Design, Stronger Toughness
Technical Specifications
Item Unit GLM-4016HL
System Control System FANUC
Rapid Traverse Speed mm/min 12000/12000/12000
Cutting Feed Speed mm/min 1-10000
3-Axis Rated Power Kw 6.0/7.0/7.0 [Note①]
3-Axis Rated Torque N.m 38.0/30.0/30.0 [Note①]
Worktable T-Slot Specs 9-28-180
Worktable Size mm 4200*1400
Doorway Width mm 1600
Max Worktable Load Kg 5500
Stroke 3-Axis Stroke 4200*1600*800
Spindle Nose to Worktable Distance mm 1250-950
Spindle Spindle Power 15-18.5Kw
Max Spindle Speed rpm 6000 (Belt)/8000 (Belt)/10000 (Direct Driver
Spindle Taper Hole - BT50
Transmission Screw Diameter/Pitch Φ80D16/Φ63D16/Φ50D10mm
Linear Rail Brand/Type/Width - PMI Roller 55mm/55mm (Rectangular rail) [Note②]
Guide Rail Qty/Slider Qty Pcs 2-16/2-5 (Rack)
Tool Magazine Tool Capacity 24Pcs[Note④]
Drawbar Angle ° 45°
Max Tool Diameter mm Φ110 (Full)/Φ210 (Empty Adjacent Tool)
Max Tool Length/Weight mm/kg 350/15
Tool Change Time s 2.2
Configuration Auto Chip Removal Rear Flush
Auto Lubrication System - Thin Oil Lubrication
Cabinet Cooling - Heat Exchanger
Accuracy Positioning Accuracy (300mm) 0.008/0.008/0.012mm
Repeat Positioning Accuracy (300mm) mm 0.006/0.006/0.008
Others Air Flow/Pressure Flow 150(L/min)/Pressure 6(bar)
Total Power Kw 30
Machine Weight Kg 23000
Machine Overall Size (L*W*H) mm 9700*3470*3500
Standard Configuration
  • Double-row + Chain-type Tool Magazine
  • Spindle Oil Cooler
  • Water Gun
  • Air Gun
  • Spindle Shroud
  • Spindle Ring
  • Centralized Lubrication
  • Air Source Treatment
  • Oil-Water Separator
  • Heat Exchanger
  • Counterbalance Cylinder
Optional Configuration
  • Mitsubishi/New Generation System
  • Hollow Spindle
  • Cabinet Air Conditioner
  • 4-Axis/5-Axis
  • Column Reinforcement
  • Full Enclosure
  • Manual/Auto Rotary Head
  • Side Head Magazine
  • Internal Tool Cooling
  • Fixtures
  • Clamps
Important Notes

Note①: 3-axis power/torque is based on FANUC. For details of Mitsubishi/New Generation systems, please consult the corresponding customer manager.

Note②: For guide rails, HWIN/Rexroth/THK (same specifications) may be substituted, without prior notice.

Note③: Z-axis can be optionally motorized.

Note④: Tool magazine capacity can be optionally 30T.

Product appearance and configuration are subject to technical updates (not lower than current specifications), without prior notice. The actual purchase technical agreement shall prevail. There are many gantry machine models; the above is only part of our company's models. For unlisted specifications, please consult the official website or the corresponding customer manager. Specifications and configurations subject to change without notice.
