TAP-640 CNC Drilling and Tapping Center with 48000mm/min Rapid Speed, 20000rpm Spindle, and FANUC CNC System for Precision Machining
TAP-640 CNC Drilling and Tapping Center with 48000mm/min Rapid Speed, 20000rpm Spindle, and FANUC CNC System for Precision Machining
Specifications
Brand Name :
Guss
Model Number :
TAP-640
Place of Origin :
China
MOQ :
1
Price :
negotiable
Payment Terms :
Western Union,MoneyGram,T/T
Packaging Details :
Different packaging methods are adopted according to different modes of transport.
CNC System :
FANUC
Description

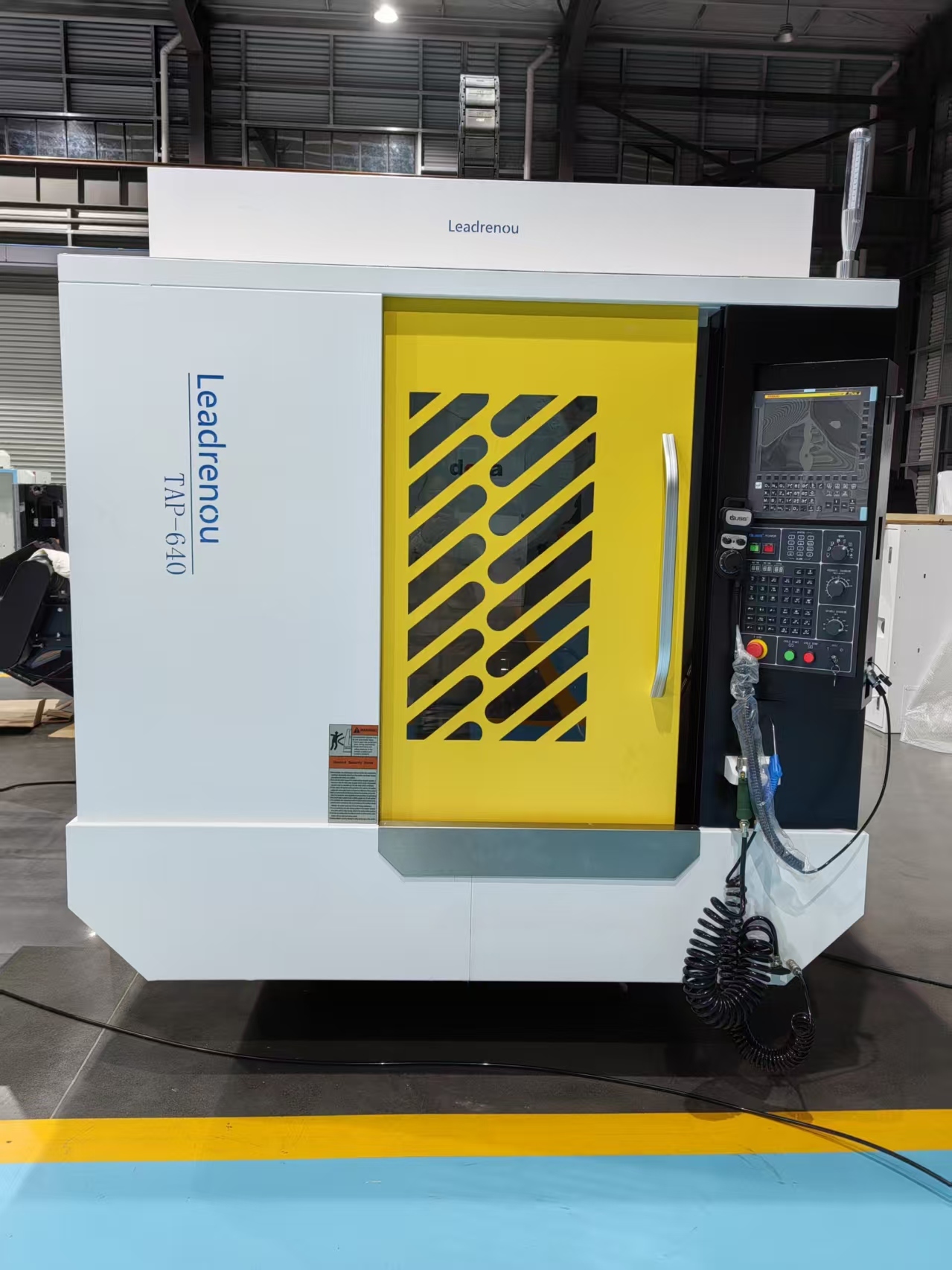

TAP640 CNC Drilling and Tapping Machining Center
Ideal for metalworking shops requiring accurate machining solutions, the TAP-640 Drilling and Tapping Machining Center delivers precision and efficiency.
TAP-640 CNC Drilling and Tapping Center with 48000mm/min Rapid Speed, 20000rpm Spindle, and FANUC CNC System for Precision Machining
Product Features
  • High-speed spindle movement for highly effective processing
  • Servo fast tool change system
  • Silent guide rail with low friction and high sensitivity
  • Large span herringbone columns resist high acceleration and deceleration impact
  • Maximum tapping speed of 5000rpm for greatly improved efficiency
Technical Specifications
Item Unit TAP-640
System CNC System FANUC
Rapid Speed mm/min 48000/48000/48000
Cutting Feed Rate mm/min 1-10000
3-Axis Rated Power Kw 2.5/2.7/2.7 [Note①]
3-Axis Rated Torque N.m 8.0/12.0/12.0 [Note①]
Worktable T-Slot Size 3-14-125
Worktable Size mm 700×420
Max Worktable Load Kg 300
Stroke 3-Axis Stroke mm
Spindle Nose to Worktable Distance mm 130-460
Spindle Spindle Power Kw
Max Spindle Speed rpm 20000
Spindle Taper - BT30
Transmission Screw Diameter/Pitch mm
Linear Rail Brand/Type/Width - PMI Ball 30mm/PMI Ball 30mm/PMI Roller 30mm [Note②]
Guideway Quantity/Slider Quantity Pcs 2-4/2-4/2-4
Tool Magazine Tool Capacity (Pocket) Pcs
BT1/BBT Pull Stud Angle ° 45°
Max Tool Diameter mm Φ60(Full Magazine)/Φ80(Empty Adjacent Tool)
Max Tool Length/Weight mm/kg 200/2
Tool Change Time (Adjacent/Distant) s 0.35/1.3
Partial Configuration Automatic Chip Removal Rear Flush
Automatic Lubrication System - Thin Oil Lubrication
Electrical Cabinet Cooling - Heat Exchanger
Accuracy Positioning Accuracy (Full Stroke) mm
Repeat Positioning Accuracy (Full Stroke) mm 0.005
Others Air Flow/Pressure Flow 150L/(min)/Pressure(6Bar)
Total Power Kw 20
Machine Weight Kg 4000
Machine Overall Dimensions (L×W×H) mm 1900×2100×2200/1900×2320×2200 (with water tank)
Standard Configuration:
Umbrella-shaped servo tool magazine, rear-flush chip removal, spindle oil cooler, water gun, air gun, spindle air curtain, spindle ring spray, centralized lubrication, air source treatment, oil-water separation, heat exchanger
Optional Configuration:
Mitsubishi/Syntec system, direct-drive 24000rpm spindle, hollow screw, grease lubrication, electrical cabinet air conditioner, 4-axis, 5-axis, column heightening, tool internal cooling, fixtures, clamps
※ The product appearance and configuration are subject to improvement with technological development, but will not be lower than current technical requirements. No separate notification will be given; the specific details shall be based on the technical agreement at the time of purchase.
Note ①: The 3-axis power and torque are based on FANUC. For detailed information on Mitsubishi, Syntec and other systems, please consult the corresponding account manager.
Note ②: In case of stock shortage, equivalent specifications (such as HIWIN, Rexroth, THK) will be used as substitutes. No separate notification will be given.
