Specifications
Brand Name :
Guss
Model Number :
KBE-6500MTD
Place of Origin :
China
MOQ :
1
Price :
negotiable
Payment Terms :
Western Union,MoneyGram,T/T
Packaging Details :
Different packaging methods are adopted according to different modes of transport.
X-axis Travel :
4500mm
Description

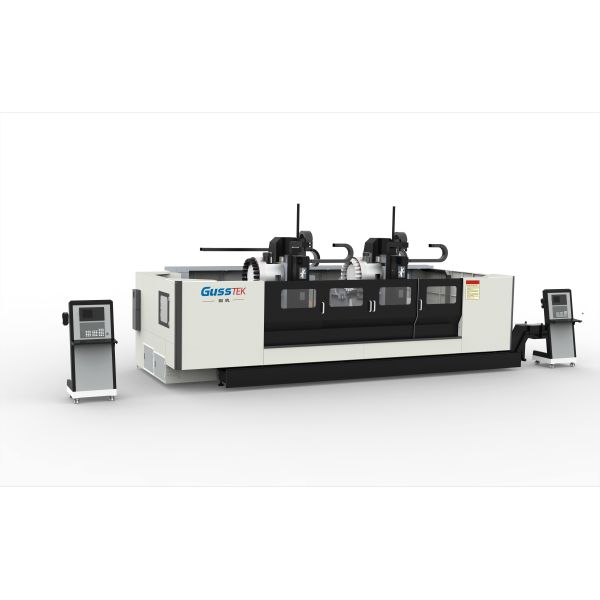

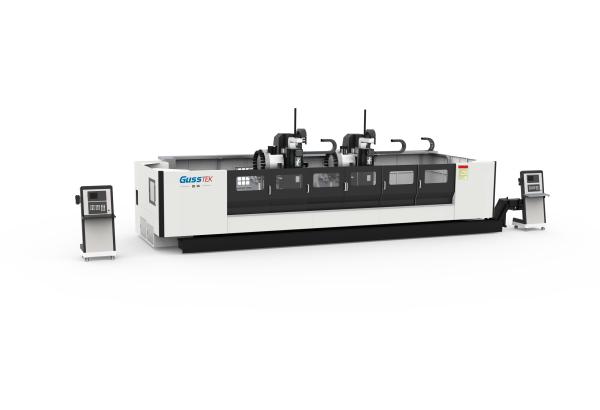

KBC-6500MTD 4 Axis Double Head Aluminium Profile Machining Center
Maximize Your Output: The Ultimate Solution for Large-Scale Profile Machining

In the competitive landscape of the European manufacturing sector, especially within Automotive (EV), Aerospace, and Rail Transportation, efficiency isn't just an advantage—it's a necessity. The GUSS KBC-6500ETD is engineered to meet the highest German industrial standards, offering a high-speed, heavy-duty solution for complex aluminum and composite material processing.

Functions and Features
  • The machine tool is suitable for high-speed heavy cutting processing of aluminum industrial materials, including aluminum extrusion profile, aluminum rolling plate, integrated die-casting aluminum, copper plate, aluminum magnesium alloy, titanium alloy, composite materials, carbon fiber and other special materials.
  • Direct connection mechanical spindle & electric spindle with the disk tool magazine can continuously complete the work of milling, boring, drilling, tapping of the workpiece under one clamping.
  • Equipment application industries include: aerospace, rail transit new energy vehicles, medical & sports equipment automation modules, photovoltaic & 5G equipment, etc.
  • The machine can realize the two-station partition processing.
Technical Specifications
Item Unit KBC-6500MTD/ETD
Travel
X-axis Travel (Left/Right) mm Max single-axis stroke 5235; Min dual-axis distance 1343
Y-axis Travel (Front/Back) mm 600
Z-axis Travel (Up/Down) mm 700
Distance from Spindle Nose to Table Surface mm 150-850
Worktable
Worktable Size (L×W) mm 6500×600
Maximum Table Load kg/m² 2000
T-slot Width mm 18
Mechanical Spindle & Electric Spindle
Spindle Type rpm Direct-Connection/Direct-Drive Motor
Maximum Speed rpm 12000/20000
Spindle Diameter mm 150
Tool Holder Specification # BT40/HSK-A63
Left/Right Tilt Head
A-axis Max Tilt Angle ° ±45°/±90°
Positioning Accuracy # 20"
Repeat Positioning Accuracy # 10"
Feed System
Max Rapid Traverse (X/Y/Z) m/min Rack 60/30/30
Cutting Feed Rate m/min 1～15
Mechanical Accuracy
X-axis Positioning Accuracy mm 0.05/Full Stroke
Y/Z-axis Positioning Accuracy mm 0.02/Full Stroke
Repeat Positioning Accuracy (X/Y/Z) mm X:±0.01/500; Y/Z:±0.01/300
Tool Magazine Configuration Specifications
Tool Magazine Type # Disc Type
Number of Tools T 24
Lubrication System
Automatic Grease Lubrication System set 1
Cooling System
Cutting Fluid Cooling set 1
Chip Removal Device
Chain Plate Chip Conveyor set 1
Others
Machine Dimensions (L×W×H) mm 10110*3220*3100
Machine Weight ton Approx. 17.5
Why Choose the KBC-6500ETD for the German Market?
1. Unmatched Productivity with Dual-Head Synchronization

Equipped with two independent moving-column heads, the KBC-6500ETD allows for simultaneous machining on long profiles. This dual-head design dramatically reduces cycle times for high-volume production runs in the 5G and new energy vehicle sectors.

2. "German-Standard" Precision & Rigidity
  • High-Rigidity Casting: The machine base and worktable are integrated into a single HT-300 casting structure, tempered to eliminate internal stress and prevent long-term deformation.
  • Direct-Drive Excellence: Utilizing German INNA spindles and Japanese FANUC motors, the system ensures minimal backlash and resonance for high-gloss surface finishes.
  • 4-Axis Linkage: The alloy worm gear swing head enables arbitrary angle positioning and continuous 4-axis linkage, perfect for complex geometric milling.
3. Superior Material Versatility

Engineered for high-speed heavy cutting, this center excels with:

  • Aluminum extrusion profiles and rolled plates
  • Aluminum-magnesium and titanium alloys
  • Advanced composites and carbon fibers
4. Reliability & Safety Compliance

We understand the importance of safety and uptime in a German workshop.

  • CE Certification: Fully compliant with European CE safety standards
  • Protection: Electrical components are rated at IP54 or higher
  • Durability: Features an air curtain circulation system to protect the spindle from aluminum chips and cutting fluid
Advanced Features for Modern Workshops

Optimize your production line today with the KBC-6500ETD. Contact us for a technical proposal or to discuss your specific profile machining requirements.

  • Seamless Integration: Equipped with a chain plate chip conveyor and automatic lubrication systems for 24/7 "lights-out" manufacturing capabilities
  • Fast Tool Changes: The 24T disc magazine completes tool swaps in under 3 seconds, minimizing non-productive time
  • Precision Motion: X-axis utilizes precision-ground helical gears and racks for smooth, high-speed movement up to 50 m/min
Comprehensive Support & After-Sales
  • Remote Diagnostic Support: Immediate troubleshooting via phone or online remote tools
  • On-Site Service: Technical experts available for on-site commissioning and maintenance
  • Documentation: Complete technical manuals, electrical diagrams, and accuracy certificates provided with every machine
Target Industries
Aerospace & AviationAutomotive (New Energy Vehicles)Rail Transportation Infrastructure5G & Photovoltaic EquipmentMedical & Sports Equipment
