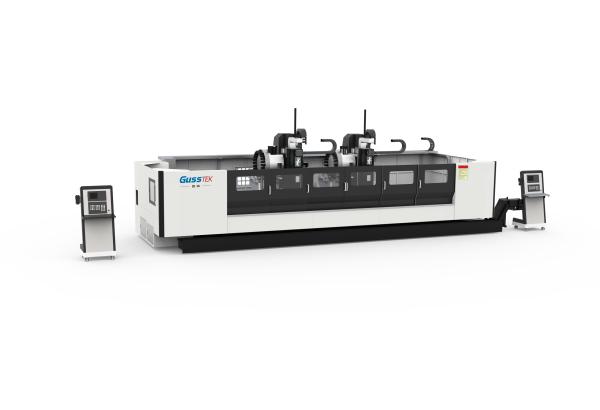

KBE-6500MTD Double-Head CNC profile machining center
KBE-6500MTD Double-Head CNC profile machining center
Specifications
Brand Name :
GUSS
Model Number :
KBE-6500MTD
Place of Origin :
JIANGSU
Certification :
CE
MOQ :
1
Price :
TO BE NEGOTIATED
Delivery Time :
30-60 DAYS
Payment Terms :
T/T
Supply Ability :
10 PCS/MONTH
X-axis travel :
Maximum travel of single axis: 5235 mm, minimum distance between dual axes: 1318 mm
Y-axis travel :
550mm
Z-Axis travel :
700mm
B-axis :
±90°
Distance from spindle nose to table surface :
150-850mm
Worktable :
6500*600mm
Description
KBE-6500MTD Double-Head CNC Profile Machining Center
Technical Features
  • Dual oscillating heads for synchronous or independent machining with two independently controlled milling units
  • Flexible oscillating axis for multi-angle cutting with A/C or B-axis swing motion
  • Long X-axis travel up to 6500 mm for processing elongated workpieces
  • High-rigidity moving column structure for stable precision during high-speed cutting
  • High-speed direct-drive motorized spindle for excellent surface finish
  • Efficient dual-station fixture system with pneumatic or hydraulic operation
  • High positioning accuracy and repeatability with precision linear guides and ball screws
  • Advanced CNC system support for FANUC and other systems
  • Full protection with optimized chip removal system
  • Multi-process combined machining including milling, drilling, tapping, and chamfering
Technical Parameters
Parameter Unit Specification
X-axis Travel (Left/Right) mm Max single-axis stroke 5235; Min dual-axis distance 1318
Y-axis Travel (Front/Back) mm 550
Z-axis Travel (Up/Down) mm 700
Distance from Spindle Nose to Table Surface mm 150-850
Worktable Size (L*W) mm 6500*600
Maximum Table Load kg/m² 1000
T-slot Width mm 18
Spindle Type rpm Direct-Connection/Direct-Drive Motor
Maximum Speed rpm 12000/20000
Spindle Diameter mm 150
Tool Holder Specification # BT40/HSK-A63
B-axis Max Tilt Angle ° ±45°/±90°
Max Rapid Traverse (X/Y/Z) m/min Rack 60/30/30
Cutting Feed Rate m/min 1～15
X-axis Positioning Accuracy mm 0.05/Full Stroke
Y/Z-axis Positioning Accuracy mm 0.02/Full Stroke
Repeat Positioning Accuracy (X/Y/Z) mm X:±0.01/500; Y/Z:±0.01/300
Tool Magazine Type # Disc Type
Number of Tools T 24
Machine Dimensions (L*W*H) mm 10110*3220*3100
Machine Weight t Approx. 17.5
Applications
  • Curtain wall aluminum profiles, window and door profiles
  • Photovoltaic solar frames and brackets
  • Automotive aluminum profiles and structural parts
  • Rail transit vehicle profiles
  • Industrial aluminum alloy structural components
  • Heat dissipation profiles, decorative profiles
  • Long profile milling, drilling, tapping, chamfering and multi-angle machining
Frequently Asked Questions
What is the brand and model of the Profile Machining Center?
The Profile Machining Center is manufactured by GUSS, and the model number is Profile Machining Center.
Where is the Profile Machining Center made?
The Profile Machining Center is made in Jiangsu, China.
What certifications does the Profile Machining Center have?
The Profile Machining Center is CE certified, ensuring it meets European safety and quality standards.
What is the minimum order quantity and price for the Profile Machining Center?
The minimum order quantity is 1 unit, and the price is to be negotiated based on order specifications.
What are the delivery time and payment terms for ordering the Profile Machining Center?
The delivery time ranges from 30 to 60 days, and the payment terms are typically T/T (Telegraphic Transfer).
