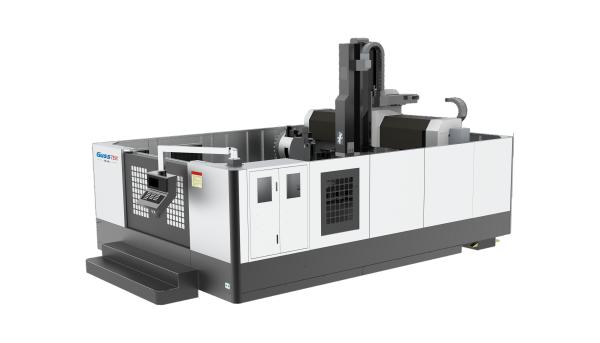

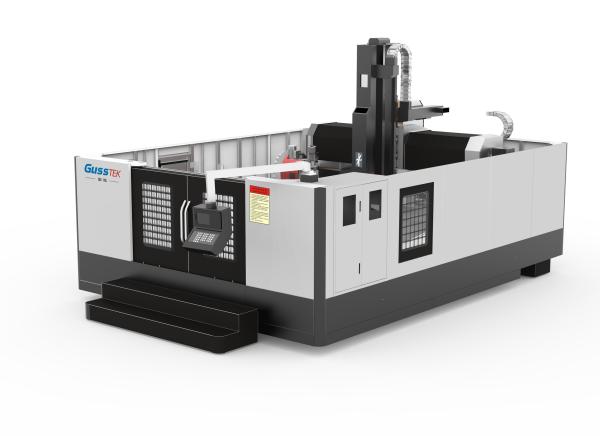

High Precision Gantry Machining Center with Large Z-Axis Travel for Heavy-Duty Machining
High Precision Gantry Machining Center with Large Z-Axis Travel for Heavy-Duty Machining
High Precision Gantry Machining Center with Large Z-Axis Travel for Heavy-Duty Machining
High Precision Gantry Machining Center with Large Z-Axis Travel for Heavy-Duty Machining
Specifications
Brand Name :
GUSS
Model Number :
Gantry Machining Centers
Place Of Origin :
JIANGSU
Certification :
CE
MOQ :
1
Price :
TO BE NEGOTIATED
Delivery Time :
30 DAYS
Payment Terms :
T/T
Supply Ability :
10 PCS/MONTH
Control System :
Fanuc
Spindle Power :
20-50 KW
Y-Axis Travel :
Cross Movement, Typically Wide Range
Z-Axis Travel :
Vertical Movement, Sufficient For Deep Machining
Application :
Heavy-duty Machining Of Large Workpieces
X-Axis Travel :
Longitudinal Movement, Often Several Meters
Repeatability :
±0.005 mm
Machine Weight :
Several tons
Spindle Speed :
Up to 10,000 RPM
Accuracy :
±0.01 mm
Description
High Precision Gantry Machining Centers
Product Overview

The Gantry Machining Center is a state-of-the-art CNC machine designed for heavy-duty machining applications. Featuring a robust structure and precise control systems, it excels at processing large workpieces with high accuracy and efficiency. The extensive Z-axis travel enables deep machining operations, while the wide Y-axis travel allows broad cross movement across the worktable, eliminating the need for repositioning and significantly improving productivity.

Key Features
  • Product Name: Gantry Machining Center
  • Table Size: Varies, typically large to accommodate big parts
  • Control System: CNC Controller (Fanuc,etc.)
  • Y-Axis Travel: Cross movement with wide range
  • Spindle Power: High power spindle (20-50 KW)
  • Structure Type: Gantry design for enhanced stability
  • Repeatability: ±0.005 mm precision
  • Ideal for handling large and complex components
  • Optimal configuration for heavy-duty machining tasks
Technical Specifications
Parameter Specification
Cooling System Flood Coolant or Mist Coolant System
Table Size Varies, typically large to accommodate big parts
Spindle Speed Variable, up to 10,000 RPM or more
Y-Axis Travel Cross movement, typically wide range
Accuracy High precision, ±0.01 mm
Spindle Power High power spindle, 20-50 KW
Structure Type Gantry
Repeatability ±0.005 mm
Control System CNC Controller ( Fanuc ,etc)
Machine Weight Heavy, typically several tons
Applications

GUSS Gantry Machining Centers are designed for modern manufacturing environments requiring high precision and efficiency. These CE-certified machines are ideal for aerospace, automotive, shipbuilding, and energy industries. With high-power spindles (20-50 KW) and speeds up to 10,000 RPM, they excel in machining large structural components, engine parts, turbine components, and complex molds with tight tolerances.

Customization Options

Our Gantry Machining Centers feature robust gantry structures and advanced drive systems with servo motors and ball screws or linear motors. Customizable options include cooling systems (flood or mist coolant), spindle configurations, and travel specifications to meet specific machining requirements.

Support & Services

We provide comprehensive technical support including installation assistance, operator training, routine maintenance, and troubleshooting. Our team offers software updates, hardware upgrades, process optimization, and genuine replacement parts to ensure optimal performance and minimize downtime.

Packing & Shipping

Each machine is securely fastened to sturdy wooden pallets and wrapped with industrial-grade shrink film for maximum protection. We offer flexible shipping options including sea freight, air freight, and land transportation with comprehensive insurance coverage. Installation assistance is available upon arrival.

Frequently Asked Questions
Q1: What is the brand and model of the Gantry Machining Centers?
A1: The brand is GUSS and the model number is Gantry Machining Centers.
Q2: Where are the Gantry Machining Centers manufactured?
A2: They are manufactured in Jiangsu, China.
Q3: What certifications do the Gantry Machining Centers have?
A3: The Gantry Machining Centers are CE certified.
Q4: What is the minimum order quantity for the Gantry Machining Centers?
A4: The minimum order quantity is 1 unit.
Q5: What are the payment terms and delivery time for the Gantry Machining Centers?
A5: Payment is accepted via T/T and the delivery time is approximately 30 days.
Q6: What is the supply capacity for the Gantry Machining Centers?
A6: The supply ability is 10 pieces per month.
Q7: How is the pricing determined for the Gantry Machining Centers?
A7: The price is to be negotiated based on order details and requirements.
