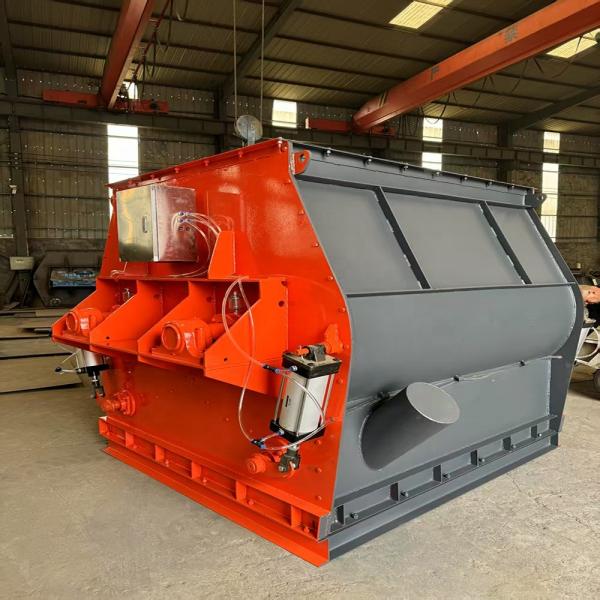

High Efficiency Double Shaft Gravity-Free Mixer For Fast And Uniform Building Materials Of Ceramic Tile Adhesive Thermal Insulation Mortar
High Efficiency Double Shaft Gravity-Free Mixer For Fast And Uniform Building Materials Of Ceramic Tile Adhesive Thermal Insulation Mortar
High Efficiency Double Shaft Gravity-Free Mixer For Fast And Uniform Building Materials Of Ceramic Tile Adhesive Thermal Insulation Mortar
High Efficiency Double Shaft Gravity-Free Mixer For Fast And Uniform Building Materials Of Ceramic Tile Adhesive Thermal Insulation Mortar
Specifications
Brand Name :
RST
Model Number :
RST-3/RST-4/RST-6
Certification :
CE
Place of Origin :
Henan, China
MOQ :
1
Price :
6700-7000USD
Payment Terms :
T/T
Delivery Time :
20 days
Effective volume :
3 cubic meters; 4 cubic meters; 6 cubic meters;
Number of mixing shafts :
double shafts
Mixing mode :
gravity-free mixing (convection+shear mixing)
Weight (Kg) :
2.5T; 3T; 4.5T
Warranty :
1 Year
Power :
22KW; 30KW;55KW
Voltage :
380V/220V
Application :
Dry, Non-Sticky Powder Mixing
Keyword :
Powder Blender
Advantage :
Easy Operation High Efficiency
Packaging Details :
Packaging According To Product Size
Supply Ability :
Factory Supply
Description

Product Description

Dual Shafts Mixer Machine Dry Mixer Machine Sand Mixer Machine

Product Overview

Operation introduction: After the materials are put into the mixing tank, the blades on the two mixing shafts rotate at high speed. The blades rapidly scatter, convect and shear the materials along the axial and radial directions. Under the strong push of the blades, the materials are thrown from one side of the mixing chamber to the other side, and a cross and infiltration curtain is formed in the air. During this process, materials frequently change their direction of motion, collide and spread violently with each other, and are in a tumbling state similar to "weightlessness". This strong convection, shearing and diffusion broke the tendency of stratification caused by the difference of specific gravity and particle size of materials in a very short time, and achieved a high degree of uniform mixing at the microscopic level.


Product Paramenters
Model
Full volume (m³)
 Load factor

Spindle speed

Mixing time
Installed power(KV)
RST-3m³

1.8~2.1m³

 0.6~0.7

20-40 rpm (adjustable)

1-5 minutes

22KW
RST-4m³

2.4~3.2m³


0.6~0.8

20~40 rpm (adjustable)

3-8 minutes

30KW
RST-6m³

3.6~4.8m³

0.6~0.8

15~35 rpm (adjustable)

5-10 minutes

55KW


High Efficiency Double Shaft Gravity-Free Mixer For Fast And Uniform Building Materials Of Ceramic Tile Adhesive Thermal Insulation Mortar

High Efficiency Double Shaft Gravity-Free Mixer For Fast And Uniform Building Materials Of Ceramic Tile Adhesive Thermal Insulation Mortar

High Efficiency Double Shaft Gravity-Free Mixer For Fast And Uniform Building Materials Of Ceramic Tile Adhesive Thermal Insulation Mortar


High Efficiency Double Shaft Gravity-Free Mixer For Fast And Uniform Building Materials Of Ceramic Tile Adhesive Thermal Insulation Mortar


PRODUCT SPECIFICATIONS

The gravity-free double-shaft mixer adopts the most advanced industrial gear box to replace the traditional chain rotation, and the super replaceable wear-resistant blades and stuffing box wear-resistant sleeves ensure that the production of 300,000 tons of mortar does not need to replace the blades.


High Efficiency Double Shaft Gravity-Free Mixer For Fast And Uniform Building Materials Of Ceramic Tile Adhesive Thermal Insulation Mortar

Related Products
High Efficiency Double Shaft Gravity-Free Mixer For Fast And Uniform Building Materials Of Ceramic Tile Adhesive Thermal Insulation Mortar
High Efficiency Double Shaft Gravity-Free Mixer For Fast And Uniform Building Materials Of Ceramic Tile Adhesive Thermal Insulation Mortar

High Efficiency Double Shaft Gravity-Free Mixer For Fast And Uniform Building Materials Of Ceramic Tile Adhesive Thermal Insulation Mortar


High Efficiency Double Shaft Gravity-Free Mixer For Fast And Uniform Building Materials Of Ceramic Tile Adhesive Thermal Insulation Mortar

Conpany Profile
Zhengzhou ruisitong machinery equipment co., ltd is a professional manufacturer located in Zhengzhou City. Our company integrates R&D, production and sales, and specializes in granule powder packaging machines and assembly lines, dry powder mortar equipment, intelligent palletizers, etc. With more than ten years of industry production experience, our products have been continuously pgraded. At present, our products have been widely used in building materials, milk powder, food, chemical industry and other fields. Products sell well all over the country and are exported to more than 30 countries and regions such as the United States, Canada, Australia, France, Germany, Poland, Spain, Italy, New Zealand, Russia, Mexico, Egypt, India, Vietnam, Malaysia, Thailand and Indonesia. Zhengzhou ruisitong machinery equipment co., ltd adheres to the concept of precision manufacturing and service first, and designs reasonable solutions for customers with heart. Once you promise to have a lifelong after-sales, you will choose us, that is, you will choose worry-free.
High Efficiency Double Shaft Gravity-Free Mixer For Fast And Uniform Building Materials Of Ceramic Tile Adhesive Thermal Insulation Mortar
High Efficiency Double Shaft Gravity-Free Mixer For Fast And Uniform Building Materials Of Ceramic Tile Adhesive Thermal Insulation Mortar


FAQ
Q1:Which machine do you require? A1: We have many models of machine, please contact our sales office who will assist you to select the best machine to suit your requirements. Q2: Can you make the machines as buyers’ requests for us? A2:Yes. We have a professional RD team with rich experience to design and manufacturing. Q3: Will you support oversea service? A3: Yes, our engineer can go to buyer’s factory to install the machine and train the operator for buyer. Q4: Can you send engineer service oversea? A4:Yes,and you need to pay. According to save your cost, we will send you a video of the installation of the machine. Q5. How can we make sure about the machine's quality after we paid? A5:Before delivery, we will send you the pictures and videos of the machines. Andalso you can visit our factory and check the machine.
