Spiral Belt Mixer For Mixing Asphalt Concrete And Plastic Particles High Wear Resistance Corrosion Resistance
Spiral Belt Mixer For Mixing Asphalt Concrete And Plastic Particles High Wear Resistance Corrosion Resistance
Spiral Belt Mixer For Mixing Asphalt Concrete And Plastic Particles High Wear Resistance Corrosion Resistance
Spiral Belt Mixer For Mixing Asphalt Concrete And Plastic Particles High Wear Resistance Corrosion Resistance
Specifications
Brand Name :
RST
Model Number :
RST-1m³; RST-2m³; RST-3m³; RST-5m³;
Certification :
CE
Place of Origin :
Henan,China
MOQ :
1
Price :
1100-1500USD
Payment Terms :
T/T
Delivery Time :
20 days
Place Of Origin :
Henan, China
Brand Name: :
RST
Machinery Test Report :
Provided
Warranty :
1 Year
Power :
Customizable
Voltage :
380V, 220V (Customizable)
Keyword :
Powder Blender
Advantage :
Easy Operation High Efficiency
Feature :
Efficient Mixing Equipment
Packaging Details :
Packaging according to product size.
Description

Product Description

Horizontal Ribbon Mixing Mixer for Gypsum Mortar and Easy Operation Advantage


The ribbon mixer realizes efficient mixing through the unique paddle design. Its core lies in two parallel, reverse-wound ribbon paddles. When working, the two paddles respectively push the material to move in opposite directions (one mainly pushes the material to move in one direction along the axial direction and the radial direction, and the other pushes the material to move in the opposite direction), forming a strong two-way material convection. This design significantly improves the mixing uniformity, especially suitable for the mixing process of powder and powder and powder and liquid.
The structural design of the tank body of the spiral belt mixer is usually simple and direct, and the gap between the stirring paddle and the inner wall of the tank body is accurately controlled, which not only effectively prevents the accumulation of materials in the dead zone, but also gives the equipment a good self-cleaning function. The mixing process is mainly laminar mixing, and the shearing effect is relatively mild, which can effectively protect the original shape of the material, and is especially suitable for applications that require high particle integrity.
Parameter 1 ton ribbon mixer 2 ton ribbon mixer 3 ton ribbon mixer
5 ton ribbon mixer
Effective Volume
1m³(1000L)
2m³(2000L)
3m³(3000L)
5m³(5000L)
Single processing capacity
0.5-1吨
1-2吨
1.5-3吨
2.5-5吨
Stirring power
7.5-11KW
15-22KW
22-37KW
37-55KW
Mixing speed
20-50rpm(Customizable)
15-45rpm
(Customizable)
15-40rpm
(Customizable)
10-35rpm(Customizable)
Equipment weight
600kg
700kg
800kg
2t

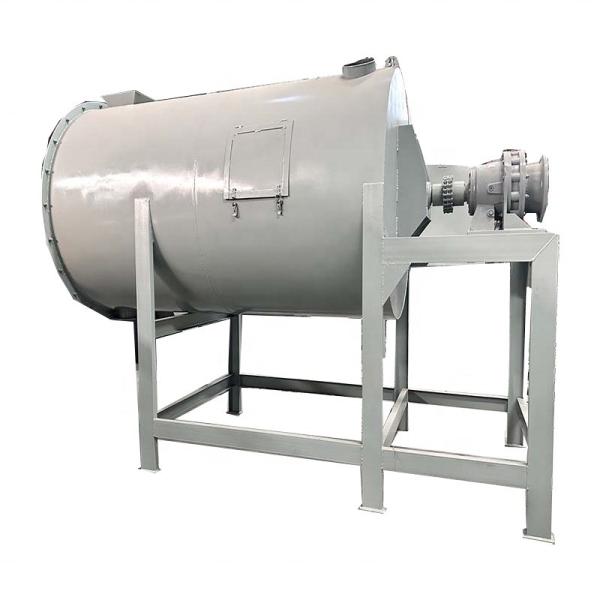

Product picture display

Spiral Belt Mixer For Mixing Asphalt Concrete And Plastic Particles High Wear Resistance Corrosion Resistance
Spiral Belt Mixer For Mixing Asphalt Concrete And Plastic Particles High Wear Resistance Corrosion Resistance


Spiral Belt Mixer For Mixing Asphalt Concrete And Plastic Particles High Wear Resistance Corrosion Resistance
Spiral Belt Mixer For Mixing Asphalt Concrete And Plastic Particles High Wear Resistance Corrosion Resistance

Spiral Belt Mixer For Mixing Asphalt Concrete And Plastic Particles High Wear Resistance Corrosion Resistance

Packing & Delivery
Spiral Belt Mixer For Mixing Asphalt Concrete And Plastic Particles High Wear Resistance Corrosion Resistance
Spiral Belt Mixer For Mixing Asphalt Concrete And Plastic Particles High Wear Resistance Corrosion Resistance
FAQ
Q1: Are you a trading company or a manufacturer?
A1: We are a manufacturer with a history of more than 10 years and have a professional R&D team. Therefore, we have great advantages in controlling product quality and delivery time.
Q2: How long is your delivery time?
A2: When the goods are in stock, it usually takes 3-15 days, and the ordered products can be delivered within 30 days.
Q3: What can you buy from us?
A3: Powder packaging machine, palletizing robot, unpacking and feeding robot and equipment of the whole mortar production line.
Q4: Why do you want to buy from us instead of other suppliers?
A4: Our company is a professional equipment manufacturer. Our products reach the high-end level of similar products and provide various customized services, which are trusted by users. Our equipment has passed ISO9001 and CE quality inspection.
