Cantilever Palletizer Compact Design Space Saving High Efficiency
Cantilever Palletizer Compact Design Space Saving High Efficiency
Cantilever Palletizer Compact Design Space Saving High Efficiency
Cantilever Palletizer Compact Design Space Saving High Efficiency
Cantilever Palletizer Compact Design Space Saving High Efficiency
Cantilever Palletizer Compact Design Space Saving High Efficiency
Cantilever Palletizer Compact Design Space Saving High Efficiency
Cantilever Palletizer Compact Design Space Saving High Efficiency
Cantilever Palletizer Compact Design Space Saving High Efficiency
Cantilever Palletizer Compact Design Space Saving High Efficiency
Specifications
Brand Name :
RUISITONG
Model Number :
RST-50B-180
Place of Origin :
Henan, China
MOQ :
1
Price :
$15000
Model :
RST-50B-180
Number of Axes :
4-axis; Vertical Articulated
Material :
Carbon Steel
Maximum Load :
50kg
Repeat Positioning Accuracy :
±0.2mm
Power :
5KW
Maximum Working Radius :
2000mm
Rotation Angle :
180°
Maximum Palletizing Height :
1.6m – 1.8m
Palletizing Speed :
400 – 500 cycles/hour
Machine Dimensions (L×W×H) :
2500mm × 400mm × 2920mm
Machine Weight :
900kg
Applicable Types :
Bags, boxes, barrels, baskets, and other regular objects
Application Fields :
Building materials, feed, chemicals, grain & oil, food, daily chemicals, alcohol, beverages, pharmaceuticals, home appliances, 3C electronics, etc.
Product Features :
1. Capable of dual-line, dual-station simultaneous palletizing and depalletizing. 2. Simple operation, high speed, compact footprint, and high efficiency. 3. Enables intelligent handling to reduce costs and improve productivity.
Description

Product Overview

Cantilever Palletizer Compact Design Space Saving High Efficiency

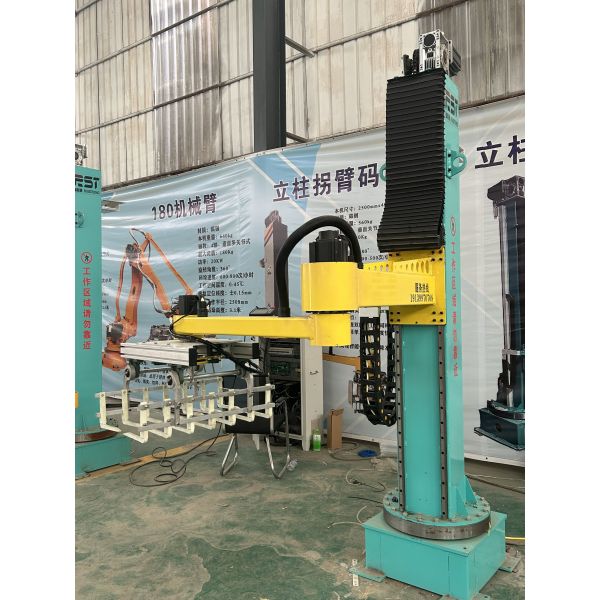

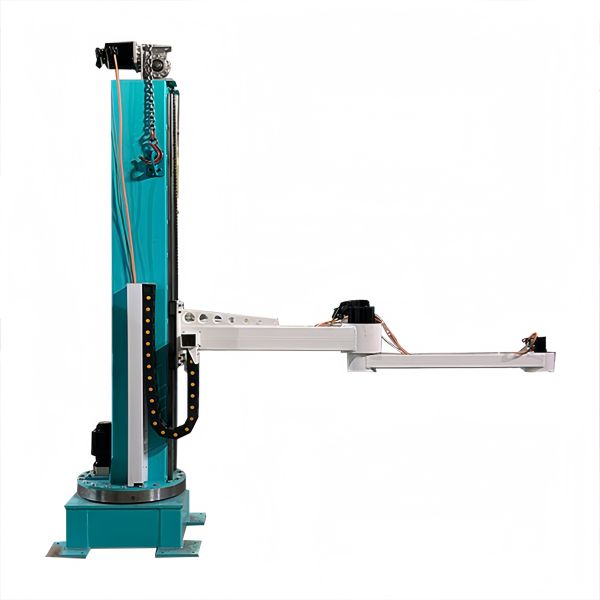

The Cantilever Palletizer is an advanced automation solution engineered for maximum space utilization and operational efficiency. Its innovative cantilever structure eliminates the need for extensive floor space while delivering reliable high-speed palletizing. This machine is the optimal choice for production lines where layout optimization and throughput are equally critical.

Technical Specifications

Model RST-50B-180
Number of Axes 4-axis; Vertical Articulated
Material Carbon Steel
Maximum Load 50kg
Repeat Positioning Accuracy ±0.2mm
Power 5KW
Maximum Working Radius 2000mm
Rotation Angle 180°
Maximum Palletizing Height 1.6m – 1.8m
Palletizing Speed 400 – 500 cycles/hour
Machine Dimensions (L×W×H) 2500mm × 400mm × 2920mm
Machine Weight 900kg
Applicable Types Bags, boxes, barrels, baskets, and other regular objects
Application Fields Building materials, feed, chemicals, grain & oil, food, daily chemicals, alcohol, beverages, pharmaceuticals, home appliances, 3C electronics, etc.
Product Features 1. Capable of dual-line, dual-station simultaneous palletizing and depalletizing.
2. Simple operation, high speed, compact footprint, and high efficiency.
3. Enables intelligent handling to reduce costs and improve productivity.

Key Features & Advantages

Cantilever Palletizer Compact Design Space Saving High Efficiency

  1. Ultra-Compact Space-Saving Design: The cantilever arm requires minimal floor space allowing installation in tight areas and freeing up valuable production floor for other uses.

  2. High Operational Efficiency: Engineered for fast cycle times and continuous operation this system significantly boosts your production line's overall output and productivity.

  3. Rapid Seamless Integration: Features a plug-and-play design with standard interfaces for quick installation and synchronization with existing packaging or conveying equipment.

  4. Versatile Material Handling: Easily adapts to handle various package sizes and types ensuring broad application across different production batches.

  5. Robust Low-Maintenance Build: Constructed with durable industrial components for reliable long-term performance with minimal maintenance requirements and downtime.

Company Profile

With over 10 years of manufacturing experience, we provide professional solutions tailored to your specific production requirements. Our team offers comprehensive support from equipment selection to after-sales service.
Cantilever Palletizer Compact Design Space Saving High Efficiency Cantilever Palletizer Compact Design Space Saving High Efficiency Cantilever Palletizer Compact Design Space Saving High Efficiency Cantilever Palletizer Compact Design Space Saving High Efficiency
We will recommend the most suitable equipment for your needs with professional knowledge and sincere service, providing the most efficient production solution.
