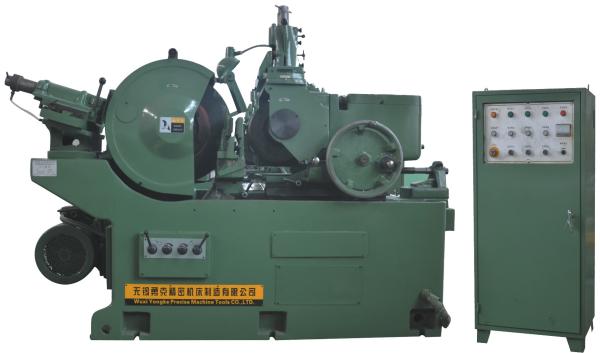

M1083B Centerless grinding machine, grinding dia.10-150mm, Max. grinding length: 250mm
M1083B Centerless grinding machine, grinding dia.10-150mm, Max. grinding length: 250mm
Specifications
Brand Name :
Yongke
Model Number :
M1083B
Certification :
ISO9001
Place of Origin :
Wuxi, China
MOQ :
1set
Price :
USD25000
Payment Terms :
T/T
Supply Ability :
50set per 3 month
Delivery Time :
2-3 month
Packaging Details :
plywood case
Grinding machine :
Centerless grinding machine
Description

Centerless grinding machine Type: M1083B

Contact: Min Chen

Email: chenminmin80@hotmail.com

Main application

The machine is used to semi-automatically plunge-through grinding the outer surface of ring parts, shaft parts, stage parts, tape shaped parts and other round turning surface etc.

M1083B Centerless Grinder

  1. Thru-feed
  1. Grinding dia.
  2. Max. Grinding length
  1. Plunge feed
  1. Grinding dia.
  2. Max.Grinding length
  1. Gri.wheel spec.
  2. Reg.wheel spec
  3. Gri.wheel speed
  4. Reg.wheel speed(stepless)
  5. Reg.wheel swivel angle
  1. In vertical plane
  2. In horizontal plane
  1. Feed rate of handwheel per division
  2. Feed rate of handwheel perdivision
  3. Height from centerline of gri.wheel ®.wheel to workrest
  4. Total power of machine
    (1)Gri.wheel electric motor
    (2)Reg.wheel electric motor
  5. Overall Size
  6. Net Weight
  7. Machining accuracy
    Roundness
    Cylindricity
    Roughness

10～150mm

250mm

10～150mm

190mm

P600×200×305mm

PDA350×200×203mm

1115,1340r/min

20～200r/min

-2°～+5°

0°～+3°

0.005mm
0.015mm

285mm

24.305 KW
22
1.5

2650×1500×1800mm

7000Kg


0.002mm
0.003mm
Ra0.32μm
