Auto Operate Double Strand Razor Wire Machine Durable Barbed Wire Machine
Auto Operate Double Strand Razor Wire Machine Durable Barbed Wire Machine
Auto Operate Double Strand Razor Wire Machine Durable Barbed Wire Machine
Auto Operate Double Strand Razor Wire Machine Durable Barbed Wire Machine
Auto Operate Double Strand Razor Wire Machine Durable Barbed Wire Machine
Auto Operate Double Strand Razor Wire Machine Durable Barbed Wire Machine
Specifications
Brand Name :
APBWR
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1 UNIT
Payment Terms :
L/C,T/T
Delivery Time :
14-21Days
Price :
$5000-50000
Supply Ability :
1000+ /year
Packaging Details :
Pallets or wooden crates as per customer's requirements.
Product Name :
Barbed Wire Machine
Keyword :
Auto Operate Double Strand Barbed Wire Machine
Color :
Request
Motor Power :
2.2kw
Voltage :
380V
Boundary dimension :
3000*1100*1300
Weight :
750KG
Main wire diameter :
1.6-3.0mm
Description

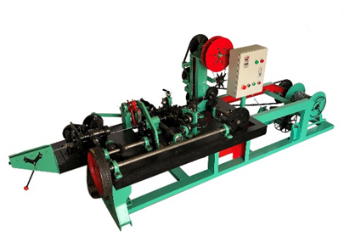

 CS-A Ordinary Double-Strand Tightening Machine

TypeA

Auto Operate Double Strand Razor Wire Machine Durable Barbed Wire Machine

Auto Operate Double Strand Razor Wire Machine Durable Barbed Wire Machine

Motor power(kw)

3

Voltage(V)

380

Boudary dimension(mm)

Main :2000*1200*1400

Auxiliary:1700*500*800

Weight(kg)

1000

Main wire diameter(mm)

1.6-3.0

Length of spicules(mm)

1.6-3.0

Tensile strength of wire mesh(N/mm²)

400—600

Distance between thorns(inch)

3’(7.5cm)

4’(10cm)

5’(12.5cm)

6’(15cm)

Output(m/h)

740

990

1235

1485

Output(kg/h)

120(For example, the main wire is 2.8mm in diameter and the barbed wire is 2.2mm in diameter.)

TypeB

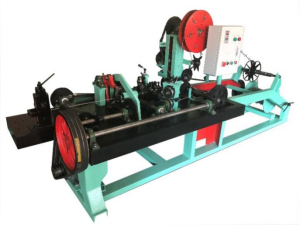

CS-B Single-Thread Machine

Auto Operate Double Strand Razor Wire Machine Durable Barbed Wire Machine

Auto Operate Double Strand Razor Wire Machine Durable Barbed Wire Machine

Motor power (kw)

2.2

Voltage(V)

380

boundary dimention(mm)

2700*1100*1300

Weight(kg)

750

Stocking diameter(mm)

1.3-3.2

Length of spicules(mm)

1.3-3.2

Tensile strength of wire mesh(N/mm²)

400—600

Spacing between thorns(inch)

3’(7.5cm)

4’(10cm)

5’(12.5cm)

6’(15cm)

Output(m/h)

540

720

900

1080

Output(kg/h)

60(For example, the main wire is 2.8mm in diameter and the barbed wire is 2.2mm in diameter.)

TypeC

 CS-C Double-Threaded Forward-Backward Wrench Machine

Auto Operate Double Strand Razor Wire Machine Durable Barbed Wire Machine

Auto Operate Double Strand Razor Wire Machine Durable Barbed Wire Machine

Motor power(kw)

2.2

Voltage(V)

380

Boundary dimension(mm)

3000*1100*1300

Weight (kg)

750

Stocking diameter(mm)

1.3-3.0

Length of spicules(mm)

1.3-3.0

Tensile strength of wire mesh(N/mm²)

1100—1200(1.6 - 1.8 mm Ø)

800—900(1.8—2.6mmØ)

400—500(2.7—2.8mmØ)

Spacing between thorns(inch)

4’(10cm)

5’(12.5cm)

Output(m/h)

720

900

Output(kg/h)

30(Main wire 1.6mm, barbed wire 1.6mm as an example)

Mechanical free-issue of consumable spare parts

 Pictures Bearing

Quantity

Standard silk winding frame

Auto Operate Double Strand Razor Wire Machine Durable Barbed Wire Machine

100KG

4
Feeding head

Auto Operate Double Strand Razor Wire Machine Durable Barbed Wire Machine

2

Shift fork

Auto Operate Double Strand Razor Wire Machine Durable Barbed Wire Machine

2

Feeding rod

Auto Operate Double Strand Razor Wire Machine Durable Barbed Wire Machine

1

Groove cutter

Auto Operate Double Strand Razor Wire Machine Durable Barbed Wire Machine

2

Counter

Auto Operate Double Strand Razor Wire Machine Durable Barbed Wire Machine

1
