Specifications
Brand Name :
LYLN
Model Number :
PLM-UL13, PLM-UL15, PLM-UL17, PLM-UL19, PLM-UL22, PLM-UL24.
Certification :
CE, SASO, SABER
Place of Origin :
CHINA
MOQ :
1 unit
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
2000 units/month
Delivery Time :
10 days
Packaging Details :
carton + crate/pallet
Screen Size :
13.3', 15.6", 17.3", 18.5", 21.5", & 23.8".
Monitor Tilting :
Motorized & Manual
Signal Input :
HDMI x 2
Resolution Ratio :
1920 x 1080(FHD), 4K is customizable.
Screen Edge :
Narrow Bezel
Material :
Brushed Aluminum
Color :
Matte Silver & Brushed Black
Monitor Tilt Angle :
15° as default, 30° is customizable.
Control Mode :
Remote, button panel, 3rd control system/PC
Communication :
RS232 / RS485 Protocol
Compatible With :
Crestron, Extron, QSC, etc.
Touch Function :
Optional
Description

Motorized Retractable Monitor

Model No. PLM-UL13 PLM-UL15 PLM-UL17 PLM-UL19 PLM-UL22 PLM-UL24
Screen Size 13.3" 15.6" 17.3" 18.5" 21.5" 23.8"
Resolution Ratio 1920 x 1080 / 4K
Monitor Tilt Angle 15° as default, 0 ~ 30° is customizable.
Power Input Adapter(DC 12V/4A)

Latest Designed Retractable Monitors For Conference Room & Training Room

• Each system comes with a built - in high - quality Full - HD (FHD) screen panel.

• The screen features a motorized lifting mechanism, enabling smooth up - and - down movement.

• An anti - pinch protection system is incorporated to ensure user safety during screen operation.

• It operates on a low - voltage system, with a DC 12V/5A power input.

• Boasting an ultra - thin body design, it not only looks sleek but also saves space.

• The screen tilt angle can be adjusted both motorizedly and manually.

• The system is equipped with an automatic screen power management function.

• The casings are fully made of aluminum, offering durability and an elegant appearance.

• There is a separate USB port on the top plate for 3rd device to connect.

• It supports third - party device control.

• Two signal input methods are switchable.

• It is compatible with most popular integrated control systems such as Crestron, Extron, and QSC.

• Communication is achieved via RS485/232 protocol.

Screen Casing

6mm thick

Latest Designed Retractable Monitors For Conference Room & Training Room

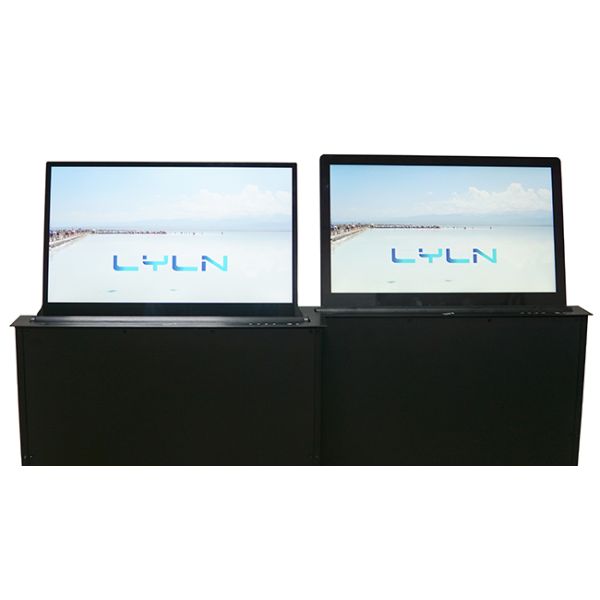

Narrow Bezel Screen

(left)

Latest Designed Retractable Monitors For Conference Room & Training Room

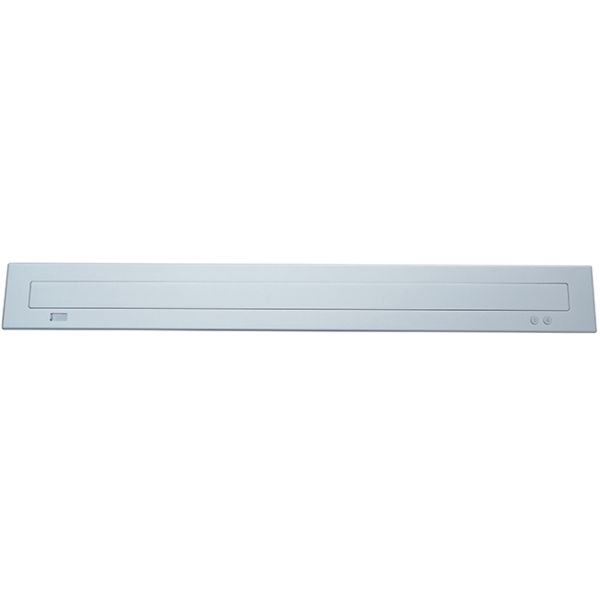

Simple Panel Design

Latest Designed Retractable Monitors For Conference Room & Training Room

* Sandblasted Silver * Fine Bevel Treatment. * Button Panel.

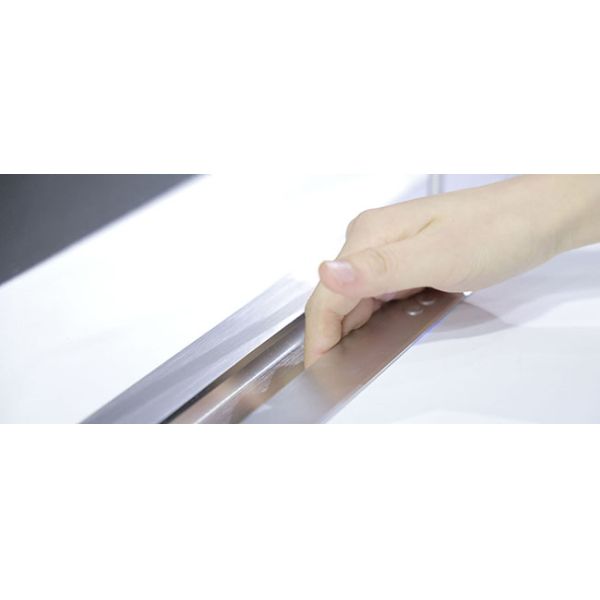

Anti-pinch Protection System

Latest Designed Retractable Monitors For Conference Room & Training Room

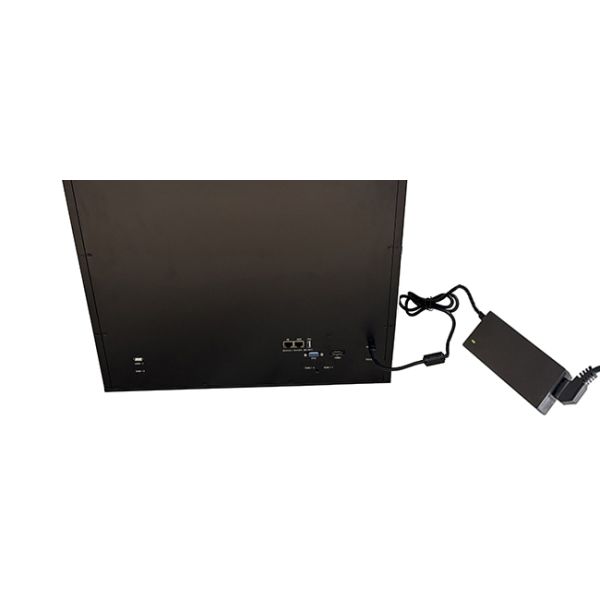

Powered by an adapter(12V/4A)

&

Connectors

at box side

DC power port x 1

HDMI input x 2

RJ45 x 2

USB x 1 (As default)​

Latest Designed Retractable Monitors For Conference Room & Training Room

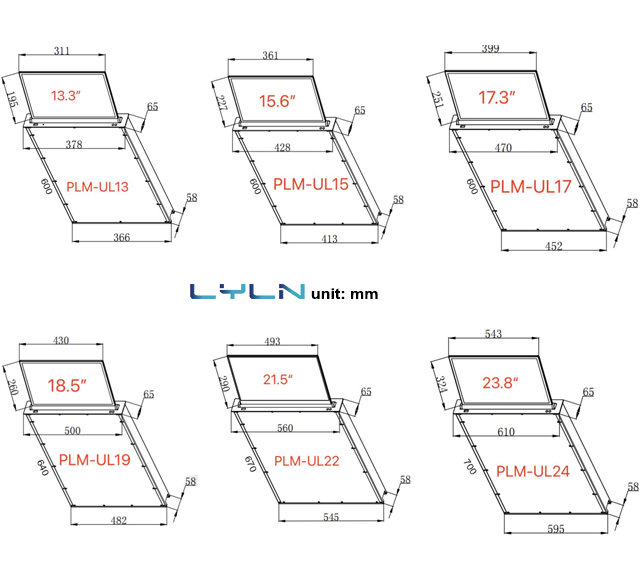

Optimized Dimensions

 Latest Designed Retractable Monitors For Conference Room & Training Room
