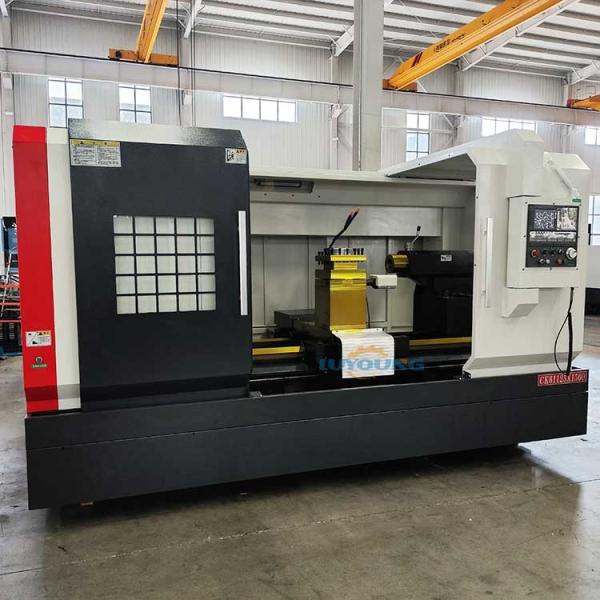

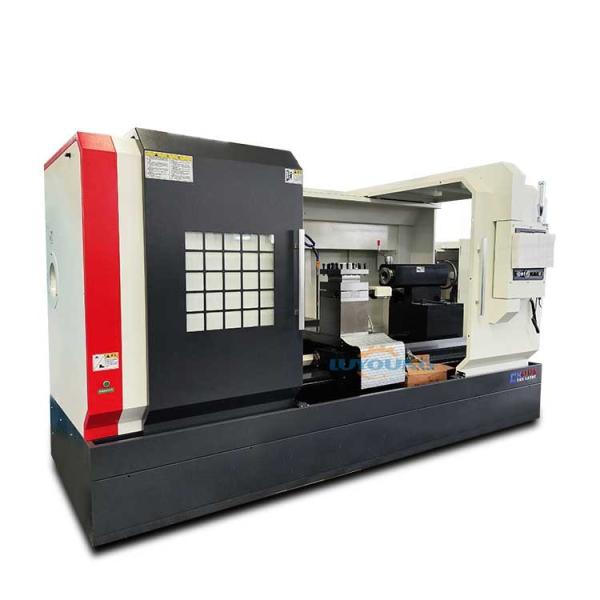

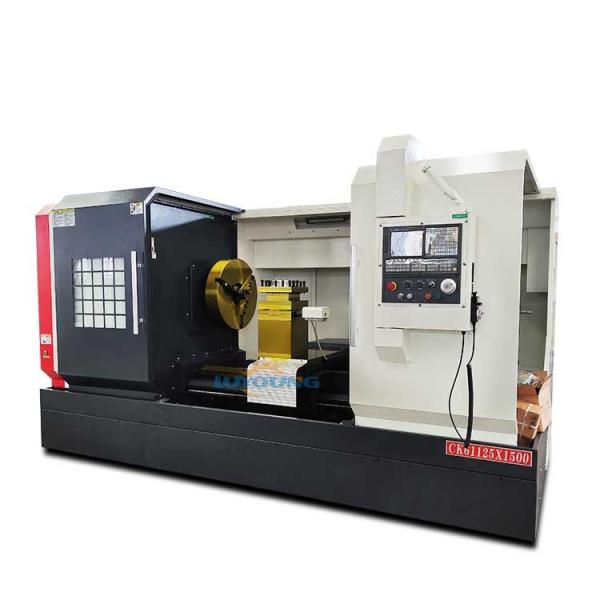

CK61125 Heavy Duty Horizontal CNC Metal Lathe 0.01mm Positioning Accuracy
CK61125 Heavy Duty Horizontal CNC Metal Lathe 0.01mm Positioning Accuracy
CK61125 Heavy Duty Horizontal CNC Metal Lathe 0.01mm Positioning Accuracy
CK61125 Heavy Duty Horizontal CNC Metal Lathe 0.01mm Positioning Accuracy
CK61125 Heavy Duty Horizontal CNC Metal Lathe 0.01mm Positioning Accuracy
CK61125 Heavy Duty Horizontal CNC Metal Lathe 0.01mm Positioning Accuracy
CK61125 Heavy Duty Horizontal CNC Metal Lathe 0.01mm Positioning Accuracy
CK61125 Heavy Duty Horizontal CNC Metal Lathe 0.01mm Positioning Accuracy
CK61125 Heavy Duty Horizontal CNC Metal Lathe 0.01mm Positioning Accuracy
CK61125 Heavy Duty Horizontal CNC Metal Lathe 0.01mm Positioning Accuracy
CK61125 Heavy Duty Horizontal CNC Metal Lathe 0.01mm Positioning Accuracy
CK61125 Heavy Duty Horizontal CNC Metal Lathe 0.01mm Positioning Accuracy
Specifications
Brand Name :
cnc lathe machine
Model Number :
CK61125
Place of Origin :
SHANDONG
Certification :
CE
MOQ :
1/SET
Price :
$25000-$38000
Payment Terms :
T/T
Supply Ability :
30/SET
Delivery Time :
30DAYS
Packaging Details :
non-fumigation wooden box
Through Bar Diameter :
Ø104/(optional Ø130)
Tool Post Stations :
8, 6, 4
Distance Between Centres :
3000mm
Machine Dimension :
2/2.3*1.5*1.7
Positioning Accuracy :
0.01
Cnc Or Not :
Cnc
Spindle Speed Ranges :
100~1600r/min
Precision :
High Precision
Total Power :
15kw
Condition :
New
Max Processing Length :
1500mm
Tailstock Shaft Diameter :
95mm
Function :
Metal Machining
Number Of Axes :
2
Bed Type :
Flat Bed
Structure :
Flat Bed Lathe
Coolant System :
Automatic
Control System :
CNC
Description

CK61125 0.01mm Positioning Accuracy CNC Flat Bed Lathe with Precision Coolant System

CK61125 Heavy Duty Horizontal CNC Metal Lathe 0.01mm Positioning AccuracyCK61125 Heavy Duty Horizontal CNC Metal Lathe 0.01mm Positioning AccuracySpecification
Item
CK61125*1500
CK61125*2000
CK61125*3000
Max. swing over bed (mm)
Φ1250
Φ1250
Φ1250
Max. swing dia. over cross slide(mm)
Φ970
Φ970
Φ970
Max.processing length(mm)
1500
2000
3000
Form
Three gears No grade to change frequency
Number of spindle speed
No grade
Range of spindle speed(r/min)
6-500 rpm
The spindle terminal structure
C11
Diameter of spindle bore (mm)
φ130
The taper of spindle front-end
(Metric)120 1:20
Power of main motor (KW)
15KW
Max.travel of tool post (mm)
X:530 Z:1700/X:530 Z:2300/X:530 Z:3300
Fast moving feed speed (mm/min)
X:4000 Z:5000
Resetting accuracy(mm)
X:0.012 Z:0.016
Processing accuracy(mm)
IT6-IT7
Surface roughness
Ra1.6
Sleeve diameter of tailstock (mm)
φ100
Sleeve travel of tailstock (mm)
250
Cone hole taper of tailstock’s sleeve
MT6
Standard configuration
Four-station vertical electrical knife rest
Restting accuracy (mm)
0.01
Length of section of knife handle (mm)
30×30
30×30
30×30
Length*width*height
3700×1920×1990
4700×1920×1990
5700×1920×1990
Net weight (Kg)
6500
8000
9000
Product Description
CK61125 CNC turret horizontal lathe machine for steel with turning, high-efficiency automated machine tools, the whole machine with integrated protection structure, beautiful
appearance. Mainly used for complex shape parts or high precision parts processing, can automatically complete internal and external Round surface, conical cotton, round face, end face, a variety of threads, drilling, hinge, boring and other turning. The machine is tested in strict accordance with the inspection procedure. Each machine adopts laser interferometer to detect X and Z axis positioning accuracy and repeat positioning accuracy to ensure the accuracy and reliability of the machine.
Products feature
Standard Configuration :
♥- System:GSK980. X/Z axis servo motor.
♥- Manual 3-jaw chuck.
♥- 4-station electric tool post.
♥- Manual tailstock
♥- Cooling system.
♥- Lighten system.
♥- Automatic lubrication system.
Optional Configuration:
♦- CNC system: Siemens, Fanuc, KND.
♦- Hydraulic chuck/Pneumatic chuck.
♦- Hydraulic tailstock/Pneumatic tailstock.
♦- Horizontal 6-station turret/8-station turret.
♦- Auto bar feeder
♦- Chip conveyor

Quality Inspection Process
Company Profile
Company Profile
Luyang CNC machinery company has 20 years of production lathe experience, main CNC lathe, CNC milling machine, processing center,Swiss CNC lathe high-tech enterprise.The company has a professional production and development team and favorable after-sales technical team support.The company takes the strength to make the product, the service wins the customer, the customer as the basic management concept.Our company has gained a good reputation both at home and abroad by providing customers with
cost-effective CNC machine tools and excellent timely sales advice and after-sales service.Development, innovation,people-oriented, is the direction my company has been working on.
