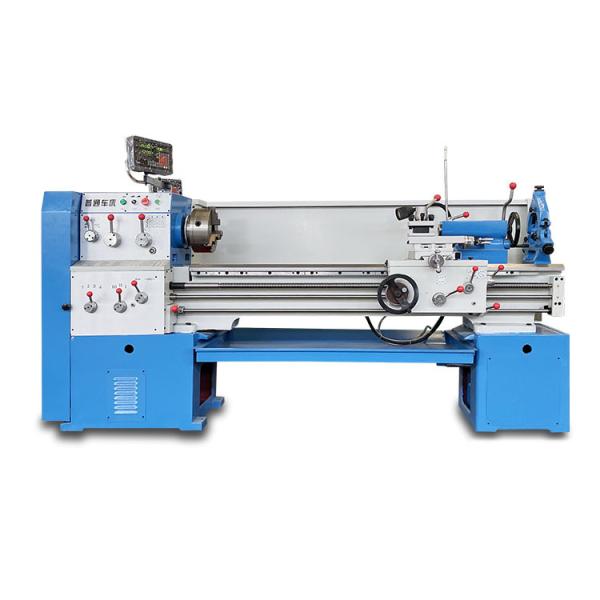

Manual Lathe Machine CD6241x750mm Distance Light Duty
Manual Lathe Machine CD6241x750mm Distance Light Duty
Specifications
Brand Name :
Luyoung
Model Number :
CA6241
Certification :
CE
Place of Origin :
China
MOQ :
1/SET
Price :
USD6000-10000
Payment Terms :
T/T, L/C
Supply Ability :
30/SET
Delivery Time :
45 working days
Packaging Details :
non-fumigation wooden box
Spindle :
Flat
Spindle bore :
52/80mm
Chuck :
3-jaw manual chuck
Tailstock :
Manual
Distance between two centers :
750mm
Description
Model Unit C6136A CA6140A CA6240 CA6150 CA6250
床身上最大回转直径Max.Swing over bed mm 360 400 410 500 500
拖板上最大回转直径 Max.Swing over carriage mm 190 210 225 300 300
马鞍上回转直径*有效长度Max.Swing in gap*Effective gap length mm - - 630*210 - 720*210
主轴中心至床身平面导轨 Distance from spindle center to bed plane guide mm 205 205 205 250 250
最大工件长度 Max length of bed mm 750/1000/1500/2000/2200/3000/4000
床身宽度 Width of bed mm 400
刀杆尺寸 Section of turming tool mm 25×25
主轴Spindle 主轴转速Spindle speeds rpm 11-1600./12-1680
主轴通孔 spindle bore mm 52
主轴锥度Spindle taper NO.6(MT6)(φ90 1:20) [φ113 1:20]
进给
Feed		 公制螺纹范围(种类)Range of metric threads(kinds) mm (1-192)44(44 kinds)
英制螺纹范围(种类)Range of inch threads(kinds) (2-24tpi)21(21 kinds)
模数螺纹范围(Range of module threads(kinds) 0.25-48(39)(Module 39kinds)
螺距螺纹范围Range of pitch threads(kinds) 1-96DP(37)(37kinds)
尾座Taistock 尾座主轴最大行程Max.tail stock spindle travel mm 150
尾座主轴直径 Tail stock spindle diameter mm 75
尾座主轴中心孔锥度Taper of tail stock spindle center hole NO.5(MT5)
主电机Main motor KW 7.5KW
包装尺寸Packing dimensins (L*W*H) 750mm mm 1900*1400*1630 2400*1400*1630
1000mm mm 2400*1400*1630 2900*1400*1630
1500mm mm 2900*1400*1630 3400*1400*1630
2000mm mm 3400*1400*1630 3900*1400*1630
重量Weight 750mm kg 1900 2060
1000mm kg 2070 2140
1500 kg 2570 2640
2000 kg 2570 2640

C6241x750 is a robust and versatile classic horizontal lathe, suitable for machining small to medium-sized shaft and disc/sleeve parts. It is commonly found in maintenance workshops, toolrooms, and small-batch production scenarios.
