LGSD2165 LTXG 180HP Crawler bulldozer
LGSD2165 LTXG 180HP Crawler bulldozer
LGSD2165 LTXG 180HP Crawler bulldozer
LGSD2165 LTXG 180HP Crawler bulldozer
LGSD2165 LTXG 180HP Crawler bulldozer
LGSD2165 LTXG 180HP Crawler bulldozer
Specifications
Brand Name :
LTXG
Model Number :
LGSD2165
Certification :
ISO,CE
Place of Origin :
China
MOQ :
1 unit
Supply Ability :
100 unit/month
Delivery Time :
20-30 woking days
Packaging Details :
Special package for export
Description

Main features
◆ The appearance of the vehicle is based on optimization design.
◆ High engine power reserve, strong torque output, low fuel consumption, reliable controls.
◆ Hydraulically powered, automatic speed change, shift the gears without stop the vehicle.
◆ 3 elements, single stage and single phase torque convertor features high efficiency and capacity.
◆ The updated hexahedral cab features outstanding visibility and good tightness.
◆ Using the triangle spline and the gear of crowned teeth and tip relief in the final drive to average the loads on the trans-mission components for more stability, prolong the lifetime.
◆ New blade is more durable and capacious.
◆ Alarming & monitoring system is reliable.
◆ Reliable manual - operated spool valve and external mounted valve for easy maintenance

Engine

◆ 4 valve design for efficient combustion and excellent fuel economy.
◆ 3-stage fuel filtration system for more choice on oils.
◆ 93 dust filter for reduced parts wear by 90%.
◆ Turbocharger adaptable for working at an altitude more than 4000m.
◆ Inner located relay starter controlled by ECU for reduced failure.
◆ Intake air heating grille makes engine start at -35°C possible.
◆ Large-flow inner thermostat for easy service and reduced operating cost.
◆ Hyperboloid fan features large air flow and low noise.
◆ Self-check generator with avalanche diode and self-driven adjustor for excellent reliability.
◆ Reinforced oil pan for less noise radiation. Service hours of CH grade oil: 500h.
Gear Box
The gear box is of the planetary gears type, by operating hydraulic control valve for traveling forward and backward. It features planetary gears, multi-disc clutch, hydraulically applied forced lubrication, 3 speeds forward and 3 speeds backwards.
Torque Converter
The torque converters are of the single stage, single phrase, 3 elements hydraulic type with reasonable structure and excellent reliability, which provide optimum matching with the machines. The outstanding transmissions comparing to the normal ones means the automatic adjustment to the field condition, gradually speed change, improved machine lifetime and traveling ability, easy maintenance, improved working comfort and torque limit set protection function.
The Final Driving
For tip relieve and crowned gears which features large loading capacity, stable transmission and long lifetime

key parameter

LGSD2165 LTXG 180HP Crawler bulldozer

Product Model LGSD2165
ENGINE
Model Weichai WP10G178E355
Type Four-stroke, water cooling, straight vertical, direct injection type
Flywheel power(kw) 131
Rated speed(r/min) 1850
Starting method Electric starting motor? 24V,7.5KW
Battery 24V(12Vⅹ2)-195AH
Air cleaner Dry type, precleaned Cyclone air cleaner
TRANSMISSION SYSTEM
Torque converter 3-element, single stage, single-phase
Transmission Hand-operated hydraulic shift, planetary gear, multiple disc clutch, forced lubrication by gear pump
Bevel gear Helical bevel gear, splash lubricated
Steering clutch Wet, multiple disc, spring loaded, hand-operated with hydraulic-released
Steering brake Wet, brand brake, operated with hydraulic booster
Final drive Spur gear, double reduction, splash lubrication
UNDER CARRIAGE
Sprocket Segmented
Number of track shoes(each side) 7(3 single, 4 double)
Track tension Hydraulic adjusted
·Floating seals are used in all track rollers, carrier rollers, sprocket and front idlers
TRAVEL SPEED(km/h) 1st 2nd 3rd
Forward 3.5 6.1 9.7
Reverse 4.4 7.5 11.9
TRACK
Type Sealed and lubrication single grouse or sealed single grouser
Track pitch(mm) 203
Track width(mm) 1000
Number of track shoes(each side) 44
Length of track on ground(mm) 3140
Ground clearance(mm) 500
Ground pressure(Mpa) 0.029
Track gauge 2150
HYDRAULIC SYSTEM OF WORK EQUIPMENT
Working pressure(Mpa) 13.7
Rated delivery(L/min) 250
Pump Gear pump
Control valve Hand-operated, sliding type
Valve position Raise, Hold, Lower, Float
Cylinder, boreⅹrodⅹstroke(mm) 110x65x1026
WORK EQUIPMENT
Blade type Straight tilt blade Angle Straight tilt blade
Widthⅹlength(mm) 3416x1150 4050x4050 3970x1050
Max. lift above ground(mm) 1090 1110 1180
Max. drop below ground(mm) 530 530 440
Pitch adjustment(°) 55±2 55 55±2
Max. tilt(mm) 860 860

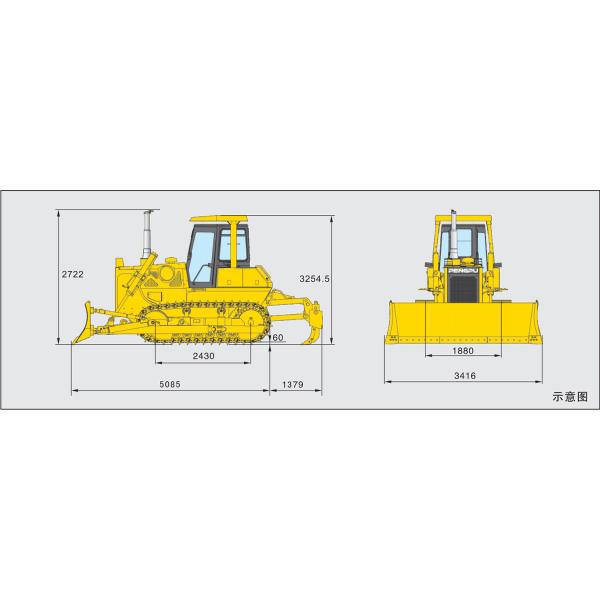

LengthⅹWidthⅹHeight(mm) 4996x3416x3240 5185x4019x3240 4996x3970x3240
Weight(kg) 17860 17480 18200
Ripper Type Triple
Max. dig below ground(mm) 572
Max. lift above ground(mm) 492

LGSD2165 LTXG 180HP Crawler bulldozer

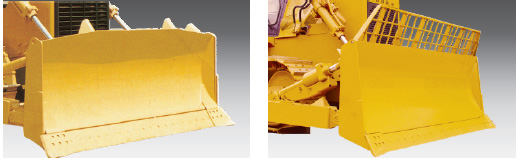

Blade type Straight tilt blade U dozer
Width * Height (mm) 3970*1050 3970*1514
Max.lift above ground (mm) 1180 1180
Max.drop below ground (mm) 440 440
Pitch adjustment (°) 55 55
Max.Tilt (mm) 700 700
Blade capacity (m³) 4.4 6.17
