Hydraulic Lifting High Speed Dissolver Machine 22kw - 75kw Single Shaft Coating Mixing Machine
Hydraulic Lifting High Speed Dissolver Machine 22kw - 75kw Single Shaft Coating Mixing Machine
Hydraulic Lifting High Speed Dissolver Machine 22kw - 75kw Single Shaft Coating Mixing Machine
Hydraulic Lifting High Speed Dissolver Machine 22kw - 75kw Single Shaft Coating Mixing Machine
Hydraulic Lifting High Speed Dissolver Machine 22kw - 75kw Single Shaft Coating Mixing Machine
Hydraulic Lifting High Speed Dissolver Machine 22kw - 75kw Single Shaft Coating Mixing Machine
Hydraulic Lifting High Speed Dissolver Machine 22kw - 75kw Single Shaft Coating Mixing Machine
Hydraulic Lifting High Speed Dissolver Machine 22kw - 75kw Single Shaft Coating Mixing Machine
Specifications
Brand Name :
LTD
Model Number :
FS22-FS90
Place of Origin :
Dongguan,China
MOQ :
1set
Payment Terms :
T/T
Supply Ability :
20-30 sets per month
Delivery Time :
15-20 days
Packaging Details :
wooden case package
Price :
USD4600-12000/set
Name :
High speed disperser
Mixing capacity :
500-10000L
Motor power :
22kw-90kw,Ex-proof
Lifting type :
Hydraulic lifting
Lifting rise distance :
1200mm
Dispersing speed :
0-1500rpm controlled by inverter
Power supply :
380V 50Hz 3Phase (can be customized)
Dispersing shaft :
Single
Dispersing disc :
300-450mm
Explosion proof type :
Fully explosion-proof with separate electrical control box
Description

22kw-75kw Single shaft hydraulic lifting high speed disperser / dissolver machine for mixing coatings

1. Description:

This series of chemical dispersion machine are widely used in painting,dyeing,pigment,medical and papermaking and other industries.

The equipment is characterized by: minimum included air during mixing and dispersion, perfect solid-liquid mixing and dispersion effect,and fast dissolution and fine particles during high and medium-speed dispersion process.

2. Main Technical Parameters:

Model Disc size(mm) Main motor power (kw) Rotational speed(rpm) Pump power (kw) Lifting distance(mm)
FS4 200 4 0-1500rpm 0.55 900
FS5.5 200 5.5 0-1500rpm 0.75 1000
FS7.5 250 7.5 0-1500rpm 0.75 1000
FS11 250 11 0-1500rpm 0.75 1000
FS15 250 15 0-1500rpm 1.5 1200
FS18.5 300 18.5 0-1500rpm 1.5 1200
FS22 300 22 0-1500rpm 1.5 1200
FS30 350 30 0-1500rpm 1.5 1200
FS37 350 37 0-1500rpm 1.5 1200
FS45 400 45 0-1500rpm 2.2 1200
FS55 450 55 0-1500rpm 2.2 1200
FS75 450 75 0-1500rpm 2.2 1200

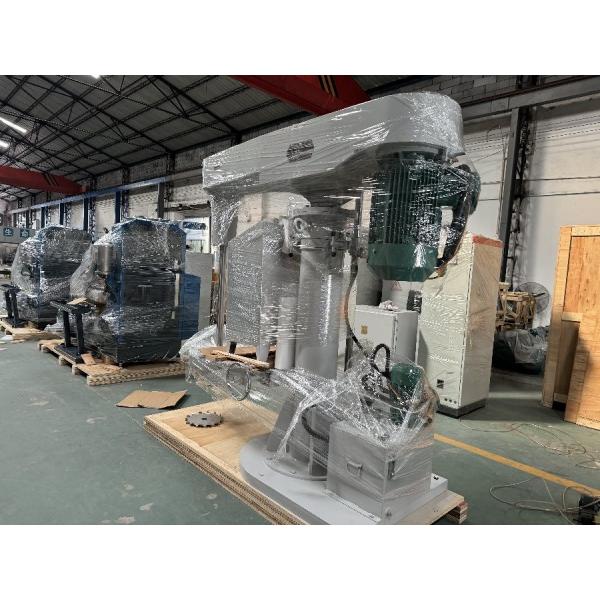

3. Real photos:

Hydraulic Lifting High Speed Dissolver Machine 22kw - 75kw Single Shaft Coating Mixing Machine

Hydraulic Lifting High Speed Dissolver Machine 22kw - 75kw Single Shaft Coating Mixing Machine

Hydraulic Lifting High Speed Dissolver Machine 22kw - 75kw Single Shaft Coating Mixing Machine

Hydraulic Lifting High Speed Dissolver Machine 22kw - 75kw Single Shaft Coating Mixing Machine

Hydraulic Lifting High Speed Dissolver Machine 22kw - 75kw Single Shaft Coating Mixing Machine

Hydraulic Lifting High Speed Dissolver Machine 22kw - 75kw Single Shaft Coating Mixing Machine

Hydraulic Lifting High Speed Dissolver Machine 22kw - 75kw Single Shaft Coating Mixing Machine

Hydraulic Lifting High Speed Dissolver Machine 22kw - 75kw Single Shaft Coating Mixing Machine

4. Working video



Industry

Hydraulic Lifting High Speed Dissolver Machine 22kw - 75kw Single Shaft Coating Mixing Machine

Hydraulic Lifting High Speed Dissolver Machine 22kw - 75kw Single Shaft Coating Mixing Machine

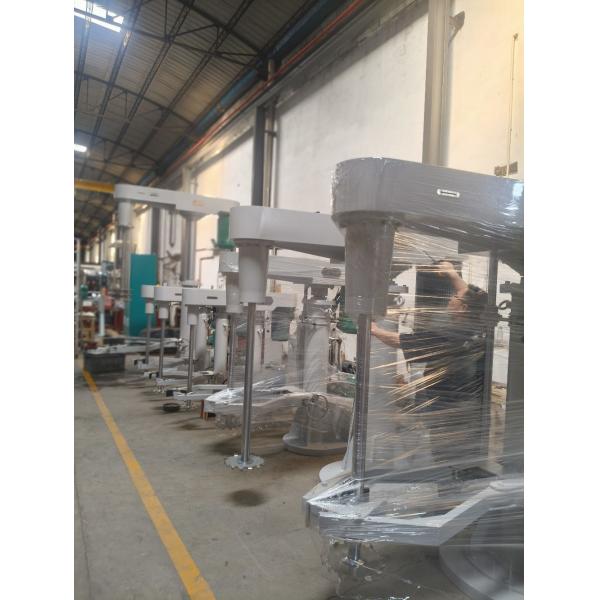

Our factory

Hydraulic Lifting High Speed Dissolver Machine 22kw - 75kw Single Shaft Coating Mixing Machine

Hydraulic Lifting High Speed Dissolver Machine 22kw - 75kw Single Shaft Coating Mixing Machine

Hydraulic Lifting High Speed Dissolver Machine 22kw - 75kw Single Shaft Coating Mixing Machine

Hydraulic Lifting High Speed Dissolver Machine 22kw - 75kw Single Shaft Coating Mixing Machine

Hydraulic Lifting High Speed Dissolver Machine 22kw - 75kw Single Shaft Coating Mixing Machine

Our certificates

Hydraulic Lifting High Speed Dissolver Machine 22kw - 75kw Single Shaft Coating Mixing Machine

Customers site

Hydraulic Lifting High Speed Dissolver Machine 22kw - 75kw Single Shaft Coating Mixing Machine

Support and Services:

Product Technical Support and Services:

- Comprehensive technical support for installation, operation, and maintenance

- Troubleshooting assistance for any issues or malfunctions

- Guidance on optimizing the performance of the equipment

- Training programs for operators to ensure proper usage and maximize efficiency

Packing and Shipping:

Product Packaging:

The machine is carefully packaged in a wooden case to ensure safe transportation. The product is securely wrapped in bubble wrap to prevent any damage during shipping.

Shipping:

Orders are typically processed within 1-2 business days. Once shipped, you will receive a tracking number to monitor the delivery status of your sand mill/bead mill product. We partner with reliable shipping carriers to ensure timely delivery to your doorstep.
