1000L Double shaft multi-functional high and slow speed vacuum mixer

1. Feature

1.1 Soft sealing is adopted between barrel and barrel cover to make sure the operation is available under vacuum condition;

1.2 While the mixer operates under the vacuum condition, its auto-control up and down travel also runs at the same time.

1.3 Material barrel is equipped with the cooling sleeve, which can be heated by circular heating with hot oil and hot water or executed cold oil and cold water circulation. Temperature meter and vacuum pressure meter are set up on the barrel cover.

1.4 In the barrel, high-speed disperser is equipped to achieve strong cutting and mixing.

1.5 Disc mixer and high-speed disperser in the barrel can have speed regulation through speed regulator, and can choose different speeds as per different processing and viscosity.

2. Function

The machine is a model with the multi functions of dispersion and mixing, widely used in industries such as polymer lithium-ion battery fluid, painting, ink, dyeing, chemistry, food, medicine, building material and pesticide for mixing, dispersion, reaction, resolution and homogenization between liquid and liquid, and between solid and liquid material.

3. Technical parametrs

Double shaft Multi-functional Double shaft Disperser

High speed mixing (paddle+disc type stirrer): 37kw(Ex.Motor) 380V 50Hz 3 Phase, Various speed 74-1450rpm, with inverter

Low speed mixing (frame type stirrer): 18.5kw(Ex.Motor) 380V 50Hz 3 Phase, Fixed speed 35rpm, with reducer

Tank working capacity: 1000L

Tank total capacity: 1320L

Vacuum degree: -0.098MPa

Vacuum pump motor: 2.2kw

Pump speed: 40m³/hr

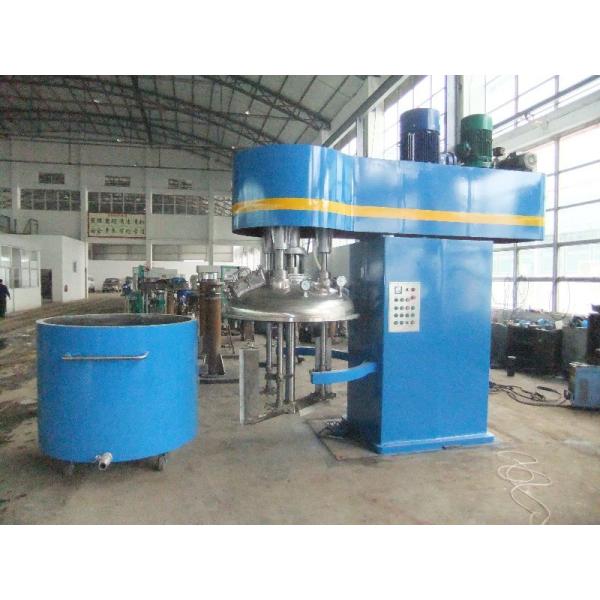

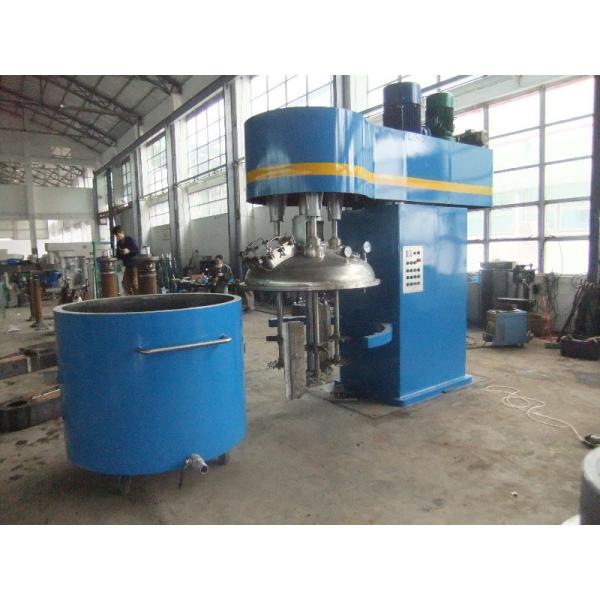

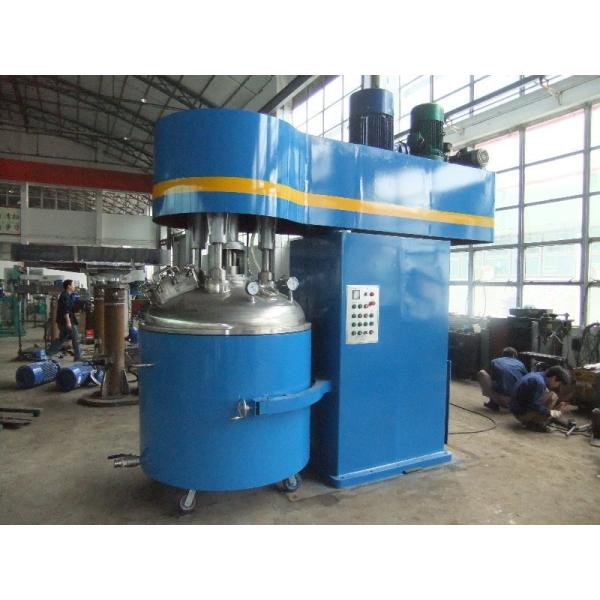

4. Real photos:

5. Industry

6. Our factory

7. Our certificate

8. Customers case

9. Support and Services:

Product Technical Support and Services:

- Comprehensive technical support for installation, operation, and maintenance

- Troubleshooting assistance for any issues or malfunctions

- Guidance on optimizing the performance of the equipment

- Training programs for operators to ensure proper usage and maximize efficiency

10. Packing and Shipping:

Product Packaging:

The machine is carefully packaged in a wooden case to ensure safe transportation. The product is securely wrapped in bubble wrap to prevent any damage during shipping.

Shipping:

Orders are typically processed within 1-2 business days. Once shipped, you will receive a tracking number to monitor the delivery status of your sand mill/bead mill product. We partner with reliable shipping carriers to ensure timely delivery to your doorstep.
