30L Horizontal Sand Mill Horizontalss Disc Type Bead Mill With High Polymer Discs
30L Horizontal Sand Mill Horizontalss Disc Type Bead Mill With High Polymer Discs
30L Horizontal Sand Mill Horizontalss Disc Type Bead Mill With High Polymer Discs
30L Horizontal Sand Mill Horizontalss Disc Type Bead Mill With High Polymer Discs
30L Horizontal Sand Mill Horizontalss Disc Type Bead Mill With High Polymer Discs
30L Horizontal Sand Mill Horizontalss Disc Type Bead Mill With High Polymer Discs
30L Horizontal Sand Mill Horizontalss Disc Type Bead Mill With High Polymer Discs
30L Horizontal Sand Mill Horizontalss Disc Type Bead Mill With High Polymer Discs
Specifications
Brand Name :
LTD
Model Number :
LTD30D
Certification :
ISO9001:2015,CE certificate,Conformity Certificate of Explosion-proof
Place of Origin :
Dongguan,China
MOQ :
1set
Payment Terms :
,T/T
Supply Ability :
20sets/month
Delivery Time :
20-25 days
Packaging Details :
Standard exported wooden case
Price :
USD5600-6500/set
Name :
Disc type horizontal bead mill
Grinding capacity :
30L
Motor power :
22kw,Ex-proof
Power supply :
380V 50Hz 3Phase (can be customized)
Outer chamber material :
Carbon steel with Chrome plated/SS304
Inner tube material :
Wear-resistant alloy steel material
Discs material :
Wear-resistant alloy steel material
Mechanical seal :
Double-end,Burgmann brand
Feeding pump :
1" ARO pneumatic diaphragm pump
Grinding medium :
80% zirconia beads,1.8-2.0mm
Description

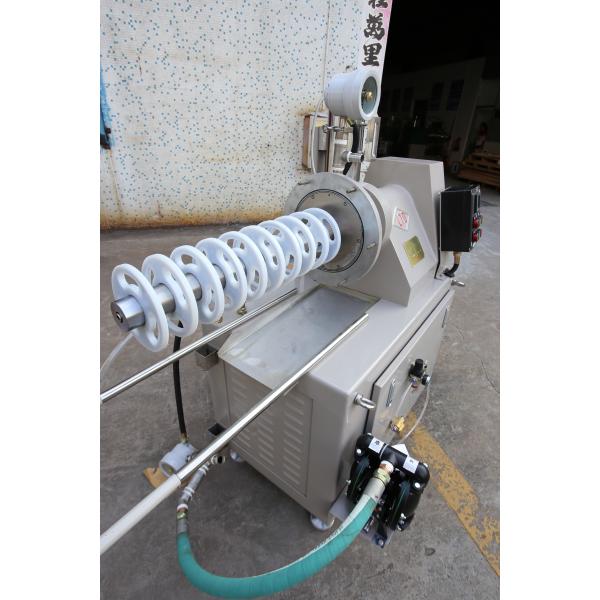

Horizontal disc type horizontal sand mill / bead mill with High Polymer Discs

1. Application:

Suitable to grind low or medium viscosity products with fineness 15-5μm.

Titanium dioxide Metallic paint Marine paint

Automotive paint Coatings Anti-corrosion paint

Furniture paint Printing ink Pesticides

Carbon Black Pigment/Dye/Colorant Rubber

Industrial paint Electrophoretic paint Leather paint

2. Machine Configuration:

Grinding discs are made of wear-resistant alloy steel material

Rotor material is made of wear-resistant alloy steel material

Outer chamber is made of carbon steel with Chrome plated/SS304 material

Inner tube is made of wear-resistant steel steel material

Rotor rated speed 1020RPM

Double-end mechanical seal,Burgmann brand

1”ARO pneumatic diagram pump,with pump delivery 0-17L/min

Fully explosion proof type with explosion proof electrical control panel

Solvent-resistant discharge inlet and outlet pipes

Discharge separator gap 0.5mm,suitable for 80% zirconia beads 1.8-2.0mm

Spare parts:Solvent resistant feeding and discharge pipe,power wire and tools.

3. Technical parameters

Model

Chamber capacity(L)

Motor power(Kw)

Production capacity(L/h)

Zirconia beads size(mm)

Weight(Kg)

Overall dimensions(mm)

LTD05D

5

7.5

20-150

1.0-2.5

500

900×750×1550

LTD10D

10

11

30-200

1.0-2.5

1000

950×800×1550

LTD15D

15

15

35-400

1.0-2.5

1000

1180×900×1600

LTD20D

20

18.5

50-600

1.0-2.5

1100

1350×900×1700

LTD30D

30

30

150-1000

1.0-2.5

1300

1700×1050×1850

LTD50D

50

37/45

200-1200

1.0-2.5

1600

1750×1050×1950

LTD60D

60

45

250-1500

1.0-2.5

1700

1950×1050×1950

LTD100D

100

55

350-2400

1.0-2.5

2800

2240×1000×2200

LTD150D

150

75

600-3500

1.0-2.5

3200

2800×1000×2200

LTD200D

200

95

800-4500

1.0-2.5

3800

2950×1000×2200

LTD300D

300

110

1000-9000

1.0-2.5

4500

3100×1200×2500

LTD500D

500

160

1500-12000

1.0-2.5

6500

3800×1400×2800

LTD1000D

1000

400

12000-15000

1.0-2.5

11000

4400×1600×2850

4. Grinding process

30L Horizontal Sand Mill Horizontalss Disc Type Bead Mill With High Polymer Discs

5. Structure classification of Horizontal Sand Mill
30L Horizontal Sand Mill Horizontalss Disc Type Bead Mill With High Polymer Discs
Material classification of Horizontal Sand Mill Spare Parts
30L Horizontal Sand Mill Horizontalss Disc Type Bead Mill With High Polymer Discs

3. Real photos:

30L Horizontal Sand Mill Horizontalss Disc Type Bead Mill With High Polymer Discs

30L Horizontal Sand Mill Horizontalss Disc Type Bead Mill With High Polymer Discs

30L Horizontal Sand Mill Horizontalss Disc Type Bead Mill With High Polymer Discs

30L Horizontal Sand Mill Horizontalss Disc Type Bead Mill With High Polymer Discs

4.Machine videos



Applications:

30L Horizontal Sand Mill Horizontalss Disc Type Bead Mill With High Polymer Discs

30L Horizontal Sand Mill Horizontalss Disc Type Bead Mill With High Polymer Discs

Our factory

30L Horizontal Sand Mill Horizontalss Disc Type Bead Mill With High Polymer Discs

30L Horizontal Sand Mill Horizontalss Disc Type Bead Mill With High Polymer Discs

30L Horizontal Sand Mill Horizontalss Disc Type Bead Mill With High Polymer Discs

30L Horizontal Sand Mill Horizontalss Disc Type Bead Mill With High Polymer Discs

30L Horizontal Sand Mill Horizontalss Disc Type Bead Mill With High Polymer Discs

Our certificates

30L Horizontal Sand Mill Horizontalss Disc Type Bead Mill With High Polymer Discs

Customers case

30L Horizontal Sand Mill Horizontalss Disc Type Bead Mill With High Polymer Discs

Support and Services:

Product Technical Support and Services:

- Comprehensive technical support for installation, operation, and maintenance

- Troubleshooting assistance for any issues or malfunctions

- Guidance on optimizing the performance of the equipment

- Training programs for operators to ensure proper usage and maximize efficiency

Packing and Shipping:

Product Packaging:

The machine is carefully packaged in a wooden case to ensure safe transportation. The product is securely wrapped in bubble wrap to prevent any damage during shipping.

Shipping:

Orders are typically processed within 1-2 business days. Once shipped, you will receive a tracking number to monitor the delivery status of your sand mill/bead mill product. We partner with reliable shipping carriers to ensure timely delivery to your doorstep.

FAQ:

Q: What is a sand mill/bead mill?

A: A sand mill/bead mill is a grinding machine used to reduce particle size by agitating beads in a liquid medium.

Q: What are the typical applications of a sand mill/bead mill?

A: Sand mills/bead mills are commonly used in industries such as paint, ink, coatings, and pigments for wet grinding and dispersion of materials.

Q: How does a sand mill/bead mill work?

A: In a sand mill/bead mill, the grinding chamber contains small beads that are agitated by a rotating shaft, causing the beads to collide and break particles down to the desired size.

Q: What are the advantages of using a sand mill/bead mill?

A: Some advantages of sand mills/bead mills include efficient particle size reduction, uniform particle distribution, and the ability to process a wide range of materials.

Q: How to choose the right sand mill/bead mill for my application?

A: When selecting a sand mill/bead mill, factors such as the desired particle size, material viscosity, production capacity, and required fineness should be considered to ensure optimal performance for your specific application.
