Specifications
Model Number :
SND12C078
Rated Power :
1.4 KW
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Structure Type :
OSGR-63
Delivery Time :
15-30 work day
Insulation Class :
Class F (155°C)
Place of Origin :
China
Drive Gear Teeth :
9 Teeth (9T)
MOQ :
10 Pcs
Rotation Direction :
CW (Clockwise)
Brand Name :
LSDF
Operating Voltage :
12V DC
Description

SND12C078( CASE 460 / Maxi-Sneaker 1993-2001 Kubota V1505-B Dsl )228000-1530 228000-1531 18019

Product Overview

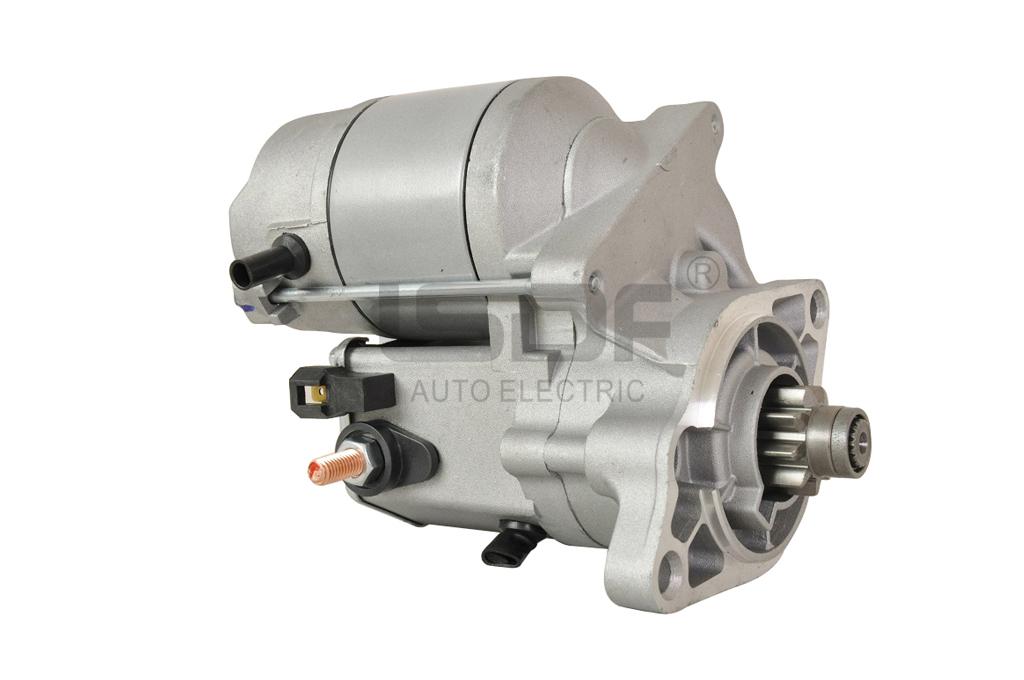

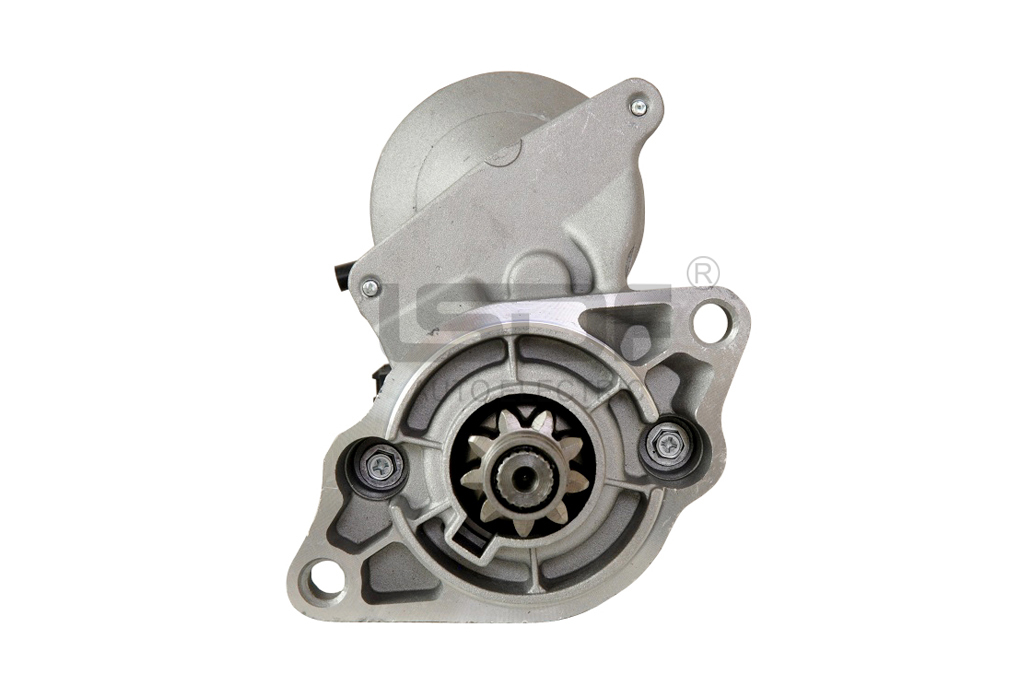

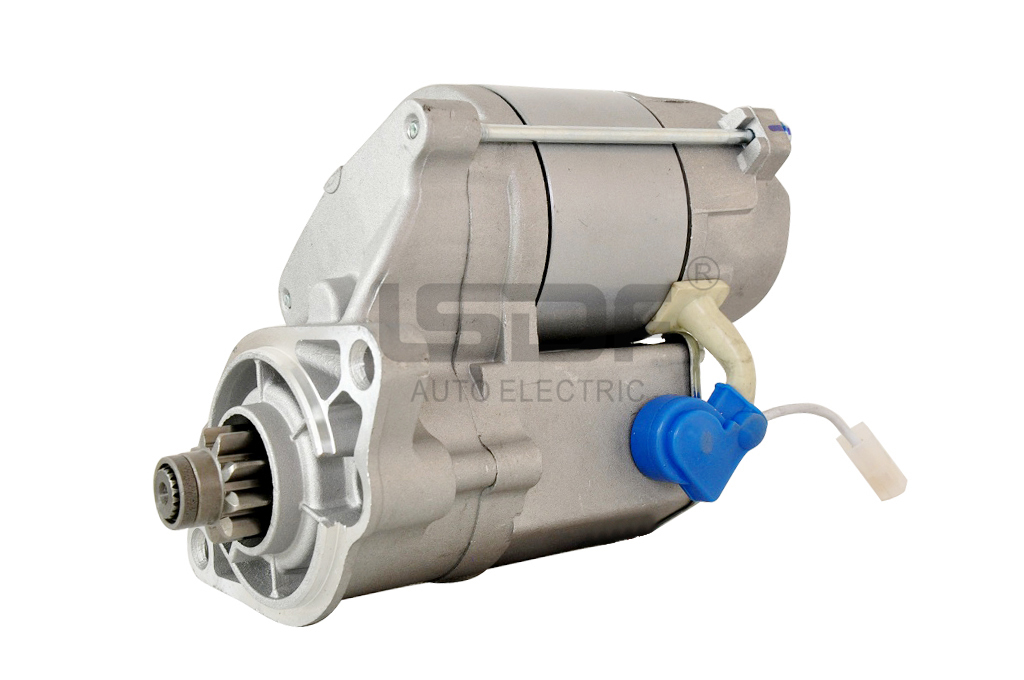

SND12C078 (LSDF) 12V 1.4KW 9-tooth CW Planetary Gear Reduction Starter — Original factory manufactured DENSO-style starting motor, suitable for industrial equipment, construction machinery, and agricultural tractors. Compatible with multiple international brand OEM replacement codes including ARROWHEAD, LESTER, DENSO, KUBOTA, CASE, and more. Direct bolt-on installation with stable and durable starting performance, designed for Global Aftermarket.

Product Model

Attribute Specification / Value
Product Model SND12C078
Brand LSDF
Part Name Starter
Structure OSGR-63
Product Type Original factory manufactured, mass-produced
Electrical Specs 12V 1.4KW rated power, 9-tooth drive gear (9T), CW rotation direction
Application CASE 460 1994-2001; CASE Maxi-Sneaker 1993-2001 (Kubota V1505-B Diesel engine)
Target Markets Global Aftermarket

OEM Cross-Reference Codes

This product serves as a universal replacement part compatible with multiple original equipment manufacturer codes:

LSDF: ARROWHEAD: ARROWHEAD (OEM): ATLANTIC:
SND12C078 SND0474 ND9722809-153 1900-0117
LESTER: ANDRE NIERMANN: BBB HD: BBB SMALL MOTOR:
18019 190-583 19269 18019
BOBC: CARGO: DENSO: DENSO REMAN:
22-18400, 3390105, 6680542, 6681742, 6962169 111021 228000-1530, 228000-1531 9722809-153
DIXIE: DIXIE NEW: KUBOTA: LUCAS ELECTRICAL EUROPE:
S-8524 246-14119 16611-63010, 16611-63011, 16611-63012, 16611-63013 RS01251
MPA HD:


X718019


Design Features & Performance Advantages

  • OSGR-63 Planetary Gear Reduction Structure: Utilizes OSGR-63 series planetary reduction architecture with 1.4KW power output suitable for industrial and agricultural diesel engines. Compact design with efficient torque output, perfectly matching installation space in construction machinery and tractors. 9-tooth drive gear with precise modulus ensures smooth engagement with flywheel ring gear, reducing gear wear and noise.
  • DENSO Original Mold Design, Direct Replacement: Developed and manufactured based on DENSO original structure. Mounting holes, wiring terminals, and fixing dimensions are 1:1 matched with original parts. No modifications required — direct installation for maintenance replacement. Compatible with CASE 460 and Maxi-Sneaker models equipped with Kubota V1505-B diesel engines.
  • Premium Materials, Durable & Reliable: Stator and rotor use high-purity enameled windings with Class F insulation resistant to high temperatures, preventing overheating damage during frequent start-stop cycles in demanding working conditions. High-wear-resistant graphite brushes ensure stable conductivity and extend service life. Aluminum alloy die-cast housing provides vibration resistance, impact protection, and dust/splash resistance, suitable for rugged construction and agricultural environments. Built-in high-quality one-way clutch automatically disengages after engine start, preventing flywheel back-drive damage to starter.
  • Industrial & Export Market Customization: Specifically developed for construction and agricultural machinery applications with parameters adapted to Kubota diesel engine platforms. Meets requirements for overseas industrial parts wholesale and repair shop maintenance replacements.

Quality & Application Information

Factory-controlled full-process production with comprehensive outgoing inspections including no-load performance, load torque, lock parameters, and insulation withstand voltage testing. Complies with international industrial and automotive starter manufacturing standards.

Application Scenarios: Construction equipment assembly, agricultural machinery, domestic and international industrial parts retail, repair shop faulty part replacement. Optimal replacement starter for CASE 460 and Maxi-Sneaker with Kubota V1505-B diesel engine.

Frequently Asked Questions

I. Product Selection

Q1: Is the SND12C078 starter a brand‑new product?
A: Yes, it is 100% brand new. Leshan Dongfeng Automobile Electric Appliance Co., Ltd. (LSDF) guarantees that all starters we sell are factory‑manufactured new units — never rebuilt or used. We fully understand that reliability in the starting system is critical to equipment safety and operational efficiency, which is why we consistently deliver the highest quality new components.
Q2: Which equipment is this starter compatible with?
A: The SND12C078 is developed and manufactured based on the original DENSO design, with mounting holes, terminals, and fixing dimensions matching OEM specifications 1:1 for direct bolt‑on replacement. It is primarily suited for CASE 460 (1994-2001) and CASE Maxi-Sneaker (1993-2001) models equipped with Kubota V1505-B diesel engines. In addition, its broad OE cross‑reference list (see the compatibility table on our product page) allows it to serve as a direct replacement for many international brand industrial equipment that use the same starter specifications.
