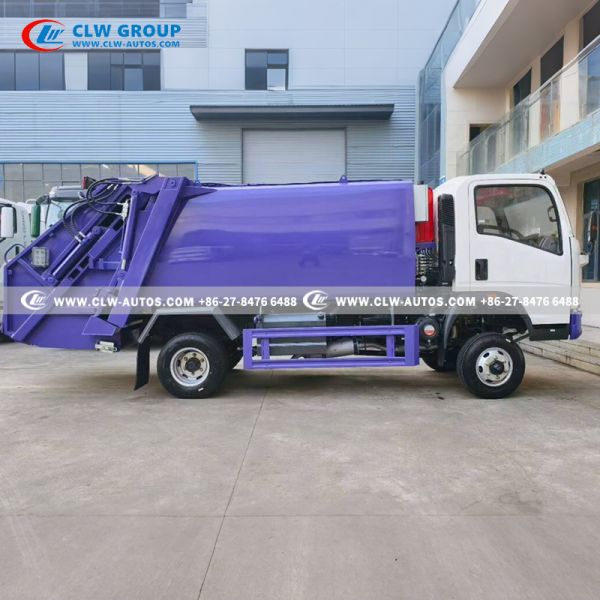

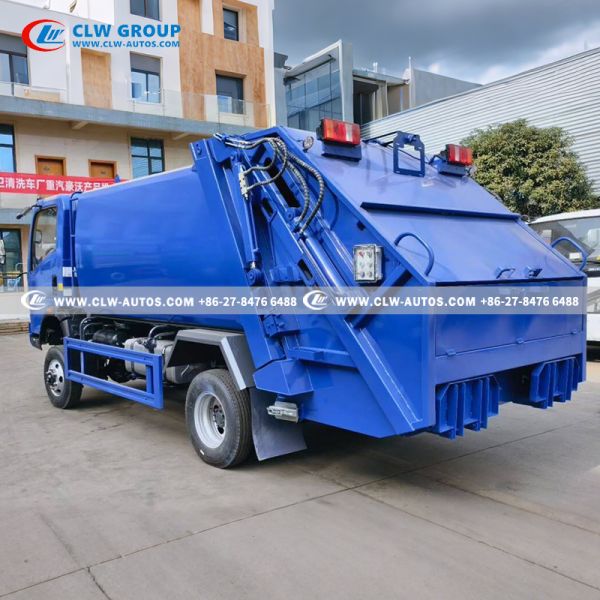

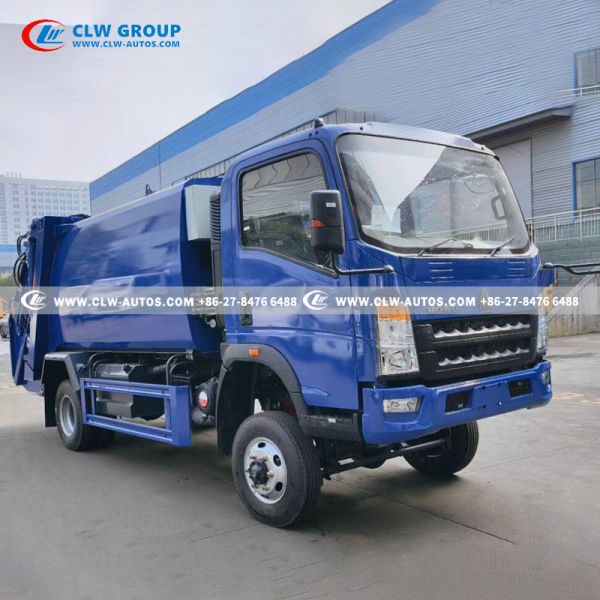

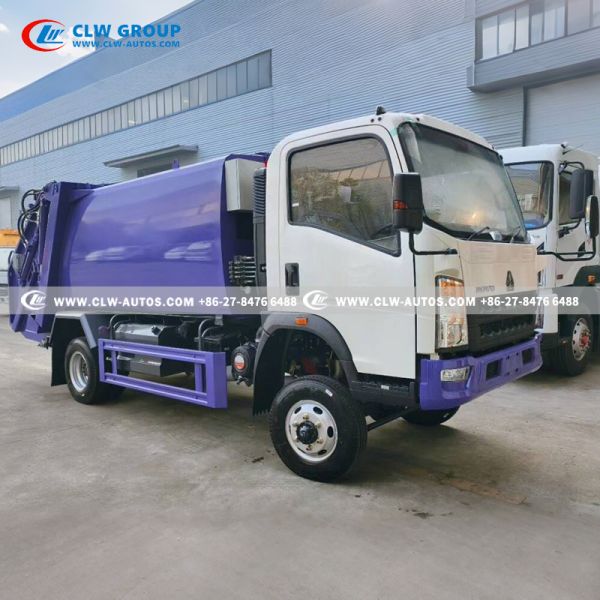

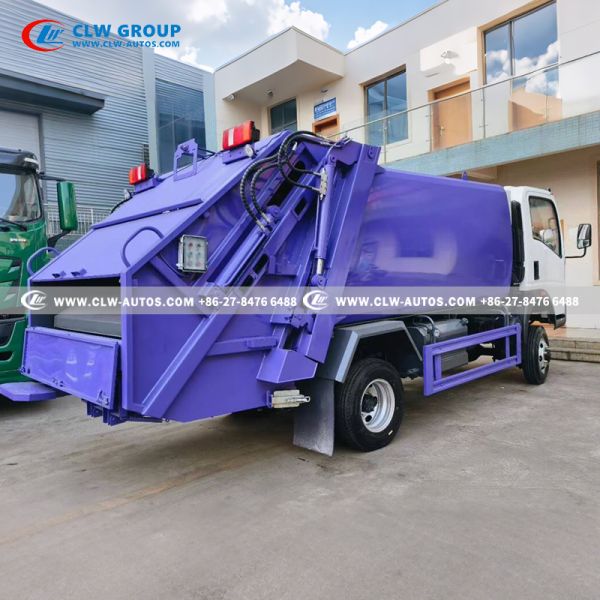

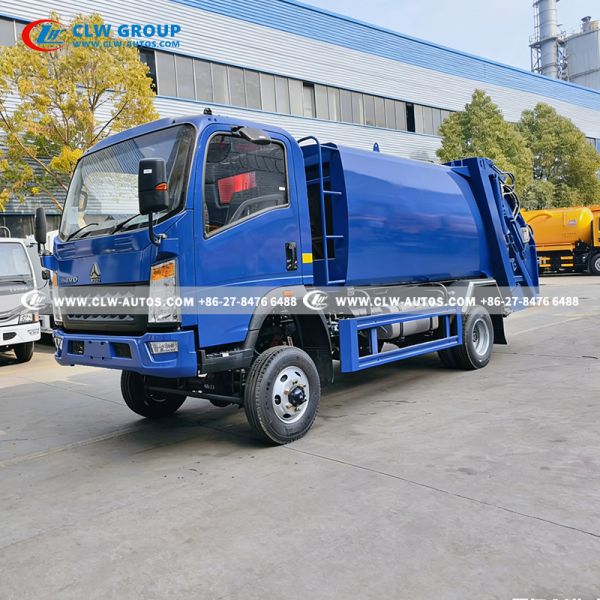

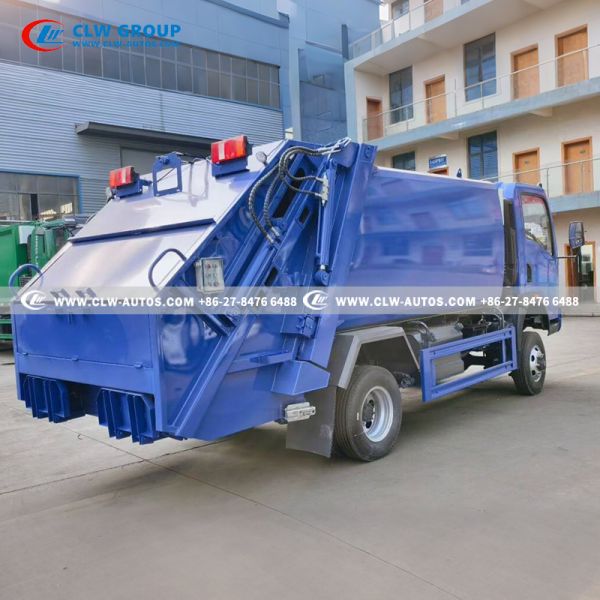

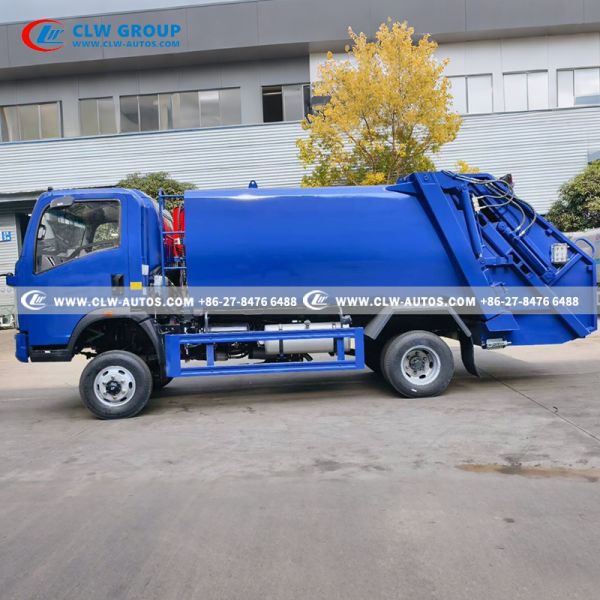

Sinotruk Howo 4x4 8m³ High-Compaction Garbage Compactor Truck with Leak-Proof Sealing and All-Terrain Chassis
Sinotruk Howo 4x4 8m³ High-Compaction Garbage Compactor Truck with Leak-Proof Sealing and All-Terrain Chassis
Sinotruk Howo 4x4 8m³ High-Compaction Garbage Compactor Truck with Leak-Proof Sealing and All-Terrain Chassis
Sinotruk Howo 4x4 8m³ High-Compaction Garbage Compactor Truck with Leak-Proof Sealing and All-Terrain Chassis
Sinotruk Howo 4x4 8m³ High-Compaction Garbage Compactor Truck with Leak-Proof Sealing and All-Terrain Chassis
Sinotruk Howo 4x4 8m³ High-Compaction Garbage Compactor Truck with Leak-Proof Sealing and All-Terrain Chassis
Sinotruk Howo 4x4 8m³ High-Compaction Garbage Compactor Truck with Leak-Proof Sealing and All-Terrain Chassis
Sinotruk Howo 4x4 8m³ High-Compaction Garbage Compactor Truck with Leak-Proof Sealing and All-Terrain Chassis
Sinotruk Howo 4x4 8m³ High-Compaction Garbage Compactor Truck with Leak-Proof Sealing and All-Terrain Chassis
Sinotruk Howo 4x4 8m³ High-Compaction Garbage Compactor Truck with Leak-Proof Sealing and All-Terrain Chassis
Sinotruk Howo 4x4 8m³ High-Compaction Garbage Compactor Truck with Leak-Proof Sealing and All-Terrain Chassis
Sinotruk Howo 4x4 8m³ High-Compaction Garbage Compactor Truck with Leak-Proof Sealing and All-Terrain Chassis
Sinotruk Howo 4x4 8m³ High-Compaction Garbage Compactor Truck with Leak-Proof Sealing and All-Terrain Chassis
Sinotruk Howo 4x4 8m³ High-Compaction Garbage Compactor Truck with Leak-Proof Sealing and All-Terrain Chassis
Sinotruk Howo 4x4 8m³ High-Compaction Garbage Compactor Truck with Leak-Proof Sealing and All-Terrain Chassis
Sinotruk Howo 4x4 8m³ High-Compaction Garbage Compactor Truck with Leak-Proof Sealing and All-Terrain Chassis
Sinotruk Howo 4x4 8m³ High-Compaction Garbage Compactor Truck with Leak-Proof Sealing and All-Terrain Chassis
Sinotruk Howo 4x4 8m³ High-Compaction Garbage Compactor Truck with Leak-Proof Sealing and All-Terrain Chassis
Sinotruk Howo 4x4 8m³ High-Compaction Garbage Compactor Truck with Leak-Proof Sealing and All-Terrain Chassis
Sinotruk Howo 4x4 8m³ High-Compaction Garbage Compactor Truck with Leak-Proof Sealing and All-Terrain Chassis
Sinotruk Howo 4x4 8m³ High-Compaction Garbage Compactor Truck with Leak-Proof Sealing and All-Terrain Chassis
Sinotruk Howo 4x4 8m³ High-Compaction Garbage Compactor Truck with Leak-Proof Sealing and All-Terrain Chassis
Sinotruk Howo 4x4 8m³ High-Compaction Garbage Compactor Truck with Leak-Proof Sealing and All-Terrain Chassis
Sinotruk Howo 4x4 8m³ High-Compaction Garbage Compactor Truck with Leak-Proof Sealing and All-Terrain Chassis
Sinotruk Howo 4x4 8m³ High-Compaction Garbage Compactor Truck with Leak-Proof Sealing and All-Terrain Chassis
Sinotruk Howo 4x4 8m³ High-Compaction Garbage Compactor Truck with Leak-Proof Sealing and All-Terrain Chassis
Sinotruk Howo 4x4 8m³ High-Compaction Garbage Compactor Truck with Leak-Proof Sealing and All-Terrain Chassis
Sinotruk Howo 4x4 8m³ High-Compaction Garbage Compactor Truck with Leak-Proof Sealing and All-Terrain Chassis
Sinotruk Howo 4x4 8m³ High-Compaction Garbage Compactor Truck with Leak-Proof Sealing and All-Terrain Chassis
Sinotruk Howo 4x4 8m³ High-Compaction Garbage Compactor Truck with Leak-Proof Sealing and All-Terrain Chassis
Specifications
Description
Sinotruk Howo 4x4 8m³ Compressed Garbage Truck
Introducing the Sinotruk Howo 4x4 8 Cubic Meters Compressed Refuse Truck — a rugged and intelligent sanitation solution designed for challenging environments. Whether navigating narrow urban alleys or climbing steep, unpaved mountain roads, this 4x4 workhorse ensures reliable performance and efficient waste collection. With an 8m³ high-compaction body, it maximizes load capacity while minimizing trips, reducing operational costs and environmental impact.
Key Features
All-Terrain 4x4 Chassis
Built on the legendary Sinotruk Howo off-road chassis, this truck delivers exceptional traction and stability on mud, snow, slopes, and uneven terrain. Perfect for regions where standard trucks struggle to operate.
High-Efficiency Compression System
Equipped with a powerful push plate and compaction mechanism, the 8m³ bin can hold up to 8 tons of compressed waste. Fewer trips to the landfill mean lower fuel consumption and higher productivity.
100% Leak-Proof Sealing
The fully sealed body prevents leachate dripping and odor leakage during transport, ensuring compliance with environmental regulations and maintaining community hygiene standards.
Built with Heavy-Duty Materials
Manufactured using high-strength wear-resistant steel, the garbage bin withstands daily impacts from sharp objects and heavy debris, ensuring a long service life even under the harshest conditions.
Smart & Simple Operation
User-friendly hydraulic control system with optional PLC automatic control allows one-button operation. Loading and unloading cycles are fast, safe, and require minimal training.
Technical Specifications
Brand Name Sinotruk Howo 4x4
Overall Dimension 8500*2500*3000 mm (option)
Curb Weight 6095 kg
Wheel Base 3815 mm (option)
Gross Vehicle Weight 16000 kg
Loading Weight 6700 kg
Front / Rear Axle 2500/4800 kg
Cabin Left Hand Driving, 2 Passengers Allowed, with Air Conditioner, Radio
Engine Horsepower 120HP, EUR II (option)
Max Driving Speed 90 km/h
Gear Box 5 Forward Gear, 1 Reverse Gear
Tire 7.00R16, steel wire tire, 6pc with 1 spare tire
Garbage Bin Capacity 7cbm or 8CBM (option)
Material 4mm Carbon Steel for Garbage Bin Body
Design Whole unit with Leakage Proof Design
Ways of Loading Rear Loading with optional Bucket Lifting System
Garbage Compact Ratio 1/3 - 1/4
Control System One control Panel on the back, One Control system in back of Cabin
Dispensing System Equipped with air-tight dustbin, hydraulic system and operating system. Automatic loading, compressing and discharging, all handled by 1 person. Sewage water collection tank to avoid any pollution during handling. Large Pressure, Good Leakage Proof, Convenient Operation. Electrical Control Panel for compacting system. Cycling time <14~18s
Remarks Color is optional. Customized LOGO painting as per customer request
