Specifications
Description
Isuzu KV600 9 Cubic Meter Garbage Compressor Truck
Searching for a reliable garbage compactor truck in Southeast Asia? The Isuzu KV600 9m³ model features a 3815mm wheelbase and a durable 132 HP engine. It is a cost-effective, high-productivity solution for modern waste management in the Philippines, Indonesia, Vietnam, and Thailand.
Product Overview
The Isuzu KV600 compression garbage truck is a specialized vehicle designed for high-efficiency waste collection in challenging environments. It combines the reliability of the Isuzu chassis with a purpose-built 9-cubic meter compactor body, offering an optimal solution for municipalities and private contractors.
Technical Specifications & Benefits
Engine & Performance
Equipped with a robust 132 HP diesel engine, this unit is engineered to maintain peak performance in high-temperature climates. This durability translates to reduced mechanical downtime and lower maintenance costs over the vehicle's lifespan.
Chassis & Handling
The 3815mm wheelbase provides a stable platform for the heavy-duty compactor body while ensuring the truck remains highly maneuverable. Its compact footprint is specifically designed to navigate narrow roads and busy urban environments common in Southeast Asia.
Waste Handling Efficiency
The 9m³ capacity is complemented by advanced compression technology. This allows the truck to collect a greater volume of waste per cycle, reducing fuel consumption and labor hours required for landfill trips.
Durability & Climate Resistance
Built to withstand tropical conditions, the vehicle features an enhanced cooling system and corrosion-resistant components. This ensures structural integrity and operational longevity despite exposure to high humidity, heavy rainfall, and saline coastal air.
Operator Interface & Safety
The cabin is designed to reduce operator fatigue, offering excellent all-around visibility and a safe working environment. Intuitive controls and safety-oriented features support efficient performance during long shifts.
Key Applications
  • Municipal Solid Waste Collection
  • Private Sector Waste Management Services
  • Industrial Waste Handling (Non-Hazardous)
  • Commercial Estate Sanitation
Product Specifications
Chassis Model QL111
Driving Model 4X2
Cab Original ISUZU KV600 cabin
Wheel Base 3815 mm
Axle Loading (front/rear) 3000 / 5500 kg
External Dimensions (L x W x H) 9000x2550x3280mm
Net weight (Kg) 5060
Max. driving speed 105 km/h
Engine Model 4KH1CN6LB
Horse Power 132Hp
Emission standard Euro 2
Gearbox Manual type, 6 forwards & 1 reverses
Tire 7.00R16 (6 Pcs with 1 spare tire)
Garbage Container Size 9 CBM
Compaction ratio 0.7-0.85T/m³
Compacting cycle time ≤28 s
System pressure 16 Mpa
Product Features
  • Left Hand Driving with air conditioner
  • Central lock and electric windows
  • Steer assistance for easier handling
  • Reinforced diaphragm clutch
  • 120L steel fuel tank
  • Quality high tensile Q345 carbon steel body
  • Rectangular box with arc-shaped rear design
  • Pneumatic cover to prevent waste flying during transport
  • Dual operation: Automatic (Electrical) and Manual (hydraulic)
  • Optional electrophoresis treatment for extended paint life
  • Optional remote control function

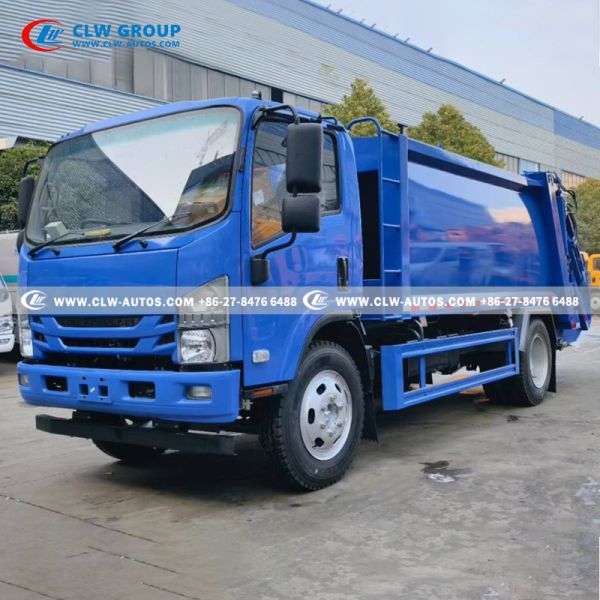

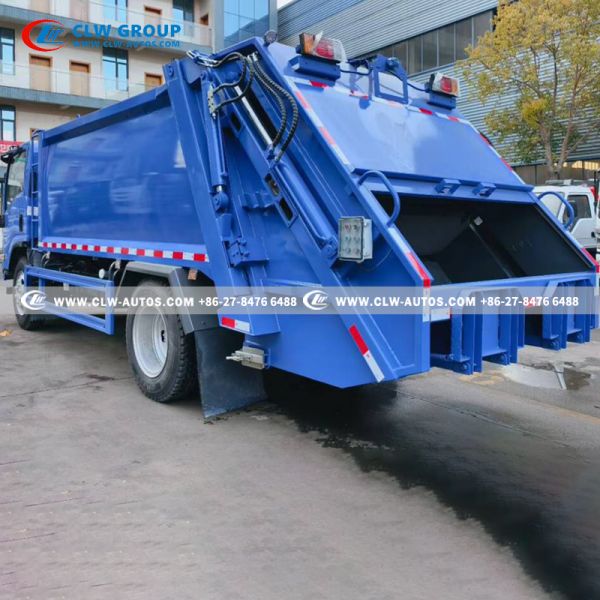

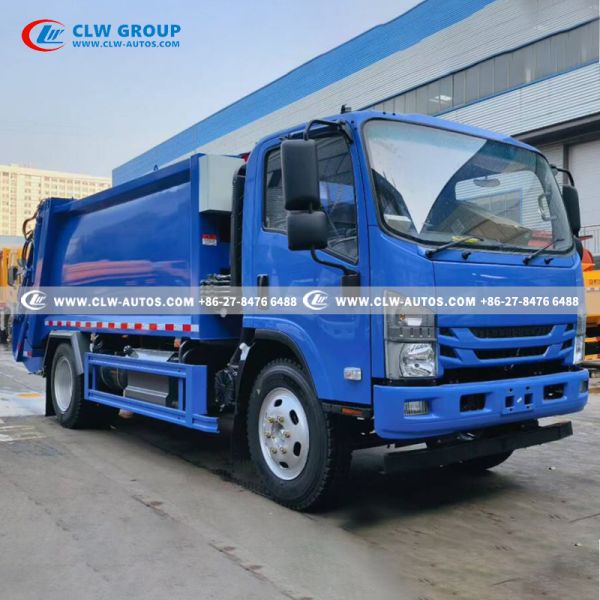

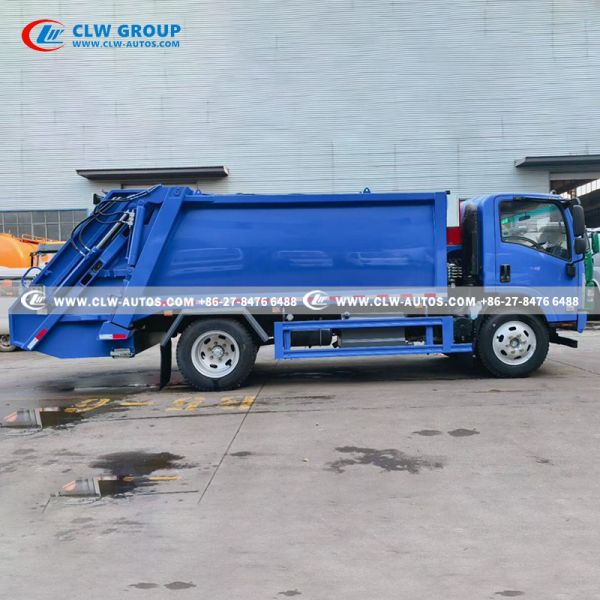

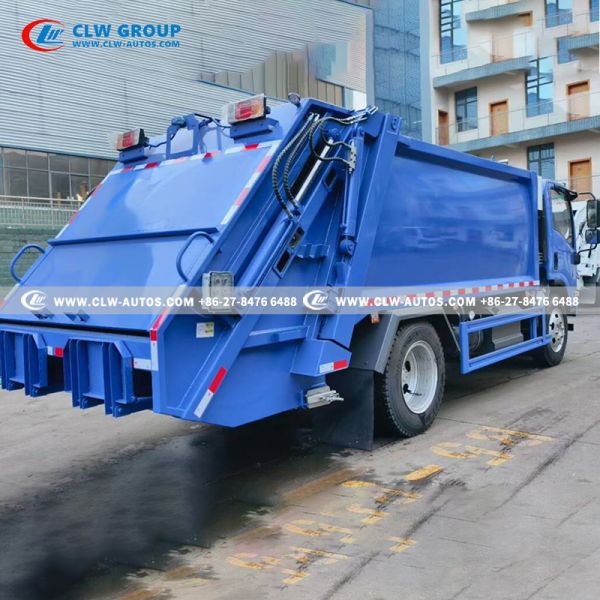

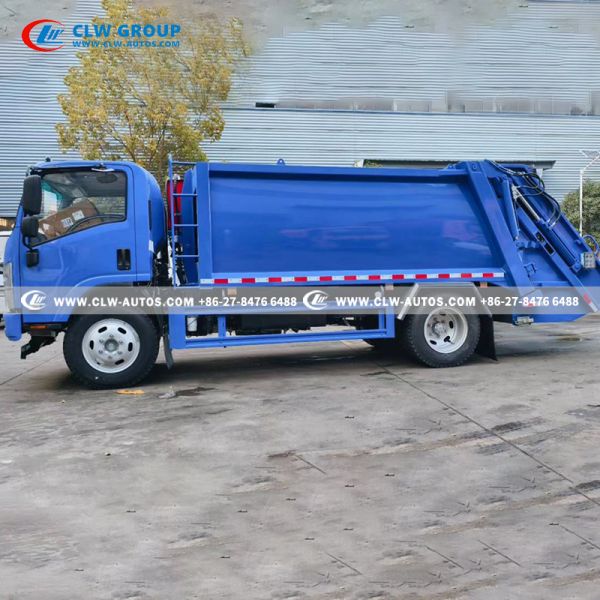

Product Photos
Isuzu KV600 9 Cubic Meter 132HP Garbage Compactor Truck with 3815mm Wheelbase for Efficient Waste Management Isuzu KV600 9 Cubic Meter 132HP Garbage Compactor Truck with 3815mm Wheelbase for Efficient Waste Management Isuzu KV600 9 Cubic Meter 132HP Garbage Compactor Truck with 3815mm Wheelbase for Efficient Waste Management Isuzu KV600 9 Cubic Meter 132HP Garbage Compactor Truck with 3815mm Wheelbase for Efficient Waste Management Isuzu KV600 9 Cubic Meter 132HP Garbage Compactor Truck with 3815mm Wheelbase for Efficient Waste Management Isuzu KV600 9 Cubic Meter 132HP Garbage Compactor Truck with 3815mm Wheelbase for Efficient Waste Management
