A heavy-duty, multi-compartment bulk feed transporter engineered for precision delivery and efficient discharge. Choose between fully electric or hydraulic drive systems to match your operational needs.

Trailer Overview
Built on a robust 3-axis low-profile chassis, this semi-trailer combines structural strength with functional design. It is equipped with reliable axles, ABS braking, and high-capacity components to ensure safe and stable transport. The core innovation lies in its adaptable discharge system, allowing controlled, compartment-by-compartment unloading directly to feeding sites.

Core Advantages

• Engineered for Load & Longevity: Features a reinforced frame with high-tensile steel upper/lower wing plates and web plate. Outfitted with 13-ton rated axles, 28-ton landing legs, durable 12R22.5 tires, and a reliable air brake system with ABS for consistent performance under heavy loads.

• Precision Discharge Management: The high-strength steel tank is segmented into 5 independent compartments. Operators can manage the unloading sequence and flow rate for each compartment, minimizing feed mixing and enabling precise delivery.

• Dual-Power Flexibility: Select the optimal drive system for your infrastructure.

  • Electric Drive Model: Utilizes four external 5.5 kW electric motors for clean, quiet operation. Includes a wireless remote for convenient control of the top auger.

  • Hydraulic Drive Model: Operates via the tractor's PTO, driving a hydraulic system that powers all augers for powerful, self-contained performance.

• Optimized Auger System: A network of four augers ensures efficient material flow: twin horizontal bottom augers feed a vertical lift auger, which transfers feed to a hydraulically-actuated 9-meter top discharge auger. The top auger offers 180° rotation for broad placement coverage.

• Functional Completeness: Comes ready with practical inclusions like a mounted tool box, a spare tire carrier, and the option to add an integrated generator (electric model) or a recurrence system (hydraulic model) for enhanced operational independence.

Ideal Use Cases

• Commercial feed mills distributing to large farms and cooperatives.

• Large-scale livestock, poultry, or aquaculture operations receiving bulk feed.

• Agricultural logistics companies requiring versatile and reliable feed transport equipment.

Product Specification

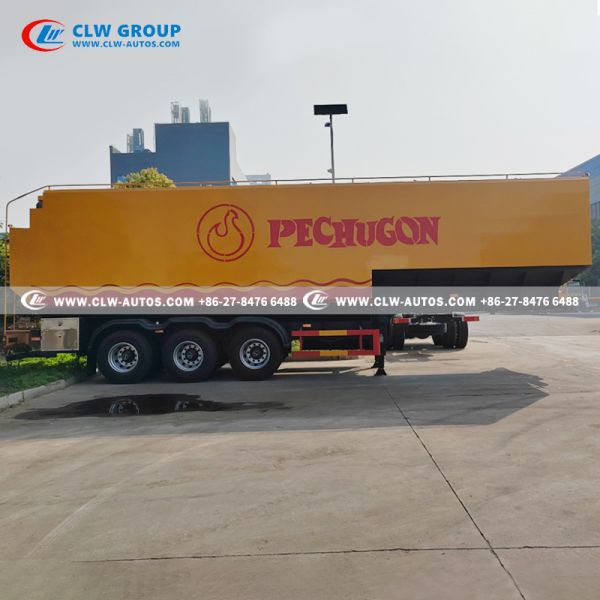

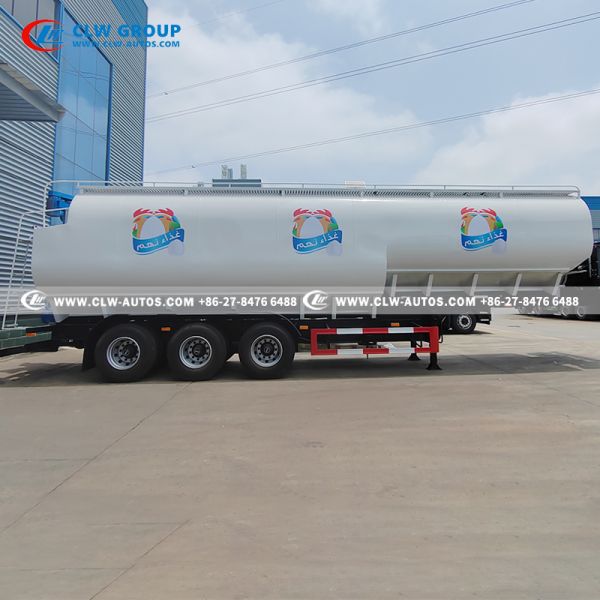

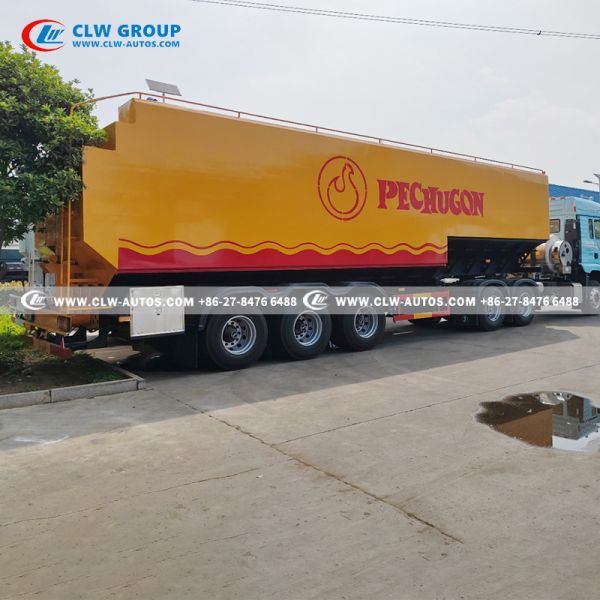

Truck Photos
