Specifications
Description
Shacman L3000 6m³ Asphalt Distributor – Reliable Pavement Maintenance Equipment
Achieve consistent, high-quality asphalt application with the Shacman L3000 Asphalt Distributor Truck. This 6m³ capacity vehicle combines a durable Shacman chassis with professional spraying technology, delivering uniform coverage for road construction, maintenance, and surface treatment projects. Designed for efficiency and precision, this asphalt distributor helps contractors complete projects with superior results.
Professional Asphalt Distribution Solution
The Shacman L3000 Asphalt Distributor Truck is designed for road construction professionals who demand precision and reliability. Built on the robust Shacman L3000 chassis, this vehicle features a 6m³ asphalt tank with an integrated heating system that maintains optimal material temperature throughout operation. The precision spraying system allows operators to adjust spray rates to match specific project requirements, ensuring uniform application and material efficiency.
Key Features & Benefits
  • Reliable Shacman L3000 Chassis: Proven durability for demanding road construction applications with stable platform for asphalt spraying operations
  • 6m³ Asphalt Tank Capacity: Ample capacity for extended spraying operations, reducing downtime for refilling and improving productivity
  • Uniform Spraying System: Ensures consistent asphalt coverage across the application width with adjustable spray rate for different project specifications
  • Integrated Heating System: Maintains optimal asphalt temperature for proper flow and adhesion, preventing material solidification during operation
  • Precision Control: PLC automatic control with touchscreen interface enables operators to achieve consistent application quality
Applications
  • New road construction and paving
  • Asphalt overlay and resurfacing
  • Chip seal and surface treatment
  • Pavement preservation and maintenance
  • Bridge and tunnel waterproofing
Technical Specifications

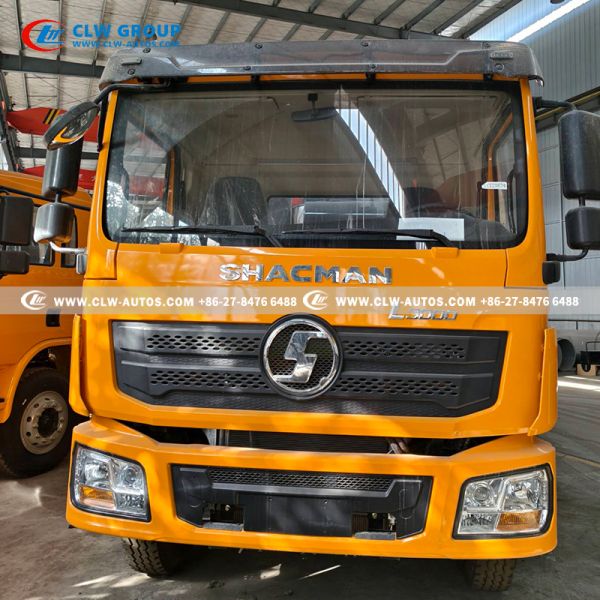

Chassis Shacman L3000
Engine 210 HP diesel
Emission Euro III / Euro V
Drive 4x2
Tank Capacity 6,000 L (6 m³)
Tank Material Carbon steel with anti-corrosion coating
Insulation High-density thermal insulation

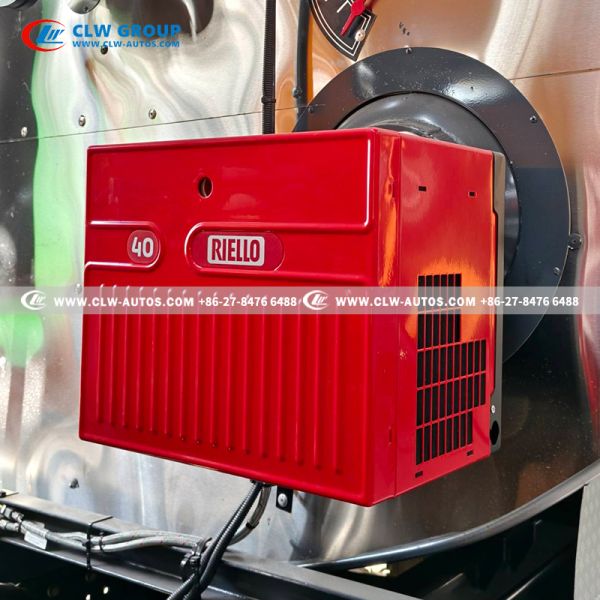

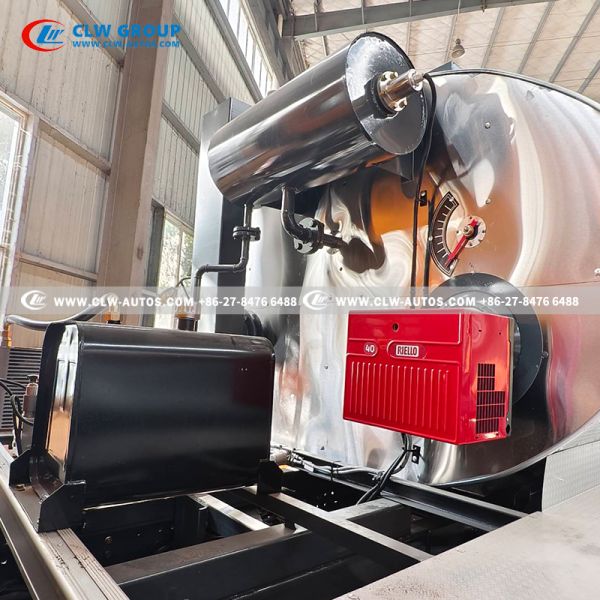

Heating System Diesel burner, automatic temperature control
Max Heating Temp 160°C
Spray Width 4.5 - 6 m adjustable

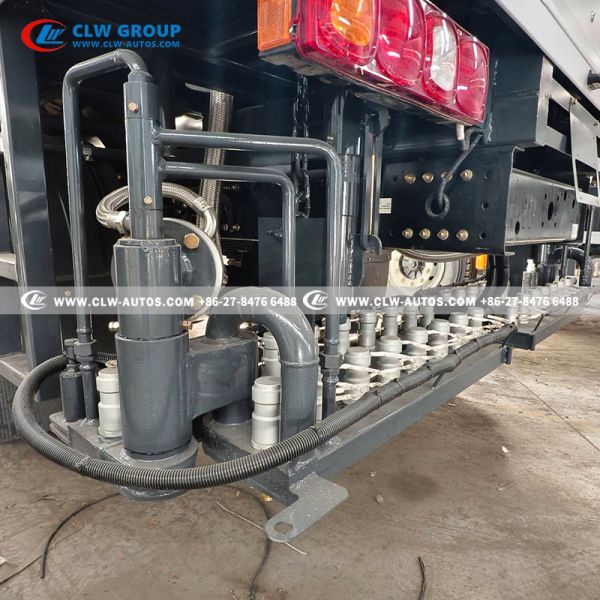

Spray Nozzles Individual control per nozzle
Spray Rate 0.5 - 3 kg/m²
Spray Accuracy ±2%
Control System PLC automatic with touchscreen
Operation In-cab / Rear platform dual control
Cleaning High-pressure air purge

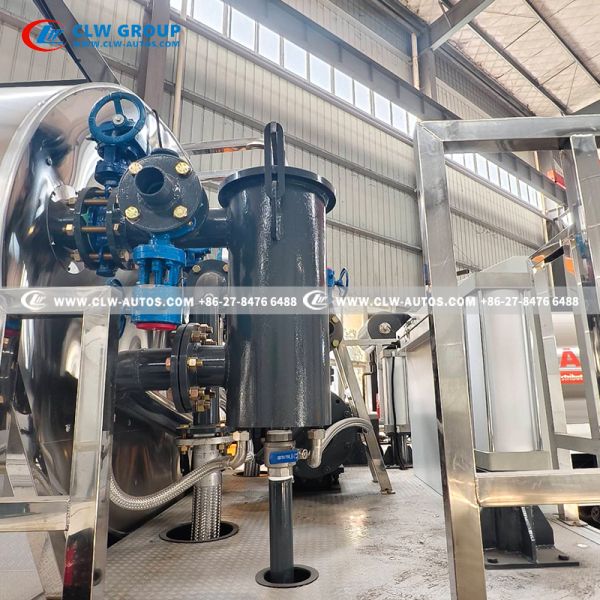

Circulation Internal asphalt circulation system
Filling Self-priming pump
Wheelbase 4,500 mm
Tires 10.00R20 (6+1)
Fuel Tank 300 L
Brakes Air brake with ABS
