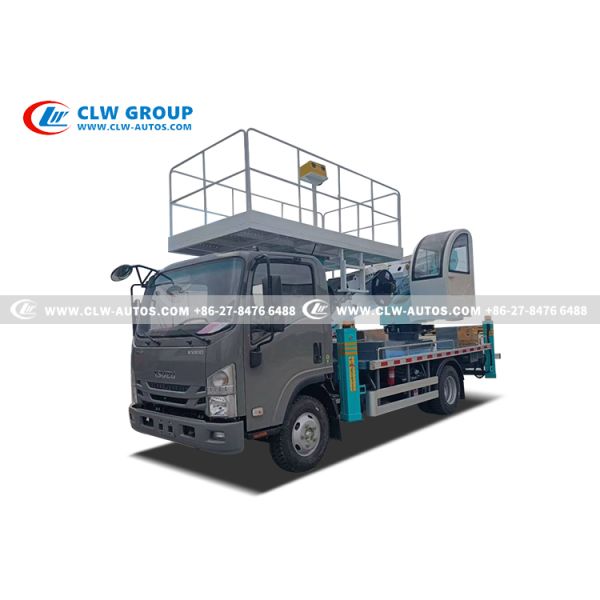

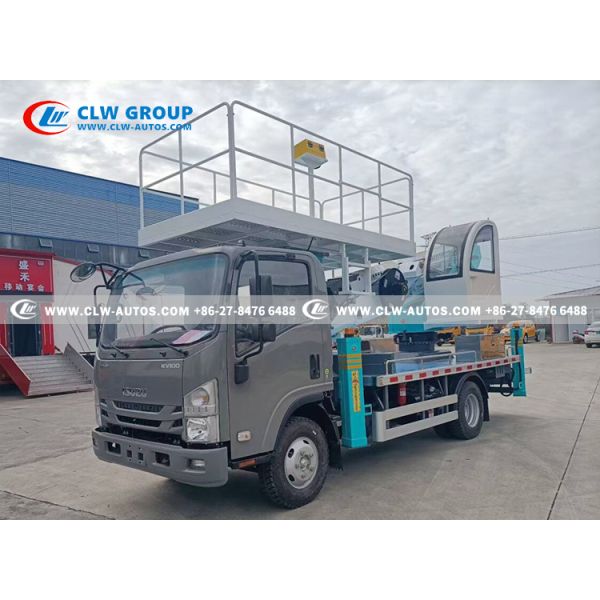

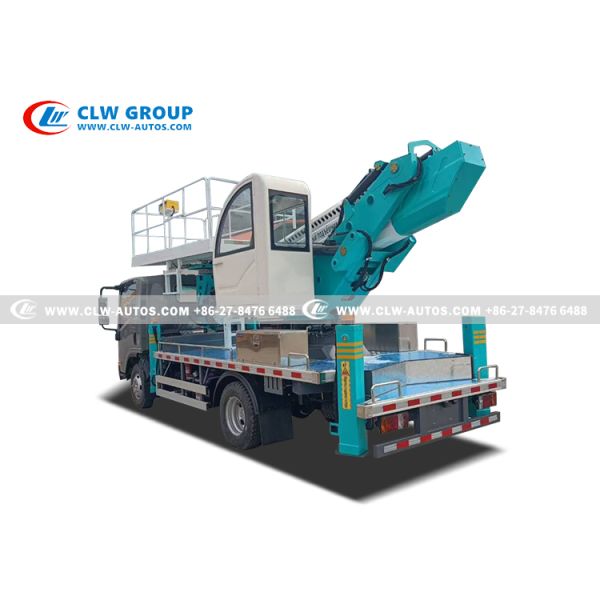

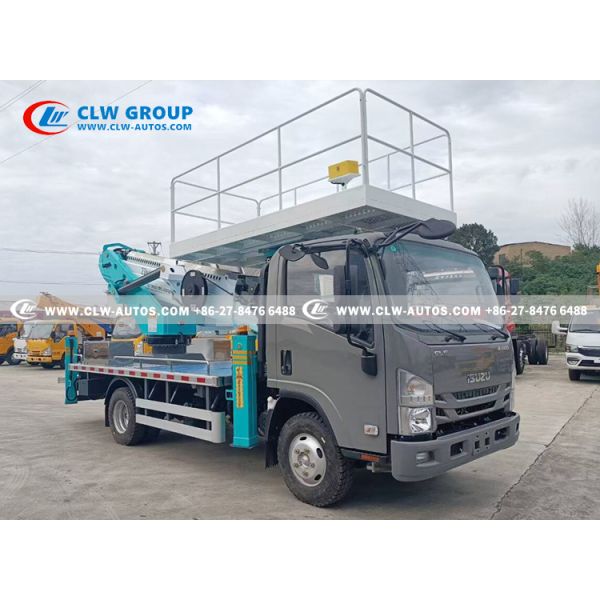

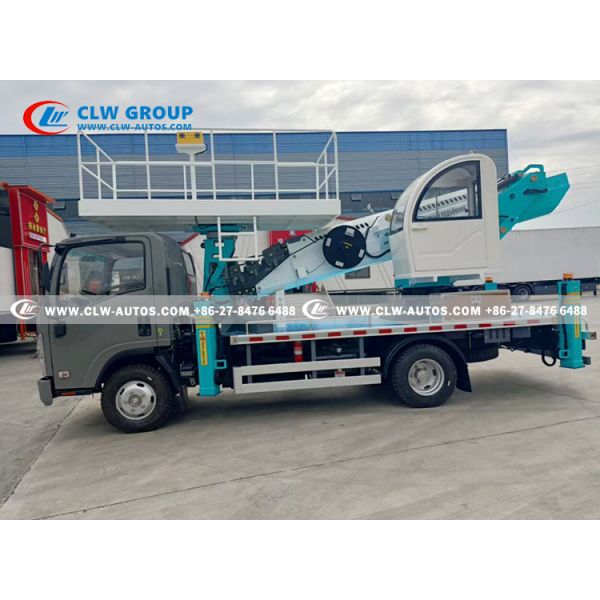

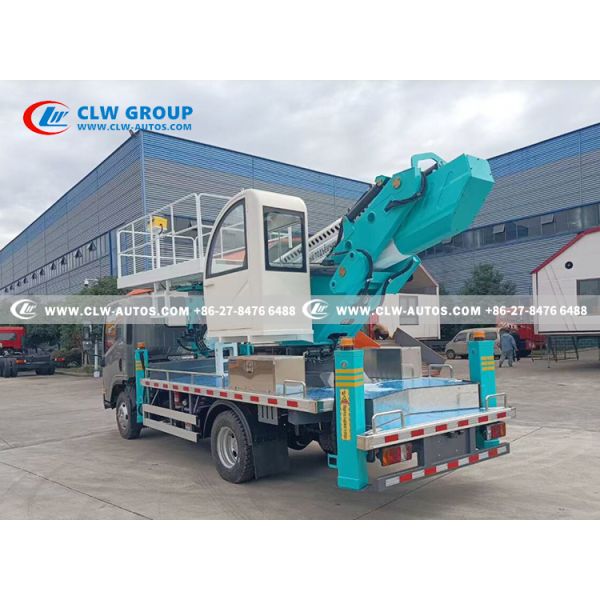

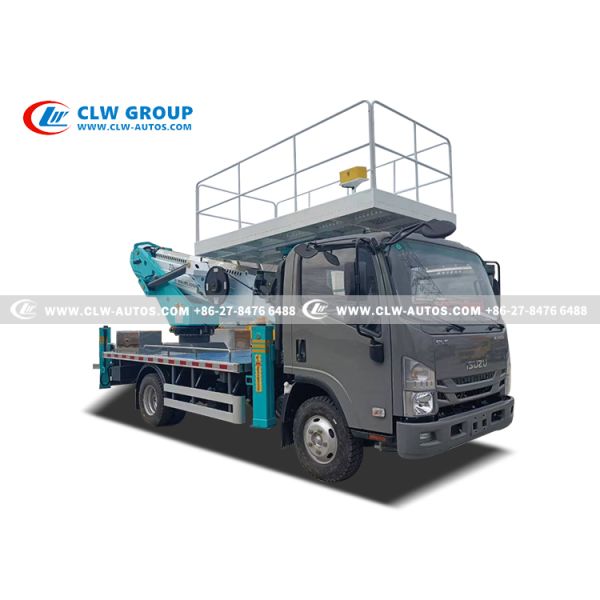

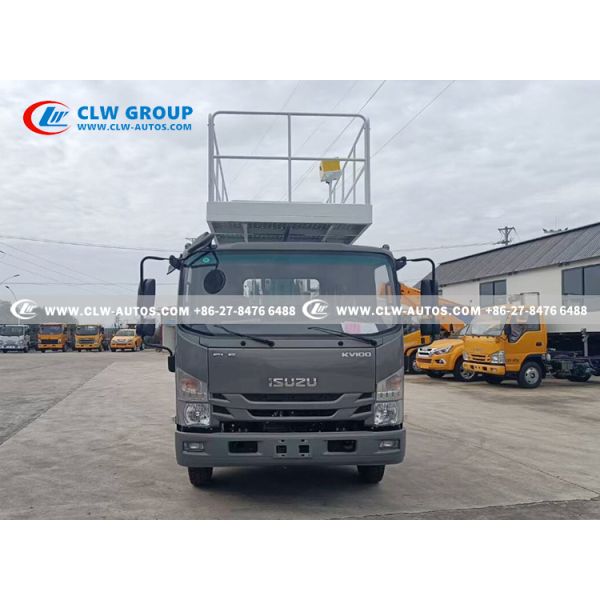

The Isuzu KV100 23-Meter Aerial Work Platform is a professional elevated access vehicle built on the Isuzu KV100 4x2 chassis, featuring a 120HP Isuzu 4KH1CN6LB Euro 6 engine, 5-speed manual transmission, 23-meter synchronized telescopic boom, 300kg stainless steel work platform, 360° continuous rotation, and advanced CAN bus control with wireless remote operation.

This purpose-built elevated access vehicle is designed for utility companies, municipal services, industrial facilities, and construction contractors requiring reliable access at heights up to 23 meters with substantial platform capacity. Built on the proven Isuzu KV100 4x2 chassis with 3,360mm wheelbase, this vehicle provides exceptional performance and reliability for demanding applications.

• Isuzu KV100 4x2 Chassis: 3,360mm wheelbase, 120HP Isuzu 4KH1CN6LB Euro 6 engine (2,999ml), 5-speed manual transmission (5F+1R), 7.00R16 tires (6 + 1 spare), 100L fuel tank, LHD cabin with A/C, GVW 4,000kg

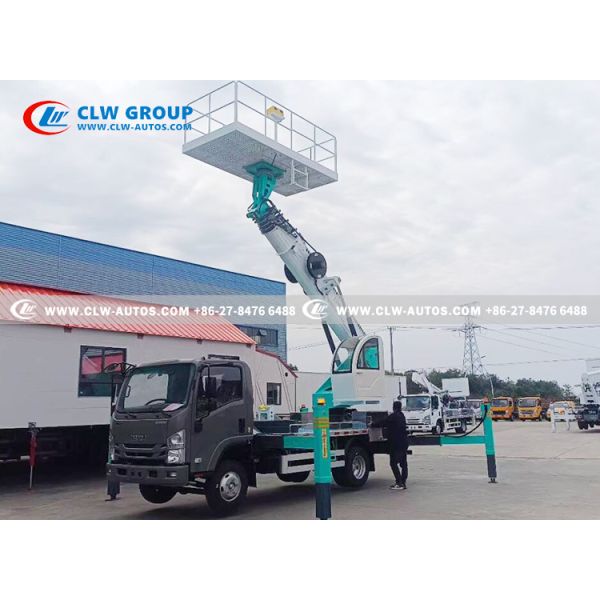

• 23-Meter Synchronized Telescopic Boom: Smooth, precise extension to 23m working height with high-strength steel construction
• 300kg Stainless Steel Work Platform: 1,600×700×1,000mm size, 304 stainless steel with anti-slip floor, capacity for 2-3 workers with tools/equipment simultaneously
• Enhanced Work Efficiency: Multi-person collaborative work eliminates frequent lifting, one-time material transport avoids multiple trips, greatly shortening operational cycles
• Improved Operational Capability: Supports heavy professional equipment including welding machines, large hydraulic tools, and inspection instruments
• Safety Redundancy: Higher rated load capacity provides greater design strength and safety margin, maintains stability under full load
• CAN Bus Control with Wireless Remote: Stepless speed regulation for smooth movement, wireless remote for flexible operator positioning, manual emergency operation for fail-safe backup
• 360° Continuous Rotation: Full operational coverage without repositioning the vehicle
• "V+H" Outrigger System: Front "V", rear "H" configuration with landscape span 4,200mm, portrait span 4,000mm, individually adjustable for uneven terrain
• Stainless Steel Anti-Slip Walkway: Durable, corrosion-resistant, safe access system

• Façade development and building upkeep
• Public infrastructure preservation (bridges, tunnels, street lighting)
• Manufacturing zone and warehouse servicing
• Electrical grid and cable assessment
• Emergency response assistance
• Cinematography and major gatherings
