Specifications
Brand Name :
CLW GROUP
Model Number :
Compactor Garbage Truck
Certification :
ISO
Place of Origin :
CHINA
MOQ :
1
Price :
20000
Supply Ability :
10pcs/month
Delivery Time :
30DAYS
Packaging Details :
Rain shelter fabric packaging
material :
carbon steel
Wheelbase :
3815 mm
Engine Model :
4HK1-TCG61
Horsepower :
190 HP
Gearbox :
6 forward speeds + 1 reverse
Gross Vehicle Weight :
11000 kg
Front Axle Loading :
4000 kg
Rear Axle Loading :
7000 kg
Tire Size :
235/75R17.5 16PR
Compaction Volume :
9 m³
Body Material :
High-strength wear-resistant steel
Description

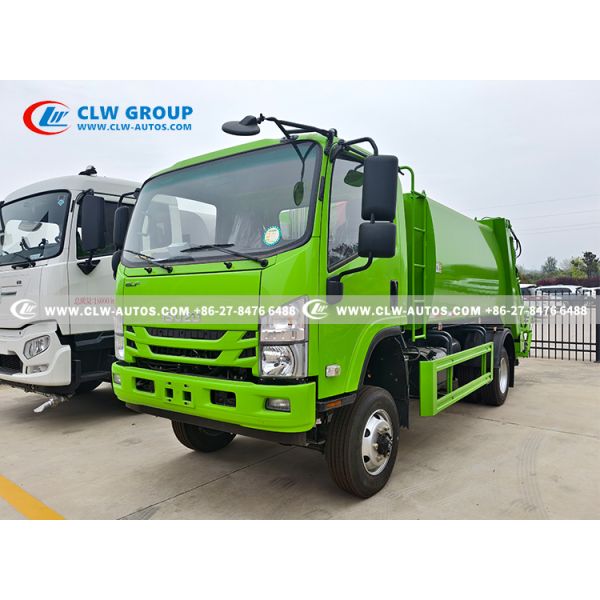

I-SUZU 700P 4x4 RHD Compactor Garbage Truck 190HP
This I-suzu 700P 4x4 right-hand drive compactor garbage truck is purpose-built for reliable waste collection and compaction in urban, suburban, and rugged environments. Powered by a 190HP I-suzu diesel engine, it delivers robust performance paired with professional compaction capabilities to maximize operational efficiency.
Technical Specifications
Chassis Specifications
Product Name I-SUZU 4x4 Compactor Garbage Truck (9m³)
Cab Single row cabin, Right Hand Drive (RHD), with A/C
Wheelbase 3815 mm
Engine Model 4HK1-TCG61
Horsepower 190 HP
Emission Standard Euro VI
Gearbox 6 forward speeds + 1 reverse
Gross Vehicle Weight 11000 kg
Front/Rear Axle Loading 4000 kg / 7000 kg, with ABS
Tires 235/75R17.5 16PR, 6 units + 1 spare
Drive Type 4x4
Superstructure Specifications
Compaction Volume 9 m³
Compaction Mechanism Hydraulic scraper + sliding plate system
Control Mode Wired + wireless remote control
Core Functions Single cycle / Continuous cycle / Reverse cycle
Body Material High-strength wear-resistant steel
Tailgate Operation Hydraulic lifting and lowering, fully sealed
Waste Compaction High compression ratio to maximize loading capacity
Operation Safety Emergency stop button, overload protection

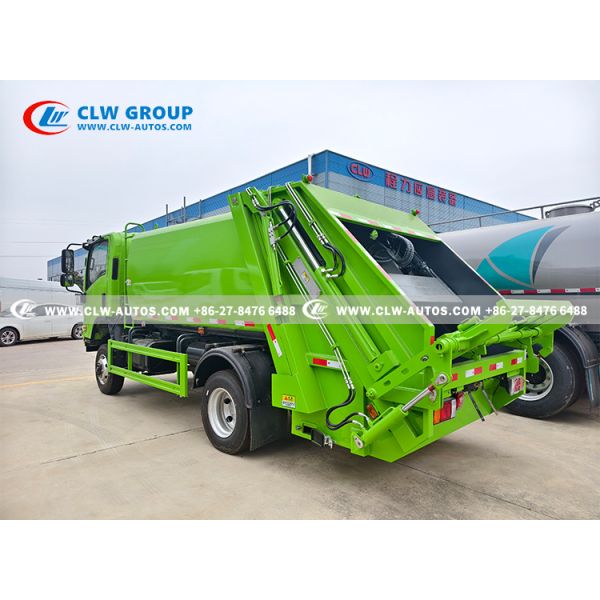

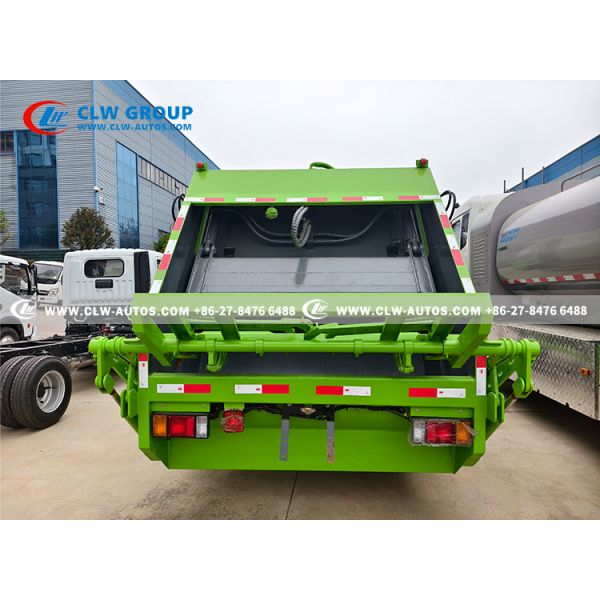

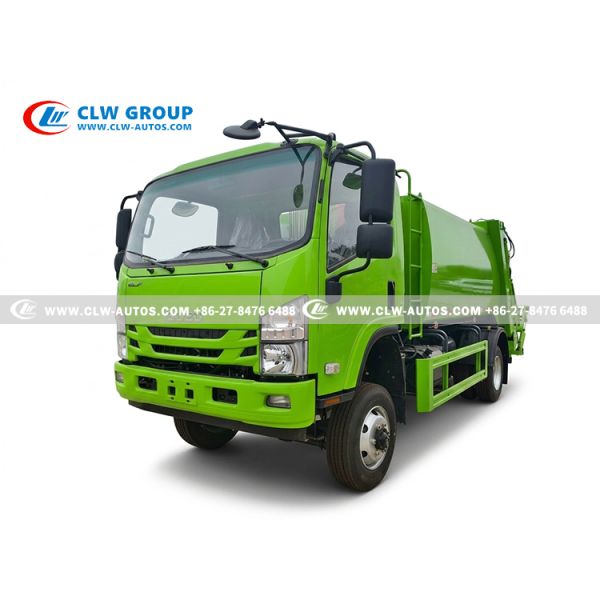

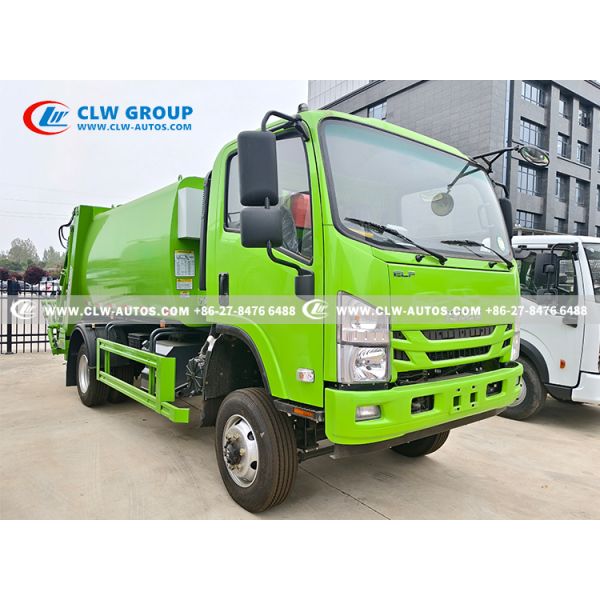

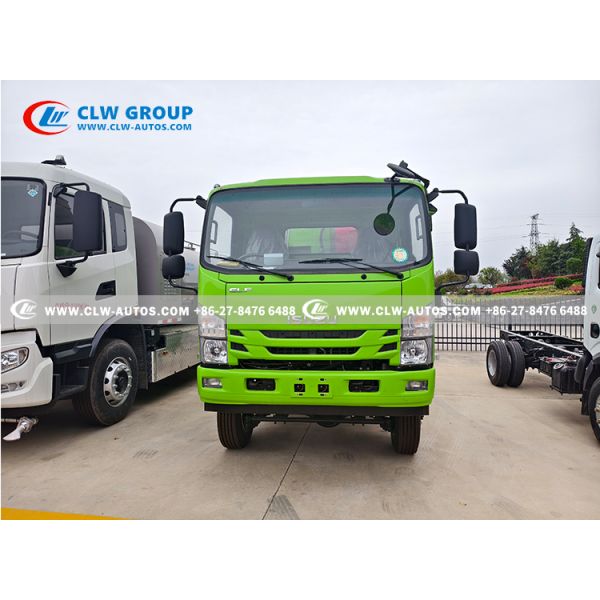

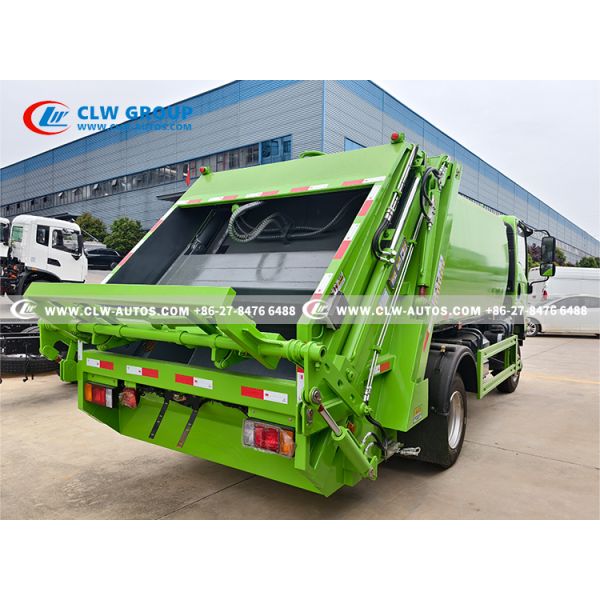

Product Gallery
I-SUZU 700P 4x4 RHD 190hp Garbage Compactor Truck and 9m³ Compaction Volume I-SUZU 700P 4x4 RHD 190hp Garbage Compactor Truck and 9m³ Compaction Volume I-SUZU 700P 4x4 RHD 190hp Garbage Compactor Truck and 9m³ Compaction Volume I-SUZU 700P 4x4 RHD 190hp Garbage Compactor Truck and 9m³ Compaction Volume I-SUZU 700P 4x4 RHD 190hp Garbage Compactor Truck and 9m³ Compaction Volume I-SUZU 700P 4x4 RHD 190hp Garbage Compactor Truck and 9m³ Compaction Volume I-SUZU 700P 4x4 RHD 190hp Garbage Compactor Truck and 9m³ Compaction Volume I-SUZU 700P 4x4 RHD 190hp Garbage Compactor Truck and 9m³ Compaction Volume I-SUZU 700P 4x4 RHD 190hp Garbage Compactor Truck and 9m³ Compaction Volume
Key Features
  • Chassis & Powertrain: Built on the durable I-suzu 700P 4x4 chassis with a 190HP diesel engine, offering excellent traction and power for both on-road and off-road waste collection tasks. The right-hand drive configuration ensures compliance with regional traffic regulations.
  • Compaction System: Equipped with a high-efficiency hydraulic compaction mechanism (max compression pressure up to 6 tons) that increases waste density, doubling the effective loading capacity compared to standard garbage trucks. Supports single-cycle, continuous-cycle, and reverse-cycle operations via wired and wireless remote control.

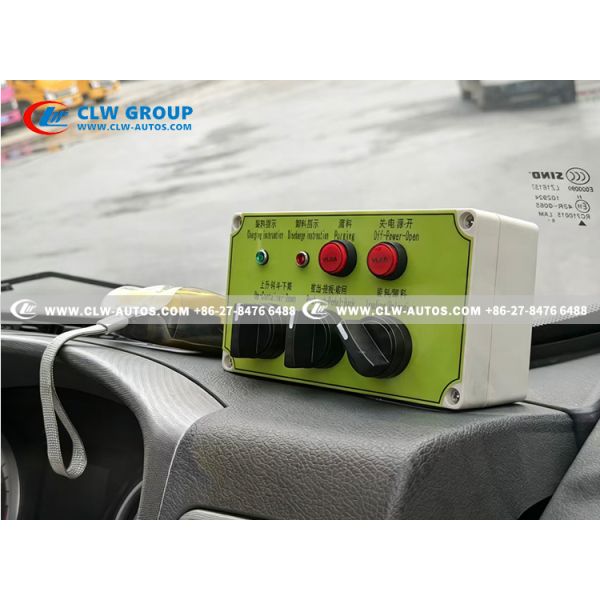

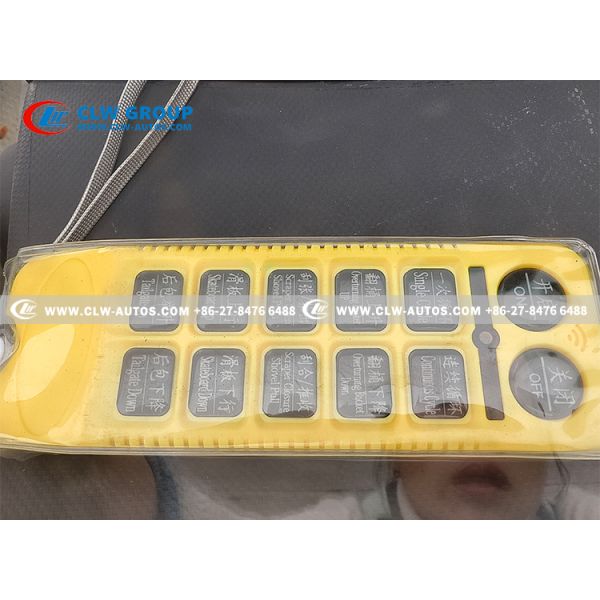

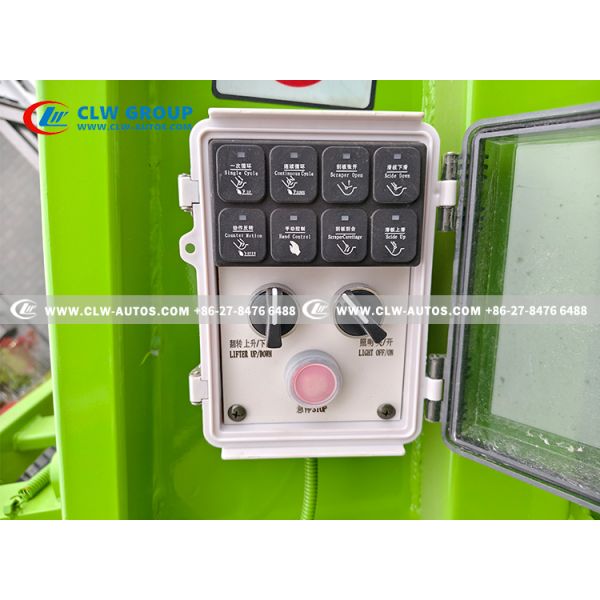

  • Operation Flexibility: Dual control modes (cab-integrated panel + wireless remote control) enable safe, one-person operation. The system supports functions including tailgate lifting/lowering, scraper opening/closing, and sliding plate up/down movements for versatile workflow management.
  • Durable Construction: The compactor body is made of high-strength steel with reinforced wear-resistant plates, designed to withstand continuous compression cycles and corrosive waste materials. The sealed body prevents leaks and odors during transport.

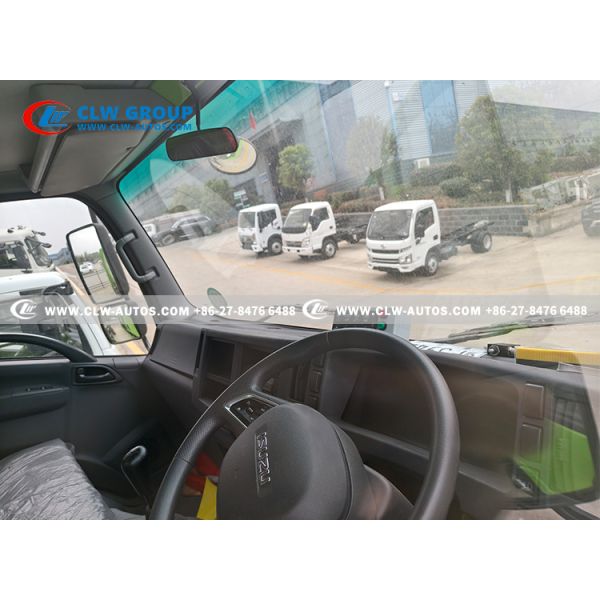

  • User-Friendly Cab: Ergonomically designed driver's cabin with comfortable seating, clear controls, and good visibility, ensuring long-shift comfort for operators.
Applications
Ideal for municipal waste management, residential and commercial waste collection, and sanitation services in regions requiring right-hand drive vehicles. The 4x4 capability also makes it suitable for challenging terrains such as construction sites, rural areas, and mountainous regions.
