Specifications
Brand Name :
CLW GROUP
Model Number :
i-SUZU
Certification :
ISO
Place of Origin :
CHINA
MOQ :
1
Price :
35600
Supply Ability :
10pcs/month
Delivery Time :
30DAYS
Packaging Details :
Rain shelter fabric packaging
material :
carbon steel
Engine Power :
420 HP
Emission Standard :
Euro 5
Transmission Type :
12-speed Manual
Wheelbase :
1800+3200+1350 mm
Tire Type :
12.00R20 Radial
Front Axle Load :
2×7,000 kg
Rear Axle Load :
2×18,000 kg
Fuel Capacity :
400 L
Max Speed :
90 km/h
Gross Mass :
44 Tonnes
Description
Shacman X3000 420HP 8x4 Integrated Wrecker Truck
Product Overview

Our Shacman X3000 8x4 integrated wrecker combines mechanical structure, hydraulic transmission, and intelligent control to perform heavy-duty road recovery. Its core principle relies on four synergistic systems: power take-off (PTO) unit, hydraulic system, integrated lift-tow superstructure, and dual control system — converting engine power into precise lifting, towing, and slewing actions for disabled vehicles.

Technical Specifications
Classification Item Technical Specification
Chassis Parameters Vehicle Model Shacman X3000 Heavy-duty Wrecker Truck
Driving Form 8x4, Right Hand Drive (RHD)
Engine Model Weichai WP12.420E50
Rated Power 420 HP, Euro 5 Emission Standard
Transmission System Fast 12-speed Manual Gearbox
Wheelbase 1800+3200+1350 mm
Tire Specification 12.00R20 Radial Heavy-duty Tires
Front Axle Rated Load 2×7,000 kg
Rear Axle Rated Load 2×18,000 kg

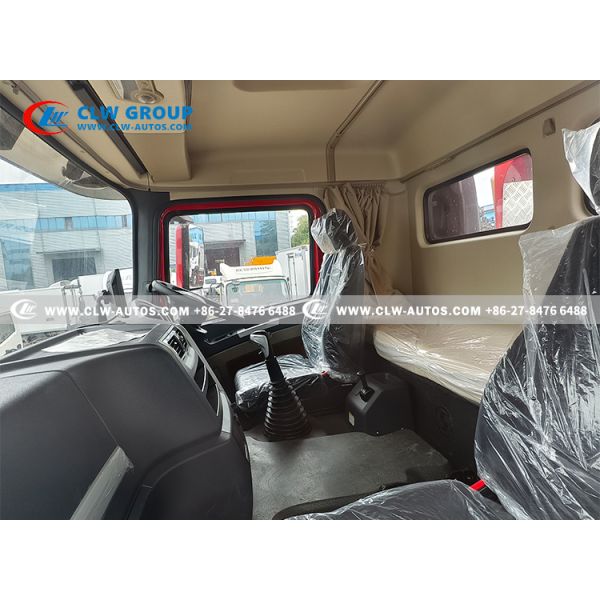

Cab Configuration X3000 Luxury Sleeper Cab, Equipped with Air Conditioning
Maximum Driving Speed 90 km/h
Fuel Tank Capacity 400 L
Total Allowable Gross Mass 44 Tonnes
Braking System Air Brake System, Anti-lock Braking System (ABS)
Superstructure Parameters Wrecker Type Integrated Lift & Tow Type, 1+1 Towing Mode
Main Body Material High-strength Q345 Structural Steel
Maximum Recovery Towing Capacity 50 Tonnes
Boom Maximum Lifting Capacity 25 Tonnes (Working radius: 3.5m)
Boom Rotation Angle 360° Continuous Unlimited Slewing
Underlift Maximum Lifting Capacity 30 Tonnes
Hydraulic Winch Configuration 2 sets of 20-tonne heavy-duty hydraulic winches
Steel Wire Rope Specification 50m length high-tensile steel wire rope per winch
Hydraulic System Pressure Standard working pressure: 21MPa
Control Mode Dual control: Wireless remote control + Manual lever control
Safe Towing Speed ≤40 km/h (rescue driving state)

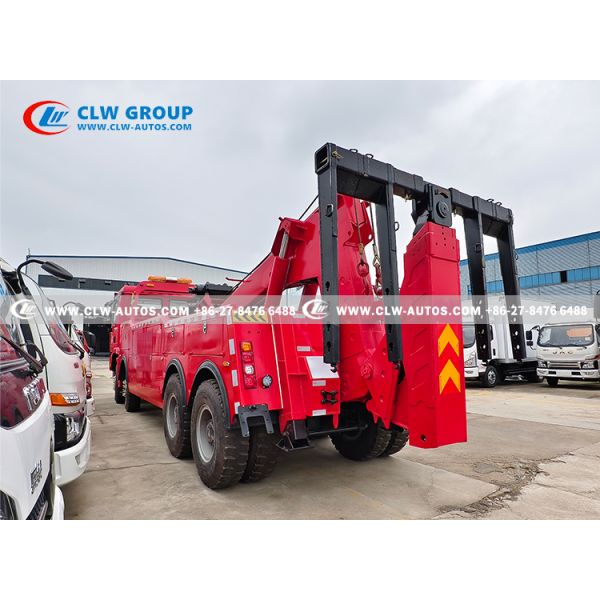

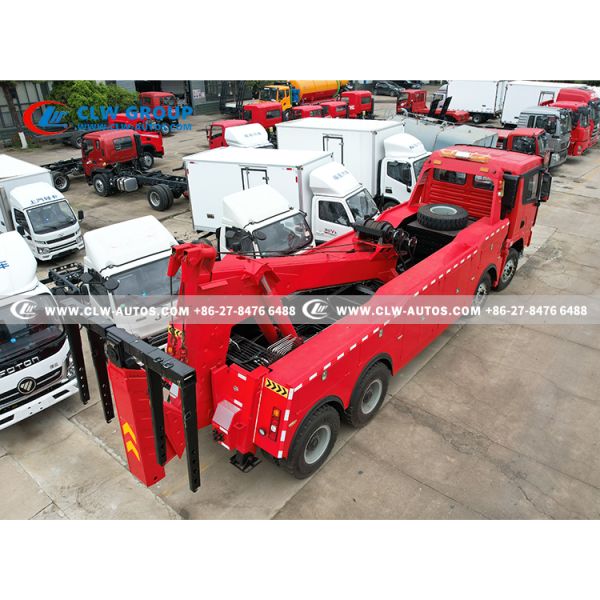

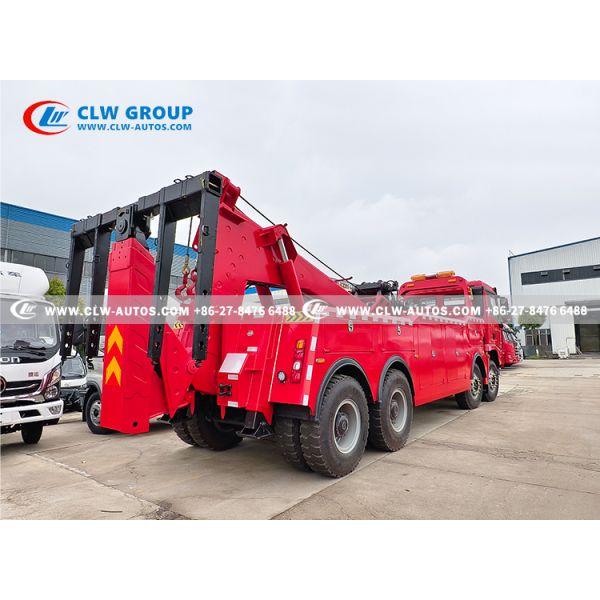

Products Pictures

Shacman X3000 420HP 8x4 Integrated Wrecker Truck for Heavy-Duty Recovery

Shacman X3000 420HP 8x4 Integrated Wrecker Truck for Heavy-Duty Recovery

Shacman X3000 420HP 8x4 Integrated Wrecker Truck for Heavy-Duty Recovery

Shacman X3000 420HP 8x4 Integrated Wrecker Truck for Heavy-Duty Recovery

Configuration Advantages
  • 8x4 Chassis: Four rear axles provide heavy load stability (total mass 44 tonnes) for lifting/towing 30-50 tonne vehicles without tipping.
  • RHD Design: Optimized for right-hand traffic regions (e.g., Southeast Asia, Australia), ensuring safe operation on local roads.
Recovery Workflow
  1. Engage PTO → Start hydraulic system → Generate high-pressure oil
  2. Use remote/manual control to slew/lower the lift boom (if needed for hoisting)
  3. Extend/lower the underlift arms → Position tire cradles on the disabled vehicle's front wheels
  4. Lift the underlift → Raise the disabled vehicle's front end off the ground → Secure with safety chains
  5. Connect the 1+1 tow trailer/second vehicle → Activate winches for pulling if required
  6. Drive the wrecker to tow the disabled vehicle at ≤ 40 km/h (safe towing speed)
