Specifications
Engine power :
240HP (175kW at 2,600 rpm)
Engine model :
ISUZU 6HK1-TCG61
Cargo box dimensions :
6,800 × 2,440 × 2,500 mm
Max speed :
105 km/h
Temperature range :
-18°C to +20°C
Wheelbase :
5,550 mm
Cargo box insulation :
8cm PU foam
Engine displacement :
7,790ml
Transmission type :
MLD 8-speed manual (8F+1R)
Tire size :
295/80R22.5 (6 + 1 spare)
Description
ISUZU FVR 4x2 240HP Refrigerated Truck – Euro VI Cold Chain with THERMO KING T-800 for Frozen & Chilled Transport
Product Overview

The ISUZU FVR 4x2 Refrigerated Truck is a professional cold chain vehicle designed for demanding temperature-controlled logistics. Built on the reliable ISUZU FVR 4x2 chassis with 5,550mm wheelbase and left-hand drive, this vehicle features advanced refrigeration technology and robust construction for reliable performance in various cold chain applications.

Key Features
  • ISUZU FVR 4x2 Chassis: 5,550mm wheelbase, LHD configuration. GVW 18,000kg, front axle 6,300kg, rear axle 13,000kg. 295/80R22.5 tires (6+1 spare). Air brakes, reinforced diaphragm clutch. Maximum speed 105 km/h.
  • ISUZU 240HP Euro VI Engine: 6HK1-TCG61 engine delivering 240HP (175kW at 2,600 rpm), 7,790ml displacement, 6-cylinder configuration, Euro VI compliant. PTO equipped for auxiliary functions.
  • MLD 8-Speed Manual Transmission: 8 forward + 1 reverse gears for smooth power delivery and efficient operation.
  • THERMO KING T-800 Refrigeration: Adjustable temperature range from -18°C to +20°C. High-performance cooling system suitable for frozen, chilled, and fresh products.
  • 6,800 × 2,440 × 2,500mm Cargo Box: 41.5m³ capacity. FRP outer shell with 8cm PU foam insulation. Seamless, corrosion-resistant construction with full-size double opening rear door.
  • Spacious FVR Cab: One-and-a-half-row configuration, LHD, air conditioning, adjustable driver seat, central locking, and power steering for driver comfort.
  • Optional Features: Carrier/Thermo King/DAIKIN refrigeration units, rear camera system, aluminum flooring, dual temperature/multi-compartment configurations.
Applications
  • Frozen food transport (ice cream, frozen meat, seafood, frozen meals)
  • Chilled/perishable foods (fruits, vegetables, dairy, eggs, chocolate)
  • Pharmaceutical and vaccine cold chain (2°C to 8°C)
  • Medical supplies and biological samples
  • Foodservice and retail supply chain
  • Floral industry and high-value temperature-sensitive goods
Technical Specifications
Condition New, LHD, 4x2
Chassis ISUZU FVR
Overall Size 10,000 × 2,550 × 3,850 mm
Wheelbase 5,550 mm
GVW 18,000 kg
Engine ISUZU 6HK1-TCG61, 240 HP, 7,790 ml, Euro VI
Transmission MLD 8-speed manual (8F+1R)
Tires 295/80R22.5 (6 + 1 spare)
Max Speed 105 km/h
Cab FVR spacious, one-and-a-half row, LHD, A/C, central lock, adjustable driver seat
Cargo Box 6,800 × 2,440 × 2,500 mm
Box Material FRP + 8cm PU foam
Temperature Range -18°C to +20°C
Refrigeration THERMO KING T-800

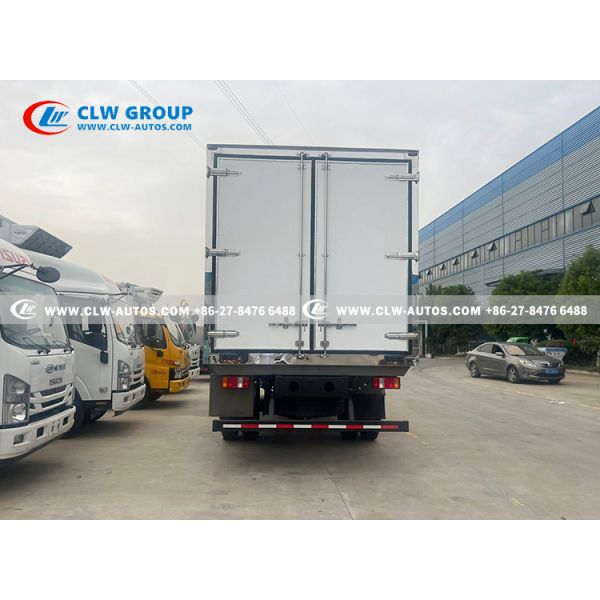

Rear Door Full-size double opening
Optional Carrier/Thermo King/DAIKIN, rear camera, aluminum flooring, dual temp/multi-compartment
Applications Frozen food, chilled produce, dairy, medical supplies, floral

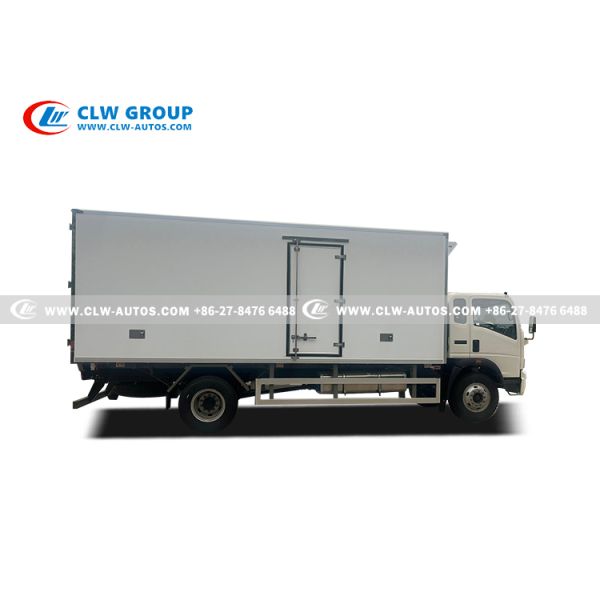

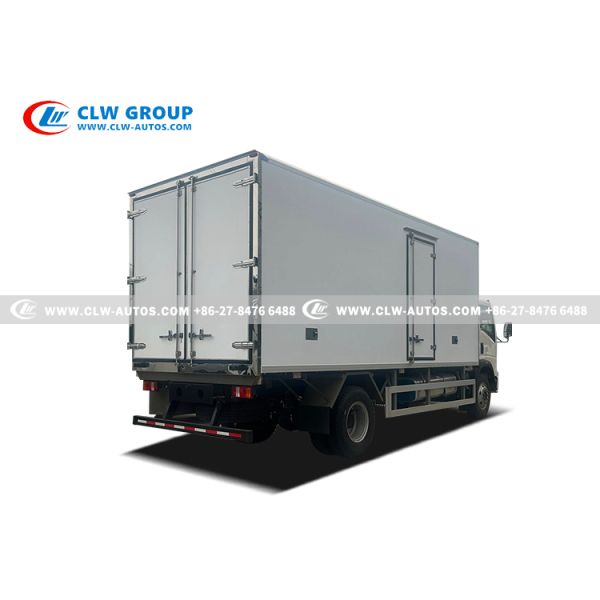

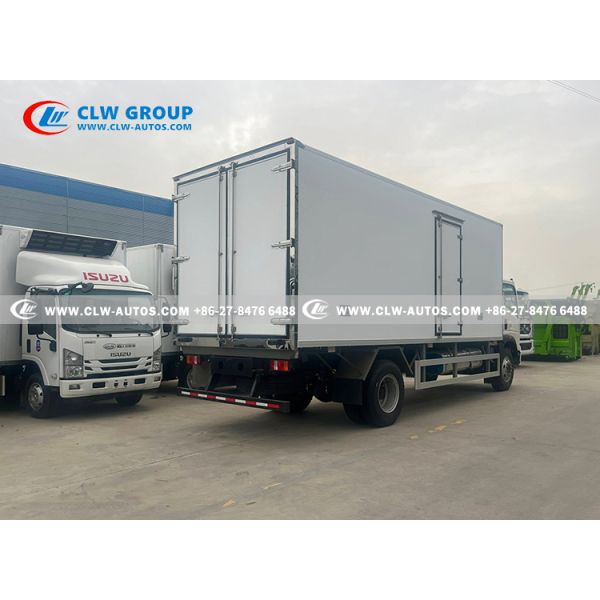

Product Gallery
