Specifications
Engine Displacement :
8,300ml
Engine Power :
350HP (231kW)
Lifting Moment :
25 t*m
Hydraulic System Pressure :
18MPa
Working Radius :
30m
Cargo Body Dimensions :
8,600×2,300×550mm
Lifting Height :
12m
Transmission :
FAST 12-speed (12F+2R)
Max Lifting Capacity :
16,000kg
Max Speed :
90 km/h
Description
ISUZU GIGA 8x4 16-Ton Straight Boom Crane Truck – XCMG Heavy-Duty Lifting & Transport Solution
Product Overview

The ISUZU GIGA 8x4 16-Ton Straight Boom Crane Truck is a purpose-built heavy-duty vehicle designed for construction sites, logistics operations, and industrial facilities requiring both high-capacity transport and powerful on-site lifting. Built on the reliable ISUZU GIGA 8x4 chassis with double cab (3 passengers, LHD with A/C) and 1,850+4,600+1,400mm wheelbase, this vehicle features an ISUZU 350HP (231kW) Euro IV diesel engine with FAST 12-speed manual transmission. The XCMG straight boom crane delivers 16,000kg max lifting capacity with 25 t*m lifting moment, 12m lifting height, 360° rotation, and 30m working radius.

Key Features
  • ISUZU GIGA 8x4 Heavy-Duty Chassis: Double cab, LHD, 3 passengers, A/C. 1,850+4,600+1,400mm wheelbase. GVW 24,900kg, curb 15,800kg. 11.00R20 tires. Max speed 90 km/h.
  • ISUZU 350HP Euro IV Engine: 6-cylinder inline, 231kW, 8,300ml, EGR. Euro IV compliant. FAST 12-speed transmission (12F+2R).
  • XCMG 16-Ton Straight Boom Crane: 4-arm telescopic, 16,000kg capacity, 25 t*m moment, 12m height, 360° rotation, 30m radius. Crane weight 3,800kg.
  • Cargo Body: 8,600×2,300×550mm, Q235 carbon steel, side 1.5mm / bottom 2.5mm.
  • H-Type Outriggers: 2.28-5.9m span for stable lifting.
  • Hydraulic System: 18MPa pressure, 70L capacity, 63 L/min flow, 160L oil tank.
  • Dual-Side Control: Operator convenience for crane operation.
  • Optional Equipment: Caution light, A/C, inlet valve, medicine tray, pneumatic valve, cylinder.
Applications
  • Construction material handling and equipment positioning
  • Heavy machinery transport and installation
  • Logistics and warehouse cargo handling
  • Industrial equipment maintenance and installation
  • Infrastructure and utility projects
  • Scrap yard and recycling material handling
Technical Specifications
General Parameters
Parameter Specification
Overall Dimension 11980×2500×3980 (mm)
Gross Vehicle Weight 24,900 kg
Curb Weight 15,800 kg
Chassis Specification
Parameter Specification
Chassis Brand ISUZU
Drive Model 8×4
Cabin Double, Left Hand Driving, with air conditioning
Number of Passengers 3
Engine Power 231 kW / 315 HP
Emission Standard EURO 4
Displacement 8,300 ml
Fuel Type Diesel
Gearbox 9 Forwards & 1 Reverse
Brake System Air brake
Wheel Base 1850+4600+1400 mm
Front/Rear Axle Loading 8000/11500 kg
Tire 11.00R20
Max Driving Speed 90 km/h
Upper Structure Specification
Parameter Specification
Cargo Body Dimension 8600×2300×550 mm
Material Q235 carbon steel
Cargo Thickness Side 1.5mm, Bottom 2.5mm
Boom Type Straight 4-Arm telescopic boom
Crane Brand XCMG or SANY or CLW
Range of Sprayer 30 m
Max Lifting Moment 25 T.M
Max Lifting Capacity 16,000 kg
Max Lifting Height 12 m
Rotation Angle 360°
Crane Weight 3,800 kg
Oil Tank Capacity 160 L
Leg Type H type
Leg Span 2.28-5.9 m
Hydraulic System Pressure 18 MPa
Hydraulic System Capacity 70 L

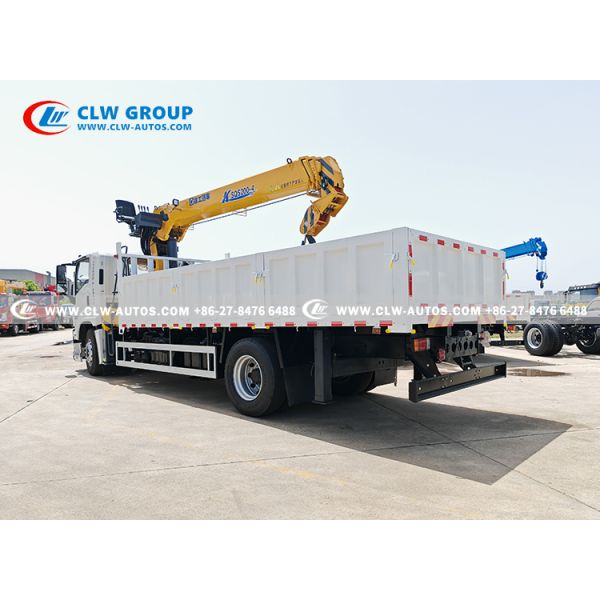

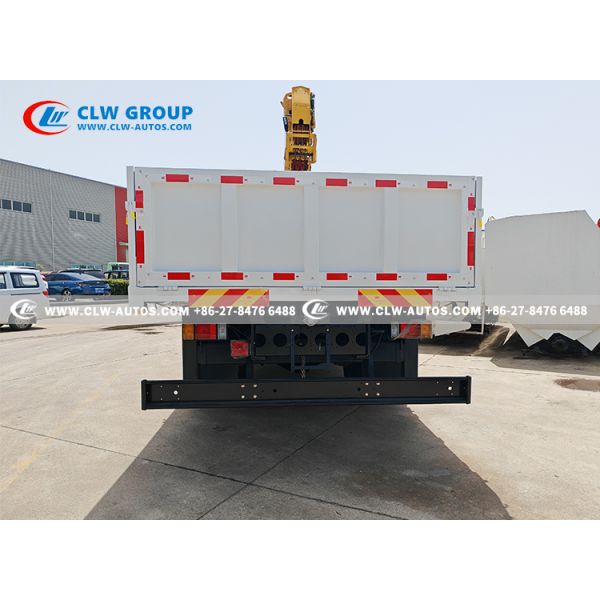

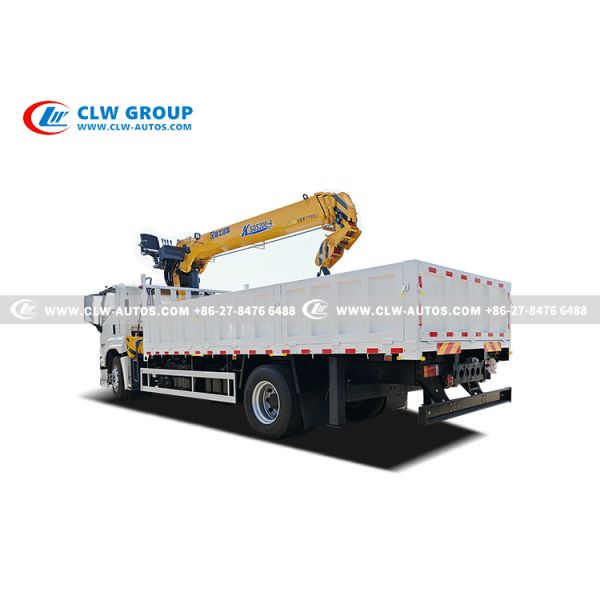

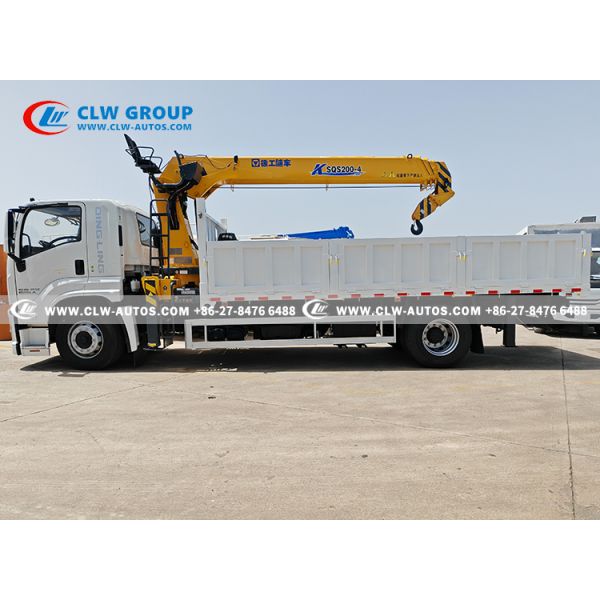

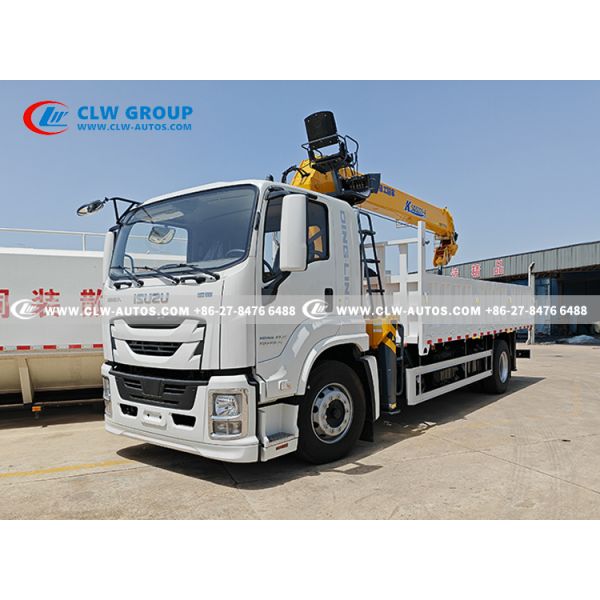

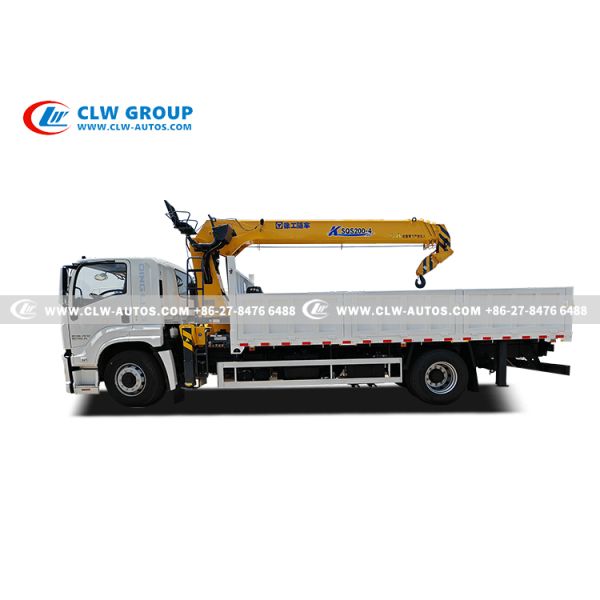

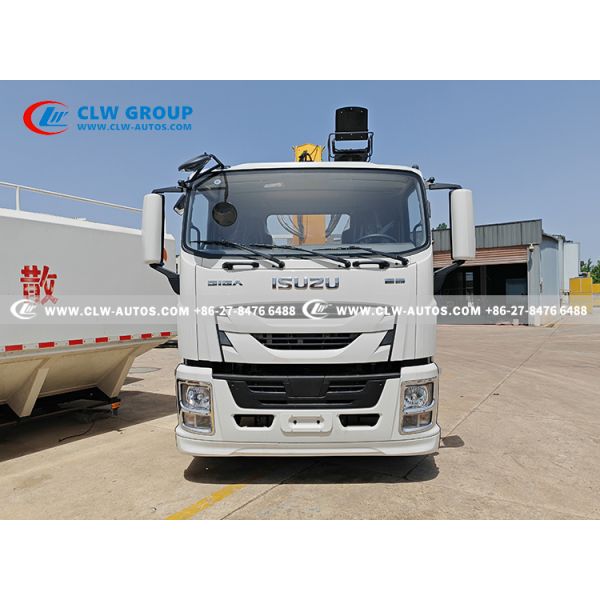

Product Images
