Specifications
Design Pressure :
1.61 MPa
Max Speed :
95 km/h
Wheelbase :
4,700 mm
Filling Hose Length :
15 meters
Engine Power :
160 HP (118 kW)
Engine Displacement :
4,260 ml
Transmission Type :
DC6J65TC 6-speed manual
Tank Volume :
15,000 L (15 m³)
Tank Material :
Q345R steel, 10mm thickness
Tire Size :
9.00R20 (6 + 1 spare)
Description

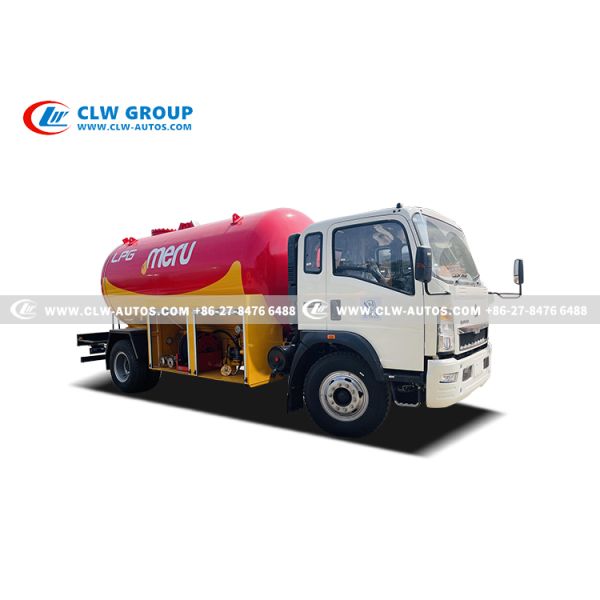

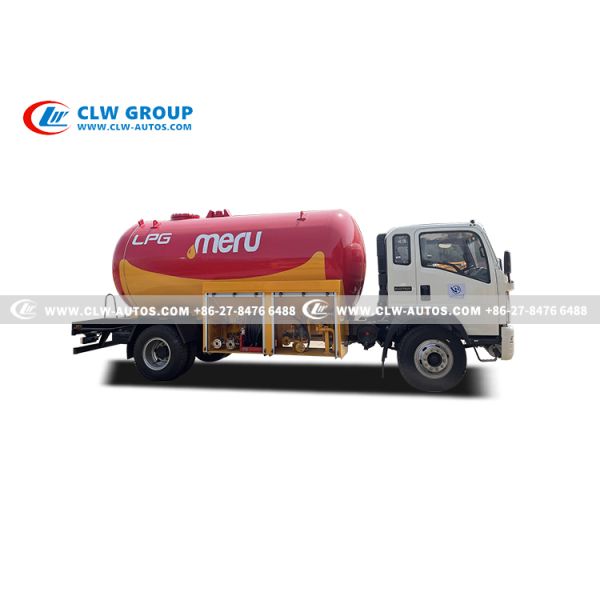

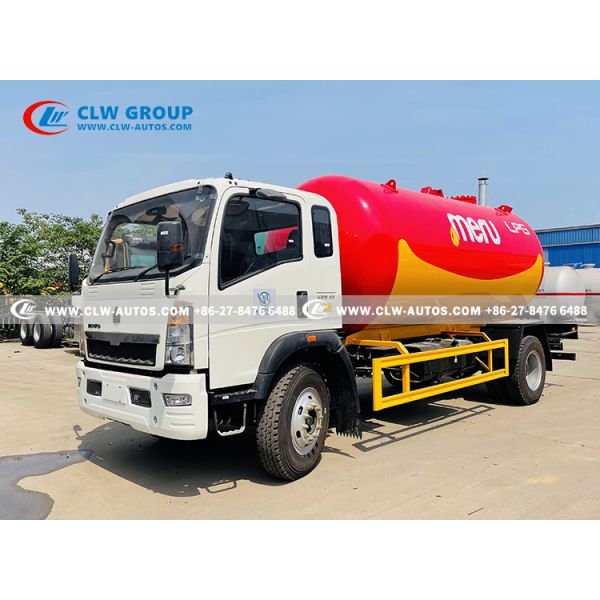

Sinotruk HOWO 4x2 15,000L LPG Bobtail Truck – Heavy-Duty Propane Tanker with CORKEN Pump & Dispenser
Product Overview

The Sinotruk HOWO 4x2 LPG Bobtail Truck is a specialized commercial vehicle designed for safe and efficient transportation and on-site refueling of liquefied petroleum gas (LPG). Built on the robust HOWO 4x2 chassis with HOWO 2080-type cabin (one row and one half with A/C), this vehicle features advanced engineering for reliable propane delivery operations.

Key Features

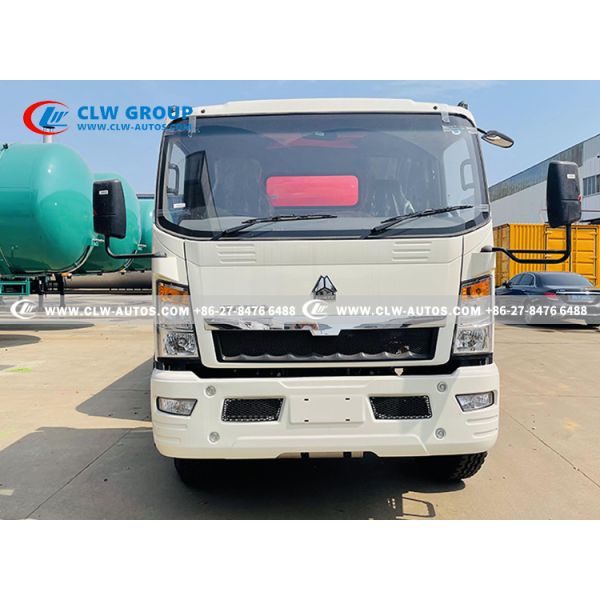

  • Sinotruk HOWO 4x2 Chassis: 4,700mm wheelbase, GVW 16,000kg, payload 7,000kg. HOWO 2080-type cabin with A/C. 9.00R20 tires (6+1 spare). Front axle 3,600kg, rear axle 10,500kg. Max speed 95 km/h.
  • YUCHAI 160hp Euro III Engine: YC4E160-33, 160 HP (118 kW), 4,260 ml, Euro III compliant. DC6J65TC 6-speed manual transmission (6F+1R).

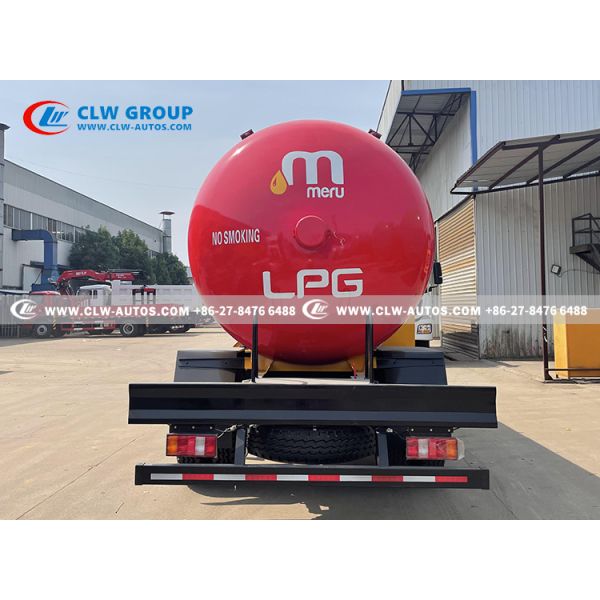

  • 15,000L Q345R Steel Tank: 15m³ capacity, Q345R steel construction, 10mm thickness, 2,000mm diameter. Design pressure 1.61MPa, hydraulic test 2.21MPa. Working temperature range -20~50°C.

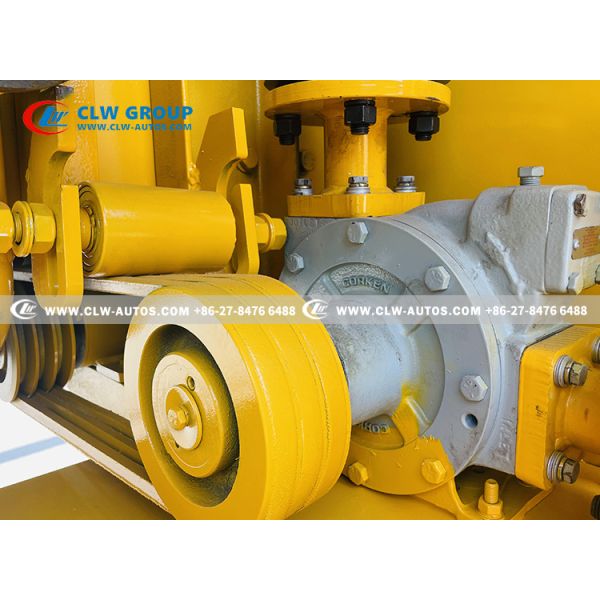

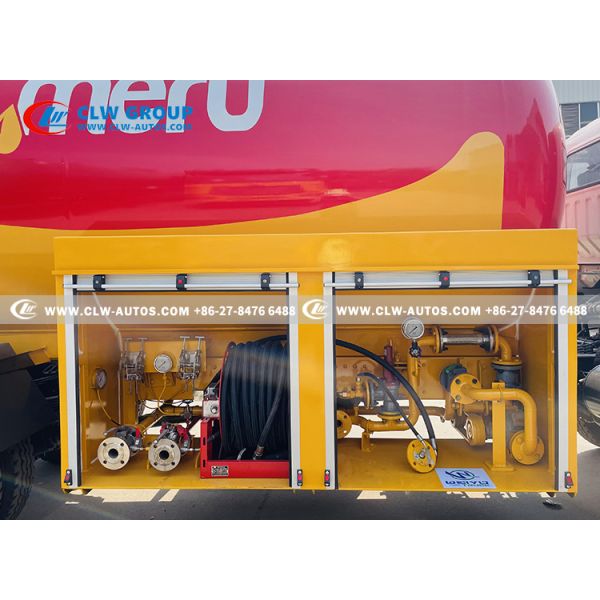

  • CORKEN Z2000 LPG Pump: PTO-driven high-flow dispensing system. Single-nozzle dispenser with English remarks, 15m filling hose.

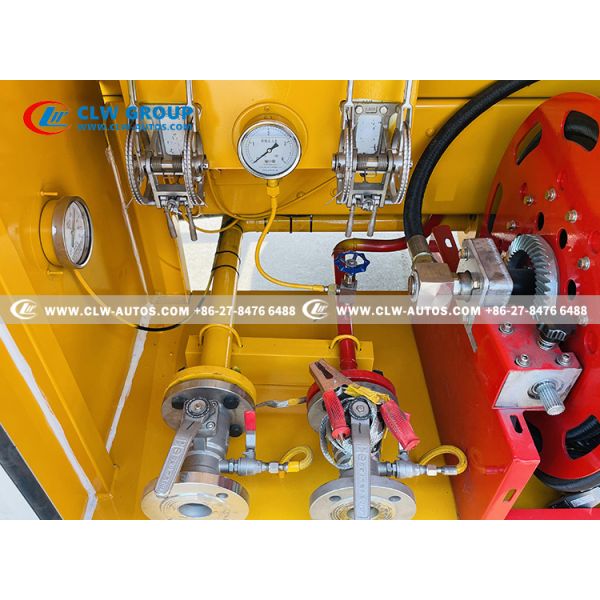

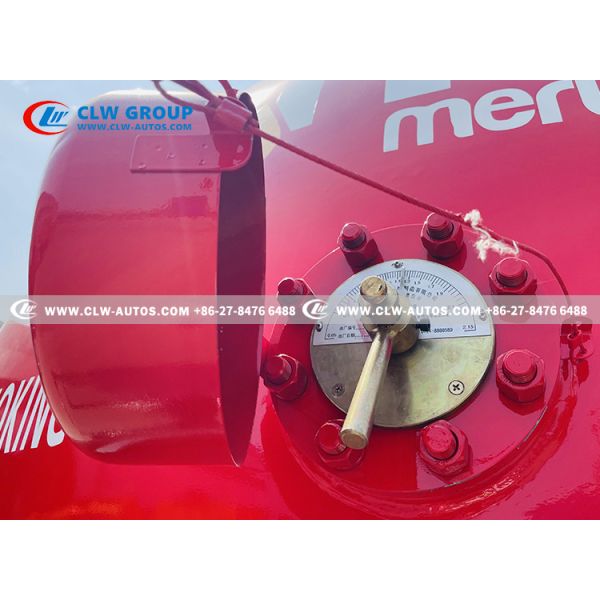

  • Comprehensive Safety Systems: DN80 safety valve, float ball level gauge (±2% accuracy), emergency valves, pressure gauge, thermometer, dual fire extinguishers, exhaust shaft at front of cabin.
  • Regulatory Compliance: GB150.1-2011 design code. NFPA 58 / ASME standards compliant.
  • Dual-Phase Operation: Liquid-phase dispensing + vapor-phase recovery capability.
Applications
  • Industrial zones (factories, welding shops, forklift fleets)
  • Agricultural support (crop dryers, irrigation pumps, greenhouse heating)
  • Remote communities (off-grid household refueling)
  • Emergency response (pipeline outages, natural disasters)
  • Bulk LPG transport from terminals to storage/retail stations
  • Direct-to-customer doorstep refueling services
Technical Specifications
Driving Mode 4x2
Overall Size 7,800 × 2,500 × 3,250 mm
GVW / Payload 16,000 kg / 7,000 kg
Wheelbase 4,700 mm
Cab HOWO 2080 type, 1 row + half, A/C
Engine YUCHAI YC4E160-33, 160 HP, 4,260 ml, Euro III
Transmission DC6J65TC, 6F+1R
Max Speed 95 km/h
Tires 9.00R20 (6 + 1 spare)
Tank Volume 15,000 L (15 m³)
Tank Material Q345R steel, 10mm
Design Pressure 1.61 MPa
Level Gauge Float ball type
Safety Valve DN80
LPG Pump CORKEN Z2000 (PTO)
Dispenser Single nozzle, English
Filling Hose 15 meters
Fire Extinguishers 2
Compliance GB150.1-2011, NFPA 58, ASME
