Specifications
Noise Level :
<75 dB
Water Tank Capacity :
1.5m³
Dust Tank Capacity :
4m³
Wheelbase :
3300mm
Main Engine Displacement :
4.2L
Main Engine Power :
130hp
Suction Capacity Density :
2.0g/cm³
Auxiliary Engine Power :
87hp
Sweeping Speed :
3-15km/h
Sweeping Width :
2300-2800mm
Description
FAW RHD 5.5m³ Road Sweeper Truck – Right-Hand Drive Vacuum Sweeper with Dual-Engine Power & Intelligent Control

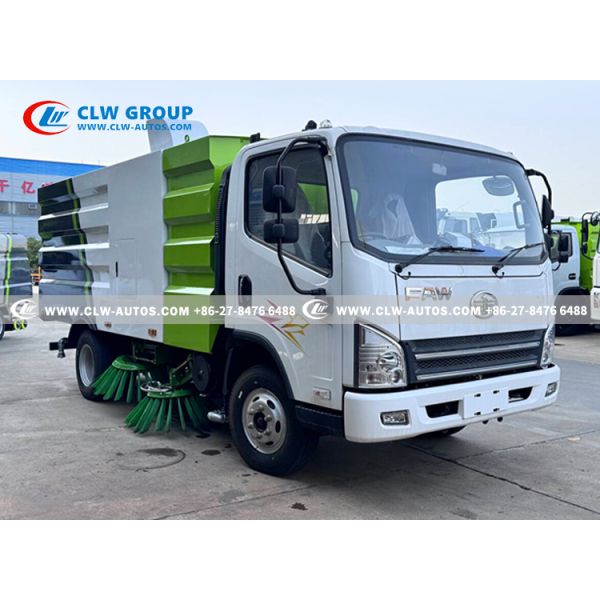

The FAW RHD Road Sweeper Truck is a 5.5m³ high-capacity vacuum sweeper built on the FAW VH 4x2 RHD chassis (3,300mm wheelbase). Features include YUCHAI 130hp main engine (Euro II), JMC 87hp auxiliary engine, 1.5m³ carbon steel water tank, 5.5m³ stainless steel dustbin, center four sweeping discs (2,300-2,800mm adjustable width), sweeping speed 3-15 km/h, suction capacity density 2.0g/cm³, sweeping efficiency ≥96%, garbage box dumping angle ≥45°, low-pressure fog spray, high-pressure centrifugal fan, intelligent touchscreen control, low-noise design (<75 dB), and 7.50R16 14PR tires (7 pcs). Ideal for urban road maintenance, industrial zones, parks, airports, and parking lots in RHD markets.
Product Overview
The FAW RHD Road Sweeper Truck is a professional-grade right-hand drive sanitation vehicle designed for municipalities, industrial facilities, airports, and private contractors in RHD markets. Built on the FAW VH 4x2 RHD chassis with 3,300mm wheelbase and GVW of 8,000kg, this vehicle features a dual-engine power system: a YUCHAI 130hp (95kW, 4.2L, Euro II) main engine and a JMC 87hp auxiliary engine. The 5.5m³ stainless steel dustbin with regenerative air suction technology collects debris with up to 99% efficiency. The 1.5m³ carbon steel water tank supplies low-pressure fog spray for dust suppression. The center four sweeping discs offer adjustable width from 2,300-2,800mm, sweeping speed 3-15 km/h, suction capacity density 2.0g/cm³, and sweeping efficiency ≥96%. The garbage box dumping angle is ≥45° with hydraulic tilt mechanism. The intelligent touchscreen cockpit interface provides real-time monitoring of suction pressure, water flow, and engine status with auto-adjust brush pressure.
Key Features
  • FAW VH 4x2 RHD Chassis: 3,300mm wheelbase, 8,000kg GVW, RHD for RHD markets. 7.50R16 14PR tires (7 pcs)
  • Dual-Engine Power: YUCHAI 130hp main engine (95kW, 4.2L, Euro II). JMC 87hp auxiliary engine for sweeping system
  • 5.5m³ Stainless Steel Dustbin: Regenerative air suction - 99% efficiency. Dumping angle ≥45°, hydraulic tilt unloading
  • 1.5m³ Carbon Steel Water Tank: Low-pressure fog spray for dust suppression. Closed-loop water recycling (30% savings)
  • Center Four Sweeping Discs: 2,300-2,800mm adjustable width. Sweeping speed 3-15 km/h. Suction density 2.0g/cm³. Sweeping efficiency ≥96%
  • High-Pressure Centrifugal Fan: Powerful suction for debris, sand, and fine particles
  • Intelligent Touchscreen Control: Real-time monitoring of suction pressure, water flow, engine status. Auto-adjust brush pressure. One-touch start/stop
  • Low-Noise Design: <75 dB compliance with urban noise regulations
  • Modular Design: Easily replaceable critical parts (fans, filters). Stainless steel filter reduces maintenance by 40%
  • Safety Features: Rearview cameras, emergency braking, rollover-proof cabin
Applications
  • Urban road maintenance (downtown streets, pedestrian zones, bus lanes)
  • Industrial zones (metal shavings, gravel, construction residue removal)
  • Park and public space hygiene
  • Airport runways and aprons (FOD removal)
  • Parking lots and commercial areas
  • Highways and expressways
Technical Specifications
Specification Details
Driving Mode 4X2
Wheelbase 3300mm
Cabin FAW VH flat top single row, Right hand driving
Engine Brand YUCHAI
Horsepower 130hp
Power 95kw
Displacement 4.2L
Fuel Type Diesel
Clutch Ф330
Transmission WLY, 6 forward gears and 1 reverse gear
Emission Standard Euro 2
Front Axle Loading 2,000kg
Rear Axle Loading 6,000kg
Tires 7.50R16 14PR *7 (with one spare)
Gross Vehicle Weight 8,000kg
Deputy Engine JMC, 87hp
Water Tank 1.5m³, carbon steel
Dust Tank 5.5m³, stainless steel
Sweep Disk Center four sweeping discs
Sweeping Width 2300-2800mm
Sweeping Speed 3-15km/h
Suction Capacity Density 2.0g/cm³
Garbage Box Dumping Angle ≥45°
Sweeping Efficiency ≥96%
Spraying Type Low pressure fog type

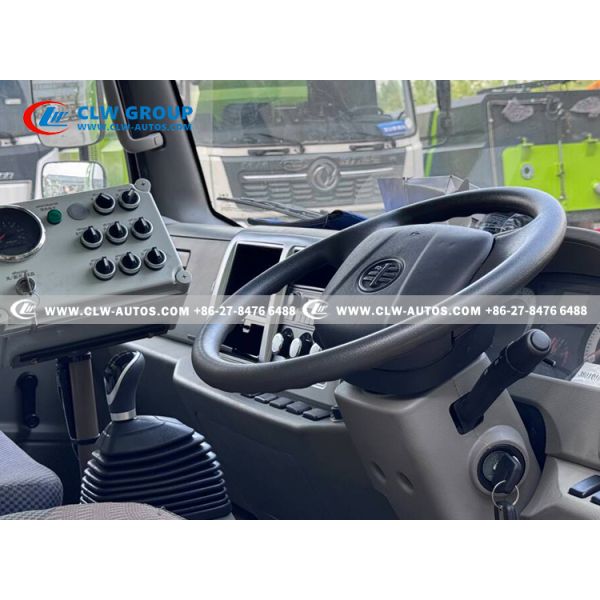

Operation Control Panel Auxiliary engine tachometer, auxiliary engine water temperature gauge, oil temperature alarm device, various operation control switches
Fan Type High-pressure centrifugal fan
