JMC 4x2 Ambulance with 2.0L Diesel Engine and Spacious Medical Cabin Featuring Dual ABS Safety Systems
JMC 4x2 Ambulance with 2.0L Diesel Engine and Spacious Medical Cabin Featuring Dual ABS Safety Systems
JMC 4x2 Ambulance with 2.0L Diesel Engine and Spacious Medical Cabin Featuring Dual ABS Safety Systems
JMC 4x2 Ambulance with 2.0L Diesel Engine and Spacious Medical Cabin Featuring Dual ABS Safety Systems
JMC 4x2 Ambulance with 2.0L Diesel Engine and Spacious Medical Cabin Featuring Dual ABS Safety Systems
JMC 4x2 Ambulance with 2.0L Diesel Engine and Spacious Medical Cabin Featuring Dual ABS Safety Systems
JMC 4x2 Ambulance with 2.0L Diesel Engine and Spacious Medical Cabin Featuring Dual ABS Safety Systems
JMC 4x2 Ambulance with 2.0L Diesel Engine and Spacious Medical Cabin Featuring Dual ABS Safety Systems
JMC 4x2 Ambulance with 2.0L Diesel Engine and Spacious Medical Cabin Featuring Dual ABS Safety Systems
JMC 4x2 Ambulance with 2.0L Diesel Engine and Spacious Medical Cabin Featuring Dual ABS Safety Systems
JMC 4x2 Ambulance with 2.0L Diesel Engine and Spacious Medical Cabin Featuring Dual ABS Safety Systems
JMC 4x2 Ambulance with 2.0L Diesel Engine and Spacious Medical Cabin Featuring Dual ABS Safety Systems
JMC 4x2 Ambulance with 2.0L Diesel Engine and Spacious Medical Cabin Featuring Dual ABS Safety Systems
JMC 4x2 Ambulance with 2.0L Diesel Engine and Spacious Medical Cabin Featuring Dual ABS Safety Systems
JMC 4x2 Ambulance with 2.0L Diesel Engine and Spacious Medical Cabin Featuring Dual ABS Safety Systems
JMC 4x2 Ambulance with 2.0L Diesel Engine and Spacious Medical Cabin Featuring Dual ABS Safety Systems
Specifications
Overall Dimensions :
5,521-5,998 × 1,932-2,168 × 2,350-2,775 mm
Tire Size :
215/75R16C/235/65R16C (6+1 spare)
Seating Capacity :
5 - 8 persons
Wheelbase :
3,300 - 3,750 mm
Engine Power :
107kW/145HP (Diesel) / 162kW (Gasoline)
GVW :
3,640 - 4,495 kg
Curb Weight :
2,560 - 2,900 kg
Transmission :
5/6-speed manual / optional 6-speed automatic
Max Speed :
145 - 170 km/h
Engine Type :
2.0L Turbo Diesel / 2.0L EcoBoost Gasoline
Description
JMC 4x2 Ambulance – Emergency Medical Transport Vehicle with 2.0L Diesel Engine
Product Overview

The JMC 4x2 Ambulance is a professional-grade emergency medical vehicle designed for rapid emergency response, patient transport, pre-hospital care, and mobile diagnosis. Built on the robust JMC chassis with 3,300-3,750mm wheelbase and JMC Transit/Ford T8 cab (LHD/RHD with A/C), this vehicle ensures reliable performance in critical situations.

Key Features
  • JMC 4x2 Chassis: 3,300-3,750mm wheelbase, LHD/RHD, A/C. GVW 3,640-4,495kg. 215/75R16C/235/65R16C tires (6+1 spare). Reinforced chassis with heavy-duty suspension.
  • 2.0L Turbo Diesel Engine: 107kW/145HP, China VI. 5/6-speed manual / optional 6-speed automatic. Max speed 145 km/h. 2.0L EcoBoost Gasoline (162kW) optional.
  • Spacious Medical Cabin: Modular cabinets, stretcher mounts, oxygen holders, disinfection lighting. 5-8 person seating. Multiple roof heights (2,320-2,620mm).
  • Safety Systems: Dual ABS (ESP9 / 3550A500), EDR.
  • Customizable: Front grille, bumpers, wheels, warning lights, low roof option, 5G remote diagnosis support.
Applications
  • Hospital emergency patient transport and critical care
  • Pre-hospital emergency medical services
  • Patient transfer between medical facilities
  • Mobile diagnosis and treatment (community health screening)
  • Public health emergency response and epidemic prevention
Technical Specifications
Chassis JMC 4x2 (LHD/RHD)
Overall Size 5,521-5,998 × 1,932-2,168 × 2,350-2,775 mm
Wheelbase 3,300 - 3,750 mm
GVW / Curb 3,640 - 4,495 kg / 2,560 - 2,900 kg
Engine 2.0L Turbo Diesel (107kW/145HP) / 2.0L EcoBoost Gasoline (162kW)
Transmission 5/6-speed manual / optional 6-speed automatic
Max Speed 145 - 170 km/h
Medical Cabin Modular cabinets, stretcher mounts, oxygen holders
Seating 5 - 8 persons
Safety Dual ABS, EDR
Applications Emergency transport, pre-hospital care, patient transfer, mobile diagnosis

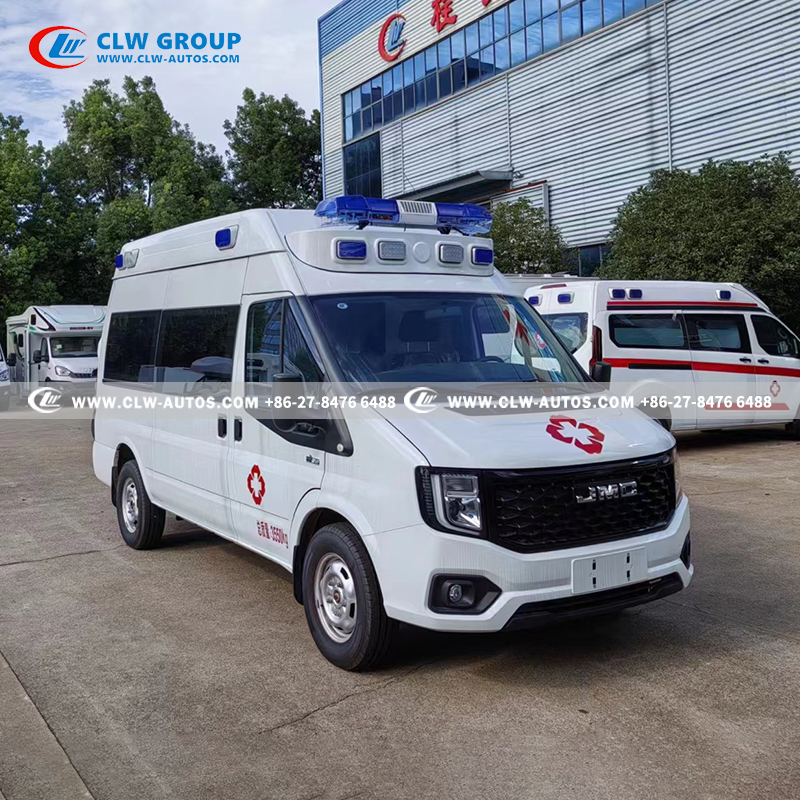

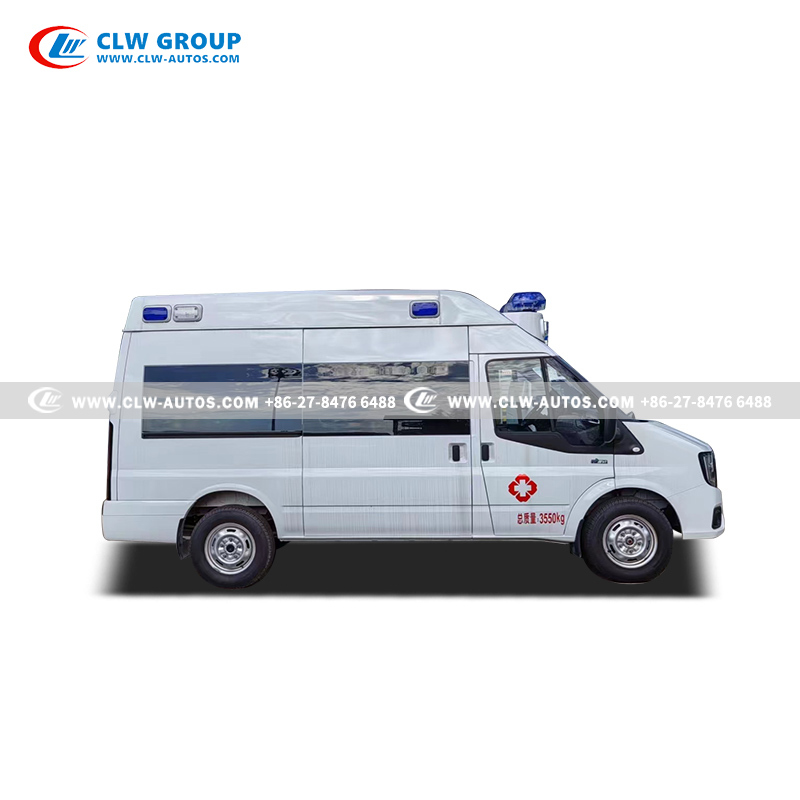

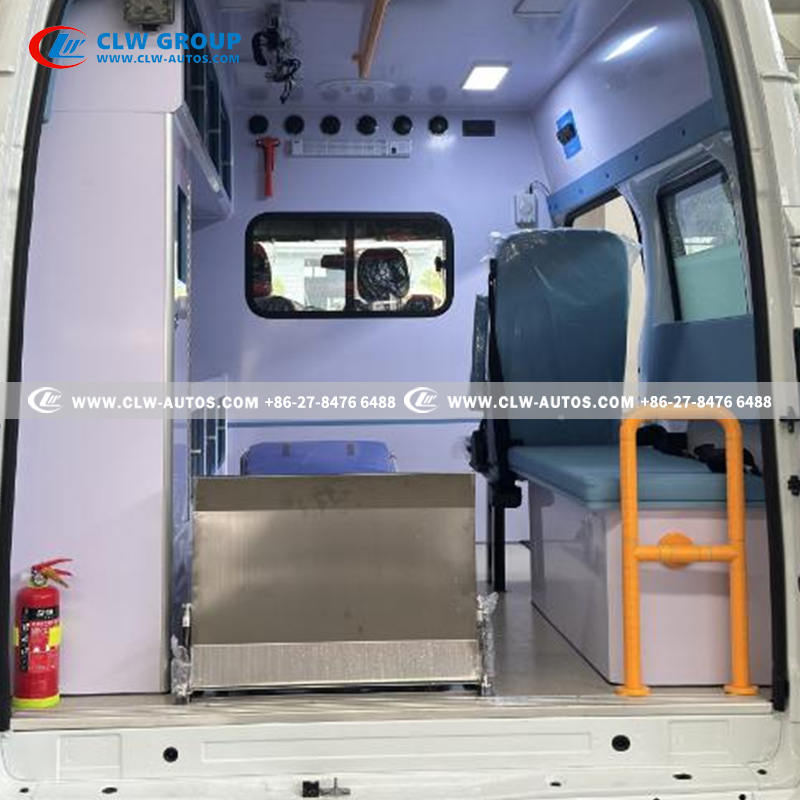

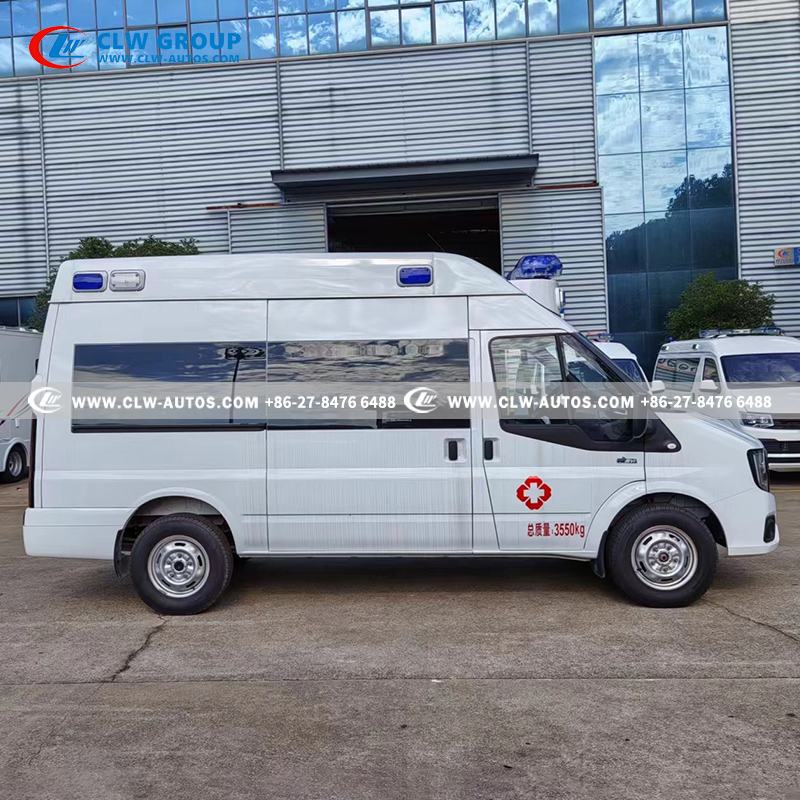

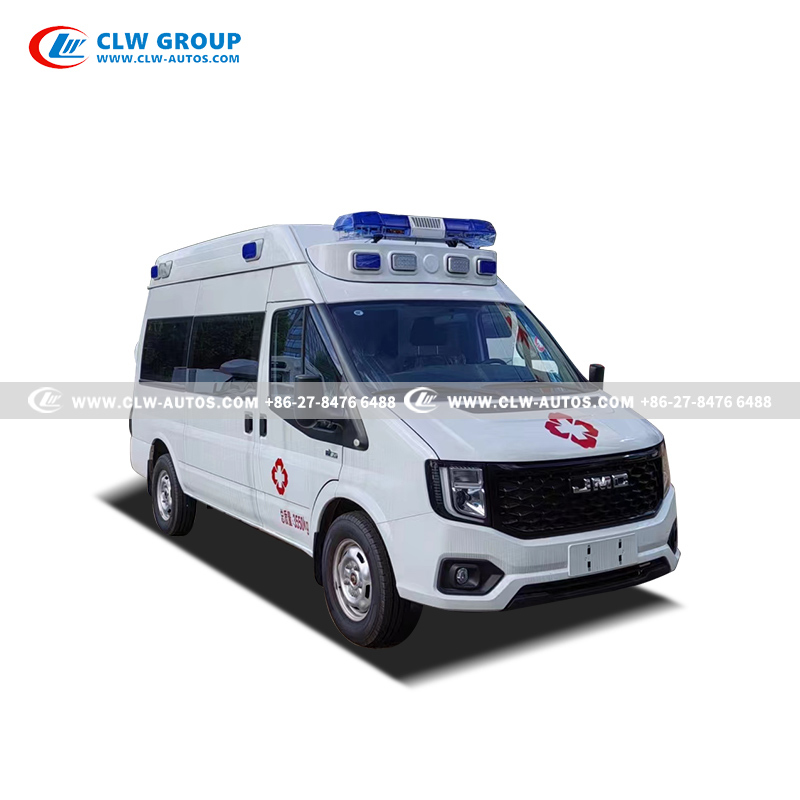

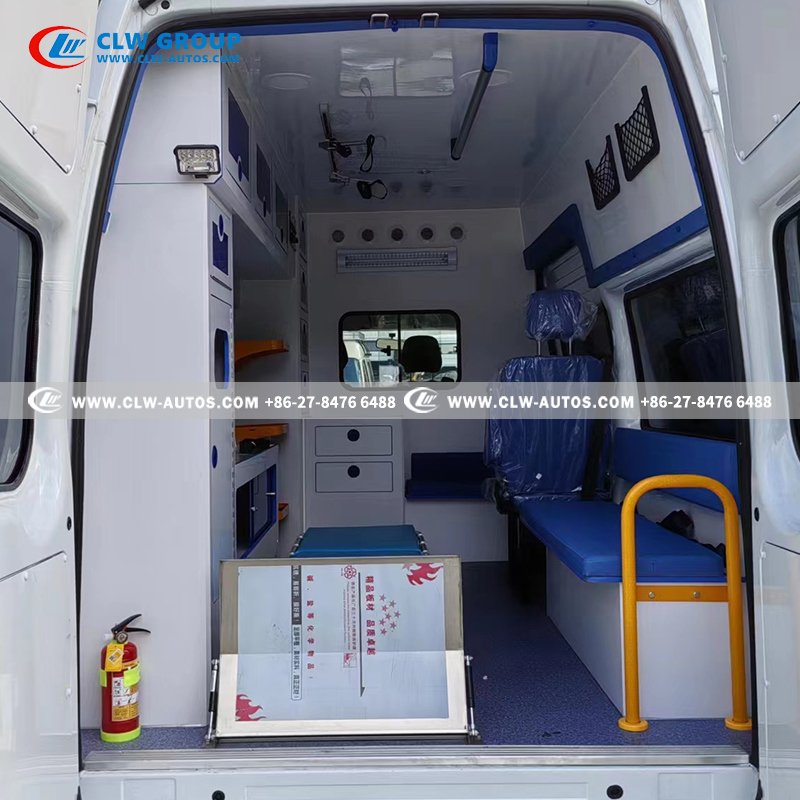

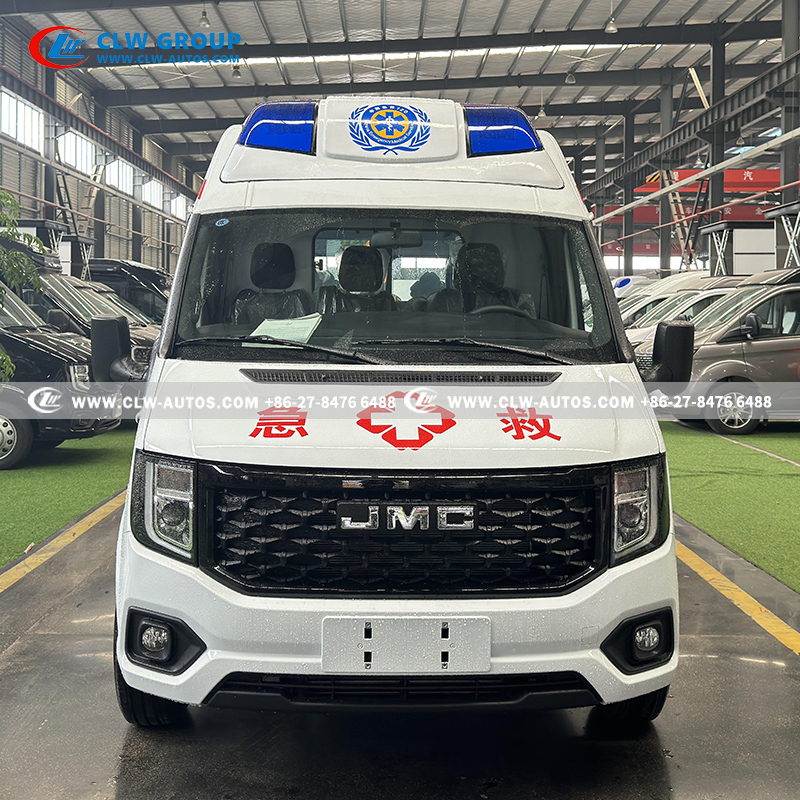

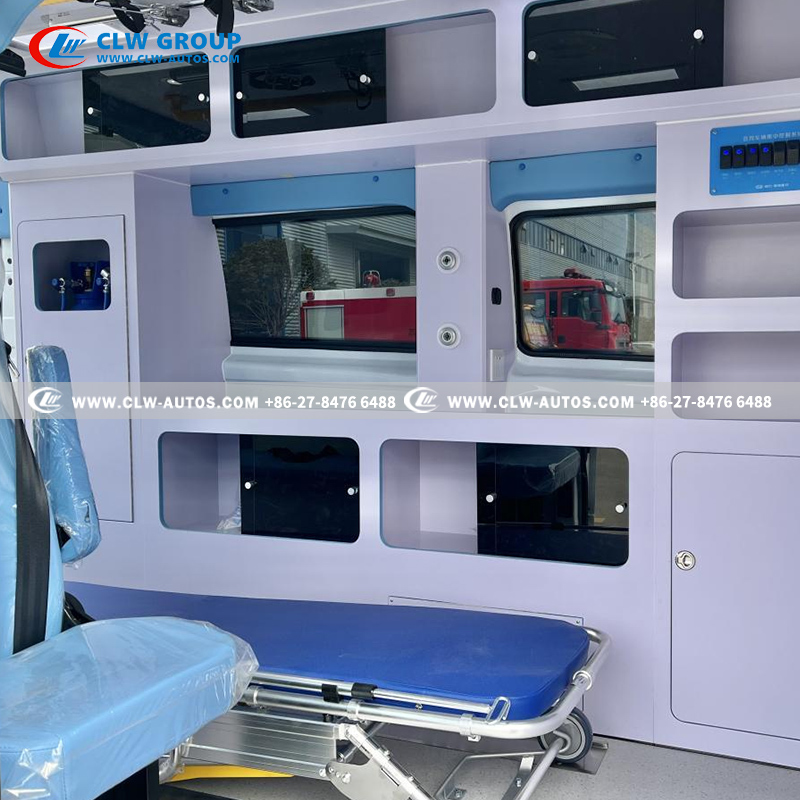

Product Images
JMC 4x2 Ambulance with 2.0L Diesel Engine and Spacious Medical Cabin Featuring Dual ABS Safety Systems JMC 4x2 Ambulance with 2.0L Diesel Engine and Spacious Medical Cabin Featuring Dual ABS Safety Systems JMC 4x2 Ambulance with 2.0L Diesel Engine and Spacious Medical Cabin Featuring Dual ABS Safety Systems JMC 4x2 Ambulance with 2.0L Diesel Engine and Spacious Medical Cabin Featuring Dual ABS Safety Systems JMC 4x2 Ambulance with 2.0L Diesel Engine and Spacious Medical Cabin Featuring Dual ABS Safety Systems JMC 4x2 Ambulance with 2.0L Diesel Engine and Spacious Medical Cabin Featuring Dual ABS Safety Systems JMC 4x2 Ambulance with 2.0L Diesel Engine and Spacious Medical Cabin Featuring Dual ABS Safety Systems JMC 4x2 Ambulance with 2.0L Diesel Engine and Spacious Medical Cabin Featuring Dual ABS Safety Systems
