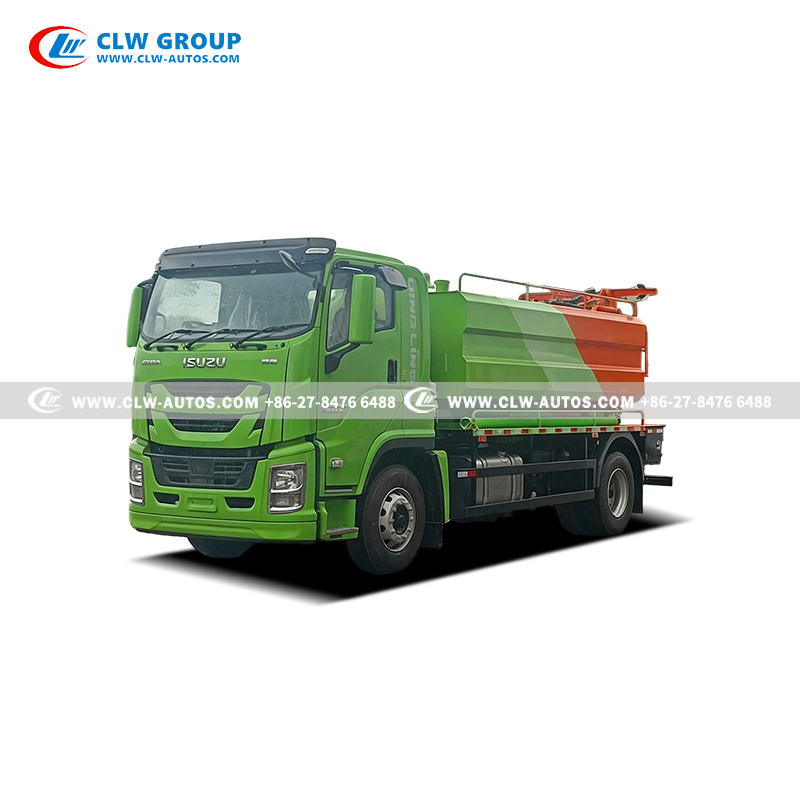

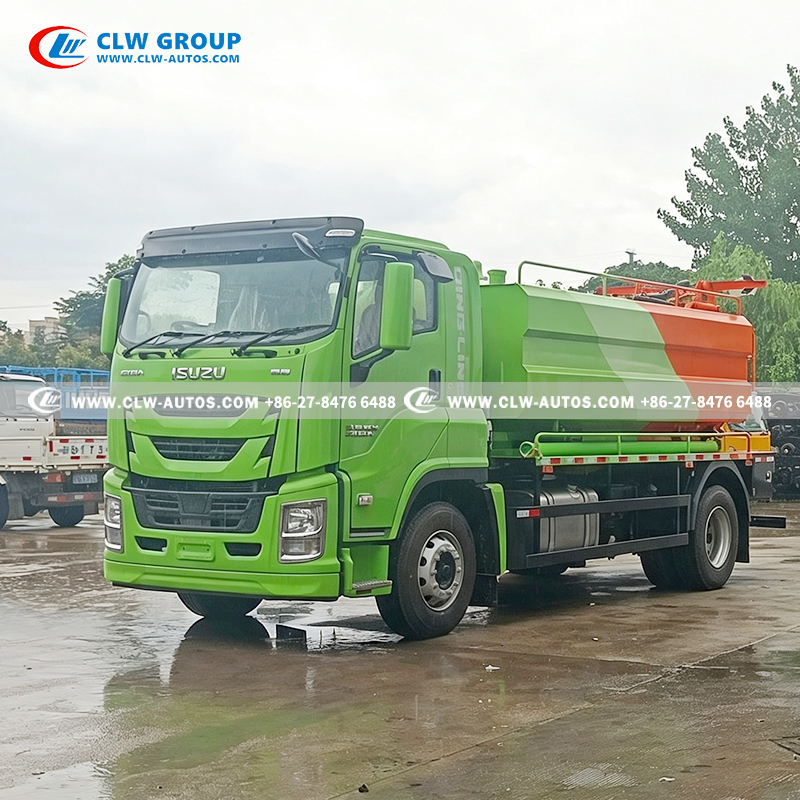

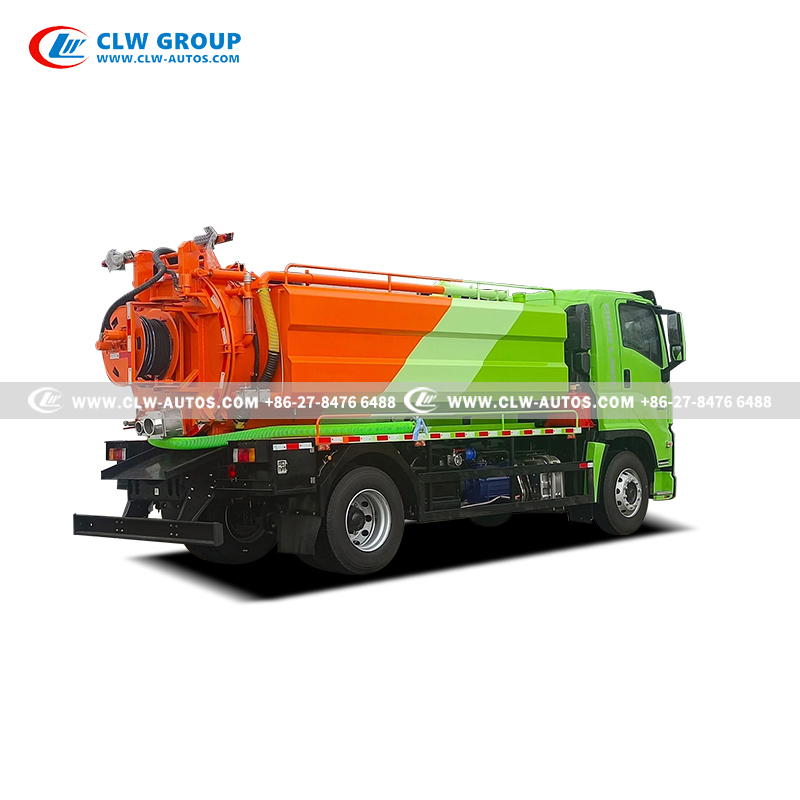

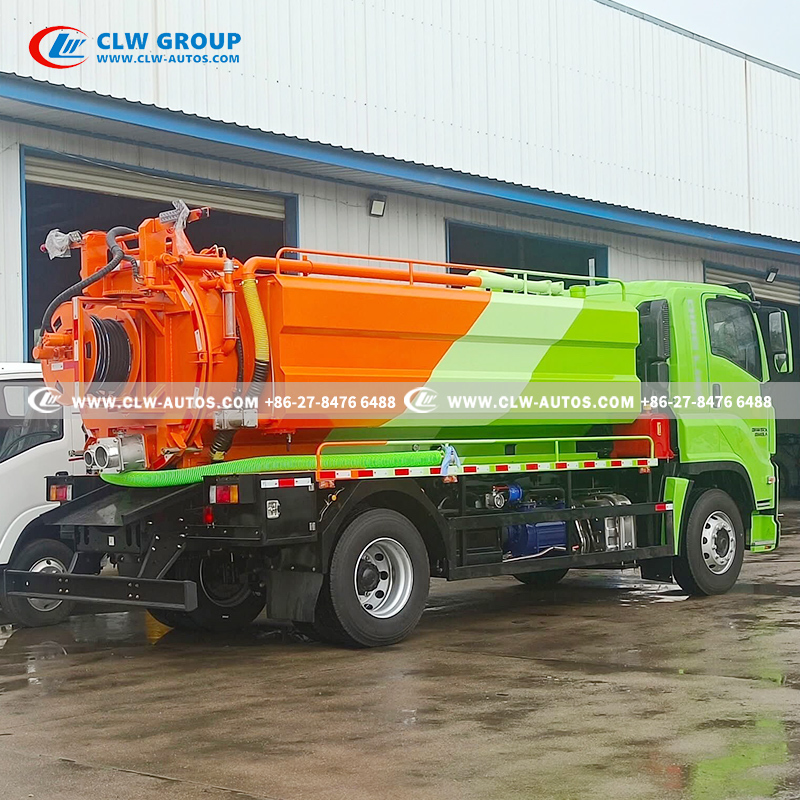

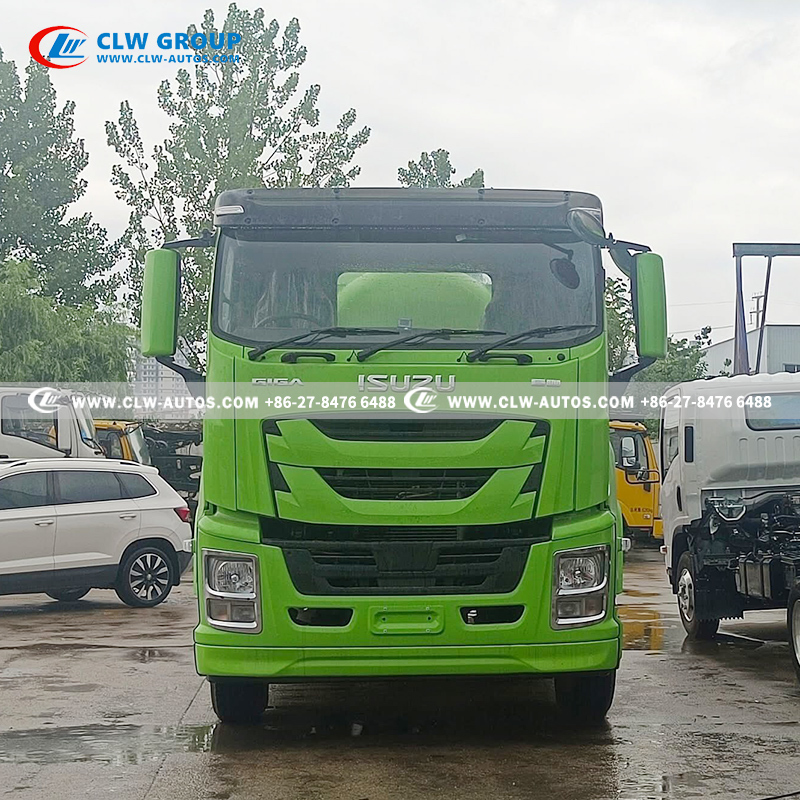

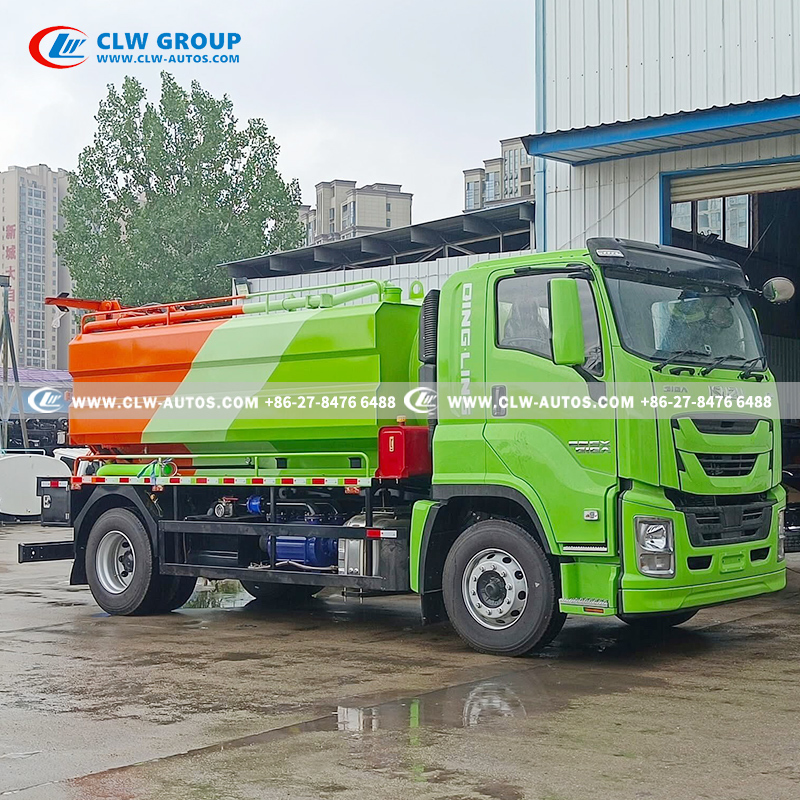

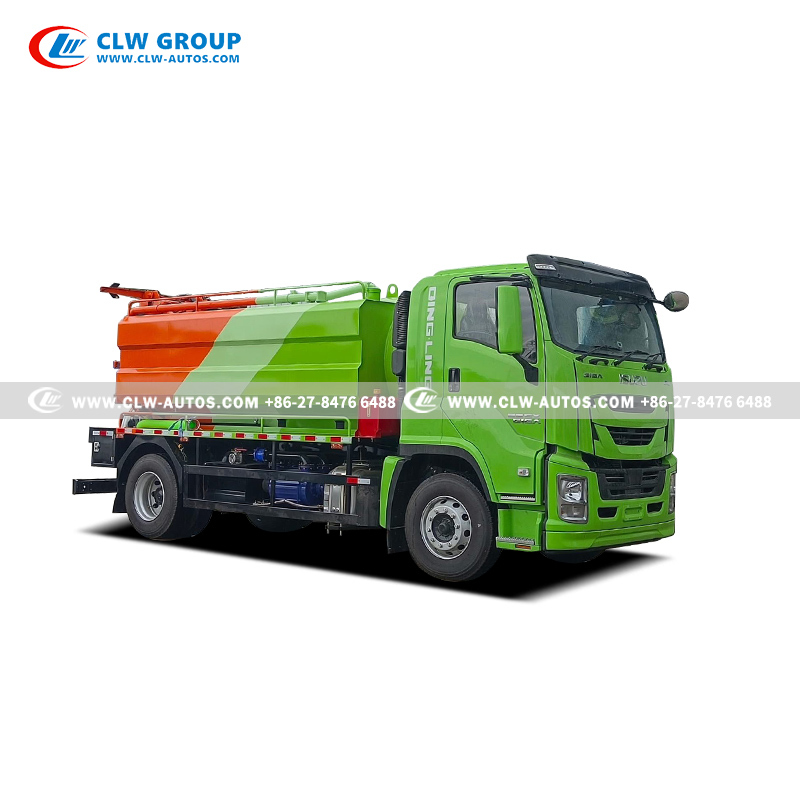

The ISUZU FTR Combination Sewer Cleaning & Vacuum Truck is a professional-grade dual-function sanitation vehicle that integrates high-pressure pipeline cleaning with vacuum suction. Built on the proven ISUZU FTR 4x2 right-hand drive chassis with 5,000mm wheelbase and FTR cab (RHD with sleeper, A/C, 3 passengers), this vehicle features an ISUZU 4HK1-TC60 diesel engine delivering 205HP with Euro VI compliance, paired with a 6-speed manual transmission.

The 8m³ total capacity is divided into a 2m³ water tank and a 6m³ sewage tank, constructed from high-strength carbon steel with 8mm thickness and anti-corrosion treatment. The SK-12 water ring vacuum pump delivers 1,200m³/h flow, while the high-pressure pump provides 215 L/min. The water tank heating system ensures reliable operation in cold climates. Hydraulic tank lifting enables efficient discharge.

• ISUZU FTR 4x2 RHD Chassis: 5,000mm wheelbase, FTR cab with sleeper, RHD, A/C, 3 passengers. GVW 18,000kg, curb 10,890kg. 295/80R22.5 tires (6+1 spare). 200L fuel tank. Air brakes, power steering.
• ISUZU 205HP Euro VI Engine: 4HK1-TC60, 205HP, 5,193ml. 6-speed manual transmission (6F+1R).
• 8m³ Dual-Compartment Tank: 2m³ water + 6m³ sewage. Carbon steel, 8mm, anti-corrosion interior treatment.
• SK-12 Water Ring Vacuum Pump: 1,200m³/h flow rate. High-efficiency suction for sewage and sludge.
• High-Pressure Pump: 215 L/min for effective pipeline cleaning.
• Water Tank Heating System: Reliable operation in cold climates.
• Hydraulic Tank Lifting: Efficient discharge. 150mm drain valve, 100mm suction port.
• Monitoring: Vacuum pressure gauge, viewing window. Hand-washing device.

• Municipal sewer line cleaning and unclogging
• Industrial pipeline maintenance and flushing
• Septic tank servicing and sludge extraction
• Storm drain and culvert cleaning
• Cold climate operations (with water tank heating)
• Environmental emergency response
