Specifications
Transmission :
MSB 5-speed manual (5F+1R)
Wheelbase :
3,360 mm
Engine Power :
120 HP
Overall Size :
6,500 × 2,500 × 3,000 mm
Curb Weight :
2,295 kg
Tire Size :
7.00R16 (6 + 1 spare)
Engine Capacity :
2,999 ml
Chassis :
ISUZU KV100 4x2 RHD
GVW :
4,495 kg
Van Size :
4,200 × 2,400 × 2,400 mm
Description
ISUZU KV100 RHD 20,000-Chick Transport Truck – Insulated Livestock Carrier with Carrier Refrigeration

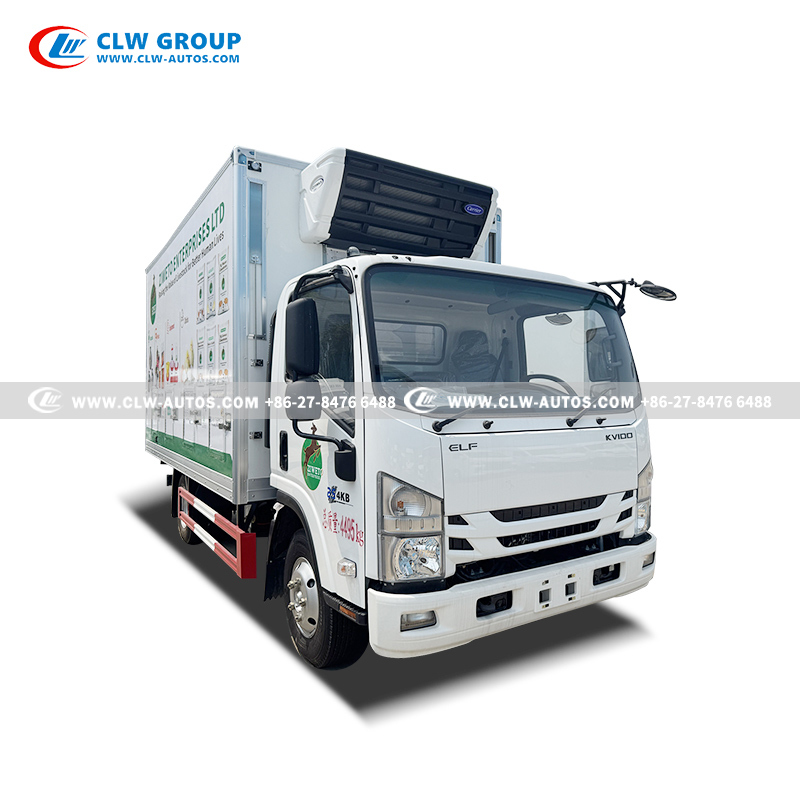

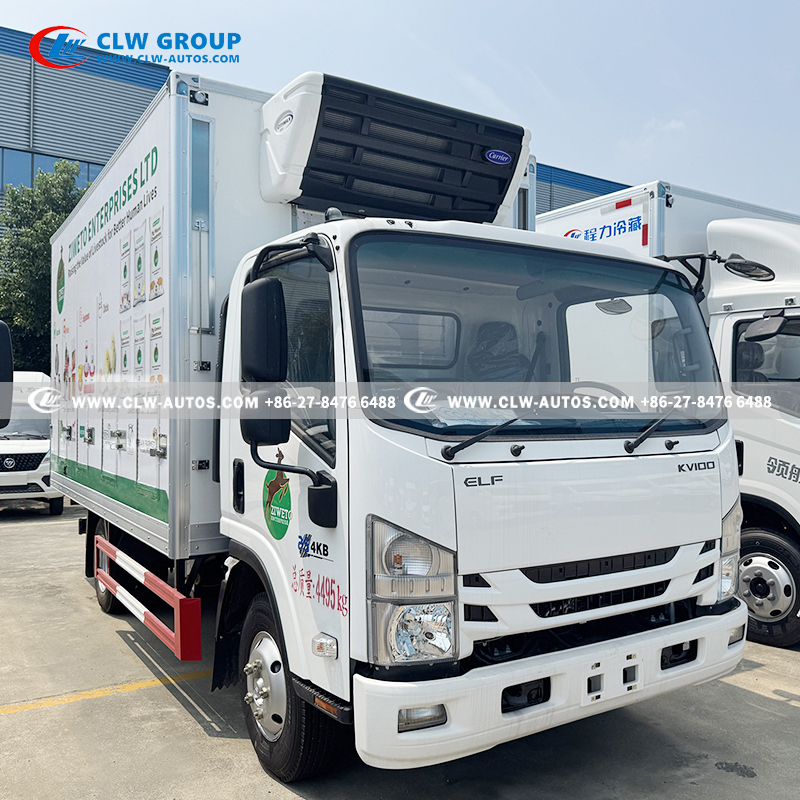

The ISUZU KV100 RHD Chick Transport Truck is a specialized livestock vehicle built on the ISUZU KV100 4x2 chassis, featuring a 120HP ISUZU 4KH1CN6LB Euro IV engine, MSB 5-speed transmission, 4.2m insulated FRP cargo box (4,200×2,400×2,400mm) with ventilation louvers, Carrier refrigeration unit (26-30°C), and 20,000-chick capacity. GVW 4,495kg, curb 2,295kg, wheelbase 3,360mm, 7.00R16 tires (6+1 spare). Ideal for day-old chick transport from hatcheries to farms in Malawi and African RHD markets.

Overview

The ISUZU KV100 RHD Chick Transport Truck is a professional-grade livestock vehicle designed for hatcheries, poultry farms, and livestock logistics operators requiring reliable, temperature-controlled transport of day-old chicks. Built on the proven ISUZU KV100 4x2 chassis with 3,360mm wheelbase and KV100 single-row cab (RHD with A/C), this vehicle features an ISUZU 4KH1CN6LB diesel engine delivering 120HP with Euro IV compliance, paired with an MSB 5-speed manual transmission.

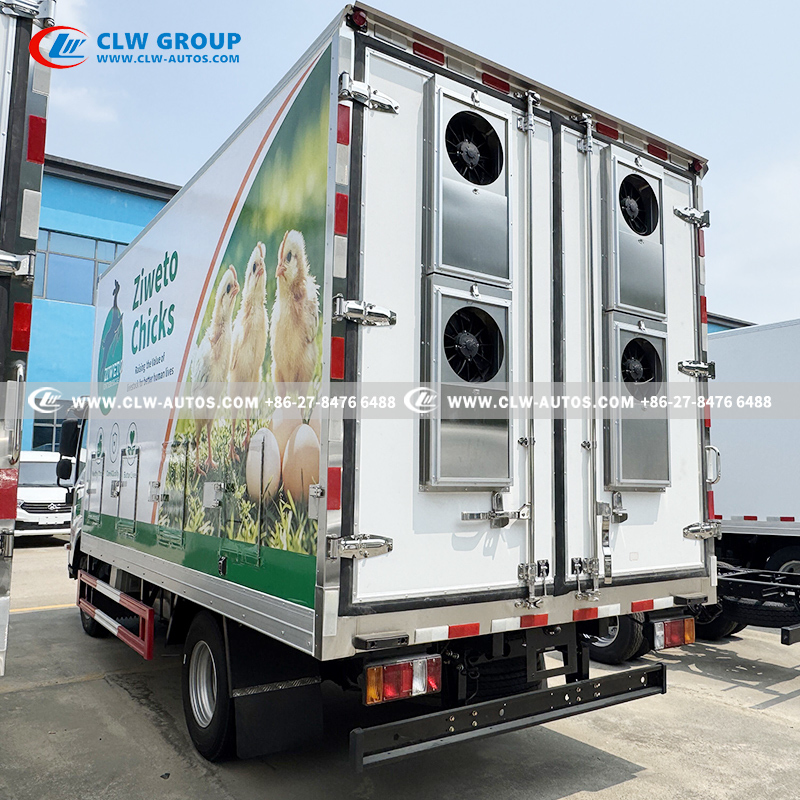

The 4.2m cargo box (4,200×2,400×2,400mm) is constructed with FRP inner/outer panels and high-density polyurethane insulation, featuring densely arranged circulating ventilation louvers on both sides for layered airflow. Internal partition shelves create multi-tier racks for chick transport baskets, enabling a load capacity of up to 20,000 chicks. The Carrier refrigeration unit provides precise temperature control at 26-30°C - the optimal transport temperature for chicks.

Key Features
  • ISUZU KV100 4x2 RHD Chassis: 3,360mm wheelbase, KV100 single-row cab with A/C, RHD. GVW 4,495kg, curb 2,295kg. 7.00R16 tires (6+1 spare). Low fuel consumption, minimal failure rate.
  • ISUZU 120HP Euro IV Engine: 4KH1CN6LB, 120HP, 2,999ml. MSB 5-speed manual transmission (5F+1R).

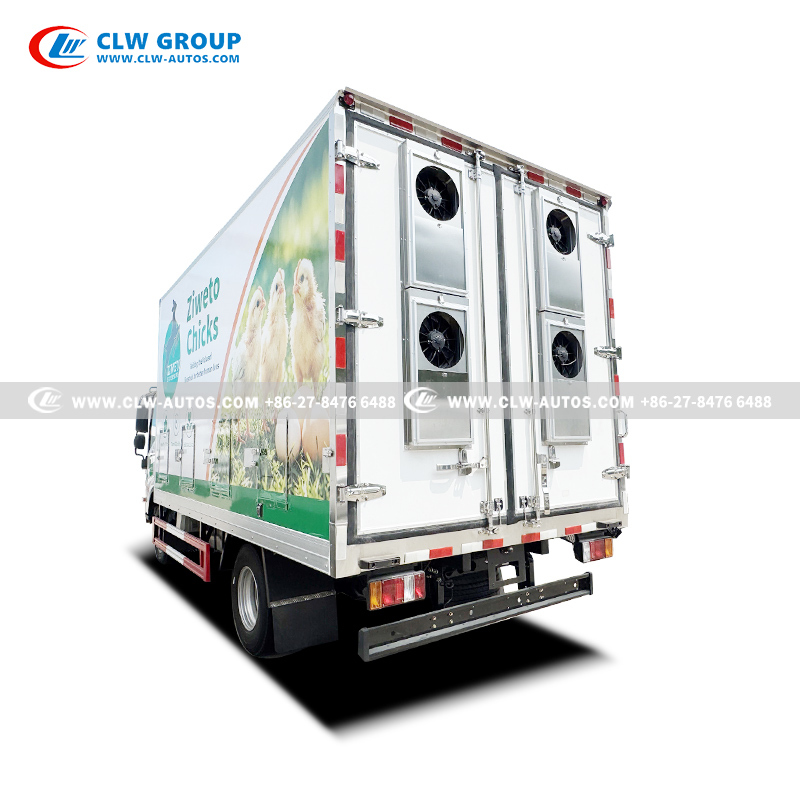

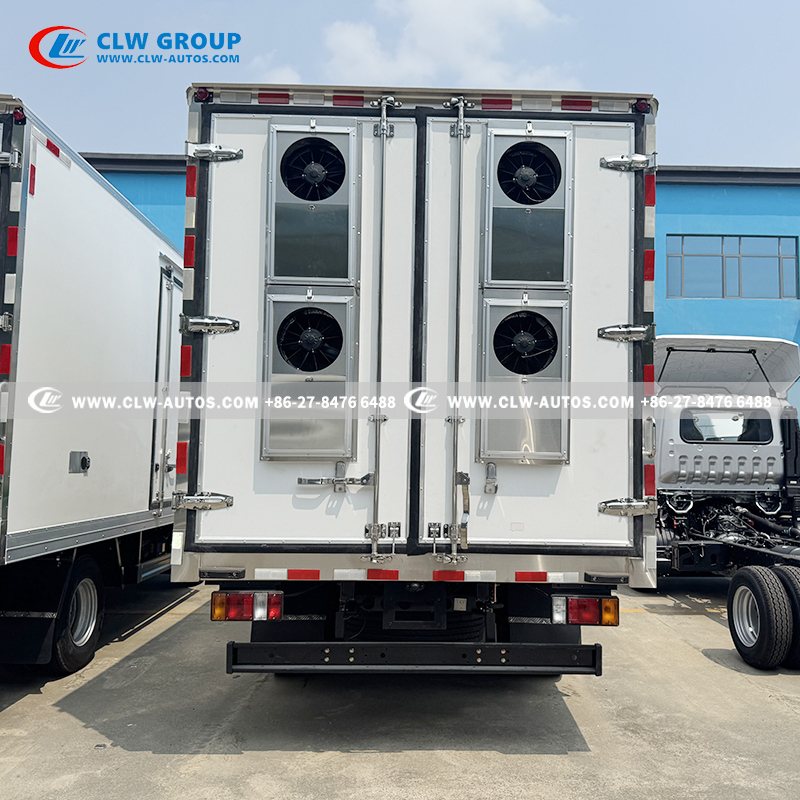

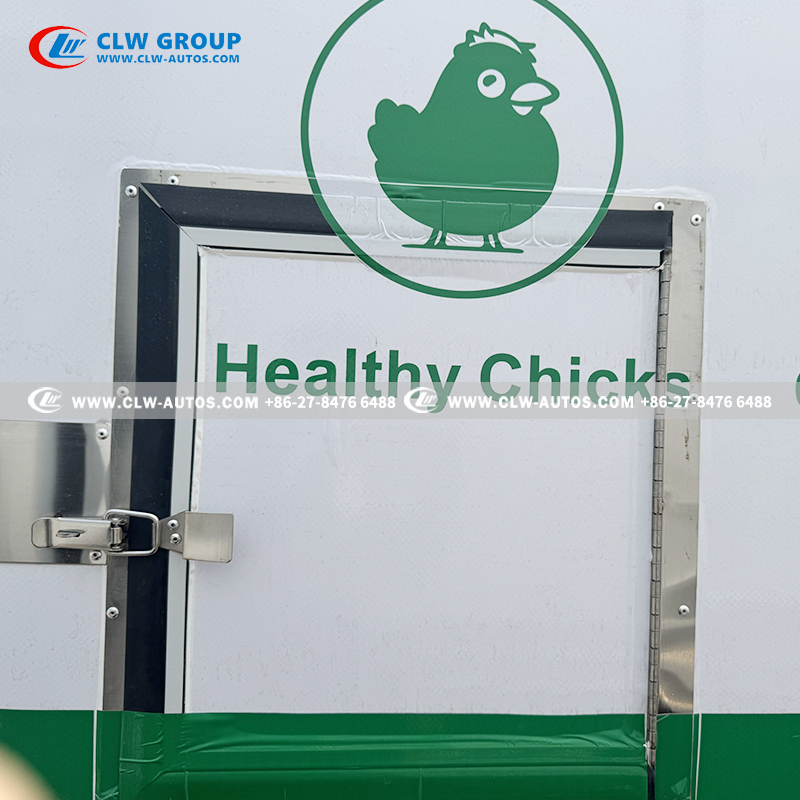

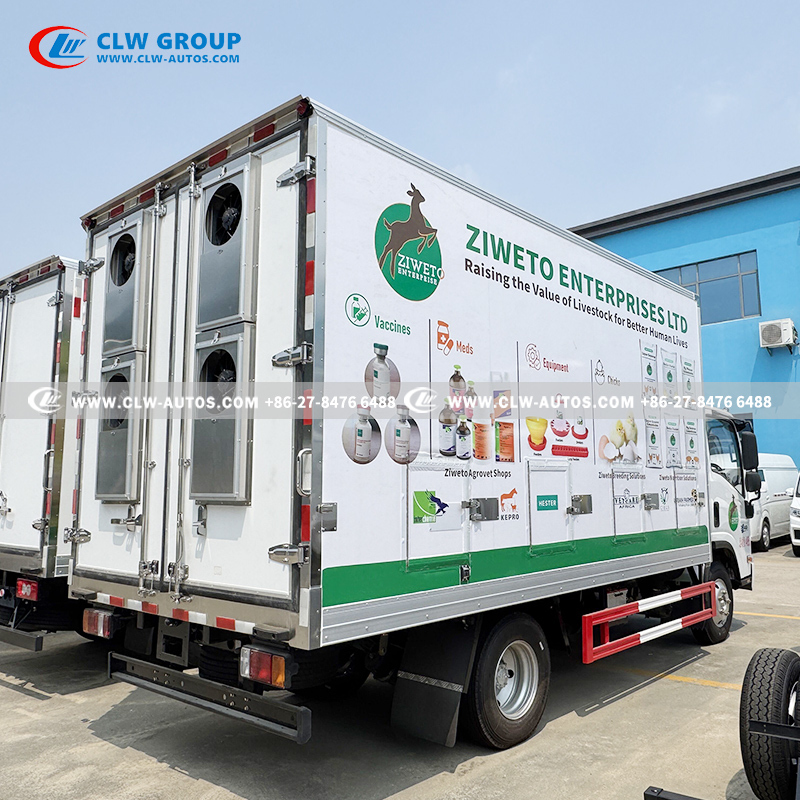

  • 4.2m Insulated Chick Box: 4,200×2,400×2,400mm. FRP + PU insulation. Ventilation louvers on both sides. Internal partition shelves for multi-tier chick baskets.

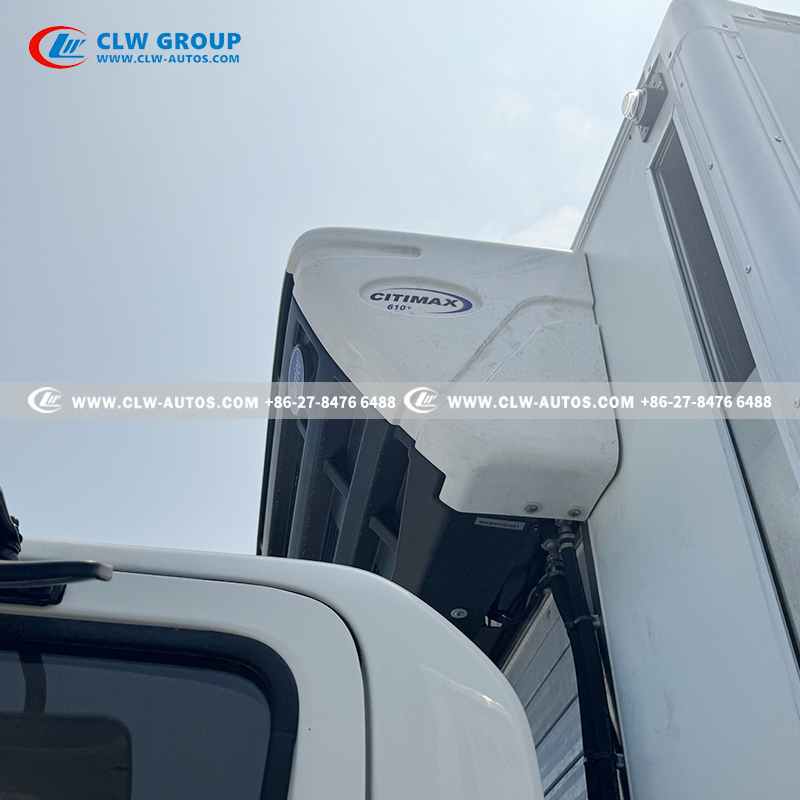

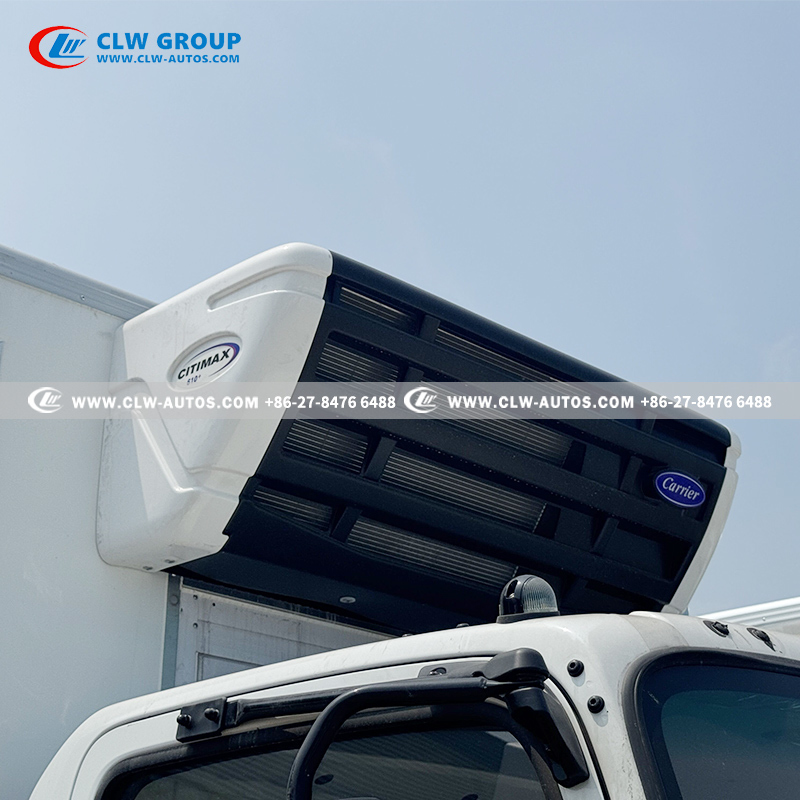

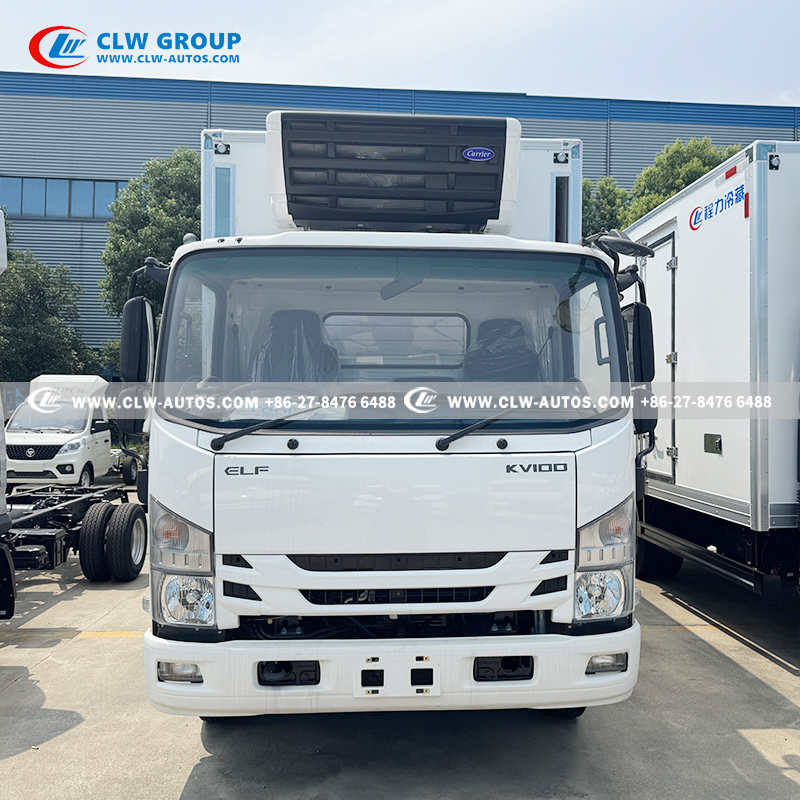

  • Carrier Refrigeration Unit: 26-30°C temperature control. Heat-resistant and dust-resistant for African tropical conditions.
  • 20,000-Chick Capacity: Optimal for small-to-medium batch deliveries.
  • Durable Construction: Lightweight, waterproof, moisture-proof. Smooth inner walls easy to wash and disinfect.
  • Optional Humidity Adjustment: Prevents chick dehydration.
  • Applications: Hatchery-to-farm chick delivery, poultry logistics, livestock transport.
Applications
  • Day-old chick transport from hatcheries to township farms
  • Poultry logistics for smallholder free-range bases
  • Cross-border chick transport in African RHD markets
  • Temperature-sensitive livestock transport (26-30°C)
  • Agricultural logistics operations
Specifications
Specification Details
Chassis ISUZU KV100 4x2 RHD
Wheelbase 3,360 mm
Overall Size 6,500 × 2,500 × 3,000 mm
GVW / Curb 4,495 kg / 2,295 kg
Cab KV100 single-row, RHD, A/C
Engine ISUZU 4KH1CN6LB, 120 HP, 2,999 ml, Euro IV
Transmission MSB 5-speed manual (5F+1R)
Tires 7.00R16 (6 + 1 spare)
Van Size 4,200 × 2,400 × 2,400 mm
Box Construction FRP + PU insulation
Ventilation Side louvers + layered airflow
Refrigeration Carrier (USA)
Temperature 26 - 30°C
Chick Capacity 20,000 day-old chicks
Applications Hatchery-to-farm chick delivery, poultry logistics, livestock transport
