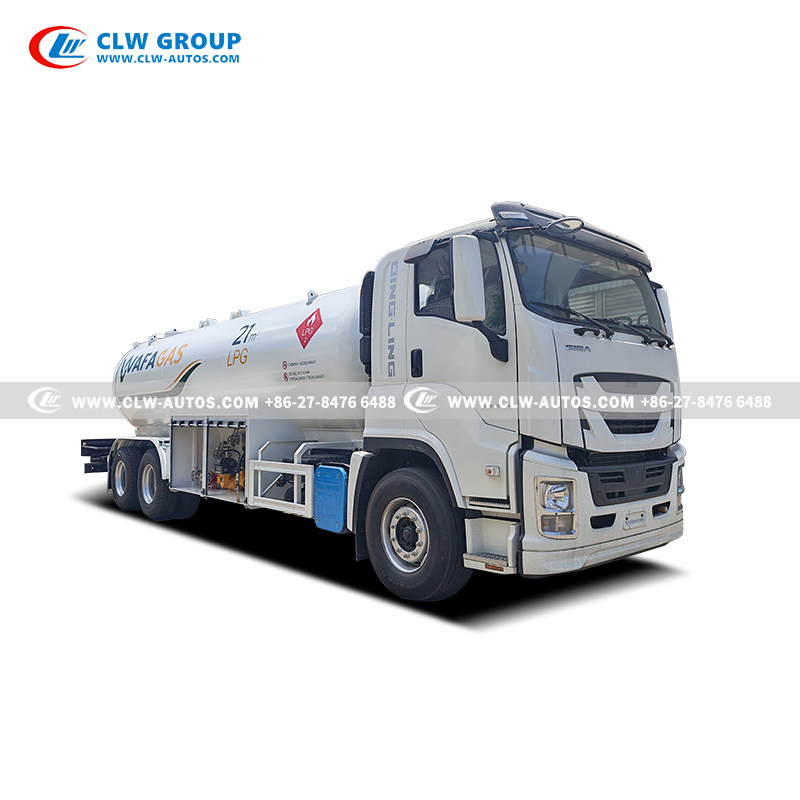

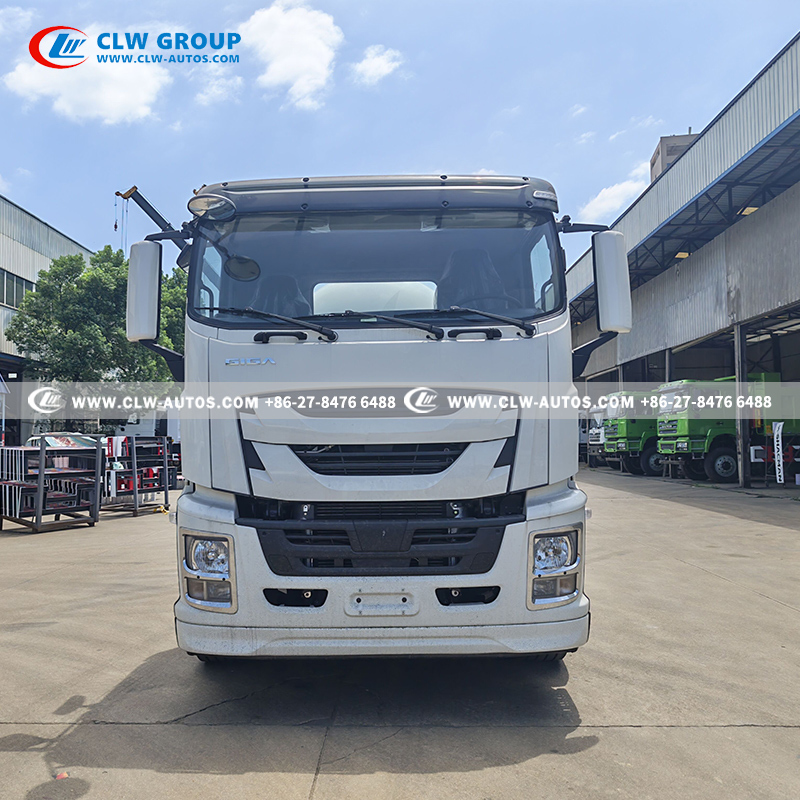

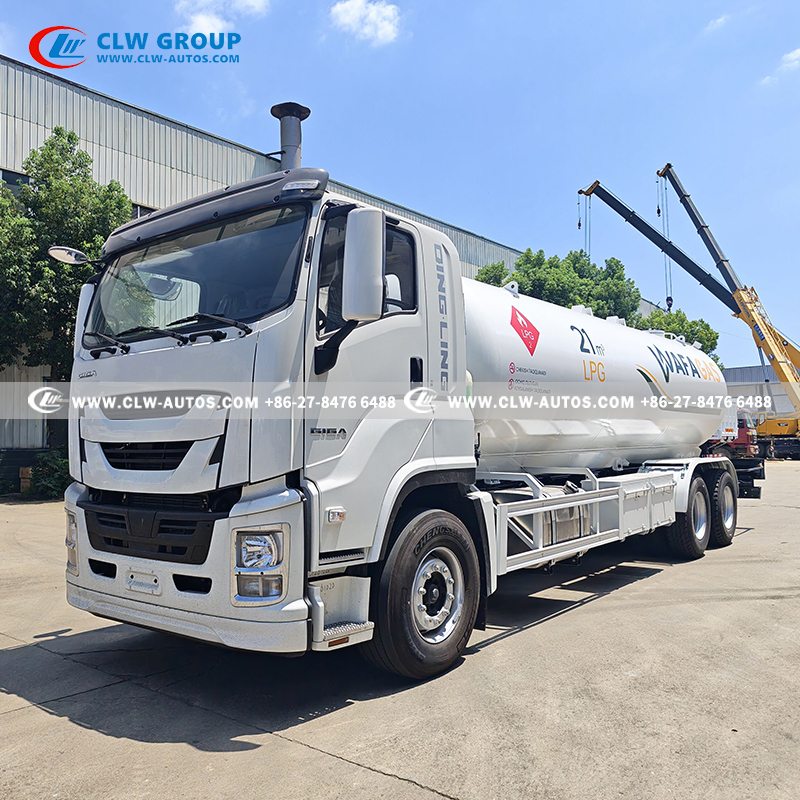

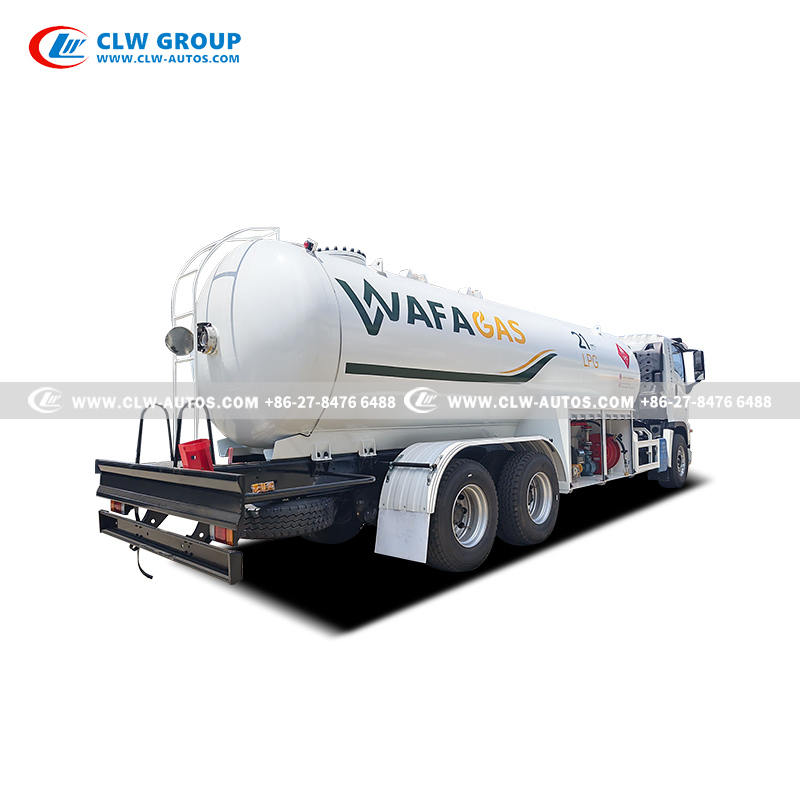

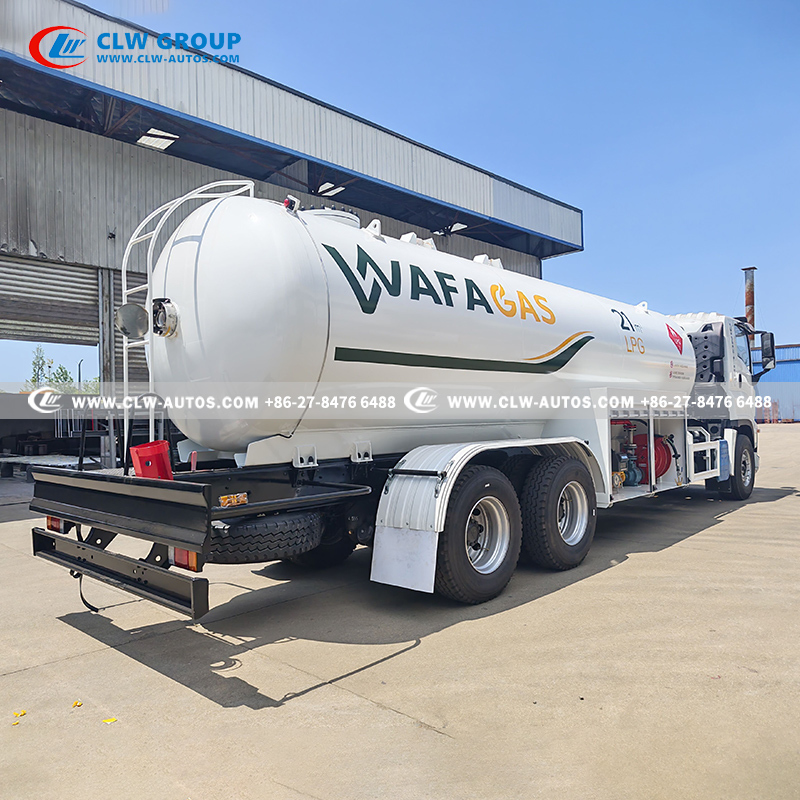

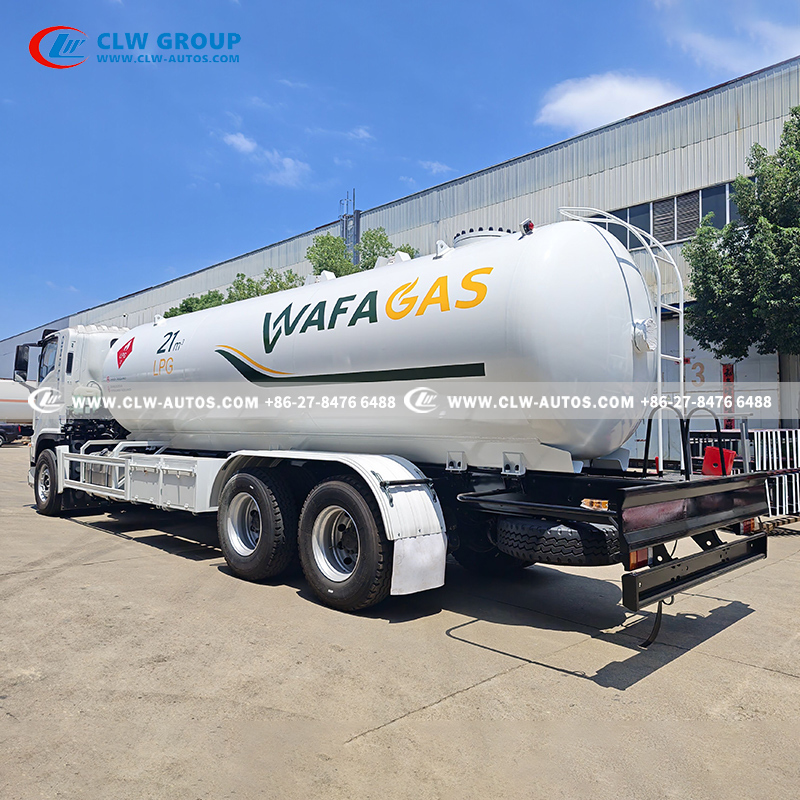

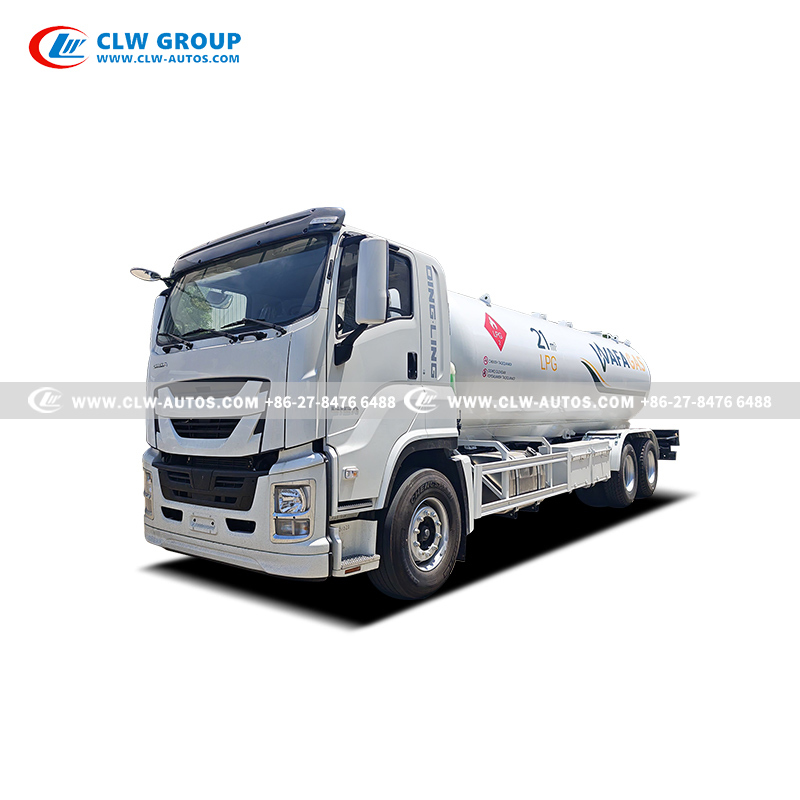

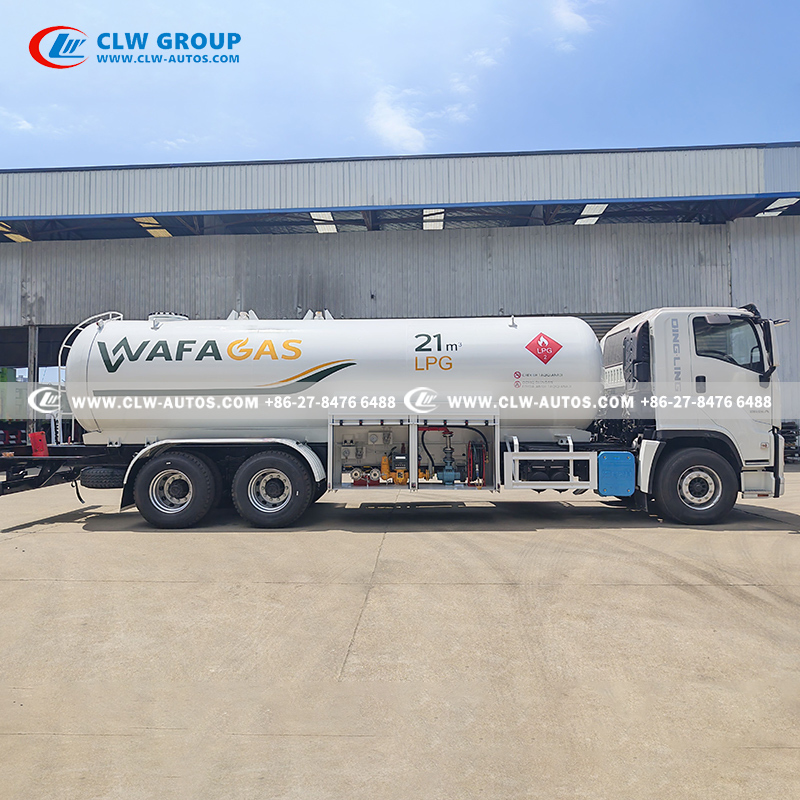

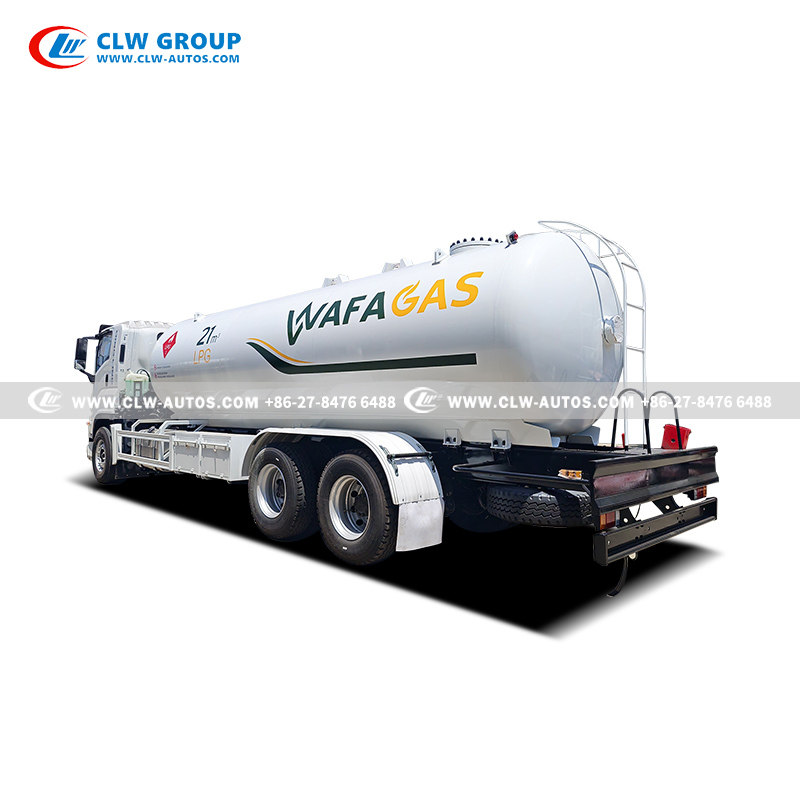

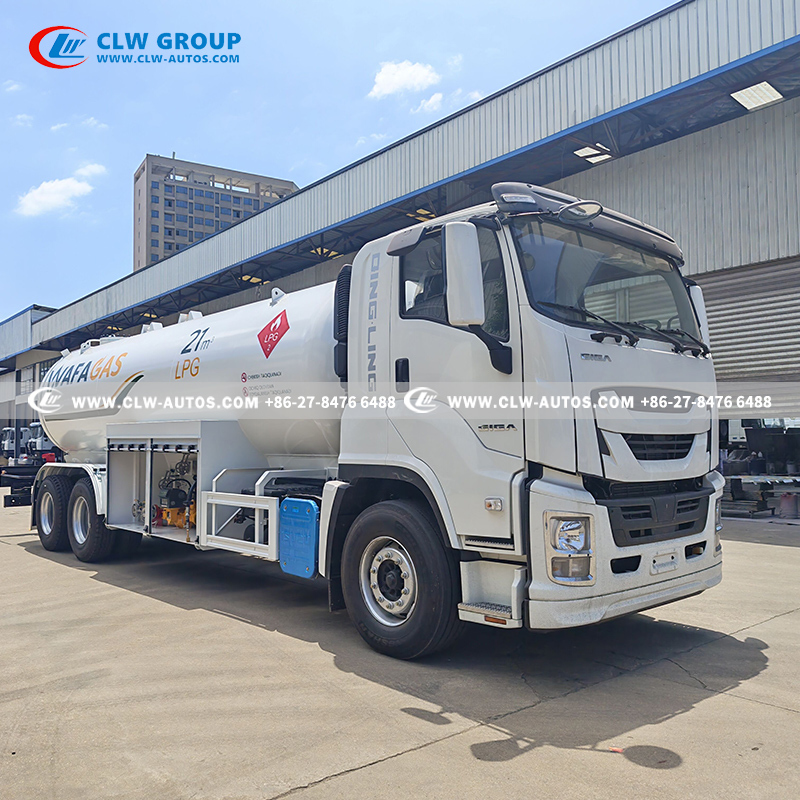

The ISUZU GIGA 6x4 LPG Bobtail Truck is a professional-grade heavy-duty gas delivery vehicle designed for LPG distribution, urban gas station supply, rural propane delivery, and industrial point-of-use gas transport. Built on the proven ISUZU GIGA 6x4 heavy-duty chassis with 4,650+1,350mm wheelbase and ISUZU GIGA cab (LHD with sleeper and A/C), this vehicle features an ISUZU 6UZ1 diesel engine delivering 380HP (9,839ml) with Euro VI compliance, paired with a FAST 12-speed manual transmission.

The 21m³ tank is constructed from Q345R pressure vessel steel with 10mm thickness, design pressure of 1.61MPa, and test pressure of 2.21MPa. The 6x4 tandem axle configuration provides strong load capacity and excellent driving stability. Safety equipment includes safety valves, emergency shut-off valves, pressure gauges, and liquid level gauges. The integrated bobtail design offers a smaller turning radius for urban maneuverability.

• ISUZU GIGA 6x4 Chassis: 4,650+1,350mm wheelbase, ISUZU GIGA cab with sleeper, LHD, A/C, 2-3 passengers. Front axle 9,000kg, rear axles 13,000kg×2. GVW 25,000kg, curb 15,000kg, payload 10,000kg. Tires 385/65R22.5 front / 315/80R22.5 rear (10+1 spare). 400L fuel tank.
• ISUZU 380HP Euro VI Engine: 6UZ1, 380HP, 9,839ml. FAST 12-speed manual transmission (12F+2R).
• 21m³ Q345R LPG Tank: 20,000L capacity, 10mm thickness. Design pressure 1.61MPa, test pressure 2.21MPa. Internal baffles.
• Safety Systems: Safety valves, emergency shut-off valves, pressure gauge, level gauge, anti-static line.
• Bobtail Design: Integrated vehicle with smaller turning radius for urban/rural maneuverability.
• 6x4 Tandem Axle: Effective weight distribution, superior adaptability under heavy-load conditions.
• Applications: LPG distribution, gas station supply, rural delivery, industrial gas.

• Urban LPG distribution and gas station supply
• Rural LPG delivery and community propane supply
• Industrial small-scale point-of-use gas delivery
• LPG depot replenishment
• Intercity and suburban long-haul LPG transport
• Gas station to customer cylinder refilling
