LHD / RHD Dongfeng 4x2 5cbm Vacuum Fecal Suction Truck
LHD / RHD Dongfeng 4x2 5cbm Vacuum Fecal Suction Truck
LHD / RHD Dongfeng 4x2 5cbm Vacuum Fecal Suction Truck
LHD / RHD Dongfeng 4x2 5cbm Vacuum Fecal Suction Truck
LHD / RHD Dongfeng 4x2 5cbm Vacuum Fecal Suction Truck
LHD / RHD Dongfeng 4x2 5cbm Vacuum Fecal Suction Truck
LHD / RHD Dongfeng 4x2 5cbm Vacuum Fecal Suction Truck
LHD / RHD Dongfeng 4x2 5cbm Vacuum Fecal Suction Truck
Specifications
Brand Name :
CLW
Model Number :
CLW53435cs
Certification :
CCC,ISO,BV,SGS
Place of Origin :
Suizhou,China
MOQ :
1 UNIT
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
300 units per month
Delivery Time :
30-35 days after received advance payments
Packaging Details :
Naked packing,Ro-ro,Bulk Ship
Brand :
Dongfeng,JAC,JMC,HOWO,ISUZU，SHACMAN,FOTON
Fuel :
Diesel Type
Wheelbase :
33000mm
Tank Material :
Carbon steel
Waste Tank :
5cbm/5000Liters/5tons
Vacuum pump :
China famous brand/Italy brand Jurop
Discharge :
Tank body hydraulic Lifting
Sewage suction pipe :
8 meters
Suction Time :
No More Than 5mins
Color :
Customized LOGO
Warranty :
1 year for major parts
Operation video :
yes
Technical support :
whenever needed
Description

Foton 20000 Liters Vacuum Sewage Suction Tank Truck Fecal Suction Tanker Truck

Product Description
1. Drive type: 4x2, 4x4, 6x4, 8x4 etc.
2. Chassis Brands: Our factory has good business relationship with DONGFENG, FOTON, ISUZU, FAW, SINOTRUCK, SHACMAN, JAC, JMC, etc.
3. Tanker body: From 2m3 to 25 m3 capacity.
4. Accessory of sewage suction factions: Equipped with PTO, transmission shaft, vacuum suction sewage pump, high pressure molding tank, moisture separator, gas-oil separation, multiple directional control valve, hanger rod, self-discharging valve, suck fecal gun and pipe network system.

Vehicle Description
Overall dimensions 5995*1980*2500mm
GVW 7360kg
Curb weight 3360kg
Chassis brand Dongfeng
Traction type 4*2
Tanker Description
Tanker Capacity 5cbm
Material 5mm thickness, high quality carbon steel
Structure Welding, vacuum tank, Cylindrical
Pump Type Vacuum pump
Flux 45(L/S)
Rating speed 500~800(r/min)
Shaft power 4(kw)
Features Low speed, low fuel consumption, low noise, high vacuum, high efficiency
Pipe Suction and discharge pipe
Special function Suction time ≤ 5min,
Effective suction range ≥ 8,
Max vacuum degree ≤ 15 Kpa,
dump angle ≥ 45
Standard configuration Equipped with Inspect window,discharge valve,cleaning apparatus,5 meter long suction pipe,oil-water separators, overflow valve,etc.
Optional configuration Tanker material: stainless steel.
Vacuum pump : Italy or Spain vacuum pumps.
Anti-rust coating inside tank.
Sprinkler function.
Chassis Description
Chassis Brand Dongfeng
Steering LHD/RHD
Cab Single row, with A/C
Wheelbase 3300mm
Tire specification 7.00R16
Tire quantity 6 tires and 1 spare tire
Engine Engine model Yunnei 4100
Emission level EURO 2or3
Horse power 88hp
Gearbox 5 forward and 1 reverse
Brake system Air brake
Axle Front 2tons
Rear 4tons
Fuel tanker Type Carbon steel

LHD / RHD Dongfeng 4x2 5cbm Vacuum Fecal Suction TruckLHD / RHD Dongfeng 4x2 5cbm Vacuum Fecal Suction Truck

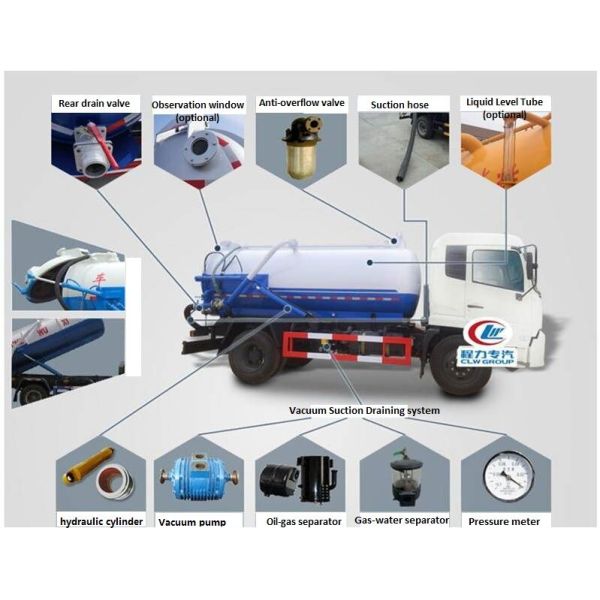

Truck Diagram

LHD / RHD Dongfeng 4x2 5cbm Vacuum Fecal Suction Truck

Discharge

LHD / RHD Dongfeng 4x2 5cbm Vacuum Fecal Suction Truck

Working Show

​

LHD / RHD Dongfeng 4x2 5cbm Vacuum Fecal Suction Truck

Sales Service

① Pre-sales Service: Communicate with customers, analyze their needs.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.

FAQ

Q1: What size Sewage Suction tank we can get from your company?

A: we can supply 5CBM to 35CBM sewer cleaning truck as per our customer's request. Pls contact with us for more technical details discussion.

Q2: Can we adopts International brand sewage pump for sewage suction truck?

A: Sure, we already cooperated with Italy Jourp and a Germany brand.

Q3: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
