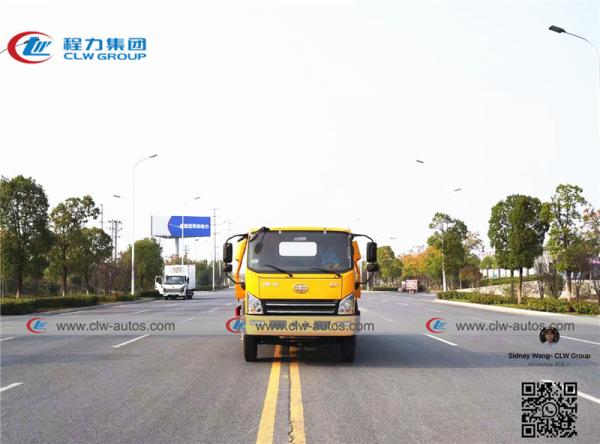

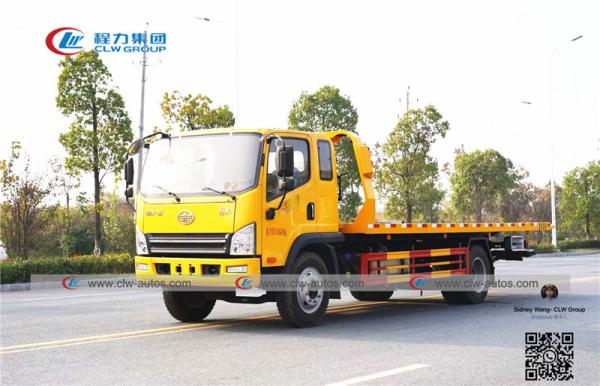

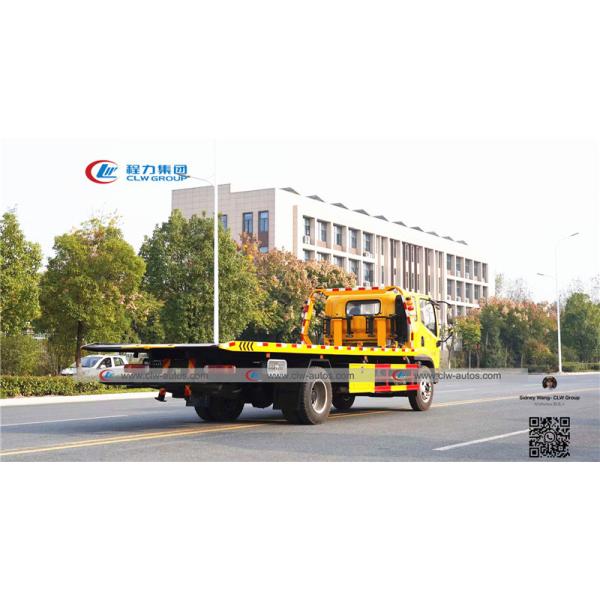

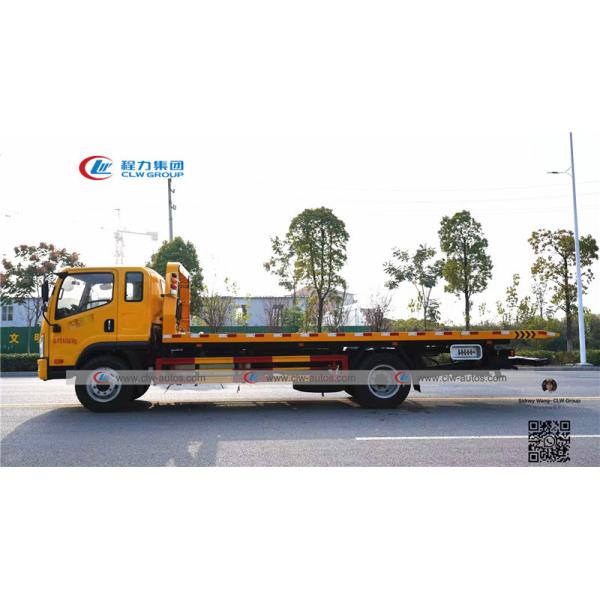

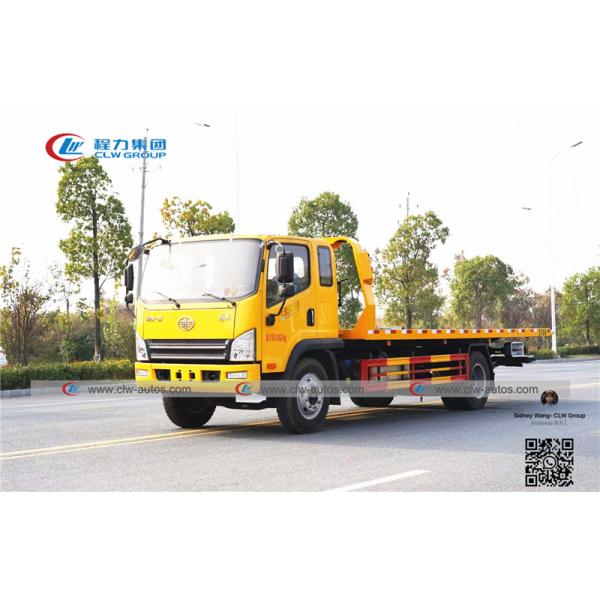

120HP FAW 4x2 Left Hand Drive Flatbed Towing Trucks
120HP FAW 4x2 Left Hand Drive Flatbed Towing Trucks
120HP FAW 4x2 Left Hand Drive Flatbed Towing Trucks
120HP FAW 4x2 Left Hand Drive Flatbed Towing Trucks
120HP FAW 4x2 Left Hand Drive Flatbed Towing Trucks
120HP FAW 4x2 Left Hand Drive Flatbed Towing Trucks
120HP FAW 4x2 Left Hand Drive Flatbed Towing Trucks
120HP FAW 4x2 Left Hand Drive Flatbed Towing Trucks
120HP FAW 4x2 Left Hand Drive Flatbed Towing Trucks
120HP FAW 4x2 Left Hand Drive Flatbed Towing Trucks
120HP FAW 4x2 Left Hand Drive Flatbed Towing Trucks
120HP FAW 4x2 Left Hand Drive Flatbed Towing Trucks
Specifications
Brand Name :
CLW
Model Number :
CLW5659
Certification :
CCC SGS BV
Place of Origin :
SUIZHOU,CHINA
MOQ :
1 Unit
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500 Units per month
Delivery Time :
30 days after receiving deposit at account
Packaging Details :
naked,waxed,bulk ship,ro-ro
Chassis Brand :
DONGFENG,ISUZU,FAW,HOWO,JAC,JMC
Towing capacity :
3tons, 4ton,5ton,5tons,,4t,5t,6ton,6t,6tons
Color :
White,yellow,Blue as customized
Steering :
LHD,RHD,right hand drive,left hand drive
Engine :
115hp, 120HP, 130hp
Wrecker Type :
One-towing-two,one-towing-one
Description

FAW/JMC/JAC/Dongfeng/Howo/Foton Customized Platform Wrecker Flatbed Towing Trucks wrecker rescue truck Road recovery truck

Description

1. According to the payload, there are light duty tow truck, middle duty tow truck and heavy duty tow truck to suit for different types of motor vehicle.

2. The heavy duty tow truck could rescue the construction trucks, city bus and other types of heavy duty vehicles.

3. The heavy duty tow truck has a rotate crane or boom, lifting capacity reaches 30tons.

4. The wheel lift organ on the heavy duty tow truck could be more than 20 tons and the total towing capacity is more than 40 tons.

5. Hubei Huilong Special Vhielce is experienced in making different types of wrecker tow truck.

6. We have different brands of truck chassis to make the wrecker tow truck.

7. The tow truck chassis are SINOTRUK HOWO, Dongfeng, Faw, ISUZU, JAC, JMC etc.

Specification

General Technical Specification
Overall Dimension 5997x2300x2220(mm)
Gross Vehicle Weight 4495 (Kg)
Curb Weight 3600(Kg)
Chassis Specification
Chassis Brand FAW
Drive model 4*2
Cabin Single, Left Hand Drive
Engine Model 4-stroke direct injection, 4-cylinder in-line with water cooling, turbo-charging and inter-cooling
Power 120HP
Emission standard EURO 2 or 3
Displacement 3707(ml)
Fuel type Diesel
Gearbox 5 Forwards & 1 Reverse, Power steering, hydraulic steering with power assistance
Brake System Pneumatic(Air break/exhaust brake)
Wheel Base 3308(mm)
Front/Rear Axle Loading 3000/3500(Kg)
Approach/Departure Angle 24/12(°)
Tire 7.00R16, 6pcs + 1 spare tire
Max Driving Speed 105(km/h)
Superstructure Specification
Platform Dimension 4200*2320(mm)
Rear manual flip board length 1200(mm)
Material Q235 carbon steel
Max Loading capacity 5000(kg)
Winch Quantity 1
Winch rating towing capacity 4000(kg)
Length of steel rope 25(m)
Speed of winch 3.23~8 (m/min)
Other parts Auxiliary wheels, alarm light, hooks, 4 bundling belt, automatic sliding plate, etc.
Options Caution light, air condition, inlet valve.

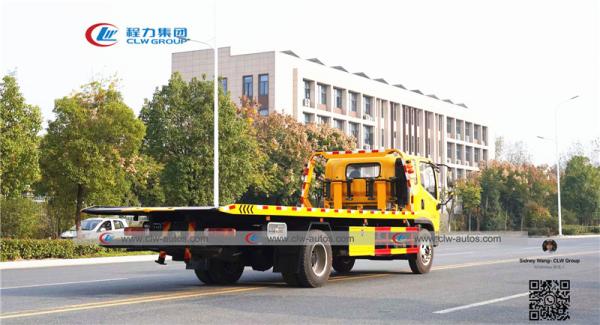

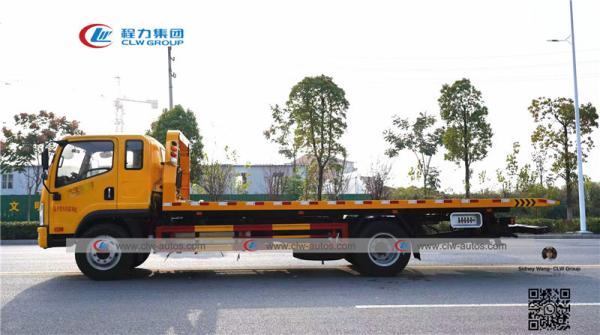

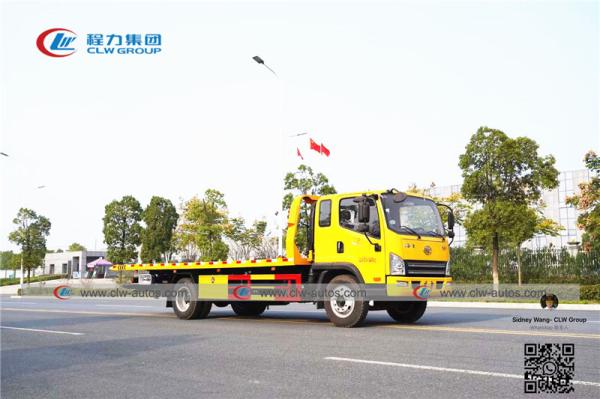

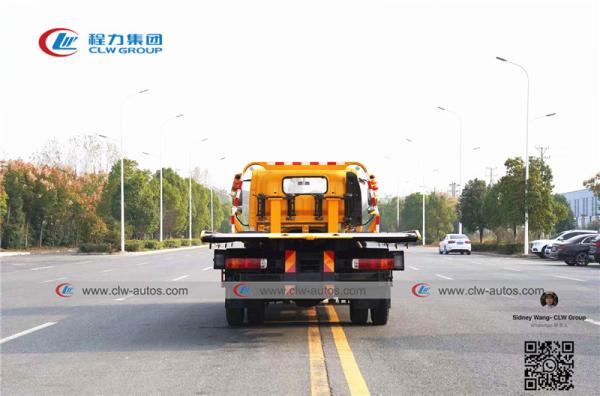

Reference photos
120HP FAW 4x2 Left Hand Drive Flatbed Towing Trucks120HP FAW 4x2 Left Hand Drive Flatbed Towing Trucks120HP FAW 4x2 Left Hand Drive Flatbed Towing Trucks120HP FAW 4x2 Left Hand Drive Flatbed Towing Trucks
Parts diagram
120HP FAW 4x2 Left Hand Drive Flatbed Towing Trucks
Item No. Name
1 chassis
2 Warning lamp
3 Single lamp(white-front clearance lamp;red-rear clearance lamp
4 Winch and steel rope
5 Loading plate
6 Side signal lamp
7 Chain hook
8 Wheel lift
9 “L” bracket
10 Operation and hydraulic system
11 Auxiliary wheel
12 Side guard rail
13 Tool box and accessories
14 PTO and oil pump
15 Witch and operation handle of PTO
120HP FAW 4x2 Left Hand Drive Flatbed Towing Trucks
Factory overview
120HP FAW 4x2 Left Hand Drive Flatbed Towing Trucks
120HP FAW 4x2 Left Hand Drive Flatbed Towing Trucks

Our Service

  • Quick feedback to solve your questions

  • Professional engineering and production team

  • Related Accessories and spare parts offered,no future worries

  • Regular customer after-sale visiting

  • Free technical staff training and guidance

  • Reasonable price and good quality

  • Quick delivery and shipment

FAQ

Q1: What kinds of wrecker trucks I can order from your company?


A: There are various sizes of wrecker trucks with different functions and different capacity,you can contact us and tell your request.We will recommend you suitable product.

Q2: Have you supplied sweeper products to any overseas companies?


A: Yes,with need of towing services,we offered wrecker trucks and wrecker superstructurer to many African,south-east Asian and south-American countries.

Q3 What about warranty?


A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?


A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.

Warranty

1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer manual, video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.

Spare Parts

1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.

Shipment

Land transportation or Ship by bulk cargo ship, container, roro ship

After Sales Service

Email & Phone call tracking for each truck on timely manners.
