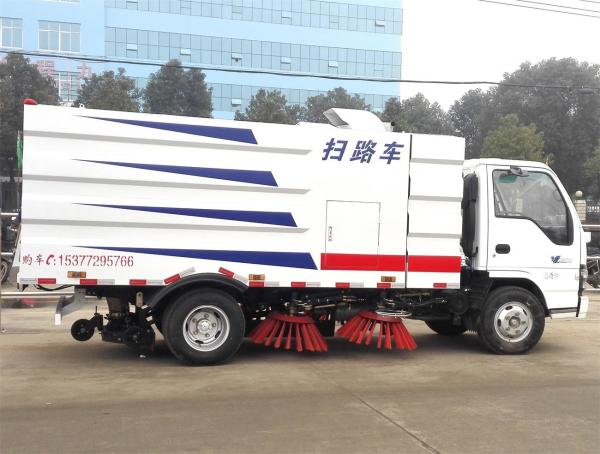

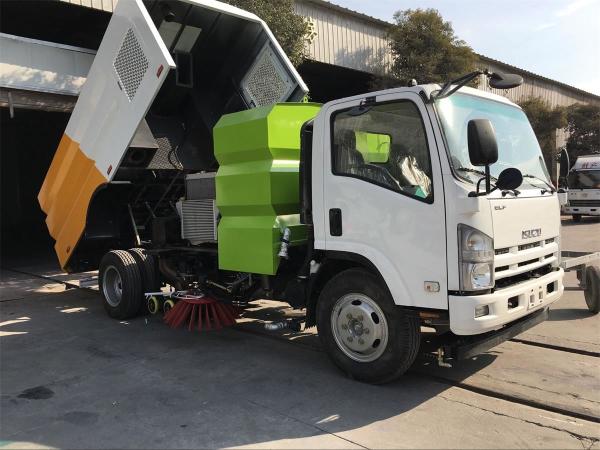

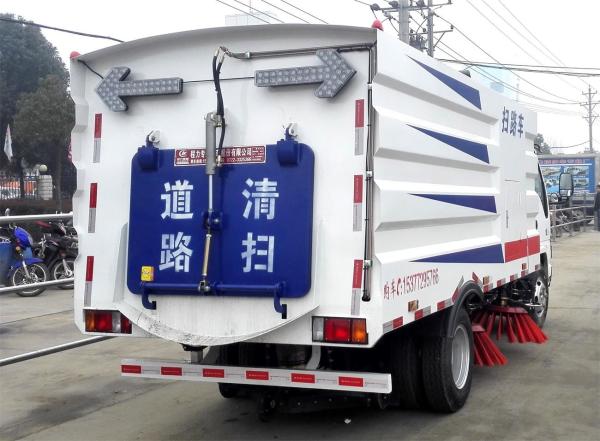

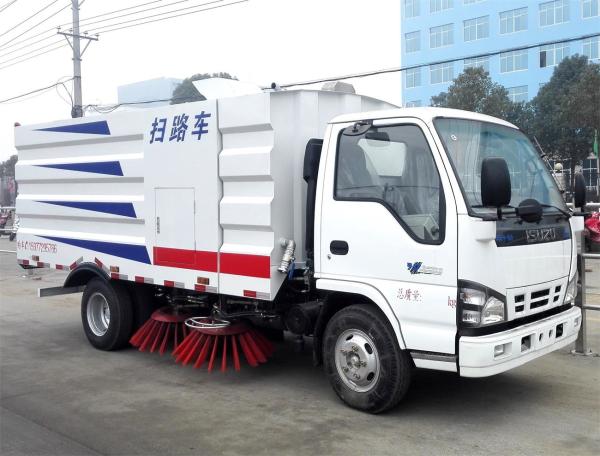

5T ISUZU 120HP LHD Street Sweeper Vacuum Truck
5T ISUZU 120HP LHD Street Sweeper Vacuum Truck
5T ISUZU 120HP LHD Street Sweeper Vacuum Truck
5T ISUZU 120HP LHD Street Sweeper Vacuum Truck
5T ISUZU 120HP LHD Street Sweeper Vacuum Truck
5T ISUZU 120HP LHD Street Sweeper Vacuum Truck
5T ISUZU 120HP LHD Street Sweeper Vacuum Truck
5T ISUZU 120HP LHD Street Sweeper Vacuum Truck
5T ISUZU 120HP LHD Street Sweeper Vacuum Truck
5T ISUZU 120HP LHD Street Sweeper Vacuum Truck
5T ISUZU 120HP LHD Street Sweeper Vacuum Truck
5T ISUZU 120HP LHD Street Sweeper Vacuum Truck
Specifications
Brand Name :
CLW / Chengli
Model Number :
CLW5042TSLB5
Certification :
CCC,ISO,
Place of Origin :
China
MOQ :
1
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
500Unit Per Month
Delivery Time :
20-30 Days
Packaging Details :
Naked Pack with Wax
Box Material :
Stainless Steel
Truck Brand :
ISUZU
Truck Engine :
ISUZU Diesel 120HP
Gearbox :
6Forward & 1 Reverse
Tire :
7.00R16
Front Axle :
3.2Ton Front
Rear Axle :
5.0Ton Rear
Fuction :
City Road cleaning
Sweeper :
Plastic with Steel Inside
Water Container :
1500 Liter
Garbage Box :
3500Liter
Description

Small 5Ton ISUZU Road Sweeper Truck Water Tank

Product Description

  • Design for City Road Cleaning
  • Small in Size, Large in Working Capacity
  • Separated Engine for Sweeping System
  • JMC Auxluary Engine: 77HP

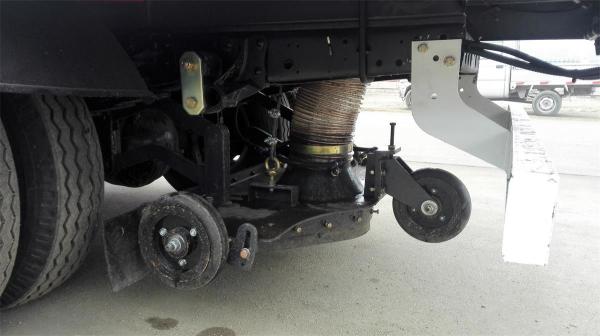

  • Wind Suntion System to suck up the garbage.

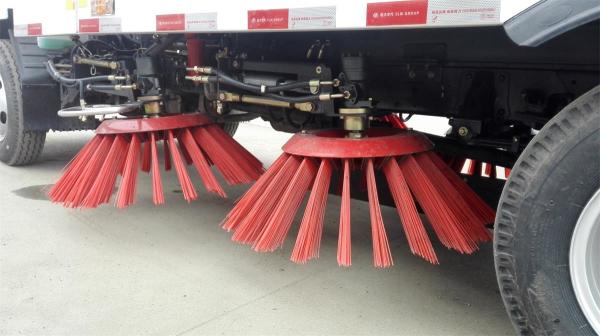

  • Sweeping System: 2 Brush at each side

Specifications

ISUZU Road Sweeper Truck
Item No. Parameters
Overall Dimension 6830 x 2210 x 2650 mm
Curb Weight 5700 kg
Loading Weight 3000 Kg
Wheel Base 3800 mm
Front/rear Tread 1095 / 1475 mm
Approach/Departure Angle 21 / 14 degree
Cabin ISUZU 600P, Left Hand Driving, with Air Conditioner,
Engine ISUZU 4KH1-TCG40 Diesel Engine, 120HP, 3400RMP, 2.999Liter, 4 Cylinder in Line, Turbo Charge,
Gear Box ISUZU MSB Manual, 5 Forward Gear & 1 Reverse Gear,
Brake Oil Brake with Vacuum Pump
Steering Gear Hydraulic Power Steering
Tire 700-16, 6 Piece with 1 Spare
Fuel Tank 100 Liters
Sweeping System
Dust Bin 6 m3 Water Bin 2 m3
Material of Both Bin Stainless Steel Engine JMC JX493G3, 77HP,
Brush Quantity 4 Pieces Brush Diameter 900mm
Work Width 3.0-3.5 meters Working Speed 3-15 km/h
Dust Bin Tipping System Hydraulic Tipping Dust Bin Tipping Angle More than 40 degree
Dust Cleaning Percentage 90-95% Maximum Capacity 45000 m2/h
Sucking Object Diameter less than 50mm (coal) Working Duration 4 hours

Function Specification:

1. All Controlling System are Inside the Cabin Easy for Handling.

2. All Stainless Steel Dust Bin & Water Bin.

3. Separated Engine Support Hydraulic Pump & Suction Machine.

4. Hydraulic Pump Control Left & Right Brush Can Work Separately or Simultaneously.

5. Left & Right Brush System are Patented by Chinese Government for Avoiding the Obstacle.

6. Major Hydraulic Parts are Imported Good Quality parts.

7. Water Spraying System to Control Dust on Road.


5T ISUZU 120HP LHD Street Sweeper Vacuum Truck

5T ISUZU 120HP LHD Street Sweeper Vacuum Truck

5T ISUZU 120HP LHD Street Sweeper Vacuum Truck

5T ISUZU 120HP LHD Street Sweeper Vacuum Truck

Inquiry Line:
Whatsapp: +86 186 0715 8551
Email:eric@clw-autos.com


Our Service

  • High Speed Reponse to Customer's Request

  • Professional R&D department

  • Extra Spare Parts Deliver Together

  • Regular customer after-sale visiting

  • Free technical staff training and guidance

  • Reasonable price and good quality

  • Quick delivery and shipmen


FAQ

Q1: What kinds of sweeper trucks I can order from your company?
A: There are various sizes and types of garbage trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.

Q2:: Have you supplied sweeper truck to any overseas companies?
A: Yes,with need of garbage waste transport,we offered garbage trucks to many Africa and south-east Asian countries.

Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
