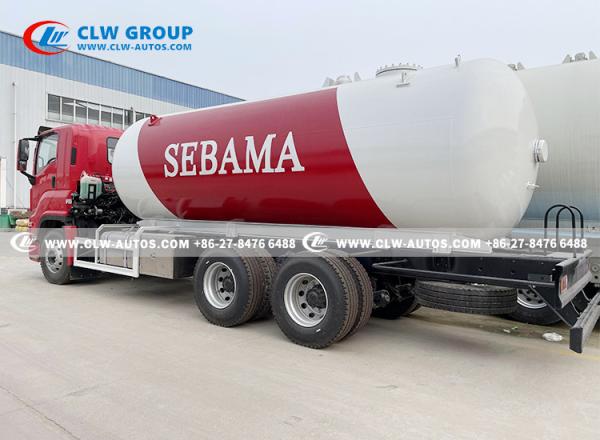

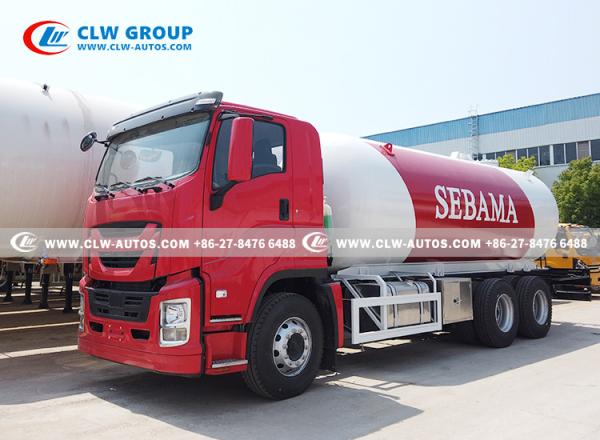

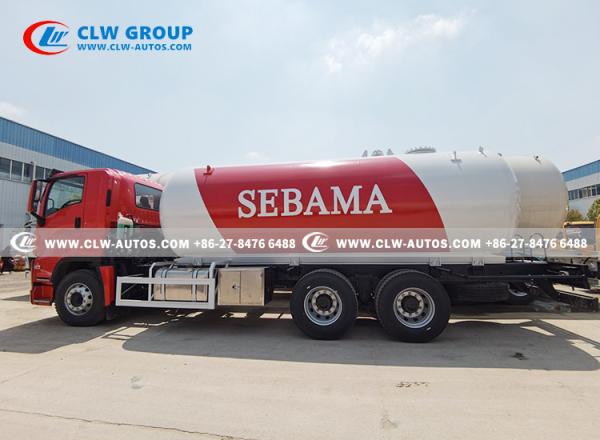

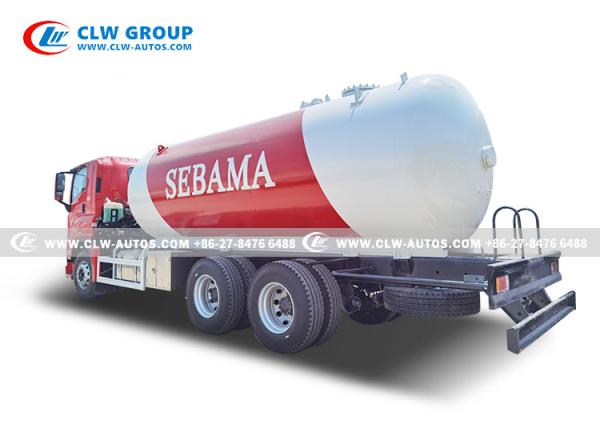

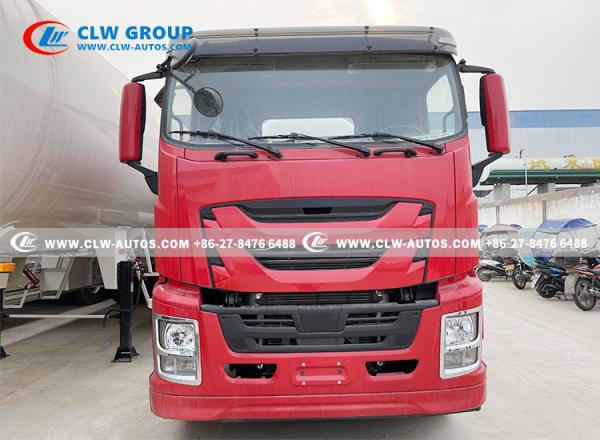

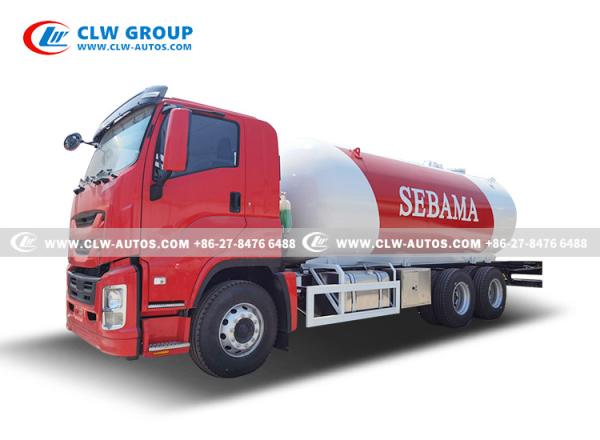

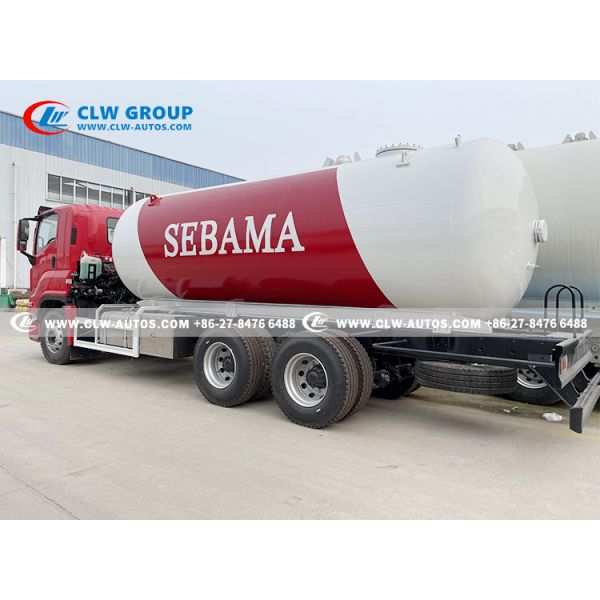

Isuzu Giga 20m3 Mobile LPG Cylinder Filling Delivery Truck Bobtail Truck
Isuzu Giga 20m3 Mobile LPG Cylinder Filling Delivery Truck Bobtail Truck
Isuzu Giga 20m3 Mobile LPG Cylinder Filling Delivery Truck Bobtail Truck
Isuzu Giga 20m3 Mobile LPG Cylinder Filling Delivery Truck Bobtail Truck
Isuzu Giga 20m3 Mobile LPG Cylinder Filling Delivery Truck Bobtail Truck
Isuzu Giga 20m3 Mobile LPG Cylinder Filling Delivery Truck Bobtail Truck
Isuzu Giga 20m3 Mobile LPG Cylinder Filling Delivery Truck Bobtail Truck
Isuzu Giga 20m3 Mobile LPG Cylinder Filling Delivery Truck Bobtail Truck
Isuzu Giga 20m3 Mobile LPG Cylinder Filling Delivery Truck Bobtail Truck
Isuzu Giga 20m3 Mobile LPG Cylinder Filling Delivery Truck Bobtail Truck
Isuzu Giga 20m3 Mobile LPG Cylinder Filling Delivery Truck Bobtail Truck
Isuzu Giga 20m3 Mobile LPG Cylinder Filling Delivery Truck Bobtail Truck
Specifications
Brand Name :
CLW
Model Number :
CLW5077GYQ
Certification :
ASME,CCC,BV,SGS
Place of Origin :
SUIZHOU,CHINA
MOQ :
1 Unit
Price :
negotiable
Payment Terms :
D/A, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500 units/month
Delivery Time :
30 days after receiving deposit
Packaging Details :
naked,waxed,bulk ship,ro-ro
Truck Brand :
Dongfeng, FOTON, HOWO,JAC,JMC,SHACMAN
Tank Capacity :
10tons, 10t, 10mt
Tank Volume :
20,000Liters, 20000L,20m3
Flow meter :
Displacement Flow meter
Pump :
Hydraulic Pump with PTO Powered
Filling Head :
REGO Brand
Discharging Valve :
1", 2", 3"Flange Type
Warranty :
one year
Logo :
as customer's request
Description

Isuzu Giga 20m3 Mobile LPG Cylinder Filling Delivery Truck Bobtail Tuck
1. Truck Chassis Specification:

a. I-suzu Chassis, Left Hand Drive.

b. 380 HP Diesel Engine, Euro 5.

c. GearBox: ZF8 speed gearbox


2. Tanker Main Specification:

a. Tank Size: 20000Liters, 20 cubic meters, Loading Capacity: 10tons.

b. Tank Material: Q345R for pressure, Q370R material for optional.

c. Tank thickness: 12mm. End Plate thickness: 12mm.

d. Liquid Phase & Vapor/Gas Phase

e. Float ball or Rotor tyoe level gauge, With Thermometer, pressure gauges.

f. Filling System: With Chinese brand pump, or Corken Brand Pump. Flow meters, 30 meters to 45 meters length filling hose.

With Dispenser to fill different size gas cylinders.

Specification:

Item No. Parameters
Overall Dimension 9510X2470x3450 mm
Driving Model Left hand drive or right hand drive
Gross Vehicle Weight 35000 kg
Curb Weight 9700 kg
Payload 20,000 kg
F/R Axle Loading 7500/2*13,000 kg
Wheel Base 4600+1370 mm
Front/rear Tread 1886/1845 mm
Approach/Departure Angle 27/20 degree
Engine 6UZ1-TCG61 diesel engine
Engine horsepower 380 HP Euro 5
Displacement 7255mL (Diesel)
Max Driving Speed 90 km/h
Cabin 2~3 Passenger allowed,with A/C
Tire 12R22.5 (10 pc with 1 spare)
LPG tank
Volume: 20cbm
Tank material: Q345R
Tank diameter: 1800mm
Tank thickness: 12mm
End plate 12mm
Tank length: As designed
Gas phase DN50
Liquid Phase DN50 or DN80 for option
Filling gas Propane(LPG)
Design Pressure: 1.61Mpa

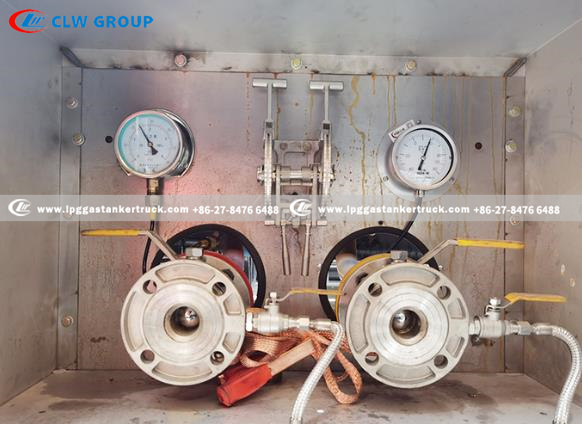

Accessory
Level Gauge Manual rotation type,at the rear of tank
Safety Valve 1,DN80
Tool and Valve Box 1
Thermometer 1
Pressure Gauge 1
Emergency Valve 1
Fender Steel
Fire Extinguisher holder 2
Exhaust shaft At the front of truck for safety

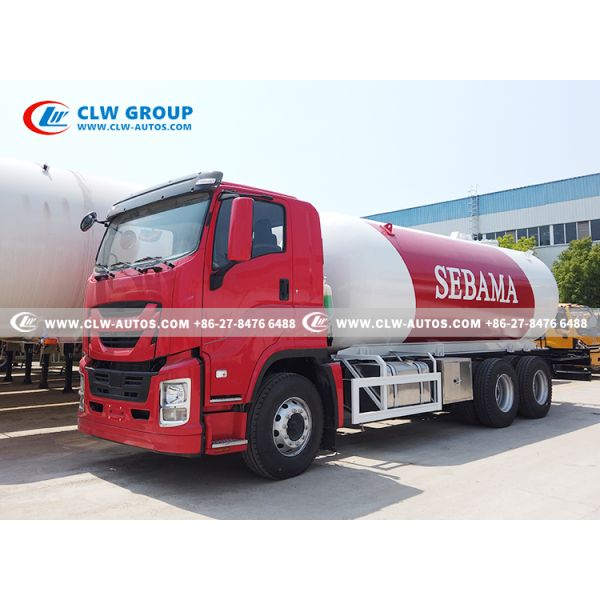

Reference Picture

Isuzu Giga 20m3 Mobile LPG Cylinder Filling Delivery Truck Bobtail Truck


Isuzu Giga 20m3 Mobile LPG Cylinder Filling Delivery Truck Bobtail Truck

Isuzu Giga 20m3 Mobile LPG Cylinder Filling Delivery Truck Bobtail Truck

Our Service

  • Quick feedback to solve your questions

  • Professional engineering and production team

  • Related Accessories and spare parts offered,no future worries

  • Regular customer after-sale visiting

  • Free technical staff training and guidance

  • Reasonable price and good quality

  • Quick delivery and shipment
