HOWO LPG Bobtail Propane Delivery Truck 2.5ton 5000liters
HOWO LPG Bobtail Propane Delivery Truck 2.5ton 5000liters
HOWO LPG Bobtail Propane Delivery Truck 2.5ton 5000liters
HOWO LPG Bobtail Propane Delivery Truck 2.5ton 5000liters
HOWO LPG Bobtail Propane Delivery Truck 2.5ton 5000liters
HOWO LPG Bobtail Propane Delivery Truck 2.5ton 5000liters
HOWO LPG Bobtail Propane Delivery Truck 2.5ton 5000liters
HOWO LPG Bobtail Propane Delivery Truck 2.5ton 5000liters
Specifications
Brand Name :
CLW
Model Number :
CLW5077ZXS
Certification :
ASME,CCC,BV,SGS
Place of Origin :
SUIZHOU,CHINA
MOQ :
1 Unit
Price :
negotiable
Payment Terms :
D/A, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500 units/month
Delivery Time :
30 days after receiving advanced deposit
Packaging Details :
naked,waxed,bulk ship,ro-ro
Truck Brand :
Sinotruk HOWO,ISUZU,Dongfeng,Shacman,FAW,JAC,JMC
Engine :
Yuchai, Chaochai, Cummins
Design pressure :
1.61 Mpa
Tank Material :
Q345R
Tank Capacity :
5000Liters, 2.5tons, 2.5mt, 5cbm
Loading weight :
2.5tons, 2.5mt, 2tons, 2mt
Flow meter :
Displacement Flow meter
Pump :
Hydraulic Pump with PTO Powered
Discharging Valve :
1", 2", 3"Flange Type
Service time :
10 years
Warranty :
One year for engine,gearbox, axle
LOGO & Painting :
As per customer's request
Usage :
Cylinder refilling, truck gas supply
Tank size :
5000 liters
Engine type :
Cummins 141hp
Description

HOWO 2.5ton 5000liters LPG Bobtail Propane Delivery Truck

Product Description

1) Truck Brand of LPG bobtail Truck : Howo,optional for dongfeng,faw,isuzu,foton and other brands

2) Tank Size of LPG bobtail Truck : 5,000liters,5000L,5cbm

3) Function of LPG bobtail Truck : mobile Propane or Butan Gas Delivery/ Refilling/bottling/filling

4) Refiling System of LPG bobtail Truck : 2" Flowmeter or intelligent filling dispenser machine,2" Corken or Chinese brand Pump,15meters Filling Hose Reel

5) Truck Spec of LPG bobtail Truck : Cummins Engine 141HP, WLY651 Gearbox 6 Forward & 1 Revers, 7.50R16 Tires

Specification

1. Specification of 5000Liters Upper Tanker
Item Unit Parameter
Thickness of Shell mm 10.0
Thickness of Endplate mm 10.0
Corrosion Allowance mm 1.0
Fact cubic meters cbm 5cbm (5,000L)
Loading capacity kg 2400/4200 kg
Working temperature ºC -40/+55 oC
Tank material mm Carbon Steel Q345R(Pressure Vessel Steel)
Manhole mm DN450(18 inch)
Safety Valve mm DN50(2 inch)
Liquid Line mm DN50(2 inch)
Gas Line mm DN50(2 inch)
2. Specification of Chassis
Condition New condition/Right hand drive/4x2


Main details		 Brand and Model HOWO
Wheelbase(mm) 3360
Front/Rear overhang(mm) 1205/2310
Approach/Departure angle(°) 18/12
Max. driving speed(km/h) 90
Clutch Reinforced diaphragm clutch
Brakes Service brake: dual circuit compressed air brake.
Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels
Auxiliary brake: engine exhaust valve brake
Steering Gear Power steering, hydraulic steering with power assistance
Tire Quantity 6pcs with one spare tire
Specifications 7.50R16
Transmission Manual type, 6 Forwards and 1 reverse
Cabin It can accommodate three people, With Air conditioner
Engine Brand and Model Optional
Fuel type Diesel
Emission standard Optional

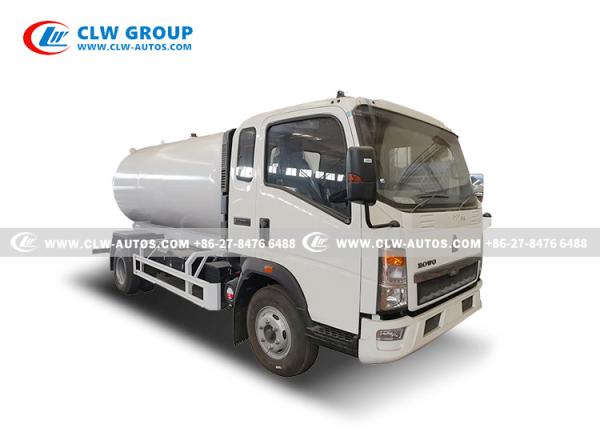

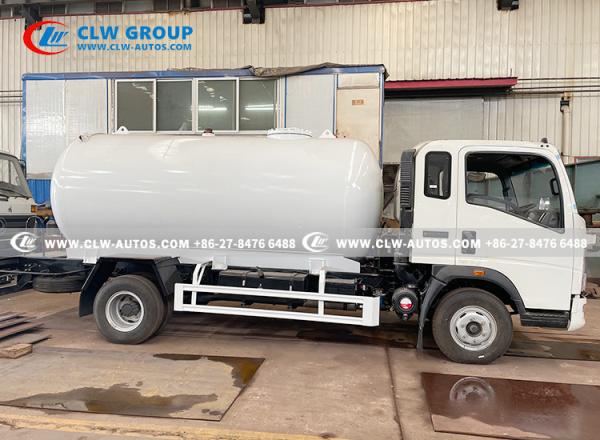

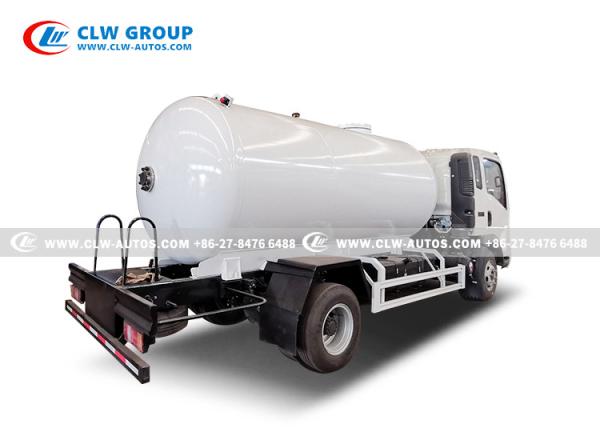

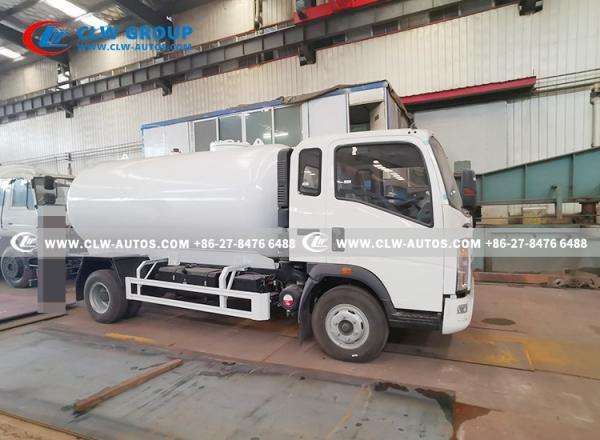

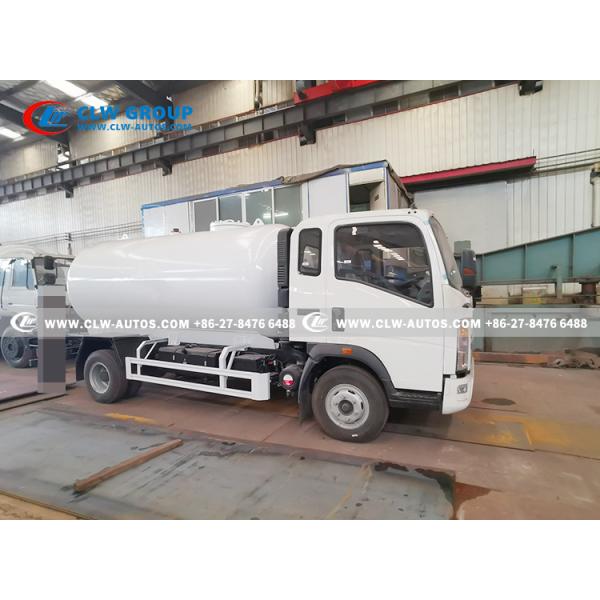

Reference Picture

HOWO LPG Bobtail Propane Delivery Truck 2.5ton 5000liters

Our Service

  • Quick feedback to solve your questions

  • Professional engineering and production team

  • Related Accessories and spare parts offered,no future worries

  • Regular customer after-sale visiting

  • Free technical staff training and guidance

  • Reasonable price and good quality

  • Quick delivery and shipment

HOWO LPG Bobtail Propane Delivery Truck 2.5ton 5000liters

HOWO LPG Bobtail Propane Delivery Truck 2.5ton 5000liters
