Isuzu 20cbm 20m3 Hook Lift Waste Collection Truck Hooklift Roll Off Truck
Isuzu 20cbm 20m3 Hook Lift Waste Collection Truck Hooklift Roll Off Truck
Isuzu 20cbm 20m3 Hook Lift Waste Collection Truck Hooklift Roll Off Truck
Isuzu 20cbm 20m3 Hook Lift Waste Collection Truck Hooklift Roll Off Truck
Isuzu 20cbm 20m3 Hook Lift Waste Collection Truck Hooklift Roll Off Truck
Isuzu 20cbm 20m3 Hook Lift Waste Collection Truck Hooklift Roll Off Truck
Specifications
Brand Name :
CLW
Model Number :
CLW57DUE
Certification :
ISO9001, CCC, BV, SGS
Place of Origin :
SUIZHOU, HUBEI, CHINA
MOQ :
1 unit
Price :
Negotiated
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500 units per month
Delivery Time :
30-35 days after receiving the deposit
Packaging Details :
Naked or waxed before shipment
material :
Carbon steel, thickness: 4mm
Product name :
Refuse Recycling Truck, Hook Arm lifting garbage truck
Drive Type :
6*4 10Wheel
Drive model :
LHD
Capacity :
20m3,20cbm
Truck Brand :
Sinotruk HOWO, Isuzu, Dongfeng, shacman, FAW, FOTON, jac
Tuck type :
Waste collection truck, Refuse removal truck
Other equipment :
with hyraulic system, Lifting Arm
Function :
Roll off type
Control System :
Multi-Valve, Remote control & Manual Operation
Loading&Unloading :
Hydraulic oil Cylinder
Equipment :
with Mobile Garbage compactor station or Garbage Bins
Color&Logo :
Customized
Description

Isuzu 20cbm 20m3 Hook Lift Portable Waste Collection Truck Hooklift Roll-Off Truck

Product description:

1. One truck can be matched with many rubbish bins. Which can improve the transportation capacity of the vehicle, saving energy and cost.

2. Adopt full hydraulic control operation system, garbage compartment and chassis can be completely separated, with reasonable structure, simple operation, stable, high efficiency, good sealing performance, convenient dumping and other advantages.

3. The dustbin is made of high quality wisco material.

4. The rear for mechanical locking device, the back door with sealing strip to prevent dirt, dust, debris caused by scattered.

5. You can select 2-4 rollers below the dustbin to facilitate movement and reduce the working pressure of the hook arm.

6. Sleeve joint, high pressure hose and high pressure steel pipe are installed reasonably,which ensure that there is no leakage for a long time, so as to be reliable, convenient maintenance and prolong the service life.

Product paremeters:​

Wheel Base 4350+1350 mm
Front Axle 7000kg
Rear Axle 18000kg
Engine Isu zu Diesel engine 6HK1-TCSG40
Engine horsepower 280HP EURO4
Displacement 7780 mL (Diesel)
Rated Rotation Speed 2400 rpm
Engine type
  • Six cylinder in-line vertical,
  • super charge inner cooling,
  • Four-stroke,
  • water-cooled,
  • direct injection,
Gearbox
  • Manuel type
  • Fast 9JS119TA,
  • 9-speed forward and 1 reverse
Cabin
  • spacious cabin,
  • Left hand drive;
  • One row and a half,
  • 2 Passenger allowed,
  • with A/C
Tire 1100R20 (10 pcs with one spare)
Exhaust Pipe At front of Cabin for safety
Fuel box Aluminum alloy, 400L
Garbage Truck Body
Tanker body material Quality high tensile Q345 carbon steel
Shape rectangular box, arc-shaped rear
Thickness Side 4mm, Bottom 5mm
Garbage Dimension 5600*2300*1500mm
Standard Configuration With one garbage bin, with hydraulic rear outrigger
Dump type Hydraulic cylinder lifting and self-loading
Dump angle ≥45°
Hydraulic system pressure ≤16Mpa
Protective Material Q235A Carbon Steel
Controlling Way Three-way hydraulic control valve
Other Configuration
1. Reinforced hydraulic swept-body system, with Double hydraulic cylinder
2. Swing Arm, Chain.
3. Hydraulic multi-way valve control.
Options Electronically controlled valve, trash bin type, trash bin quantity, etc.
Cycle times Less than 40s

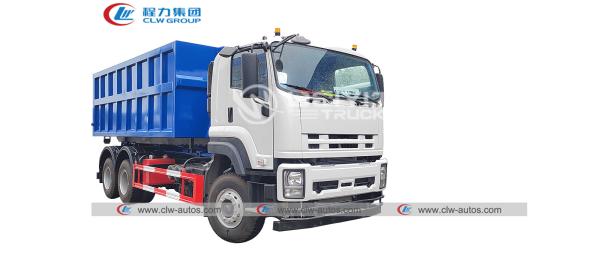

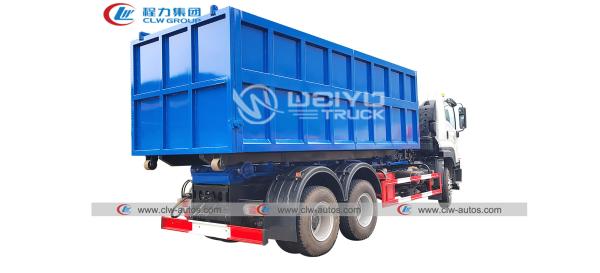

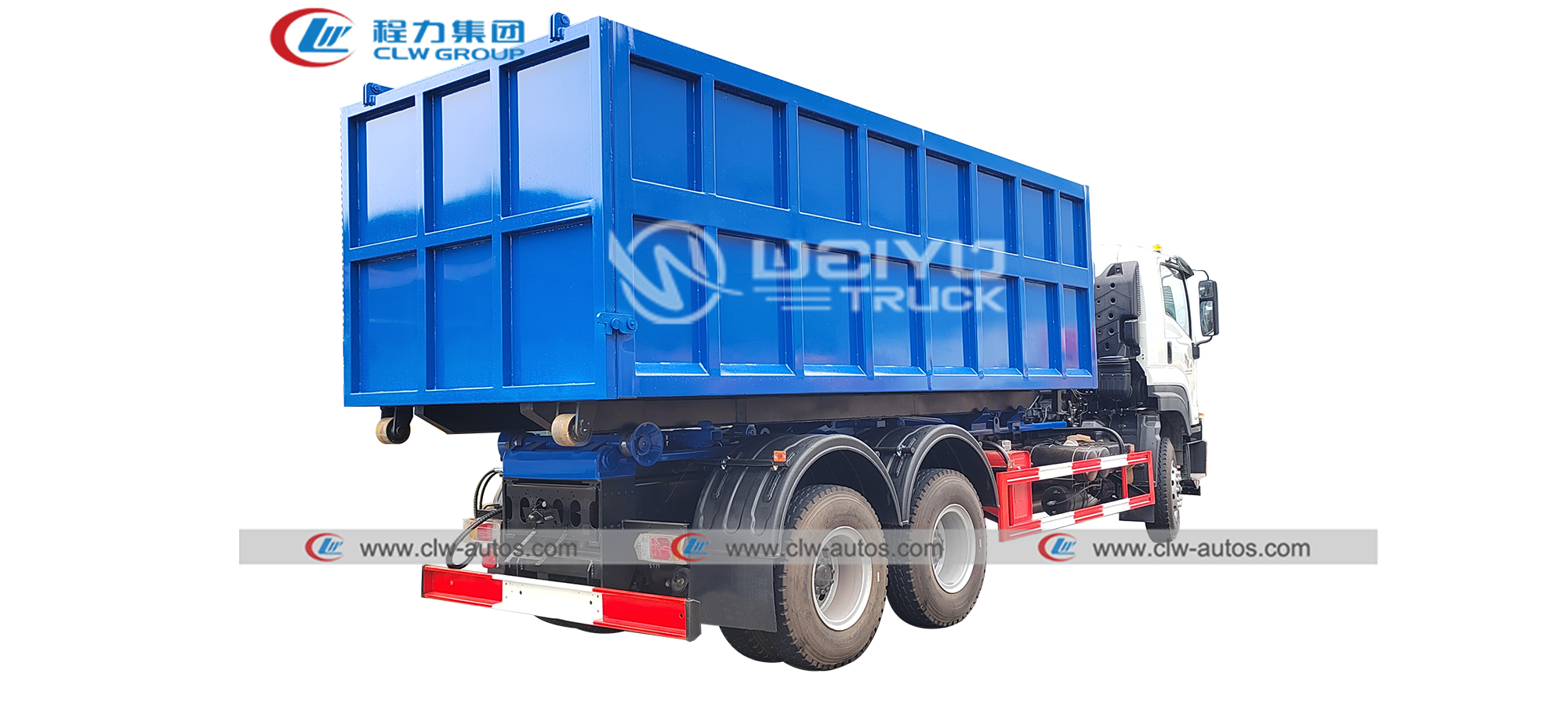

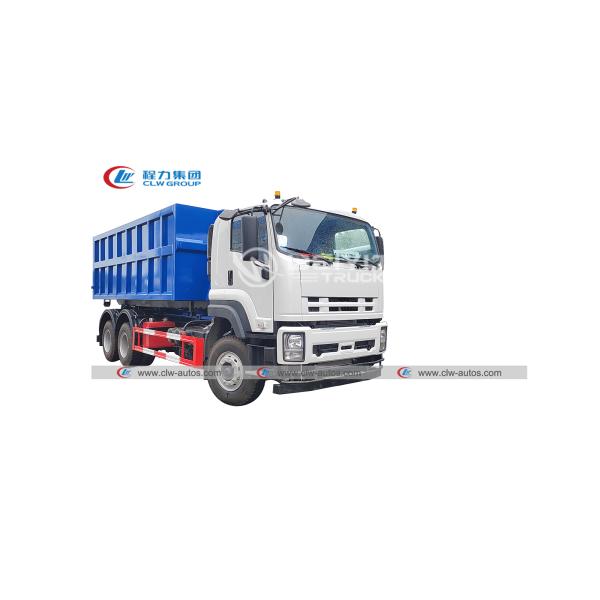

​Reference pictures

Isuzu 20cbm 20m3 Hook Lift Waste Collection Truck Hooklift Roll Off Truck

Isuzu 20cbm 20m3 Hook Lift Waste Collection Truck Hooklift Roll Off Truck

Our Factory

Isuzu 20cbm 20m3 Hook Lift Waste Collection Truck Hooklift Roll Off Truck

Isuzu 20cbm 20m3 Hook Lift Waste Collection Truck Hooklift Roll Off Truck

Why choose us:

  • Certificate: ASME, ISO, BV, SGS, CCC etc.
  • More than 30 independents workshops for different types of trucks
  • 1000 sets of equipment, 25 assemble lines.
  • 300 senior engineers and technicians and about 8000 staffs
  • 800kinds of trucks and semi-trailers with various functions
  • 20 years wholesale experience
  • Turnover 250 million and Export 20million annually
  • More than 100,000 trucks and semi-trailers annually.
  • Truck Sold to 90 countries
  • Long term cooperation with China leading chassis supplier DONGFENG,SINOTRUCK,FOTON,FAW,BEIBEN,ETC
  • We can handle production of bulk order water trucks of tender and government purchase in required time
