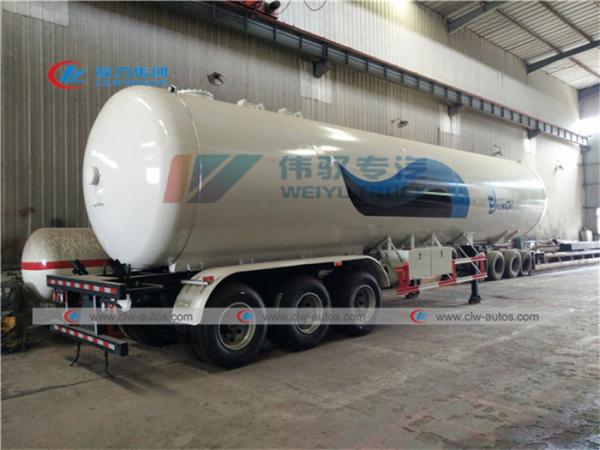

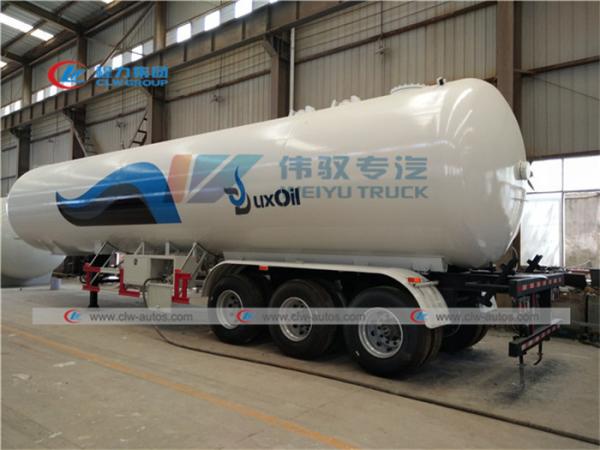

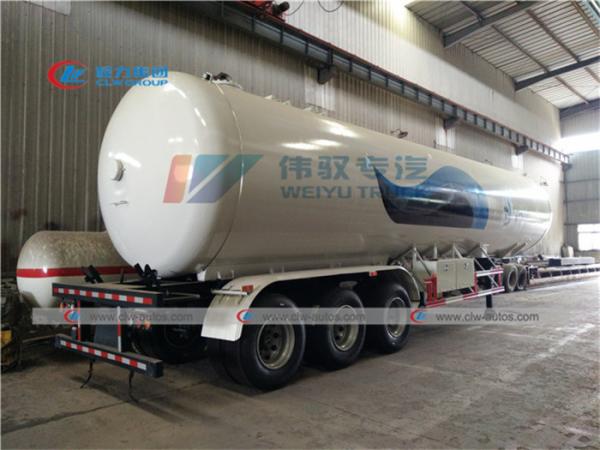

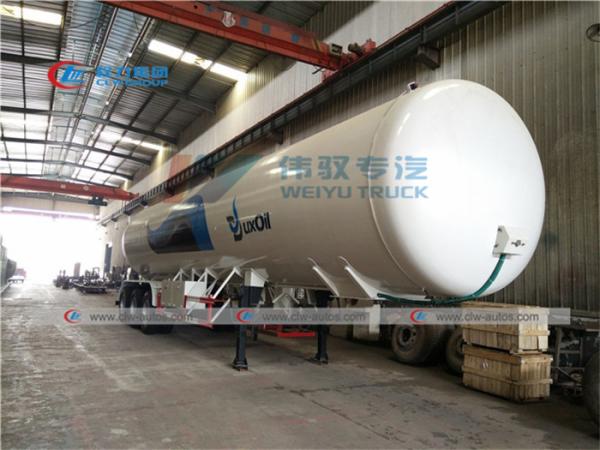

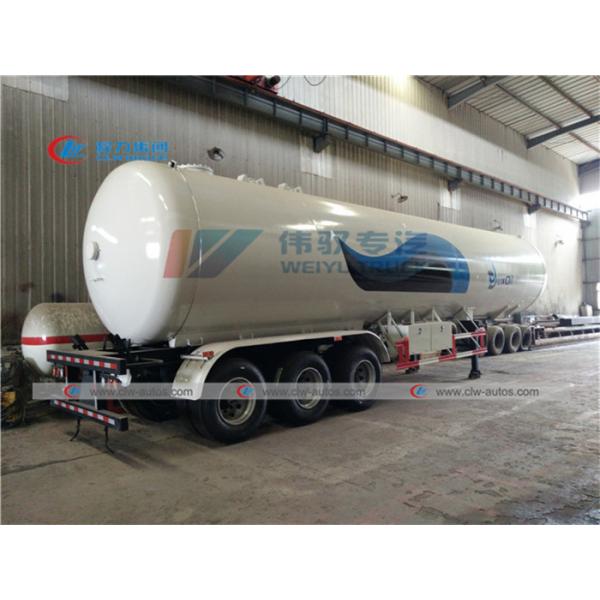

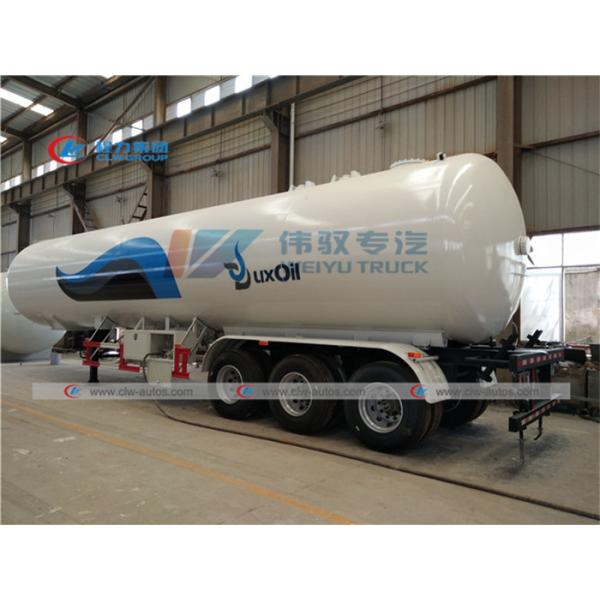

30 Tons 59600 Liters LPG Tank Trailer For Nigeria
30 Tons 59600 Liters LPG Tank Trailer For Nigeria
30 Tons 59600 Liters LPG Tank Trailer For Nigeria
30 Tons 59600 Liters LPG Tank Trailer For Nigeria
30 Tons 59600 Liters LPG Tank Trailer For Nigeria
30 Tons 59600 Liters LPG Tank Trailer For Nigeria
30 Tons 59600 Liters LPG Tank Trailer For Nigeria
30 Tons 59600 Liters LPG Tank Trailer For Nigeria
Specifications
Brand Name :
CLW
Model Number :
CLW9391er
Certification :
ASME,CCC,BV,SGS
Place of Origin :
SUIZHOU,CHINA
MOQ :
1 Unit
Price :
negotiable
Payment Terms :
L/C,, T/T, Western Union, MoneyGram
Supply Ability :
500 units/month
Delivery Time :
30 days after receiving deposit
Packaging Details :
naked,waxed,bulk ship,ro-ro
Tanker Material :
Q345r, Q370r, Q420r, SA516
tank Capacity :
60cbm
Design Pressure :
1.61MPa 16.1bar
Corrosion Allowance :
1.0mm
Warranty :
1 Year
Tank thickness :
12mm
Axle Brand :
BPW, Fuwa, Hj, L1, Clw, York
Suspension :
Leaf Spring
Life Time :
15 Years
Hydraulic Test Pressure :
2.21MPa 22.1bar
LOGO :
as customer's request
Description

30tons LPG Tank Trailer 59600Liters Mobile Transport Tanker For Nigeria​

Product Description

1) LPG Tanker Trailer is used to transport liquid petroleum gas in large quantity and in long distance from depot or terminal station to smaller lpg stations in other cities.We can offer lpg bridger truck tanker trailers from 40cbm to 60cbm and from 20tons to 30tons.

2) Manufacturing standards of lpg bridger truck tanker trailers : GB-150, ASME, U STAMP, CCC, ISO9001 : 2008

Specification

Tanker Essential Information
Volume of Tank (cbm) 60
Overall Dimensions(L*W*H)(mm) 12740*2480*3800
Tank Dimensions(Inner Diameter*thickness*Length) 2300*12*12354
Estimated Tare Weight (kg) 15300
Payload(kg) 20832
Total Weight(kg) 36132
Wheelbase(mm) 6800+1320+1320
Shell of Tanker
Products Liquefied Petroleum Gas (propane)
Fluid Property Flammable
Design Temperature(ºC) 50ºC
Design Pressure(MPa) 1.61
Corrosion Allowance(mm) 1.00
Weld Joint Factor 1
Major Materials of Bearing Pressure Tanker body:Q345,12mm,
End plate:Q345R,12mm
Main beam:16Mn
Detection
Heat Treatment Overall treatment in a furnace,600ºC to 640 ºC
Flaw Detection 100% Flaw detection
Test Pressure(MPa) 1.61
Hydraulic Test(MPa) 2.1
Magnaflux Inspection Aim at welding place that flaw detection can not cover
Manhole (As Customer's Requirement)
Quantity 1;on top
Size DN450
Safety Valve(As Customer's Requirement)
Quantity 2
Location On the top of tanker
Size DN80
Level Gauge
Type Manuel Switch type
Location At the rear of the end dish
Running System
Axles 3*13T BPW
Tire 12R22.5 Tubeless tire ,8 with one spare tire
Landing leg JOST
King Pin #50 or #90
Control System
Emergency Cut-off Valves 2 or 3
Ball Valve 4 or 6
Liquid Gauge 1
Pressure Indicating Thermometer 1
Pressure Gage 1

30 Tons 59600 Liters LPG Tank Trailer For Nigeria

30 Tons 59600 Liters LPG Tank Trailer For Nigeria

30 Tons 59600 Liters LPG Tank Trailer For Nigeria

30 Tons 59600 Liters LPG Tank Trailer For Nigeria

Successful case in different countries

30 Tons 59600 Liters LPG Tank Trailer For Nigeria

30 Tons 59600 Liters LPG Tank Trailer For Nigeria

Related key words: 30tons LPG tank trailer, LPG transport tanker, LPG mobile transport Tanker, 30tons LPG tanker trailer
