ISUZU GIGA Truck Mounted Palfinger SPS4000 Straight Boom Crane
ISUZU GIGA Truck Mounted Palfinger SPS4000 Straight Boom Crane
ISUZU GIGA Truck Mounted Palfinger SPS4000 Straight Boom Crane
ISUZU GIGA Truck Mounted Palfinger SPS4000 Straight Boom Crane
ISUZU GIGA Truck Mounted Palfinger SPS4000 Straight Boom Crane
ISUZU GIGA Truck Mounted Palfinger SPS4000 Straight Boom Crane
ISUZU GIGA Truck Mounted Palfinger SPS4000 Straight Boom Crane
ISUZU GIGA Truck Mounted Palfinger SPS4000 Straight Boom Crane
ISUZU GIGA Truck Mounted Palfinger SPS4000 Straight Boom Crane
ISUZU GIGA Truck Mounted Palfinger SPS4000 Straight Boom Crane
Specifications
Brand Name :
CLW
Model Number :
CLW5251WYSCD
Certification :
ISO, CCC
Place of Origin :
Suizhou,China
MOQ :
1 UNIT
Price :
18520 usd/unit~98660 usd/unit
Payment Terms :
L/C, T/T, D/P, T/T, Western Union, D/A
Supply Ability :
300units/month
Delivery Time :
Within 30days after received advance payments
Packaging Details :
Naked package shipped by bulk ship
Truck brand :
ISUZU,Dongfeng,Shacman,Sinotruk howo,CAMC,FAW Crane Truck
Driving model :
LHD,RHD Crane Truck
Crane brand :
XCMG,PALFINGER,CLW Crane Truck
Max. crane capacity :
12tons,16tons,14tons crane truck
Crane type :
telescopic boom crane and knuckle boom crane
Engine :
Diesel engine 350hp Crane Truck
Material :
Q235 carbon steel Crane Truck
Max. Lifting height :
21meters Crane Truck
Working radius :
18.8meters Crane Truck
Turning angle :
360 ° Crane Truck
Origin :
Suizhou city,China Crane Truck
Crane model :
SPS4000 Crane Truck
Description
ISUZU GIGA 10-Wheel 16Tons Straight Boom Crane Truck With Palfinger SPS4000 Crane

-- ISUZU Crane Truck (also called truck mounted crane,Truck with Crane,small crane Truck,truck mounted telescopic crane,truck mounted jib crane,truck mounted hydraulic crane) is used for lifting different kinds of cargo such as bricks,tree, steel pipeline, telegraph pole and stone etc.

-- crane truck can be divided into various types as follows,

1) according to truck brands, there are SINOTRUK HOWO, FOTON, Dongfeng, SHACMAN, CAMC, JAC, JMC and ISUZU crane truck;

2) according to driving model: 4x2, 4x4, 6X4, 6x6, 8x4, 8x8 and 10x4 crane truck ;

3) according to lifting weight: 2tons 3.2tons 5tons 6.3tons 8tons 10tons 12tons 15tons 18tons 20tons 25tons 30tons crane truck

4) According to crane type,there are telescopic and knuckle crane truck .

Feature

-- Crane: We can supply International brand XCMG and PALFINGER or our own brand CLW for optional.

-- Landing leg: Hydraulic control, top quality, easy for operation.

-- Storage box: High quality carbon steel Q235

-- Truck chassis:Powerful ISUZU Diesel engine truck chassis

-- Tire: 11.00R20 or 295R/8022.5 tire with high trafficability.

-- Crane is designed with high-strength steel plate and hexagonal boom, featuring high strength, light dead weight and strong lifting capacity.

-- Arm frame form: folding arm or straight-arm

-- XCMG crane, operating radius of 18.8 meters, maximum lifting weight of 16tons.
-- turning Angle 360°.

Reference picture

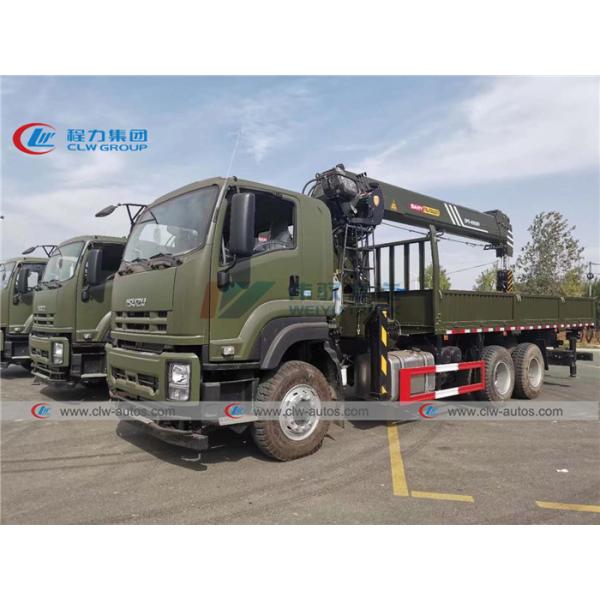

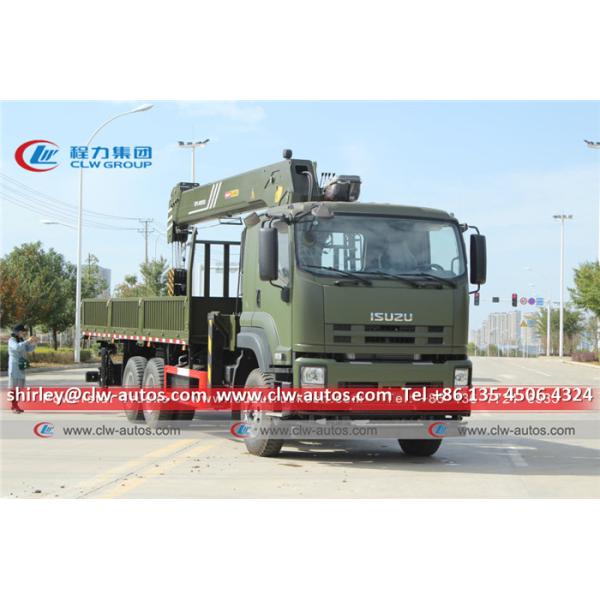

front side view of isuzu 16tons crane truck

ISUZU GIGA Truck Mounted Palfinger SPS4000 Straight Boom Crane

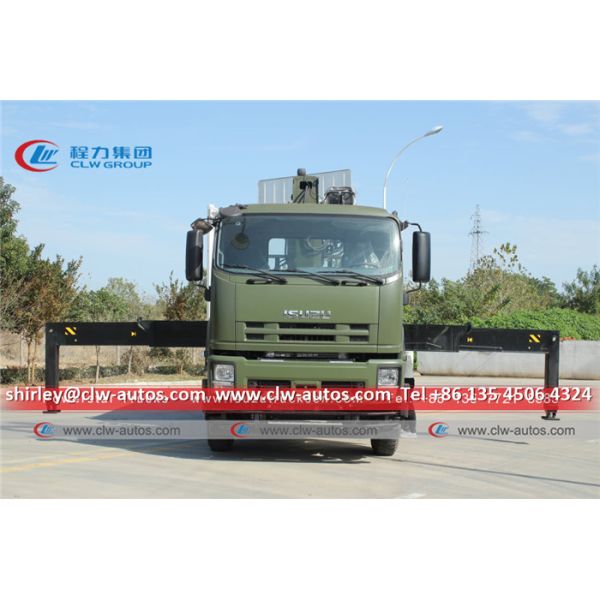

front view of isuzu 16tons crane truck

ISUZU GIGA Truck Mounted Palfinger SPS4000 Straight Boom Crane

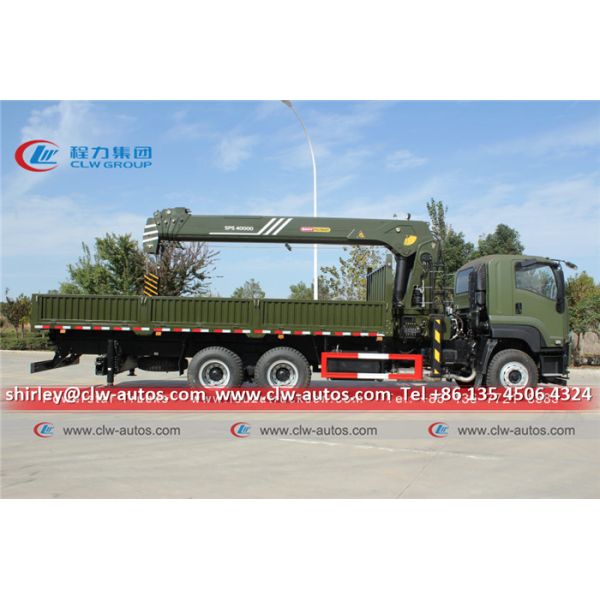

side view of isuzu 16tons crane truck

ISUZU GIGA Truck Mounted Palfinger SPS4000 Straight Boom Crane

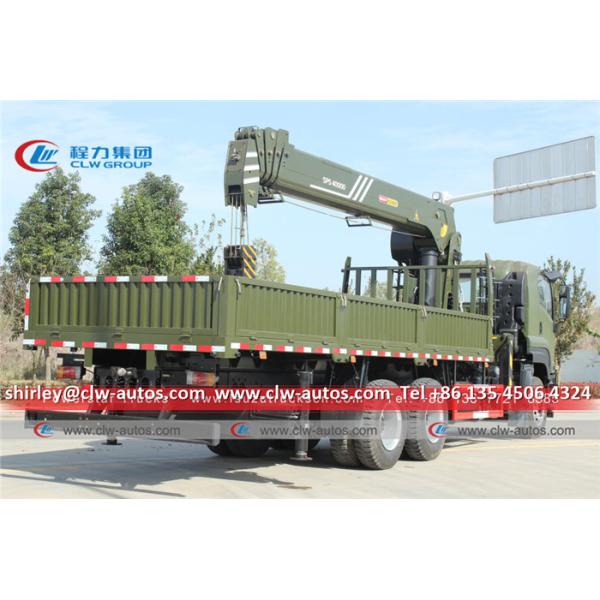

rear side view of isuzu 16tons crane truck

ISUZU GIGA Truck Mounted Palfinger SPS4000 Straight Boom Crane

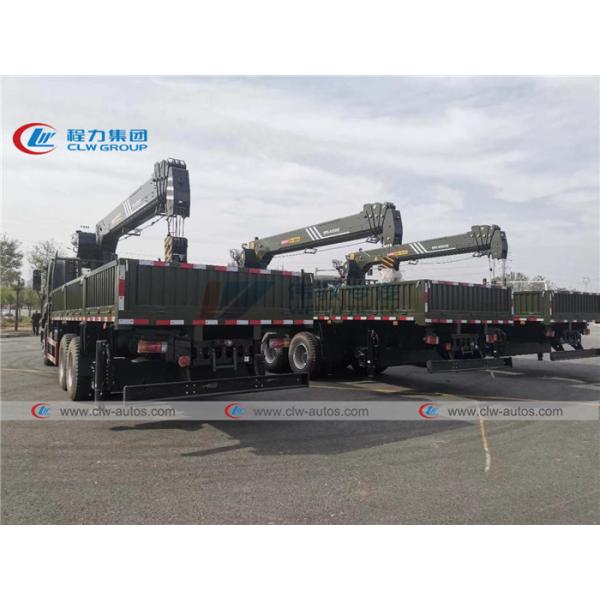

bulk delivery of isuzu 16tons crane truck with palfinger SPS4000

ISUZU GIGA Truck Mounted Palfinger SPS4000 Straight Boom CraneISUZU GIGA Truck Mounted Palfinger SPS4000 Straight Boom Crane

ISUZU GIGA Truck Mounted Palfinger SPS4000 Straight Boom Crane

ISUZU GIGA Truck Mounted Palfinger SPS4000 Straight Boom Crane

Specification
Cabin Dongfeng Kingrun
Vehicle Main Dimensions (L x W x H)mm 12000×2550×3800
Wheel base (mm) 1850+4615+1300
Wheel track (front/rear) (mm) 1880/1800
Approach/Departure angle(°) 20/12
Weight in KGS Tare Weight 16200KG
Loading Capacity 14800 KG
Front axles loading capacity 7000*2
Rear axles loading capacity 18000*2
Max. driving speed(km/h) 85
Engine Brand ISUZU
Model 6UZ1-TCG40　
Type 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
Horse Power(HP) 350HP
Emission standard Euro IV
Gearbox 9 forwards & 1 reverse
Clutch Reinforced diaphragm clutch, diameter 430mm
Steering Gear power steering, hydraulic steering with power assistance
Fuel tank (L) 300
Tire 11R22.5 tire,12 pieces with one spare
Brakes

Service brake: dual circuit compressed air brake

Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels

Auxiliary brake: engine exhaust valve brake　
Model XCMG/CLW/PALFINGER
Max. Lifting Capacity KG 16000
Max. Lifting momen T.M 43.2
Lifting height M 20
Working radius M 18.8
Recommend power KW 41
Max. Oil Flow of Hydraulic System L/Min 80
Max. Pressure of Hydraulic System Mpa 28
Oil Tank capacity L 260
Crane weight KG 6020
Installation Space mm 1400
Rotation Angle ° 360° All rotation
