Dongfeng LHD 5000 Liters Gasoline Delivery Truck
Dongfeng LHD 5000 Liters Gasoline Delivery Truck
Dongfeng LHD 5000 Liters Gasoline Delivery Truck
Dongfeng LHD 5000 Liters Gasoline Delivery Truck
Dongfeng LHD 5000 Liters Gasoline Delivery Truck
Dongfeng LHD 5000 Liters Gasoline Delivery Truck
Dongfeng LHD 5000 Liters Gasoline Delivery Truck
Dongfeng LHD 5000 Liters Gasoline Delivery Truck
Dongfeng LHD 5000 Liters Gasoline Delivery Truck
Dongfeng LHD 5000 Liters Gasoline Delivery Truck
Specifications
Brand Name :
CLW
Model Number :
CLW5704ce
Certification :
CCC,ISO,BV,SGS
Place of Origin :
Suizhou,China
MOQ :
1 UNIT
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
300 Units
Delivery Time :
20-30 Days
Packaging Details :
Naked Pack with Wax,bulk ship,ro-ro
Material :
Carbon Steel, Stainless Steel or Aluminum Alloy
thickness :
side 3mm, button 4mm
Condition :
New
Tanker Volume :
3m3, 4m3, 5m3, 6m3, 8m3, 10m3, etc.
Tank Shape :
Square Round, Round
Oil Pump :
Chinese Famous Brand
Transport Oil Type :
Diesel, Petrol, Gasoline, Oil,etc.
Oil Dispenser :
Chinese Famous Brand
Oil Vapor Recovery System :
Optional
Warranty :
12 Months
Logo :
Customized LOGO
Description

Dongfeng LHD 5000 Liters Fuel Dispenser Truck Delivery Tanker Truck Petrol/Diesel Refueling

Product Description

1. Tank material: we can provide carbon steel tanks, stainless steel tanks, manganese steel tanks, aluminum tanks, steel with plastic (or rubber) tanks and plastic tanks.
2. Good welding: tank body is adopted an advanced automatic vertical welding techniques and head arc butt welding technology, as well as the whole- steel forming a composite.
3. High safety: equip with active and passive emergency protection devices, to provide full closure remote manipulation of materials handing functions. Equip separators [Baffle] to prevent surging of liquid towards bulk head
4. Function: The tank body is suit for loading light fuel oil, heavy oil, sulfuric acid, hydrochloric acid, nitric acid, caustic soda hydrogen peroxide, alcohol, benzene, cooking oil and so on.
5. Oil punp: gear pump, self-absorption (centrifuge) pump, chemical pump, heavy, oil pump, stainless steel pump are optional.
6. Tank shape: shape of tank body can be designed to square round, round,Heat insulation device such as heating pipes, insulation.

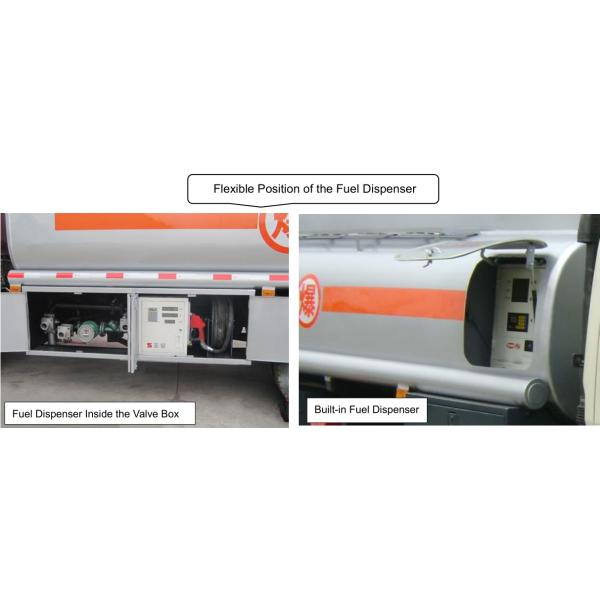

7. Refueling machine: the refueling machine we use are tax controled oiling machine with accurate figure of volume, sum of money,etc.
8. Optional: reading meter for outlet and inlet,self-discharge valve at rail or side of tank body, compartment quantity according to the demand.

General Technical Parameters
Overall Dimension 5995×2050x2500(mm)
Gross Vehicle Weight 7360(Kg)
Curb Weight 3765(Kg)
Chassis Specification
Chassis Brand Dongfeng
Drive model 4*2
Cabin Dongfeng, Single, LHD, with air conditioner
Number of Passengers 2
Engine Model 4-stroke direct injection , 4-cylinder in-line, intercooled supercharging, with ABS.
Power 75KW/102HP
Emission standard EURO 2
Fuel type Diesel
Gearbox 5 Forwards & 1 Reverse, manual operation. With power steering.
Brake System Oil break
Wheel Base 3308mm
Front/Rear Axle Loading 2000/4000(Kg)
Tire 7.00-16, 6pcs with 1 spare tire
Max Driving Speed 90(km/h)
Upperstructure Specification
Oil Tank Effective Volume 6CBM
Transport Oil Type Diesel
Tank dimension 4000x1700x1100
Tank Thickness 4mm
Tank Material Q235, carbon steel( also can choose stainless steel,aluminum )
Refueling System 1. Oil pump;
2. Oil dispenser machine;
3. Hose reel with filling gun.
Equipment 1. Manhole 1 Unit
2. Ladder handrail
3. Electrostatic Wire Reel
4. Loading, Discharge
5. Emergency cut-off valve 1 Unit
Options Compartments, unloading valve, flow meter, API standard manhole, oil vapor recovery, anti-overflow probe.

Dongfeng LHD 5000 Liters Gasoline Delivery TruckDongfeng LHD 5000 Liters Gasoline Delivery Truck

Dongfeng LHD 5000 Liters Gasoline Delivery Truck

Production line for oil tank truck & trailer
Dongfeng LHD 5000 Liters Gasoline Delivery Truck
